On the classification of generalized competitive Atkinson-Allen models via the dynamics on the boundary of the carrying simplex

Mats Gyllenberg; Jifa Jiang; Lei Niu; Ping Yan

doi:10.3934/dcds.2018027

Article Contents

2018, Volume 38, Issue 2: 615-650. Doi: 10.3934/dcds.2018027

This issue Previous Article Bounded and unbounded capillary surfaces derived from the catenoid Next Article On an exponential attractor for a class of PDEs with degenerate diffusion and chemotaxis

On the classification of generalized competitive Atkinson-Allen models via the dynamics on the boundary of the carrying simplex

1.
Department of Mathematics and Statistics, University of Helsinki, Helsinki FI-00014, Finland
2.
Mathematics and Science College, Shanghai Normal University, Shanghai 200234, China
3.
School of Sciences, Zhejiang A & F University, Hangzhou 311300, China

* Corresponding author: Lei Niu
* Corresponding author: Lei Niu

Received: May 1, 2017

Revised: August 1, 2017

Published online: February 1, 2018

This work is supported by the National Natural Science Foundation of China (NSFC) under Grant No. 11371252 and Grant No. 11771295, Shanghai Gaofeng Project for University Academic Program Development, and the Academy of Finland..

Abstract / Introduction Full Text(HTML) Figure(15) / Table(1) Related Papers Cited by

Abstract

We propose the generalized competitive Atkinson-Allen map

$T_i(x)=\frac{(1+r_i)(1-c_i)x_i}{1+\sum_{j=1}^nb_{ij}x_j}+c_ix_i, 0 <c_i <1, b_{ij}, r_i>0, i, j=1, ···, n, $

which is the classical Atkson-Allen map when $r_i=1$ and $c_i=c$ for all $i=1, ..., n$ and a discretized system of the competitive Lotka-Volterra equations. It is proved that every $n$-dimensional map $T$ of this form admits a carrying simplex Σ which is a globally attracting invariant hypersurface of codimension one. We define an equivalence relation relative to local stability of fixed points on the boundary of Σ on the space of all such three-dimensional maps. In the three-dimensional case we list a total of 33 stable equivalence classes and draw the corresponding phase portraits on each Σ. The dynamics of the generalized competitive Atkinson-Allen map differs from the dynamics of the standard one in that Neimark-Sacker bifurcations occur in two classes for which no such bifurcations were possible for the standard competitive Atkinson-Allen map. We also found Chenciner bifurcations by numerical examples which implies that two invariant closed curves can coexist for this model, whereas those have not yet been found for all other three-dimensional competitive mappings via the carrying simplex. In one class every map admits a heteroclinic cycle; we provide a stability criterion for heteroclinic cycles. Besides, the generalized Atkinson-Allen model is not dynamically consistent with the Lotka-Volterra system.

Keywords:

Discrete-time competitive model,
carrying simplex,
generalized competitive Atkinson-Allen model,
classification,
Neimark-Sacker bifurcation,
Chenciner bifurcation,
invariant closed curve,
heteroclinic cycle.

Mathematics Subject Classification: Primary: 37CXX, 37N25, 37C29; Secondary: 92D25.

Citation:

Full Text(HTML)

Figure 8. The orbits emanating from x₀ = (1.004, 0.9927, 1.48) and x₀ = (1.001, 1.002, 1.001) for the map T ∈ CGAA(3) with the parameters B^[29], r_i^[29] and c₁ = 0.999655, c₂ = 0.339655, c₃ = 0.2 are asymptotic to the bigger quasiperiodic curve and the smaller one respectively, where B^[29] and r_i ^[29] are given in Example 4.1.

Download: Full-size image PowerPoint slide

Figure 1. The dynamics in Σ replaced by ∆¹. A closed dot • stands for a fixed point attracting on Σ, and an open dot ° stands for the one repelling on Σ. Each Σ denotes an equivalence class.

Download: Full-size image PowerPoint slide

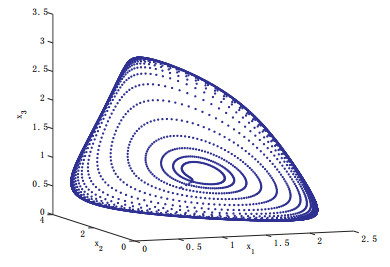

Figure 2. The orbit emanating from x₀ = (0.7667, 0.7667, 1) for the map T ∈ CGAA(3) with the parameters B^[26], r_i ^[26] and c_i, i = 1, 2, 3 tends to an attracting quasiperiodic curve (the blue circle), where B^[26] and r_i ^[26] are given in Example 4.1 and c₁ = 0.81, c₂ = 0.5, c₃ = 0.5.

Download: Full-size image PowerPoint slide

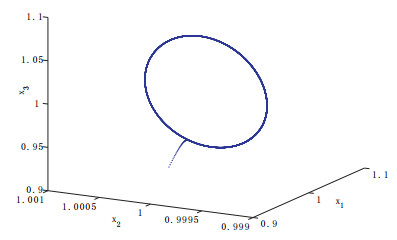

Figure 3. The orbit emanating from x₀ = (0.7667, 1, 0.7667) for the map T ∈ CGAA(3) with the parameters B^[27], r_i ^[27] and c_i, i = 1, 2, 3 tends to an attracting quasiperiodic curve (the blue boundary), where B^[27] and r_i ^[27] are given in Example 4.1 and c₁ = 0.2, c₂ = 0.8, c₃ = 0.8.

Download: Full-size image PowerPoint slide

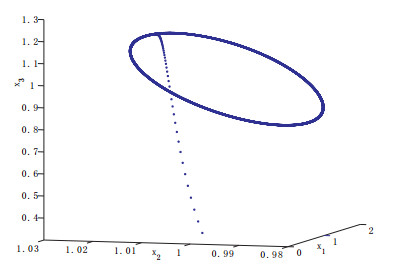

Figure 4. The orbit emanating from x₀ = (0.9333, 1, 0.9333) for the map T ∈ CGAA(3) with the parameters B^[29], r_i ^[29] and c_i, i = 1, 2, 3 tends to an attracting quasiperiodic curve (the blue circle), where B^[29], r_i ^[29], i = 1, 2, 3 are given in Example 4.1 and c₁ = 0.89, c₂ = 0.9995, c₃ = 0.8.

Download: Full-size image PowerPoint slide

Figure 5. The orbit emanating from x₀ = (0.3333, 1, 0.3333) for the map T ∈ CGAA(3) with the parameters B^[31], r_i ^[31] and c_i, i = 1, 2, 3 tends to an attracting quasiperiodic curve (the blue circle), where B^[31], r_i ^[31] are given in Example 4.1 and c₁ = 0.9, c₂ = 0.9962, c₃ = 0.75.

Download: Full-size image PowerPoint slide

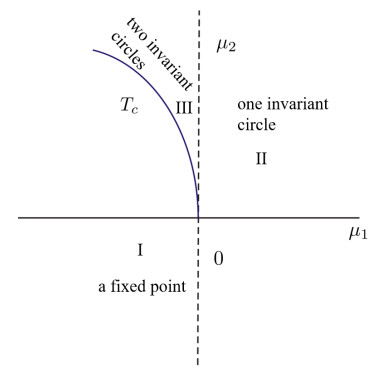

Figure 6. Bifurcation diagram of the Chenciner bifurcation in the (µ₁, µ₂)-plane for the case L₂(0) < 0. The origin is the Chenciner bifurcation point. The vertical dashed line µ₁ = 0 is the NeimarkSacker bifurcation curve. In the region Ⅰ below the curve T_c, there is only one fixed point which is stable; in the region Ⅱ (µ₁ > 0), there is a unique invariant closed curve which is stable; in the region Ⅲ between the curve T_c and the positive µ₂-axis, a stable invariant closed curve (outer) and an unstable invariant closed curve (inner) coexist; on the solid curve T_c, these two circles coincide.

Download: Full-size image PowerPoint slide

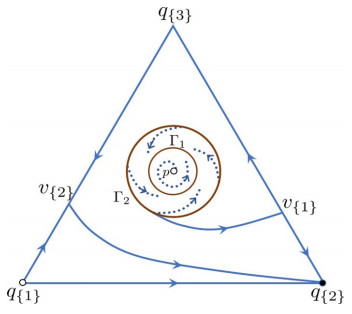

Figure 7. A possible phase portrait on the carrying simplex for the map $T\in{\rm{CGAA}}(3)$ in class $26$. A stable invariant closed curve, the smaller red circle $\Gamma_1$, and an unstable invariant closed curve, the bigger red circle $\Gamma_2$ coexist. All the orbits in $\dot{\Sigma}\setminus (\Gamma_2\cup R_p(\Gamma_2))$ except those on the stable manifold restricted to $\Sigma$ of $v_{\{1\}}$ converge to the axial fixed point $q_{\{2\}}$, where $R_p(\Gamma_2)$ denotes the component of $\Sigma\setminus \Gamma_2$ containing $p$.

Download: Full-size image PowerPoint slide

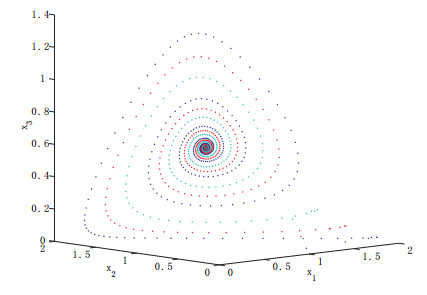

Figure 9. The orbits emanating from x₀ = (1, 0.0333, 0.0333), x₀ = (1, 0.1, 0.1) and x₀ = (1, 0.2, 0.2) for the map T ∈ CGAA(3) in Example 4.3 lead away from ∂Σ and tend to the positive fixed point p.

Download: Full-size image PowerPoint slide

Figure 10. The orbits emanating from $x_0=(0.8333,0.8333,1)$, $x_0=(0.9,0.9,1)$ and $x_0=(0.9333,0.9333,1)$ for the map $\hat{T}\in {\rm{CGAA}}(3)$ in Example 4.3 approach to $\partial\Sigma$.

Download: Full-size image PowerPoint slide

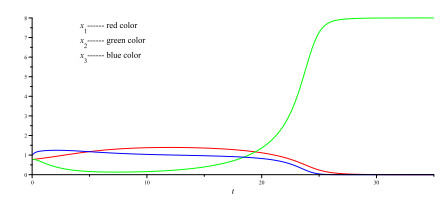

Figure 11. The orbit emanating from $x_0=(0.7667,0.7667,1)$ converges to the axial steady state $q_{\{2\}}=(0,8,0)$ for system (21).

Download: Full-size image PowerPoint slide

Figure 12. The orbit emanating from x₀ = (0.7667, 1, 0.7667) approaches the heteroclinic cycle for system (21).

Download: Full-size image PowerPoint slide

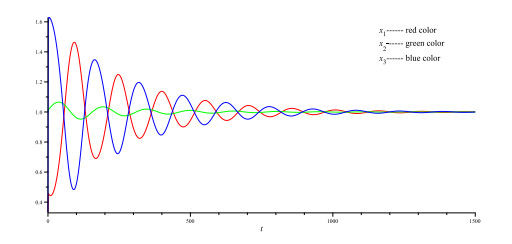

Figure 13. The orbit emanating from x₀ = (0.3333, 1, 0.3333) tends to p = (1, 1, 1) for LV system (21).

Download: Full-size image PowerPoint slide

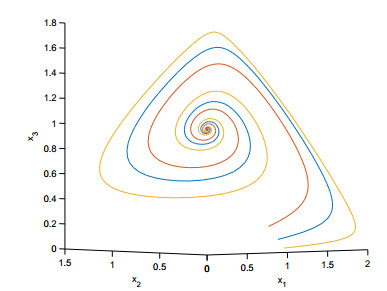

Figure 14. The orbits emanating from x₀ = (1, 0.0333, 0.0333), x₀ = (1, 0.1, 0.1) and x₀ = (1, 0.2, 0.2) for LV system (21) with the parameters B, c_i and r_i given in Example 4.3 tend to p = $\left( {\frac{{258}}{{385}},\frac{{346}}{{385}},\frac{{236}}{{385}}} \right)$

Download: Full-size image PowerPoint slide

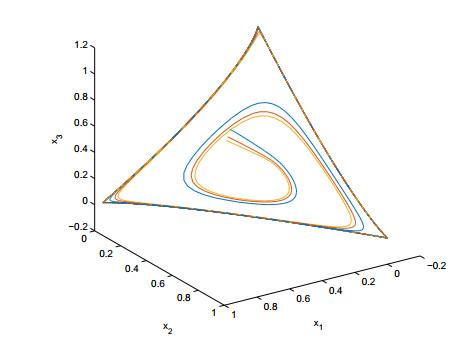

Figure 15. The orbits emanating from $x_0=(0.8333,0.8333,1)$, $x_0=(0.9,0.9,1)$ and $x_0=(0.9333,0.9333,1)$ for LV system (21) with parameters $\hat{B}$, $\hat{c}_i$ and $\hat{r}_i$ given in Example 4.3 approach to the heteroclinic cycle.

Download: Full-size image PowerPoint slide

Table 1. The 33 equivalence classes in CGAA(3), where $\gamma_{ij}:=r_j-b_{ji}\frac{r_i}{b_{ii}}$, $\beta_{ij}=\frac{r_ib_{jj}-r_jb_{ij}}{b_{ii}b_{jj}-b_{ij}b_{ji}}$ for $i, j=1, 2, 3$ and $i\neq j$, and each $\Sigma$ is given by a representative model of that class. A fixed point is represented by a closed dot $\bullet$ if it attracts on $\Sigma$, by an open dot $\circ$ if it repels on $\Sigma$, and by the intersection of its hyperbolic manifolds if it is a saddle on $\Sigma$.

Class	The Corresponding Parameters	Phase Portrait in $\Sigma$
1	$\gamma_{12} <0, \gamma_{13}<0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}>0, \gamma_{32}<0$
2	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}>0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
3	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}>0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$
4	(ⅰ) $\gamma_{12}>0, \gamma_{13}<0, \gamma_{21}>0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
5	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}<0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
6	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}<0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$
7	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}<0$ (ⅱ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
8	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}<0, \gamma_{31}<0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
9	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
10	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
11	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2<0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
12	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}>0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2<0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
13	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}>0$ (ⅱ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
14	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}>0, \gamma_{31}>0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
15	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
16	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
17	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2>0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
18	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}<0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2>0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
19	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}<0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$
20	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
21	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2<0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
22	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2>0$
23	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}<0$ (ⅱ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
24	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
25	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2>0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
26	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2<0$
27	$\gamma_{12}>0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}>0, \gamma_{31}>0, \gamma_{32}<0$
28	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}>0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
29	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}<0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
30	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}>0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
31	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}<0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
32	(ⅰ) $\gamma_{12}<0, \gamma_{13}<0, \gamma_{21}<0, \gamma_{23}<0, \gamma_{31}<0, \gamma_{32}<0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1>0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2>0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3>0$
33	(ⅰ) $\gamma_{12}>0, \gamma_{13}>0, \gamma_{21}>0, \gamma_{23}>0, \gamma_{31}>0, \gamma_{32}>0$ (ⅱ) $b_{12}\beta_{23}+b_{13}\beta_{32}-r_1<0$ (ⅲ) $b_{21}\beta_{13}+b_{23}\beta_{31}-r_2<0$ (ⅳ) $b_{31}\beta_{12}+b_{32}\beta_{21}-r_3<0$
