Numerical study of polynomial feedback laws for a bilinear control problem

 1 Institute of Mathematics and Scientific Computing, University of Graz, Heinrichstrasse 36, 8010 Graz, Austria 2 RICAM Institute, Austrian Academy of Sciences, Altenbergerstrasse 69, 4040 Linz, Austria

* Corresponding author: Karl Kunisch

Received  September 2017 Revised  July 2018 Published  September 2018

An infinite-dimensional bilinear optimal control problem with infinite-time horizon is considered. The associated value function can be expanded in a Taylor series around the equilibrium, the Taylor series involving multilinear forms which are uniquely characterized by generalized Lyapunov equations. A numerical method for solving these equations is proposed. It is based on a generalization of the balanced truncation model reduction method and some techniques of tensor calculus, in order to attenuate the curse of dimensionality. Polynomial feedback laws are derived from the Taylor expansion and are numerically investigated for a control problem of the Fokker-Planck equation. Their efficiency is demonstrated for initial values which are sufficiently close to the equilibrium.

Citation: Tobias Breiten, Karl Kunisch, Laurent Pfeiffer. Numerical study of polynomial feedback laws for a bilinear control problem. Mathematical Control & Related Fields, 2018, 8 (3&4) : 557-582. doi: 10.3934/mcrf.2018023
References:

show all references

References:

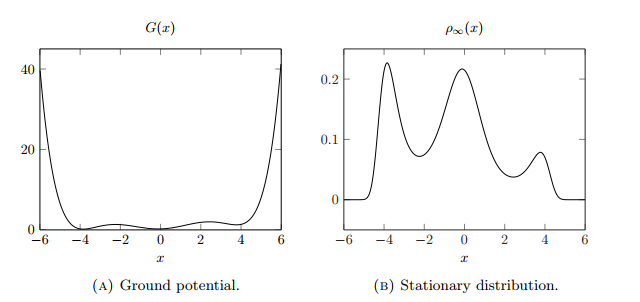

1D Fokker-Planck equation

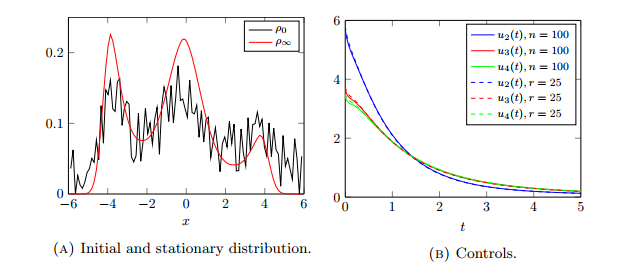

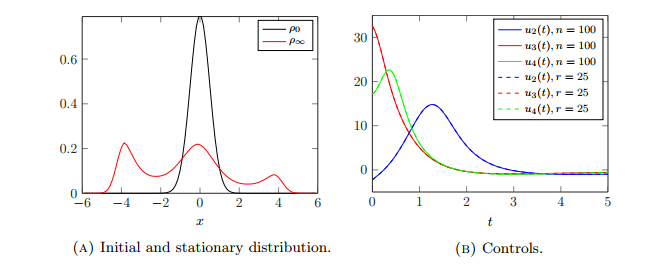

Comparison of the original and reduced models, for $n = 100$, $r = 25$, and $\beta = 10^{-4}$
Comparison of the original and reduced models, for $n = 100$, $r = 25$, and $\beta = 10^{-4}$

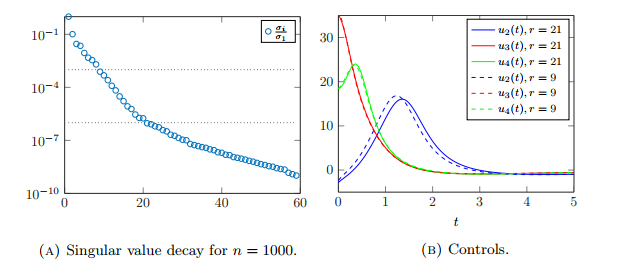

">Figure 4.  Comparison of the reduced models with $r = 21$ and $r = 9$, derived from a finer discretization (with $n = 1000$), with the setup of Figure 3
Convergence of the control laws for $\beta = 10^{-4}, n = 1000$ and $r = 9.$
Convergence of the control laws for $\beta = 10^{-4}, n = 1000$ and $r = 9.$

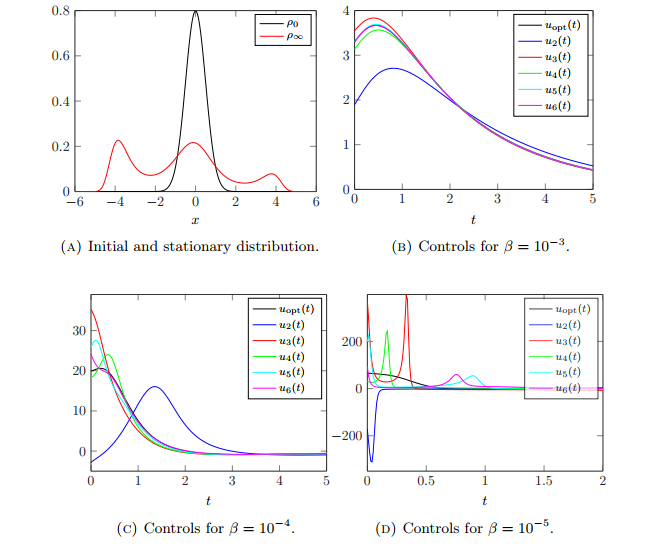

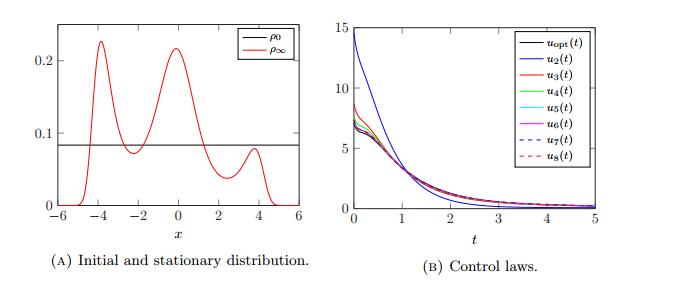

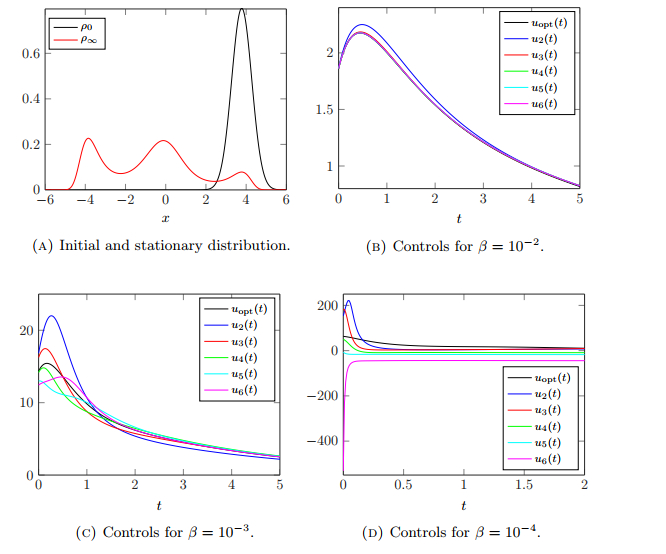

Initial condition and controls for the test case 2

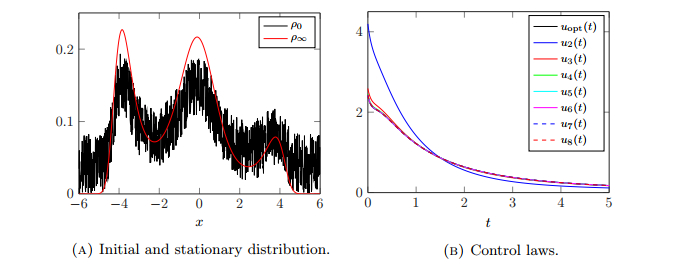

Initial condition and controls for the test case 3

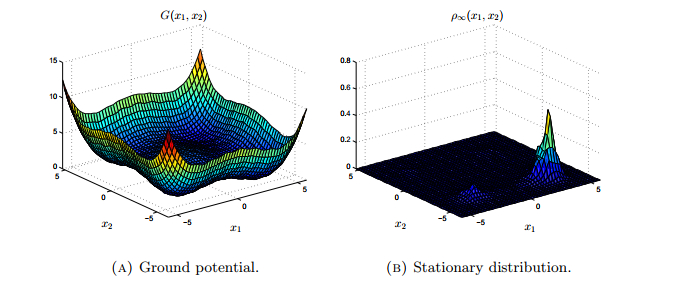

2D Fokker-Planck equation

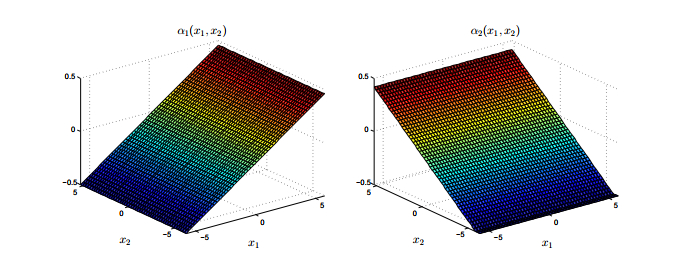

Control shape functions α1 and α2

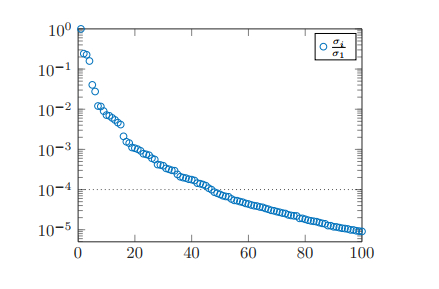

Singular value decay for n = 2500

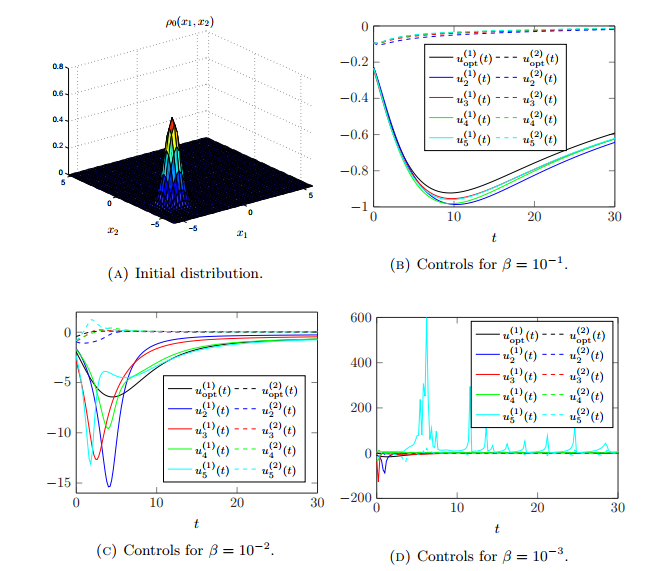

Initial condition and controls for the test case 4

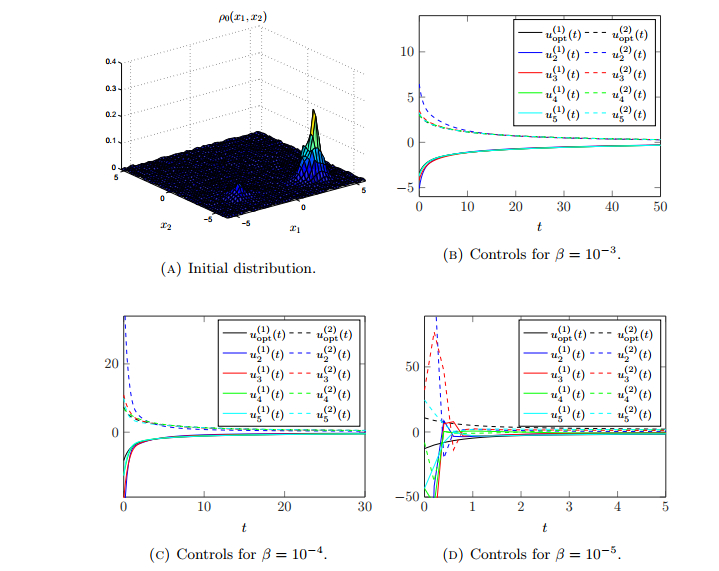

Initial condition and controls for the test case 5
Convergence results for the test case 1
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_6)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.038 0.038 0.038 0.038 0.038 0.038 1e$^{-4}$ 0.034 0.033 0.033 0.033 0.033 0.032 1e$^{-5}$ 0.037 0.031 0.031 0.031 0.031 0.030 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ $p=6$ 1e$^{-3}$ 0.228 0.026 0.024 0.024 0.024 1e$^{-4}$ 4.26 1.19 0.82 0.61 0.61 1e$^{-5}$ 29.8 10.3 7.91 4.70 4.05 (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_6)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.038 0.038 0.038 0.038 0.038 0.038 1e$^{-4}$ 0.034 0.033 0.033 0.033 0.033 0.032 1e$^{-5}$ 0.037 0.031 0.031 0.031 0.031 0.030 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ $p=6$ 1e$^{-3}$ 0.228 0.026 0.024 0.024 0.024 1e$^{-4}$ 4.26 1.19 0.82 0.61 0.61 1e$^{-5}$ 29.8 10.3 7.91 4.70 4.05 (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
Convergence results for the test case 2
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_6)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.156 0.155 0.155 0.155 0.155 0.154 5e$^{-4}$ 0.147 0.145 0.145 0.145 0.145 0.144 1e$^{-4}$ 0.138 0.122 0.120 0.120 0.120 0.119 5e$^{-5}$ 0.190 0.114 0.111 0.112 0.111 0.110 1e$^{-5}$ 0.205 0.194 0.104 0.111 0.113 0.095 (A) Cost of the controls up. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ $p=6$ 1e$^{-3}$ 1.149 0.169 0.119 0.034 0.031 5e$^{-4}$ 2.583 0.737 0.171 0.336 0.219 1e$^{-4}$ 18.50 7.02 3.16 4.01 1.52 5e$^{-5}$ 46.87 13.18 8.40 8.17 2.65 1e$^{-5}$ 90.5 78.0 39.0 42.6 34.3 (B) L2-distance between the controls up and the optimal control uopt.
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_6)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.156 0.155 0.155 0.155 0.155 0.154 5e$^{-4}$ 0.147 0.145 0.145 0.145 0.145 0.144 1e$^{-4}$ 0.138 0.122 0.120 0.120 0.120 0.119 5e$^{-5}$ 0.190 0.114 0.111 0.112 0.111 0.110 1e$^{-5}$ 0.205 0.194 0.104 0.111 0.113 0.095 (A) Cost of the controls up. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ $p=6$ 1e$^{-3}$ 1.149 0.169 0.119 0.034 0.031 5e$^{-4}$ 2.583 0.737 0.171 0.336 0.219 1e$^{-4}$ 18.50 7.02 3.16 4.01 1.52 5e$^{-5}$ 46.87 13.18 8.40 8.17 2.65 1e$^{-5}$ 90.5 78.0 39.0 42.6 34.3 (B) L2-distance between the controls up and the optimal control uopt.
Convergence results for the test case 3
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_6)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.525 0.511 0.511 0.512 0.510 0.507 5e$^{-4}$ 0.451 0.417 0.431 0.459 0.446 0.408 1e$^{-4}$ 0.381 0.368 2.689 $\infty$ $\infty$ 0.246 5e$^{-5}$ 0.381 0.432 $\infty$ $\infty$ $\infty$ 0.206 1e$^{-5}$ 0.365 $\infty$ $\infty$ $\infty$ $\infty$ 0.147 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ $p=6$ 1e$^{-3}$ 4.88 1.50 1.77 2.31 1.52 5e$^{-4}$ 11.26 5.03 7.11 11.89 11.99 1e$^{-4}$ 46.34 35.36 57.08 $\infty$ $\infty$ 5e$^{-5}$ 74.79 60.86 $\infty$ $\infty$ $\infty$ 1e$^{-5}$ 172.3 $\infty$ $\infty$ $\infty$ $\infty$ (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_6)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.525 0.511 0.511 0.512 0.510 0.507 5e$^{-4}$ 0.451 0.417 0.431 0.459 0.446 0.408 1e$^{-4}$ 0.381 0.368 2.689 $\infty$ $\infty$ 0.246 5e$^{-5}$ 0.381 0.432 $\infty$ $\infty$ $\infty$ 0.206 1e$^{-5}$ 0.365 $\infty$ $\infty$ $\infty$ $\infty$ 0.147 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ $p=6$ 1e$^{-3}$ 4.88 1.50 1.77 2.31 1.52 5e$^{-4}$ 11.26 5.03 7.11 11.89 11.99 1e$^{-4}$ 46.34 35.36 57.08 $\infty$ $\infty$ 5e$^{-5}$ 74.79 60.86 $\infty$ $\infty$ $\infty$ 1e$^{-5}$ 172.3 $\infty$ $\infty$ $\infty$ $\infty$ (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
Convergence results for the test case 4
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.247 0.235 0.234 0.234 0.232 5e$^{-4}$ 0.232 0.207 0.205 0.205 0.203 1e$^{-4}$ 0.252 0.180 0.174 0.174 0.171 5e$^{-5}$ 0.279 0.179 0.168 0.168 0.165 1e$^{-5}$ 0.524 0.182 20.696 0.164 0.158 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ 1e$^{-3}$ 3.53 0.80 0.19 0.14 5e$^{-4}$ 6.73 1.42 0.37 0.24 1e$^{-4}$ 27.40 5.78 1.83 1.24 5e$^{-5}$ 52.50 11.06 3.69 2.40 1e$^{-5}$ 257.01 63.97 84.31 10.61 (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_{\text{opt}})$ 1e$^{-3}$ 0.247 0.235 0.234 0.234 0.232 5e$^{-4}$ 0.232 0.207 0.205 0.205 0.203 1e$^{-4}$ 0.252 0.180 0.174 0.174 0.171 5e$^{-5}$ 0.279 0.179 0.168 0.168 0.165 1e$^{-5}$ 0.524 0.182 20.696 0.164 0.158 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ 1e$^{-3}$ 3.53 0.80 0.19 0.14 5e$^{-4}$ 6.73 1.42 0.37 0.24 1e$^{-4}$ 27.40 5.78 1.83 1.24 5e$^{-5}$ 52.50 11.06 3.69 2.40 1e$^{-5}$ 257.01 63.97 84.31 10.61 (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
Convergence results for the test case 5
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_{\text{opt}})$ 1e$^{-1}$ 7.58 7.57 7.57 7.57 7.52 5e$^{-2}$ 6.41 6.39 6.40 6.39 6.35 1e$^{-2}$ 3.70 3.34 3.09 3.32 3.00 5e$^{-3}$ 3.07 2.68 2.28 2.96 2.05 1e$^{-3}$ 2.45 2.41 $\infty$ $\infty$ 0.93 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ 1e$^{-1}$ 0.70 0.61 0.62 0.60 5e$^{-2}$ 1.10 0.69 0.80 0.63 1e$^{-2}$ 13.02 11.10 4.08 9.01 5e$^{-3}$ 21.59 19.80 9.66 20.06 1e$^{-3}$ 47.34 55.69 $\infty$ $\infty$ (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
 $\beta$ $J(u_2)$ $J(u_3)$ $J(u_4)$ $J(u_5)$ $J(u_{\text{opt}})$ 1e$^{-1}$ 7.58 7.57 7.57 7.57 7.52 5e$^{-2}$ 6.41 6.39 6.40 6.39 6.35 1e$^{-2}$ 3.70 3.34 3.09 3.32 3.00 5e$^{-3}$ 3.07 2.68 2.28 2.96 2.05 1e$^{-3}$ 2.45 2.41 $\infty$ $\infty$ 0.93 (A) Cost of the controls $u_p$. $\beta$ $\| u_p-u_{\text{opt}} \|_{L^2(0, T)}$ $p=2$ $p=3$ $p=4$ $p=5$ 1e$^{-1}$ 0.70 0.61 0.62 0.60 5e$^{-2}$ 1.10 0.69 0.80 0.63 1e$^{-2}$ 13.02 11.10 4.08 9.01 5e$^{-3}$ 21.59 19.80 9.66 20.06 1e$^{-3}$ 47.34 55.69 $\infty$ $\infty$ (B) $L^2$-distance between the controls $u_p$ and the optimal control $u_{\text{opt}}$.
