Tracing non-linearities in the load bearing behavior of structural membranes: Typical shapes and load cases investigated towards European standardization

Ann-Kathrin Goldbach; Kai-Uwe Bletzinger

doi:10.3934/acse.2024001

Article Contents

2024, Volume 2, Issue 1: 1-9. Doi: 10.3934/acse.2024001

This issue Previous Article Next Article Shape-adaptive climate loading of tensile surface structures

Tracing non-linearities in the load bearing behavior of structural membranes: Typical shapes and load cases investigated towards European standardization

Ann-Kathrin Goldbach^1, , and
Kai-Uwe Bletzinger^1,

1.
Technical University of Munich, Chair of Structural Analysis, Arcisstr. 21, 80333 Munich, Germany

^*Corresponding author: Ann-Kathrin Goldbach
^*Corresponding author: Ann-Kathrin Goldbach

web page: https://www.cee.ed.tum.de/st

Received: January 2024

Early access: March 2024

Published online: March 2024

Abstract / Introduction Full Text(HTML) Figure(6) Related Papers Cited by

Abstract

One of the prevalent challenges in the design, numerical analysis,, and verification of structural membranes lies in the non-linearity of their load-response curves. Structural analysis has to be performed with a geometrically non-linear approach due to the interaction of form and forces, and thus a linear extrapolation or combination of analysis results is not possible. The appropriate modeling of the environmental impacts (such as wind and snow) also has a significant influence on the analysis results. Furthermore, non-linear material behavior can be of interest. The resulting load-response curves (e.g. stresses and deformations) are typically non-linear and their interpretation towards the underlying safety requirements is not straight forward. In addition, the prestress also has a major influence on membranes' structural behavior. However, the current European regulations for the proof of the limit states (ULS and SLS) of any building require a simplified categorization of the structural behavior. This research investigates the load-bearing behavior of typical re occurring membrane shapes in the context of current verification requirements. Typical load cases are applied and the structural behavior is shown under consideration of the mentioned non-linearities.

Keywords:

Mathematics Subject Classification: Primary: 58F15, 58F17; Secondary: 53C35.

Citation:

FullText(HTML)

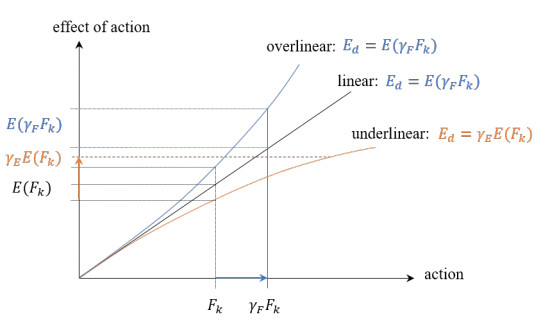

Figure 1. Characterization of non-linearity according to EC 0 [3] and resulting design regulations

Download: Full-size image PowerPoint slide

Figure 2. Typical membrane shapes, adapted from [6]

Download: Full-size image PowerPoint slide

Figure 3. Principal stresses developing under snow and wind suction load for four typical membrane shapes undergoing load controlled geometrically non-linear structural analysis. Adapted from [6]

Download: Full-size image PowerPoint slide

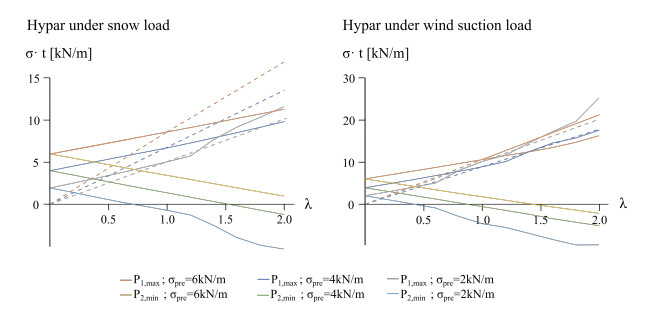

Figure 4. Principal stresses under snow and wind suction load for the hypar at different prestress levels undergoing load controlled geometrically non-linear structural analysis. Adapted from [6]

Download: Full-size image PowerPoint slide

Figure 5. Staged analysis scheme: mounting and loading steps to be considered as consecutive actions

Download: Full-size image PowerPoint slide

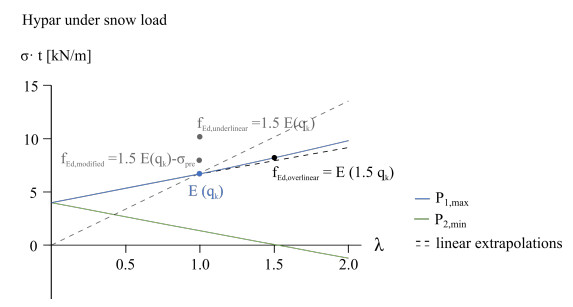

Figure 6. Dimensioning points $ f_{Ed} $ computed from principal stresses for a hypar under snow load. Linear extrapolations of an origin (grey : zero, black : level of prestress) to the effect of characteristic action $ E(q_k) $ depicted as dashed lines, and the design effects of action are indicated by black and grey points

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	T. Bakeer, General partial safety factor theory for the assessment of the reliability of nonlinear structural systems, Reliability Engineering and System Safety, 234 (2023). doi: 10.1016/j.ress.2023.109150.
[2]	A. M. Bauer, CAD-Integrated Isogeometric Analysis and Design of Lightweight Structures, Ph.D thesis, Technical University of Munich, 2020.
[3]	prEN 1990: 2020-09, Grundlagen der Tragwerksplanung; (Deutsche und Englische Fassung prEN 1990: 2020-09), Beuth Verlag, Berlin, 2020.
[4]	ERIES: Engineering Research Infrastructures for European Synergies (2022-2026). WENSS, Funded under the Horizon Europe Framework Programme Grant No. 101058684; 3rd call, 2023. Available from: https://drive.google.com/file/d/1iHkjRKwxrco4RHoXJPMSe6QjEH2xAxgd/view.
[5]	M. Fusseder, et al., Investigations on the design of membrane structures with the semi-probabilistic safety concept, Conference on Textile Composites and Inflatable Structures, Munich, Germany, 2021. doi: 10.23967/membranes.2021.011.
[6]	A.-K. Goldbach, The CAD-Integrated Design Cycle for Structural Membranes, Ph.D thesis, Technical University of Munich, 2021.
[7]	A. Goldbach, et al., Advantages of isogeometric B-Rep analysis for the parametric design of lightweight structures, Proceedings of the IASS Annual Symposium 2020/21 and the 7th International Conference on Spatial Structures, Surrey, UK, 2021.
[8]	P. D. Gosling, et al., Adoption of a reliability approach for membrane structure analysis, Structural Safety, 40 (2013), 39-50. doi: 10.1016/j.strusafe.2012.09.002.
[9]	A. Jrusjrungkiat, Nonlinear Analysis of Pneumatic Membranes - from Subgrid to Interface, Ph.D thesis, Technical University of Munich, 2009.
[10]	J. Knippers, et al., Atlas Kunststoffe + Membranen, DETAIL, München, 2010.
[11]	M. Motevalli, et al., Geometrically nonlinear simulation of textile membrane structures based on orthotropic hyperelastic energy functions, Composite Structures, 223 (2019). doi: 10.1016/j.compstruct.2019.110908.
[12]	N. Narayanan, et al., Monolithic and partitioned approaches to determine static deformation of membrane structures due to ponding, Computers and Structures, 244 (2021). doi: 10.1016/j.compstruc.2020.106419.
[13]	M. Pentek, et al., Numerical modeling and simulation of lightweight structures-using the example of the Olympic Stadium in Munich on its 50th anniversary, Proceedings of 33. Forum Bauinformatik, Munich, Germany, 2022.
[14]	B. F. Philipp, Methodological Treatment of non-Linear Structural Behavior in the Design, Analysis and Verification of Lightweight Structures, Ph.D thesis, Technical University of Munich, 2017.
[15]	prCEN/TS, 19102: 2021. Design of Tensioned Membrane Structures (prCEN/TS 19102: 2021-04), CEN - European Committee for Standardization, Brussels, 2021.
[16]	L. Pyl, et al., Existing eurocodes applied to a membrane structure, Procedia Engineering, 155 (2016), 142-151. doi: 10.1016/j.proeng.2016.08.015.
[17]	F. Rizzo, et al., Characterisation of pressure coefficients on hyperbolic paraboloid roofs, Journal of Wind Engineering and Industrial Aerodynamics, 102 (2012), 61-71. doi: 10.1016/j.jweia.2012.01.003.
[18]	E. de Smedt, et al., Reliability-base calibration of partial factors for the design of membrane structures, Engineering Structures, 214 (2020). doi: 10.1016/j.engstruct.2020.110632.
[19]	N. Stranghöner, et al., Guideline for a European Structural Design of Tensile Membrane Structures Made from Fabrics and Foils- Background Documents in Support to the Implementation. Harmonization and Further Development of the Eurocodes, 2016.
[20]	F. Takeda, et al., Discussion of design wind force coefficients for hyperbolic paraboloid free roofs, The Seventh International Colloquium on Bluff Body Aerodynamics and Applications, Shanghai, China, 2012.
[21]	M. Teichgräber, et al., Non-linear structural models and the partial safety factor concept, Structural Safety, (2023). doi: 10.1016/j.strusafe.2023.102341.
[22]	J. Uhlemann, et al., Application of the semiprobabilistic safety concept of EN 1990 in the design of prestressed membrane structures, Proceedings of the EUROSTEEL, 2014.
[23]	J. Uhlemann, Elastic Constants of Architectural Fabrics for Design Purposes, Ph.D thesis, Universitüt Duisburg-Essen, 2015.
[24]	R. Wagner, Bauen mit Seilen und Membranen, Beuth Verlag, Berlin, 2016.
[25]	Z. Zajac, et al., Shape-adaptive Climate loading of Tensile surface structures, Proceedings of the Structural Membranes Conference, Valencia, Spain, 2023. doi: 10.23967/c.membranes.2023.039.
[26]	Kiwi!3d Plugin, 2023. Available from: http://www.kiwi3d.com.
