On exact computational complexity of triangular factorization algorithms for general banded matrices

Qingyi Li; Liyong Zhu

doi:10.3934/acse.2024006

Article Contents

2024, Volume 2, Issue 2: 73-90. Doi: 10.3934/acse.2024006

This issue Previous Article Next Article A model hierarchy for predicting the flow in stirred tanks with physics-informed neural networks

On exact computational complexity of triangular factorization algorithms for general banded matrices

Qingyi Li^1, and
Liyong Zhu^{1, 2, ,}

1.
School of Mathematical Sciences, Beihang University, China
2.
School of Mathematical Sciences, Beihang University, China

^*Corresponding author: Liyong Zhu
^*Corresponding author: Liyong Zhu

Received: March 2024

Early access: April 2024

Published: June 2024

The second author is supported by [the National Natural Science Foundation of China (No.11871091 and 91730305)].

Abstract / Introduction Full Text(HTML) Figure(8) / Table(6) Related Papers Cited by

Abstract

Matrix triangular factorizations, as an intermediate step of some algorithms, are widely employed to solve scientific and engineering problems. However, there is no exact and explicit expressions on the computational complexity of triangular factorizations for general banded matrices in literatures so far. In this paper, specific and detailed descriptions on triangular factorization algorithms are presented for general banded matrices, and then by carefully dividing matrix into special blocks and with the help of the mathematical software "Maple", exact and explicit expressions on the computational complexity of these algorithms are rigorously derived. These theoretical results are helpful for calculating the computational complexity of numerical algorithms that employ triangular factorizations, and also provide guidance for choosing appropriate algorithms for specific problems. Numerical experiments validate the obtained theoretical results.

Keywords:

Mathematics Subject Classification: Primary: 58F15, 58F17; Secondary: 53C35.

Citation:

FullText(HTML)

Figure 1. Block division for general band Doolittle factorization

Download: Full-size image PowerPoint slide

Figure 2. Blocks division for band Cholesky factorization

Download: Full-size image PowerPoint slide

Figure 3. Nonzero entries of different scale matrices with same bandwidth(one blue point corresponding to one nonzero element)

Download: Full-size image PowerPoint slide

Figure 4. Runtime of different scale matrices with same bandwidth

Download: Full-size image PowerPoint slide

Figure 5. Nonzero entries of same scale matrices with different bandwidth

Download: Full-size image PowerPoint slide

Figure 6. Runtime of same scale matrices with different bandwidth

Download: Full-size image PowerPoint slide

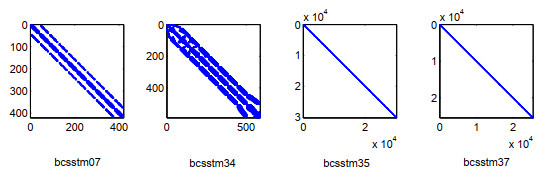

Figure 7. Nonzeros of different scale matrices with different bandwidth

Download: Full-size image PowerPoint slide

Figure 8. Runtime of different scale matrices with different bandwidth

Download: Full-size image PowerPoint slide

Table 1. Subscript ranges of the sub-blocks in Figure 1

	$ k $	$ j $	$ t $
$ U_1 $	$ 2,3,...,r $	$ k,k+1,...,s $	$ 1,2,...,k-1 $
$ U_2 $	$ 2,3,...,r $	$ s+1,s+2,..., s+k $	$ j-s, j-s+1,..., k-1 $
$ U_3 $	$ r+1, r+2,..., n-s $	$ k+s-r, k+s-r+1,..., k+s $	$ j-s, j-s+1,..., k-1 $
$ U_4 $	$ n-s+1, n-s+2,...,n-s+r $	$ k+s-r, k+s-r+1,..., n $	$ j-s, j-s+1,..., k-1 $
$ U_5 $	$ r+1, r+2,..., n-s+r $	$ k, k+1,..., k+s-r $	$ k-r, k-r+1,..., k-1 $
$ U_6 $	$ n-s+r+1, n-s+r+2,..., n $	$ k, k+1,..., n $	$ k-r, k-r+1,..., k-1 $
	$ k $	$ i $	$ t $
$ L_1 $	$ 2, 3,..., r $	$ k+1, k+2,..., r $	$ 1,2,...,k-1 $
$ L_2 $	$ 2,3,...,r $	$ r+1, r+2,..., r+k $	$ i-r, i-r+1,..., k-1 $
$ L_3 $	$ r+1, r+2,..., n-r $	$ k+1, k+2,..., k+r $	$ i-r, i-r+1,..., k-1 $
$ L_4 $	$ n- r+1, n- r+2,..., n $	$ k+1, k+2,..., n $	$ i-r, i-r+1,..., k-1 $

| Show Table

DownLoad: CSV

Table 2. Testbeds for our experiments

Item	Specification of CPU
Model	Intel(R) Core(TM) i5-7200U
Clock rate(Hz)	2.5-2.7G
Memory(GB)	8

| Show Table

DownLoad: CSV

Table 3. Different problems used for testing algorithms

Name	$ n $	$ r $	$ s $	$ rsn $	Symm	Application
b10	10	2	3	$ 6.00\times 10^1 $	no	optimization problem
olm100	100	2	3	$ 6.000\times 10^2 $	no	computational fluid dynamics problem
olm500	500	2	3	$ 3.000\times 10^3 $	no	computational fluid dynamics problem
olm1000	1000	2	3	$ 6.000\times 10^3 $	no	computational fluid dynamics problem
olm2000	2000	2	3	$ 1.200\times 10^4 $	no	computational fluid dynamics problem
olm5000	5000	2	3	$ 3.000\times 10^4 $	no	computational fluid dynamics problem
sherman1	1000	100	100	$ 1.000\times 10^7 $	yes	computational fluid dynamics problem
sherman2	1080	221	221	$ 5.275\times 10^7 $	no	computational fluid dynamics problem
sherman4	1104	368	368	$ 1.495\times 10^8 $	no	computational fluid dynamics problem
bcsstm07	420	47	47	$ 9.278\times 10^5 $	yes	structural problem
bcsstm10	1086	37	37	$ 1.487\times 10^6 $	yes	structural problem
bcsstm34	588	95	95	$ 5.307\times 10^6 $	yes	structural problem
bcsstm35	30237	5	5	$ 7.559\times 10^5 $	yes	structural problem
bcsstm37	25503	5	5	$ 6.376\times 10^5 $	yes	structural problem

| Show Table

DownLoad: CSV

Table 4. Runtime of different scale matrices with same bandwidth

Name	b10	olm100	olm500	olm1000	olm2000	olm5000
Runtime/$ s $	0.0025	0.014	0.065	0.13	0.26	0.70

| Show Table

DownLoad: CSV

Table 5. Runtime of same scale matrices with different bandwidth

Name	olm1000	bcsstm10	sherman1	sherman2	sherman4
Runtime/$ s $	0.13	12.97	78.06	414.45	1133.61

| Show Table

DownLoad: CSV

Table 6. Runtime of different scale matrices with different bandwidth

Name	bcsstm07	bcsstm34	bcsstm35	bcsstm37
Runtime/$ s $	8.25	52.23	10.45	8.78

| Show Table

DownLoad: CSV
