State estimation of urban air pollution with statistical, physical, and super-learning graph models

Matthieu Dolbeault; Olga Mula; Agustin Somacal

doi:10.3934/acse.2024008

Article Contents

2024, Volume 2, Issue 2: 130-151. Doi: 10.3934/acse.2024008

This issue Previous Article A model hierarchy for predicting the flow in stirred tanks with physics-informed neural networks Next Article Multi-domain modeling and simulation of blood solutes and elution in stented arteries

State estimation of urban air pollution with statistical, physical, and super-learning graph models

1.
RWTH Aachen, Germany
2.
TU Eindhoven, Netherlands
3.
Sorbonne Université, France

^*Corresponding author: Agustin Somacal
^*Corresponding author: Agustin Somacal

Received: February 2024

Revised: May 2024

Early access: June 2024

Published: June 2024

Abstract / Introduction Full Text(HTML) Figure(6) Related Papers Cited by

Abstract

We consider the problem of real-time reconstruction of urban air pollution maps. The task is challenging due to the heterogeneous sources of available data, the scarcity of direct measurements, the presence of noise, and the large surfaces that need to be considered. In this work, we introduce different reconstruction methods based on posing the problem on city graphs. Our strategies can be classified as fully data-driven, physics-driven, or hybrid, and we combine them with super-learning models. The performance of the methods is tested in the case of the inner city of Paris, France.

Keywords:

Mathematics Subject Classification: Primary: 62P12; Secondary: 68T07.

Citation:

FullText(HTML)

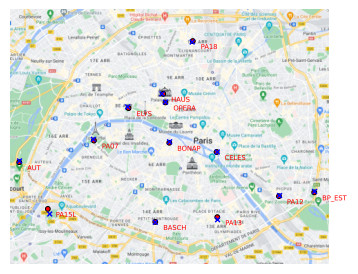

Figure 1. Cropped Google Map screenshot of Paris and the $ 13 $ available stations in the study: red dots represent the projection of the station locations to the nearest vertex in the graph of streets, while blue crosses correspond to the exact positions of the stations

Download: Full-size image PowerPoint slide

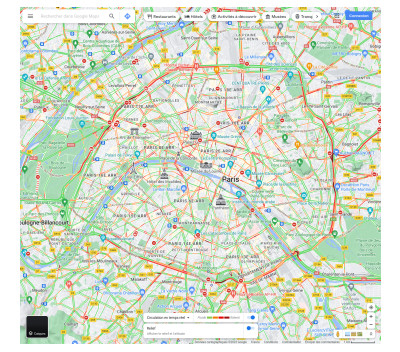

Figure 2. Raw data from Google Maps: the image contains the city with its main landmarks, and some streets are highlighted with one of the four colors corresponding to traffic

Download: Full-size image PowerPoint slide

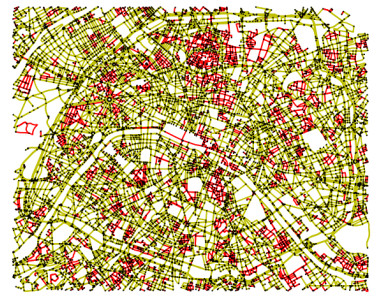

Figure 3. The metric graph downloaded from Open Street Maps, with the edges that never had Google Traffic activation in red, and the edges remaining after filtration in yellow

Download: Full-size image PowerPoint slide

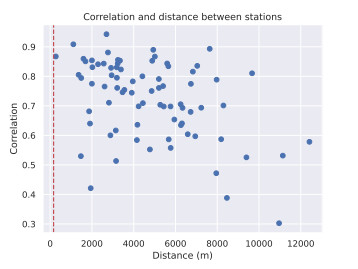

Figure 4. Correlation between stations as a function of the distance. The vertical slashed red line marks the maximal separation between vertex and station (165m) which still lays in the zone of high correlation

Download: Full-size image PowerPoint slide

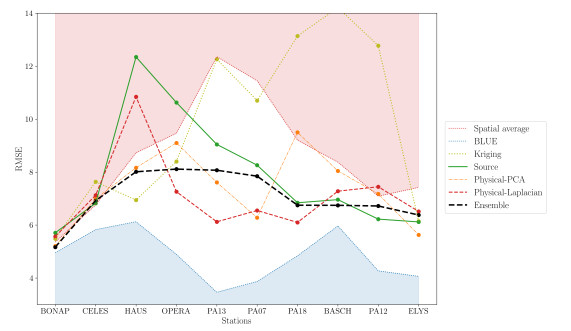

Figure 5. Root mean square error on tested stations for the different proposed methods

Download: Full-size image PowerPoint slide

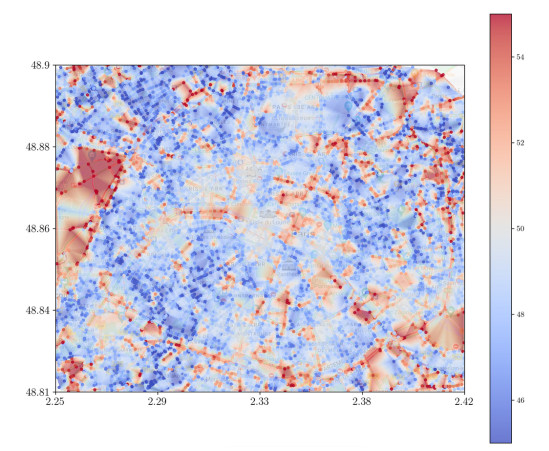

Figure 6. Pollution map for the ensemble model at $ 8 $am on March 1st, 2023. Based on the predictions on the node, one can linearly extrapolate pollution values even outside of the graph edges. Note that the fine variations in pollutant concentration (between 45 and 55 $ \mu \text{g/m}^3 $) seem to trace the main circulation axes

Download: Full-size image PowerPoint slide
