Numerical simulations of fully Eulerian fluid-structure contact interaction using a ghost-penalty cut finite element approach

Stefan Frei; Tobias Knoke; Marc C. Steinbach; Anne-Kathrin Wenske; Thomas Wick

doi:10.3934/acse.2025005

Article Contents

April 2025, Volume 3, 74-94. Doi: 10.3934/acse.2025005

This volume Previous Article Octree-based adaptive mesh refinement and the shifted boundary method for efficient fluid dynamics simulations Next Article Extended B-spline-based mixed material point method stabilized by the variational multiscale method for compressible and nearly incompressible hyperelastic materials

Numerical simulations of fully Eulerian fluid-structure contact interaction using a ghost-penalty cut finite element approach

1.
Department of Mathematics & Statistics, University of Konstanz, Germany
2.
Leibniz University Hannover, Institute of Applied Mathematics, Germany

^*Corresponding author: Thomas Wick
^*Corresponding author: Thomas Wick

Received: November 2024

Revised: March 2025

Early access: March 2025

Published: April 2025

Anne-Kathrin Wenske and Marc C. Steinbach gratefully acknowledge the financial support from the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) – SFB1463 – 434502799. Stefan Frei and Thomas Wick gratefully acknowledge the financial support from the DFG with the grant number 548064929.

Abstract / Introduction Full Text(HTML) Figure(8) / Table(3) Related Papers Cited by

Abstract

In this work, we develop a cut-based unfitted finite element formulation for solving nonlinear, nonstationary fluid-structure interaction with contact in Eulerian coordinates. In the Eulerian description fluid flow modeled by the incompressible Navier-Stokes equations remains in Eulerian coordinates, while elastic solids are transformed from Lagrangian coordinates into the Eulerian system. A monolithic description is adopted. For the spatial discretization, we employ an unfitted finite element method with ghost penalties based on inf-sup stable finite elements. To handle contact, we use a relaxation of the contact condition in combination with a unified Nitsche approach that takes care implicitly of the switch between fluid-structure interaction and contact conditions. The temporal discretization is based on a backward Euler scheme with implicit extensions of solutions at the previous time step. The nonlinear system is solved with a semi-smooth Newton's method with line search. Our formulation, discretization and implementation are substantiated with an elastic falling ball that comes into contact with the bottom boundary, constituting a challenging state-of-the-art benchmark.

Keywords:

Mathematics Subject Classification: Primary: 74F10, 76M10; Secondary: 65M60.

Citation:

FullText(HTML)

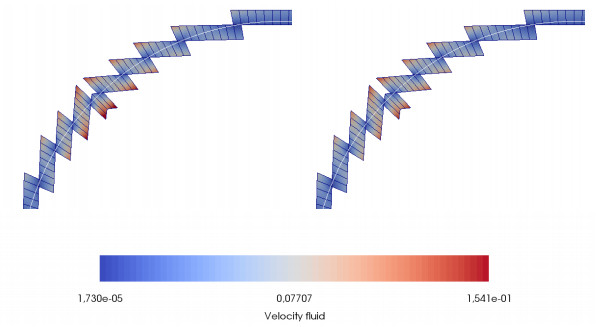

Figure 1. Euclidean norm of the fluid velocity $ \|v_f\|_2 $ on cut cells using $ w_{ \rm{{max}}} = 1 $ (left) and $ w_{ \rm{{max}}} = 3 $ (right). The values are taken from the "modified flow around a cylinder" computation in [27]

Download: Full-size image PowerPoint slide

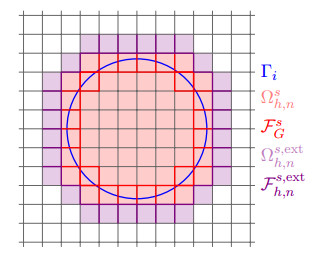

Figure 2. Visualization of the sets $ \mathcal{F}_G^s $ and $ \mathcal{F}_{h,n}^{{s}, \text{ext}} $ used in the definitions of the ghost penalty functions (13) and (14) for a circular solid domain

Download: Full-size image PowerPoint slide

Figure 3. Relaxation of the contact condition with a planar wall: We impose the no-penetration condition already at a distance $ \epsilon>0 $ from the lower wall

Download: Full-size image PowerPoint slide

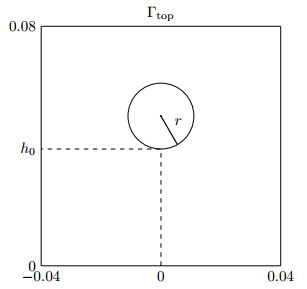

Figure 4. Initial configuration for the bouncing elastic ball. All lengths are given in meters

Download: Full-size image PowerPoint slide

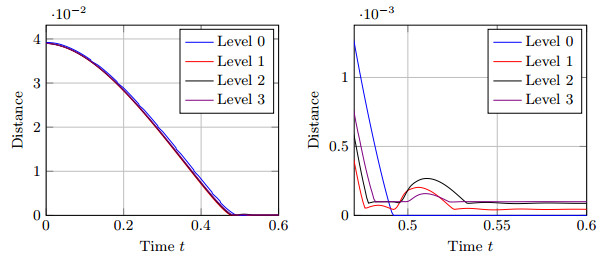

Figure 5. Minimal distance between the interface and the bottom boundary against time using the uniform mesh

Download: Full-size image PowerPoint slide

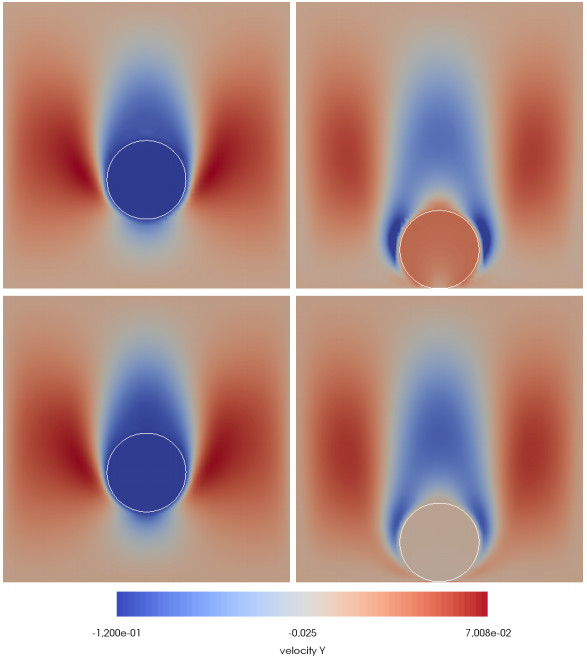

Figure 6. Vertical velocities at time $ t = 0.29 $ (left) and $ t = 0.489 $ (right). Top: Uniform mesh. Bottom: Non-uniform mesh

Download: Full-size image PowerPoint slide

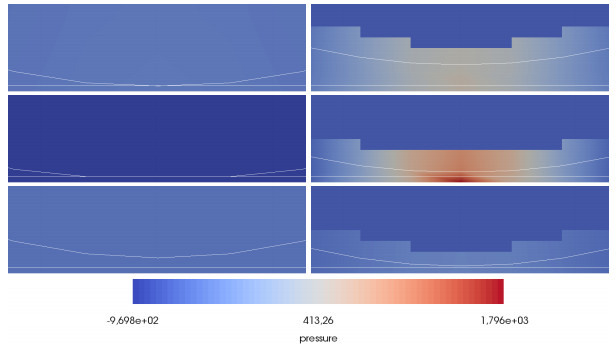

Figure 7. Pressure at time $ t = 0.478 $ (before contact, top), time $ t = 0.489 $ (at contact, middle) and $ t = 0.510 $ (after contact, bottom). Left: Uniform mesh. Right: Non-uniform mesh. The white horizontal line corresponds to the relaxed distance $ \epsilon $. Note that the pressure variable is defined in the fluid domain below and (as an extension) in an additional layer within the solid domain

Download: Full-size image PowerPoint slide

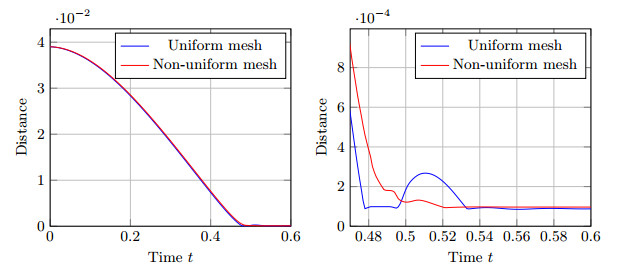

Figure 8. Minimal distance between the interface and the bottom boundary against time

Download: Full-size image PowerPoint slide

Table 1. Physical parameters

$ \nu_f $	$ \rho_f $	$ \rho_s $	$ \mu_s $	$ \lambda_s $
7.0114 × 10⁻⁵ m²/s	1141 kg/m³	1361 kg/m³	20 kPa	80 kPa

| Show Table

DownLoad: CSV

Table 2. Quantities of interest on the uniform mesh on refinement levels 0 to 3 (top to bottom). All quantities are given in SI units.

DoFs	$ t^0 $	$ t^* $	$ v^* $	$ f^* $	$ t_{ \rm{{cont}}} $	$ t_{ \rm{{jump}}} $	$ h_{ \rm{{jump}}} $
2695	0.2072	0.0623	$ - $0.1021	$ - $4.6861	0.3465	—	—
9928	0.2024	0.0613	$ - $0.1035	$ - $4.9170	0.2738	0.3037	0.000203
37660	0.2038	0.0613	$ - $0.1034	$ - $4.8917	0.2742	0.3068	0.000267
146648	0.2045	0.0615	$ - $0.1030	$ - $4.6639	0.2772	0.3053	0.000158

DoFs	$ \max_t p_{ \rm{{bc}}} $	$ \max_{Q_f} v_f $	$ \max_t E_{ \rm{{el}}} $	$ \max_t E_{\text{kin},f} $		$ \max_t E_{\text{kin},s} $	nNewton
2695	677.3779	0.1485	0.0001	0.0087		0.0030	1.1952
9928	577.9210	0.1630	0.0031	0.0089		0.0032	1.2280
37660	575.0429	0.1705	0.0034	0.0090		0.0032	1.2496
146648	575.5481	0.1737	0.0021	0.0091		0.0031	1.3469

| Show Table

DownLoad: CSV

Table 3. Quantities of interest. Top: Uniform mesh. Bottom: Non-uniform mesh. All quantities are given in SI units.

DoFs	$ t^0 $	$ t^* $	$ v^* $	$ f^* $	$ t_{ \rm{{cont}}} $	$ t_{ \rm{{jump}}} $	$ h_{ \rm{{jump}}} $
37660	0.2038	0.0613	$ - $0.1034	$ - $4.8917	0.2742	0.3068	0.000267
55786	0.2060	0.0614	$ - $0.1031	$ - $4.8698	0.3154	—	—

DoFs	$ \max_t p_{ \rm{{bc}}} $	$ \max_{Q_f} v_f $	$ \max_t E_{ \rm{{el}}} $	$ \max_t E_{\text{kin},f} $		$ \max_t E_{\text{kin},s} $	nNewton
37660	575.0429	0.1705	0.0034	0.0090		0.0032	1.2496
55786	2020.4924	0.2417	0.0005	0.0094		0.0031	1.3278

| Show Table

DownLoad: CSV
