A parameter-driven physics-informed neural network framework for solving two-parameter singular perturbation problems involving boundary layers

  • *Corresponding author: Srinivasan Natesan

    *Corresponding author: Srinivasan Natesan
Abstract / Introduction Full Text(HTML) Figure(14) / Table(15) Related Papers Cited by
  • In this article, our goal is to solve two-parameter singular perturbation problems (SPPs) in one- and two-dimensions using an adapted Physics-Informed Neural Networks (PINNs) approach. Such problems are of major importance in engineering and the sciences, as they arise in control theory, fluid and gas dynamics, financial modeling, and related areas. These problems often exhibit boundary and/or interior layers, making them particularly challenging to solve. Prior studies have shown that standard PINNs suffer from low accuracy and struggle to effectively address such issues. A recently proposed enhancement, known as the parameter asymptotic PINNs (PA-PINNs), has demonstrated improved performance over standard PINNs and Gradient enhanced PINNs (gPINNs) in handling one-parameter singularly perturbed convection-dominated problems, offering better accuracy, convergence, and stability. In this article, we extend and evaluate the robustness of PA-PINNs for the first time in solving two-parameter SPPs. Furthermore, we derive bounds on the generalization error, linking training residuals to quadrature errors, thereby providing a theoretical foundation for the reliability of PINNs in solving multi-scale two-parameter SPPs. We also present a comprehensive comparison with standard finite difference and finite element methods, analyzing accuracy and computational efficiency across various neural network architectures.

    Mathematics Subject Classification: 65M12, 68T07, 35J30, 76M45.

    Citation:

    \begin{equation} \\ \end{equation}
  • 加载中
  • Figure 1.  A basic feed-forward neural network

    Figure 2.  PA-PINNs Algorithm flowchart

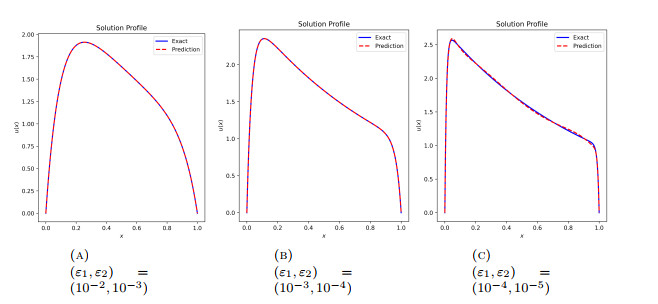

    Figure 3.  Comparison between Exact and PA-PINNs solution for different values of perturbation parameter $ \varepsilon_1, \varepsilon_2 $ for Example 5.1

    Figure 4.  Comparison between Exact and PINNs solution for different values of perturbation parameter $ \varepsilon_1, \varepsilon_2 $ for Example 5.2

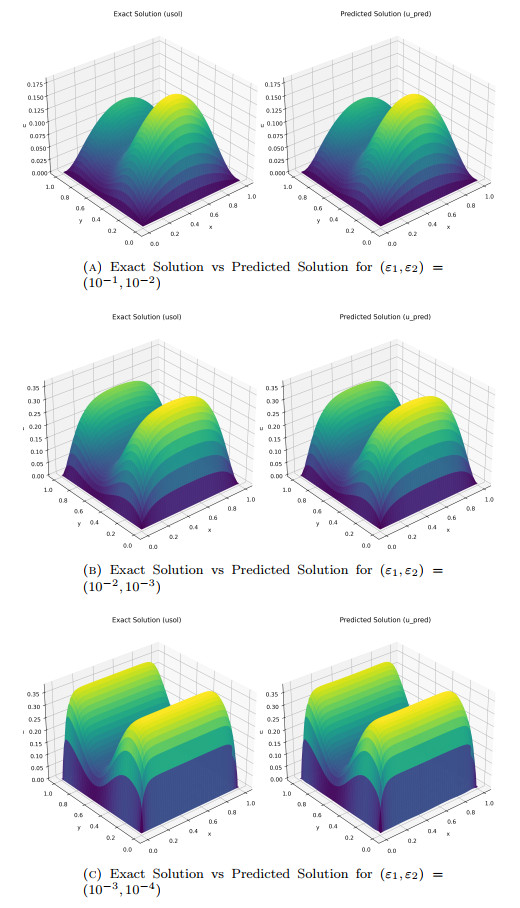

    Figure 5.  Comparison between Exact and PA-PINNs solution for different values of perturbation parameter $ \varepsilon_1, \varepsilon_2 $ for Example 5.4

    Figure 6.  Comparison between Exact and PA-PINNs solution for different values of perturbation parameter $ \varepsilon_1, \varepsilon_2 $ for Example 5.5

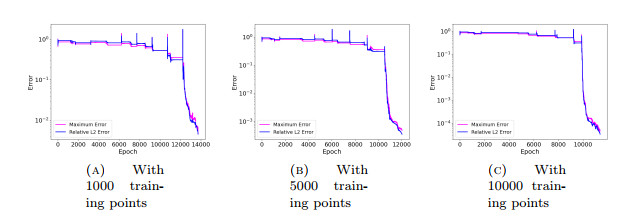

    Figure 7.  Error vs epoch plots for Example 5.1 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

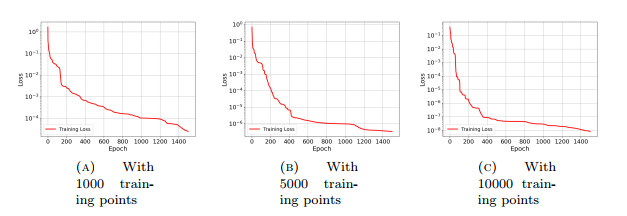

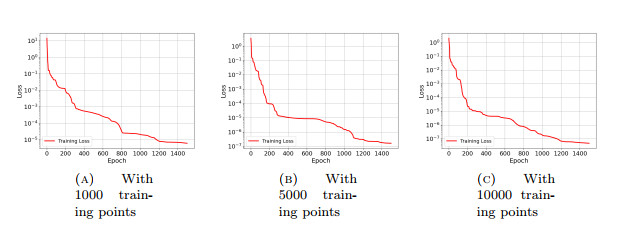

    Figure 8.  Loss curve for Example 5.1 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

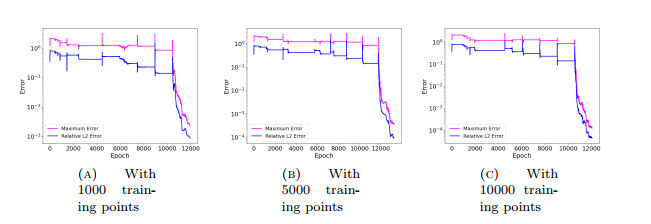

    Figure 9.  Error vs epoch plots for Example 5.2 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

    Figure 10.  Loss curve for Example 5.2 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

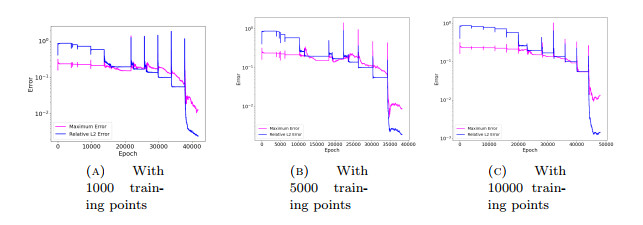

    Figure 11.  Error vs epoch plots for Example 5.4 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

    Figure 12.  Loss curve for Example 5.4 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

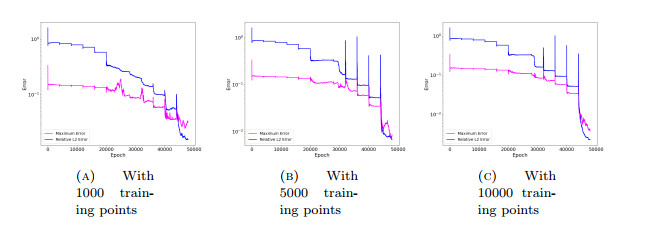

    Figure 13.  Error vs epoch plots for Example 5.6 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

    Figure 14.  Loss curve for Example 5.6 with $ (\varepsilon_1, \varepsilon_2) = (10^{-3}, 10^{-4}) $

    Table 1.  Error comparison for various parameter values for Example 5.1

    Method $ \varepsilon_{1} $ $ \varepsilon_2 $ $ \mathscr{E}_{2} $
    PINN $ 10^{-2} $ $ 10^{-3} $ 1.661e-03
    $ 10^{-3} $ $ 10^{-4} $ 1.287e-02
    $ 10^{-4} $ $ 10^{-5} $ 7.905e-02
    $ 10^{-5} $ $ 10^{-6} $ 1.357e-01
    PA-PINN $ 10^{-2} $ $ 10^{-3} $ 2.446e-05
    $ 10^{-3} $ $ 10^{-4} $ 1.548e-04
    $ 10^{-4} $ $ 10^{-5} $ 1.782e-03
    $ 10^{-5} $ $ 10^{-6} $ 1.273e-02
     | Show Table
    DownLoad: CSV

    Table 2.  Error comparison for various parameter values for Example 5.2

    Method $ \varepsilon_{1} $ $ \varepsilon_2 $ $ \mathscr{E}_{2} $
    PINN $ 10^{-1} $ $ 10^{-2} $ 1.911e-04
    $ 10^{-2} $ $ 10^{-3} $ 2.312e-03
    $ 10^{-3} $ $ 10^{-4} $ 1.790e-01
    $ 10^{-4} $ $ 10^{-5} $ 4.577e-02
    PA-PINN $ 10^{-1} $ $ 10^{-2} $ 4.378e-04
    $ 10^{-2} $ $ 10^{-3} $ 2.859e-06
    $ 10^{-3} $ $ 10^{-4} $ 2.295e-05
    $ 10^{-4} $ $ 10^{-5} $ 8.580e-03
     | Show Table
    DownLoad: CSV

    Table 3.  Error comparison for various parameter values for Example 5.3

    Method $ \varepsilon_{1} $ $ \varepsilon_2 $ $ \mathscr{E}_{2} $
    PINN $ 10^{-1} $ $ 10^{-2} $ 8.023e-01
    $ 10^{-2} $ $ 10^{-3} $ 1.075e+00
    $ 10^{-3} $ $ 10^{-4} $ 8.255e-01
    $ 10^{-4} $ $ 10^{-5} $ 8.777e-01
    PA-PINN $ 10^{-1} $ $ 10^{-2} $ 1.897e-01
    $ 10^{-2} $ $ 10^{-3} $ 5.375e-01
    $ 10^{-3} $ $ 10^{-4} $ 6.269e-01
    $ 10^{-4} $ $ 10^{-5} $ 6.477e-01
     | Show Table
    DownLoad: CSV

    Table 4.  Error comparison for various parameter values for Example 5.4

    Method $ \varepsilon_{1} $ $ \varepsilon_2 $ $ \mathscr{E}_{2} $
    PINN $ 10^{-1} $ $ 10^{-2} $ 4.418e-02
    $ 10^{-2} $ $ 10^{-3} $ 8.363e-02
    $ 10^{-3} $ $ 10^{-4} $ 1.520e-01
    $ 10^{-4} $ $ 10^{-5} $ 2.467e-01
    PA-PINN $ 10^{-1} $ $ 10^{-2} $ 1.011e-04
    $ 10^{-2} $ $ 10^{-3} $ 1.084e-04
    $ 10^{-3} $ $ 10^{-4} $ 2.621e-04
    $ 10^{-4} $ $ 10^{-5} $ 3.812e-04
     | Show Table
    DownLoad: CSV

    Table 5.  Error comparison for various parameter values for Example 5.5

    Method $ \varepsilon_{1} $ $ \varepsilon_2 $ $ \mathscr{E}_{2} $
    PINN $ 10^{-1} $ $ 10^{-2} $ 4.680e-02
    $ 10^{-2} $ $ 10^{-3} $ 9.387e-02
    $ 10^{-3} $ $ 10^{-4} $ 2.352e-01
    $ 10^{-4} $ $ 10^{-5} $ 2.962e-01
    PA-PINN $ 10^{-1} $ $ 10^{-2} $ 5.609e-04
    $ 10^{-2} $ $ 10^{-3} $ 1.895e-04
    $ 10^{-3} $ $ 10^{-4} $ 2.232e-03
    $ 10^{-4} $ $ 10^{-5} $ 8.933e-03
     | Show Table
    DownLoad: CSV

    Table 6.  Error comparison for various parameter values for Example 5.6

    Method $ \varepsilon_{1} $ $ \varepsilon_2 $ $ \mathscr{E}_{2} $ $ \mathscr{E}_{\infty} $
    PINN $ 10^{-1} $ $ 10^{-2} $ 4.944e-01 2.999e-02
    $ 10^{-2} $ $ 10^{-3} $ 4.492e-01 6.970e-02
    $ 10^{-3} $ $ 10^{-4} $ 4.730e-01 9.653e-02
    $ 10^{-4} $ $ 10^{-5} $ 5.465e-01 1.192e-01
    PA-PINN $ 10^{-1} $ $ 10^{-2} $ 6.941e-04 2.363e-04
    $ 10^{-2} $ $ 10^{-3} $ 4.626e-04 2.918e-04
    $ 10^{-3} $ $ 10^{-4} $ 1.417e-03 1.130e-03
    $ 10^{-4} $ $ 10^{-5} $ 1.173e-03 4.361e-03
     | Show Table
    DownLoad: CSV

    Table 7.  Error comparison using nonlinear update with different widths and depths for Example 5.1

    Depth $\times$ Width $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_2 $ CPU time
    $ 4 \times 20 $ $ (10^{-2}, 10^{-3}) $ 7.38608e-03 1379.94 sec
    $ (10^{-3}, 10^{-4}) $ 1.21742e-02 2137.08 sec
    $ 4 \times 40 $ $ (10^{-2}, 10^{-3}) $ 7.38585e-03 743.09 sec
    $ (10^{-3}, 10^{-4}) $ 1.21742e-02 1909.18 sec
    $ 8 \times 20 $ $ (10^{-2}, 10^{-3}) $ 7.38600e-03 1471.01 sec
    $ (10^{-3}, 10^{-4}) $ 1.21756e-02 3138.97 sec
    $ 8 \times 40 $ $ (10^{-2}, 10^{-3}) $ 7.38585e-03 1195.67 sec
    $ (10^{-3}, 10^{-4}) $ 1.21736e-02 3286.40 sec
     | Show Table
    DownLoad: CSV

    Table 8.  Error comparison using nonlinear update with different widths and depths for Example 5.2

    Depth $\times$ Width $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_2 $ CPU time
    $ 4 \times 20 $ $ (10^{-2}, 10^{-3}) $ 3.67415e-03 997.53 sec
    $ (10^{-3}, 10^{-4}) $ 8.94421e-03 2055.41 sec
    $ 4 \times 40 $ $ (10^{-2}, 10^{-3}) $ 3.67407e-03 931.62 sec
    $ (10^{-3}, 10^{-4}) $ 8.94421e-03 1958.53 sec
    $ 8 \times 20 $ $ (10^{-2}, 10^{-3}) $ 3.67408e-03 1291.48 sec
    $ (10^{-3}, 10^{-4}) $ 8.94382e-03 3112.42 sec
    $ 8 \times 40 $ $ (10^{-2}, 10^{-3}) $ 3.67414e-03 1571.71 sec
    $ (10^{-3}, 10^{-4}) $ 8.94369e-03 3566.46 sec
     | Show Table
    DownLoad: CSV

    Table 9.  Error comparison using linear update with different widths and depths for Example 5.1

    Depth $\times$ Width $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_2 $ CPU time
    $ 4 \times 20 $ $ (10^{-2}, 10^{-3}) $ 6.67240e-06 499.03 sec
    $ (10^{-3}, 10^{-4}) $ 5.08541e-04 673.43 sec
    $ 4 \times 40 $ $ (10^{-2}, 10^{-3}) $ 1.42943e-05 742.54 sec
    $ (10^{-3}, 10^{-4}) $ 2.47156e-04 929.41 sec
    $ 8 \times 20 $ $ (10^{-2}, 10^{-3}) $ 5.40406e-06 332.67 sec
    $ (10^{-3}, 10^{-4}) $ 4.68982e-04 966.12 sec
    $ 8 \times 40 $ $ (10^{-2}, 10^{-3}) $ 2.25027e-05 1115.13 sec
    $ (10^{-3}, 10^{-4}) $ 1.404431e-04 1615.46 sec
     | Show Table
    DownLoad: CSV

    Table 10.  Error comparison using linear update with different widths and depths for Example 5.2

    Depth $\times$ Width $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_2 $ CPU time
    $ 4 \times 20 $ $ (10^{-2}, 10^{-3}) $ 3.14247e-06 365.56 sec
    $ (10^{-3}, 10^{-4}) $ 2.13913e-03 550.16 sec
    $ 4 \times 40 $ $ (10^{-2}, 10^{-3}) $ 8.42577e-06 346.05 sec
    $ (10^{-3}, 10^{-4}) $ 7.52966e-04 797.75 sec
    $ 8 \times 20 $ $ (10^{-2}, 10^{-3}) $ 4.24980e-06 482.25 sec
    $ (10^{-3}, 10^{-4}) $ 8.31980e-05 961.15 sec
    $ 8 \times 40 $ $ (10^{-2}, 10^{-3}) $ 3.18480e-06 615.23 sec
    $ (10^{-3}, 10^{-4}) $ 3.87194e-05 1405.22 sec
     | Show Table
    DownLoad: CSV

    Table 11.  Error comparison using linear update with different widths and depths for Example 5.3

    Depth $\times$ Width $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_2 $ CPU time
    $ 2 \times 20 $ $ (10^{-2}, 10^{-3}) $ 5.19825e-01 442.16 sec
    $ (10^{-3}, 10^{-4}) $ 6.28389e-01 441.14 sec
    $ 4 \times 20 $ $ (10^{-2}, 10^{-3}) $ 5.39786e-01 648.12 sec
    $ (10^{-3}, 10^{-4}) $ 6.60805e-01 638.12 sec
    $ 4 \times 40 $ $ (10^{-2}, 10^{-3}) $ 5.39773e-01 807.41 sec
    $ (10^{-3}, 10^{-4}) $ 6.51049e-01 813.42 sec
    $ 8 \times 20 $ $ (10^{-2}, 10^{-3}) $ 5.39772e-01 1062.02 sec
    $ (10^{-3}, 10^{-4}) $ 6.52699e-01 1063.48 sec
    $ 8 \times 40 $ $ (10^{-2}, 10^{-3}) $ 5.39773e-01 1391.96 sec
    $ (10^{-3}, 10^{-4}) $ 6.28496e-01 1407.58 sec
     | Show Table
    DownLoad: CSV

    Table 12.  Error comparison using linear update with different widths and depths for Example 5.4

    Depth $\times$ Width $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_2 $ CPU time
    $ 4 \times 20 $ $ (10^{-2}, 10^{-3}) $ 6.87200e-04 2756.71 sec
    $ (10^{-3}, 10^{-4}) $ 7.37420e-03 3608.83 sec
    $ 4 \times 40 $ $ (10^{-2}, 10^{-3}) $ 4.36345e-04 5491.24 sec
    $ (10^{-3}, 10^{-4}) $ 6.08680e-03 5703.67 sec
    $ 8 \times 20 $ $ (10^{-2}, 10^{-3}) $ 1.94381e-04 4363.29 sec
    $ (10^{-3}, 10^{-4}) $ 1.59990e-03 6173.14 sec
    $ 8 \times 40 $ $ (10^{-2}, 10^{-3}) $ 9.16608e-05 7239.75 sec
    $ (10^{-3}, 10^{-4}) $ 1.52576e-03 8390.88 sec
     | Show Table
    DownLoad: CSV

    Table 13.  Error comparison for Example 5.1

    Method $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_{\infty} $
    Upwind FDM (over Shishkin mesh) with $ \mathcal{N} $ = 1024 $ (10^{-2}, 10^{-3}) $ 1.18356e-05
    $ (10^{-3}, 10^{-4}) $ 7.68553e-03
    $ (10^{-4}, 10^{-5}) $ 6.62190e-02
    Proposed method with depth $ \times $ width $ = 8 \times 20 $ and $ \eta_{o} = 1000 $ $ (10^{-2}, 10^{-3}) $ 1.26608e-05
    $ (10^{-3}, 10^{-4}) $ 9.75883e-04
    $ (10^{-4}, 10^{-5}) $ 4.50602e-03
     | Show Table
    DownLoad: CSV

    Table 14.  Error comparison for Example 5.2

    Method $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_{\infty} $
    Upwind FDM (over Shishkin mesh) with $ \mathcal{N} $ = 1024 $ (10^{-1}, 10^{-2}) $ 1.13160e-02
    $ (10^{-2}, 10^{-3}) $ 7.27137e-03
    $ (10^{-3}, 10^{-4}) $ 7.72630e-03
    Standard FEM (over Shishkin mesh) with $ \mathcal{N} $ = 1024 $ (10^{-1}, 10^{-2}) $ 1.13324e-02
    $ (10^{-2}, 10^{-3}) $ 7.24019e-03
    $ (10^{-3}, 10^{-4}) $ 2.81312e-03
    Proposed method with depth $ \times $ width $ = 8 \times 20 $ and $ \eta_{o} = 1000 $ $ (10^{-1}, 10^{-2}) $ 5.08473e-03
    $ (10^{-2}, 10^{-3}) $ 9.27661e-06
    $ (10^{-3}, 10^{-4}) $ 6.79974e-04
     | Show Table
    DownLoad: CSV

    Table 15.  Error comparison for Example 5.4

    Method $ (\varepsilon_1, \varepsilon_2) $ $ \mathscr{E}_{\infty} $
    Standard FEM (over Shishkin mesh) with $ \mathcal{N} = 64 \times 64 \times 2 $ $ (10^{-2}, 10^{-3}) $ 6.68075e-04
    $ (10^{-3}, 10^{-4}) $ 6.87868e-03
    Proposed method with depth $ \times $ width $ = 8 \times 20 $ and $ \eta_{o} = 10k $ $ (10^{-2}, 10^{-3}) $ 1.94381e-04
    $ (10^{-3}, 10^{-4}) $ 1.59990e-03
     | Show Table
    DownLoad: CSV
  • [1] H. V. Alvarez, G. Fabiani, N. Kazantzis, C. Siettos and I. G. Kevrekidis, Discrete-time nonlinear feedback linearization via physics-informed machine learning, J. Comput. Phys., 492 (2023), 112408, 21 pp. doi: 10.1016/j.jcp.2023.112408.
    [2] D. Avijit and S. Natesan, Convergence analysis of a fully-discrete FEM for singularly perturbed two-parameter parabolic PDE, Math. Comput. Simul., 197 (2022), 185-206.  doi: 10.1016/j.matcom.2022.02.005.
    [3] C. BajajL. McLennanT. Andeen and A. Roy, Recipes for when physics fails: Recovering robust learning of physics informed neural networks, Mach. Learn. Sci. Technol., 4 (2023), 015013.  doi: 10.1088/2632-2153/acb416.
    [4] M. BarmanS. Natesan and A. Sendur, Alternating direction implicit method for singularly perturbed 2D parabolic convection–diffusion–reaction problem with two small parameters, Int. J. Comput. Math., 100 (2023), 253-282.  doi: 10.1080/00207160.2022.2114077.
    [5] M. BarmanS. Natesan and A. Sendur, A parameter-uniform hybrid method for singularly perturbed parabolic 2D convection-diffusion-reaction problems, Appl. Numer. Math., 207 (2025), 111-135.  doi: 10.1016/j.apnum.2024.08.026.
    [6] M. Brdar and H. Zarin, A singularly perturbed problem with two parameters on a Bakhvalov-type mesh, J. Comput. Appl. Math., 292 (2016), 307-319.  doi: 10.1016/j.cam.2015.07.011.
    [7] F. CaoF. GaoX. Guo and D. Yuan, Physics-informed neural networks with parameter asymptotic strategy for learning singularly perturbed convection-dominated problem, Comput. Math. Appl., 150 (2023), 229-242.  doi: 10.1016/j.camwa.2023.09.030.
    [8] J. Chen and R. E. O'Malley Jr., On the asymptotic solution of a two-parameter boundary value problem of chemical reactor theory, SIAM J. Appl. Math., 26 (1974), 717-729.  doi: 10.1137/0126064.
    [9] Y. Cheng, On the local discontinuous Galerkin method for singularly perturbed problem with two parameters, J. Comput. Appl. Math., 392 (2021), 113485, 22 pp. doi: 10.1016/j.cam.2021.113485.
    [10] F. V. Difonzo, L. Lopez and S. F. Pellegrino, Physics informed neural networks for learning the horizon size in bond-based peridynamic models, Comput. Methods Appl. Mech. Engrg., 436 (2025), 117727, 18 pp. doi: 10.1016/j.cma.2024.117727.
    [11] F. V. Difonzo, L. Lopez and S. F. Pellegrino, Physics informed neural networks for an inverse problem in peridynamic models, Engineering with Computers, (2024), 1-10. doi: 10.1007/s00366-024-01957-5.
    [12] R. C. DiPrima, Asymptotic methods for an infinitely long slider squeeze-film bearing, J. Lubr. Technol., 90 (1968), 173-183.  doi: 10.1115/1.3601534.
    [13] H. Gao, L. Sun and J.-X. Wang, PhyGeoNet: Physics-informed geometry-adaptive convolutional neural networks for solving parameterized steady-state PDEs on irregular domain, J. Comput. Phys., 428 (2021), 110079, 27 pp. doi: 10.1016/j.jcp.2020.110079.
    [14] P. W. HemkerG. I. Shishkin and L. P. Shishkina, $\varepsilon$-uniform schemes with high-order time-accuracy for parabolic singular perturbation problems, IMA J. Numer. Anal., 20 (2000), 99-121.  doi: 10.1093/imanum/20.1.99.
    [15] K. Hornik, Approximation capabilities of multilayer feedforward networks, Neural Networks, 4 (1991), 251-257.  doi: 10.1016/0893-6080(91)90009-T.
    [16] A. D. Jagtap and G. E. Karniadakis, Extended physics-informed neural networks (XPINNs): A generalized space-time domain decomposition based deep learning framework for nonlinear partial differential equations, in AAAI Spring Symposium: MLPS, 10 (2021).
    [17] A. D. Jagtap, K. Kawaguchi and G. E. Karniadakis, Adaptive activation functions accelerate convergence in deep and physics-informed neural networks, J. Comput. Phys., 404 (2020), 109136, 23 pp. doi: 10.1016/j.jcp.2019.109136.
    [18] A. D. Jagtap, E. Kharazmi and G. E. Karniadakis, Conservative physics-informed neural networks on discrete domains for conservation laws: Applications to forward and inverse problems, Comput. Methods Appl. Mech. Engrg., 365 (2020), 113028, 27 pp. doi: 10.1016/j.cma.2020.113028.
    [19] G. E. KarniadakisI. G. KevrekidisL. LuP. PerdikarisS. Wang and L. Yang, Physics-informed machine learning, Nat. Rev. Phys., 3 (2021), 422-440.  doi: 10.1038/s42254-021-00314-5.
    [20] T. Linß, Layer-adapted meshes for reaction-convection-diffusion problems, Springer, Berlin, Heidelberg, 2009. doi: 10.1007/978-3-642-05134-0.
    [21] T. Linß and H.-G. Roos, Analysis of a finite-difference scheme for a singularly perturbed problem with two small parameters, J. Math. Anal. Appl., 289 (2004), 355-366.  doi: 10.1016/j.jmaa.2003.08.017.
    [22] A. Majumdar and S. Natesan, Alternating direction numerical scheme for singularly perturbed 2D degenerate parabolic convection-diffusion problems, Appl. Math. Comput., 313 (2017), 453-473.  doi: 10.1016/j.amc.2017.06.010.
    [23] L. D. McClenny and U. M. Braga-Neto, Self-adaptive physics-informed neural networks, J. Comput. Phys., 474 (2023), 111722, 23 pp. doi: 10.1016/j.jcp.2022.111722.
    [24] J. J. H. Miller, E. O'Riordan and G. I. Shishkin, Fitted Numerical Methods for Singular Perturbation Problems, World Scientific, Singapore, 1996. doi: 10.1142/2933.
    [25] S. Mishra and R. Molinaro, Estimates on the generalization error of physics-informed neural networks for approximating PDEs, IMA J. Numer. Anal., 43 (2023), 1-43.  doi: 10.1093/imanum/drab093.
    [26] J. Mohapatra and S. Natesan, Parameter-uniform numerical method for global solution and global normalized flux of singularly perturbed boundary value problems using grid equidistribution, Comput. Math. Appl., 60 (2010), 1924-1939.  doi: 10.1016/j.camwa.2010.07.026.
    [27] B. Moseley, A. Markham and T. Nissen-Meyer, Finite basis physics-informed neural networks (FBPINNS): A scalable domain decomposition approach for solving differential equations, Adv. Comput. Math., 49 (2023), Paper No. 62, 39 pp. doi: 10.1007/s10444-023-10065-9.
    [28] R. E. O'Malley, Two-parameter singular perturbation problems for second-order equations, J. Math. Mech., 16 (1967), 1143-1164.
    [29] R. E. O'MalleyIntroduction to Singular Perturbations, Academic Press, New York, 1974.
    [30] E. O'Riordan and M. L. Pickett, A parameter-uniform numerical method for a singularly perturbed two parameter elliptic problem, Adv. Comput. Math., 35 (2011), 57-82.  doi: 10.1007/s10444-010-9164-1.
    [31] E. O'RiordanM. L. Pickett and G. I. Shishkin, Numerical methods for singularly perturbed elliptic problems containing two perturbation parameters, Math. Model. Anal., 11 (2006), 199-212.  doi: 10.3846/13926292.2006.9637313.
    [32] G. Pang, L. Lu and G. E. Karniadakis, fPINNS: Fractional physics-informed neural networks, SIAM J. Sci. Comput., 41 (2019), A2603-A2626. doi: 10.1137/18M1229845.
    [33] A. Raina, S. Badireddi and S. Natesan, Application of PINN to obtain solution of boundary layer problems arising in fluid dynamics, Math. Found. Comput., (2025). doi: 10.3934/mfc.2025024.
    [34] A. Raina and S. Natesan, A weak Galerkin finite element method for fourth-order parabolic singularly perturbed problems on layer adapted Shishkin mesh, Appl. Numer. Math., 207 (2025), 520-533.  doi: 10.1016/j.apnum.2024.09.019.
    [35] A. RainaS. Natesan and Ş. Toprakseven, Anisotropic error analysis of weak Galerkin finite element method for singularly perturbed biharmonic problems, Math. Comput. Simul., 229 (2025), 203-221.  doi: 10.1016/j.matcom.2024.09.017.
    [36] A. Raina, S. Natesan and Ş. Toprakseven, A Novel ADI-Weak Galerkin Method for Singularly Perturbed Two-Parameter 2D Parabolic PDEs, Numer. Methods Partial Differential Equations, 41 (2025), e23169, 22 pp. doi: 10.1002/num.23169.
    [37] M. RaissiP. Perdikaris and G. E. Karniadakis, Physics-informed neural networks: A deep learning framework for solving forward and inverse problems involving nonlinear partial differential equations, J. Comput. Phys., 378 (2019), 686-707.  doi: 10.1016/j.jcp.2018.10.045.
    [38] K. Shukla, A. D. Jagtap and G. E. Karniadakis, Parallel physics-informed neural networks via domain decomposition, J. Comput. Phys., 447 (2021), 110683, 19 pp. doi: 10.1016/j.jcp.2021.110683.
    [39] G. Singh and S. Natesan, Study of the NIPG method for two–parameter singular perturbation problems on several layer adapted grids, J. Appl. Math. Comput., 63 (2020), 683-705.  doi: 10.1007/s12190-020-01334-7.
    [40] M. K. Singh and S. Natesan, A parameter-uniform hybrid finite difference scheme for singularly perturbed system of parabolic convection-diffusion problems, Int. J. Comput. Math., 97 (2020), 875-905.  doi: 10.1080/00207160.2019.1597972.
    [41] L. J. Teofanov and H. G. Roos, An elliptic singularly perturbed problem with two parameters I: Solution decomposition, J. Comput. Appl. Math., 206 (2007), 1082-1097.  doi: 10.1016/j.cam.2006.09.010.
    [42] Ş. TopraksevenA. Kaushik and M. Sharma, A weak Galerkin finite element method for singularly perturbed problems with two small parameters on Bakhvalov-type meshes, Numer. Algorithms, 97 (2024), 727-751.  doi: 10.1007/s11075-023-01721-8.
    [43] C. ValentinoG. PaganoD. ConteB. PaternosterF. Colace and M. Casillo, Step-by-step time discrete Physics-Informed Neural Networks with application to a sustainability PDE model, Math. Comput. Simul., 230 (2025), 541-558.  doi: 10.1016/j.matcom.2024.10.043.
    [44] J. Yu, L. Lu, X. Meng and G. E. Karniadakis, Gradient-enhanced physics-informed neural networks for forward and inverse PDE problems, Comput. Methods Appl. Mech. Engrg., 393 (2022), 114823, 22 pp. doi: 10.1016/j.cma.2022.114823.
    [45] D. Zhang, L. Guo and G. E. Karniadakis, Learning in modal space: Solving time-dependent stochastic PDEs using physics-informed neural networks, SIAM J. Sci. Comput., 42 (2020), A639-A665. doi: 10.1137/19M1260141.
    [46] J. Zhang and Y. Lv, High-order finite element method on a Bakhvalov-type mesh for a singularly perturbed convection–diffusion problem with two parameters, Appl. Math. Comput., 397 (2021), 125953, 10 pp. doi: 10.1016/j.amc.2021.125953.
  • 加载中

Figures(14)

Tables(15)

SHARE

Article Metrics

HTML views(4495) PDF downloads(571) Cited by(0)

Access History

Other Articles By Authors

Catalog

    /

    DownLoad:  Full-Size Img  PowerPoint
    Return
    Return
