## Differential faultt attack on DEFAULT

 1 Department of Mathematics, Indian Institute of Technology Madras, Chennai, India 2 Department of Computer Science and Engineering, Indian Institute of Technology Jammu, Jammu

*Corresponding author: Santanu Sarkar

Received  October 2021 Revised  March 2022 Early access May 2022

Block cipher DEFAULT has been proposed as a differential fault analysis immune cipher at Asiacrypt 2021. In this paper, we consider the initial version of DEFAULT with no permutation involved in the last round and show that one can find the key in this version with complexity $2^{16}$ by injecting 112 faults. However, our idea does not work for the modified version of the cipher (where a key scheduling algorithm is involved).

Citation: Chandan Dey, Sumit Kumar Pandey, Tapabrata Roy, Santanu Sarkar. Differential faultt attack on DEFAULT. Advances in Mathematics of Communications, doi: 10.3934/amc.2022035
##### References:
 [1] A. Baksi, Classical and physical security of symmetric key cryptographic algorithms, IFIP/IEEE 29th International Conference on Very Large Scale Integration (VLSI-SoC), Singapore, 2021. doi: 10.1109/VLSI-SoC53125.2021.9606988. [2] A. Baksi, S. Bhasin, J. Breier, M. Khairallah, T. Peyrin, S. Sarkar and S. M. Sim, DEFAULT: Cipher level resistance against differential fault attack, in Advances in Cryptology - ASIACRYPT 2021, Lecture Notes in Comput. Sci., 13091, Springer, 2021,124–156. doi: 10.1007/978-3-030-92075-3_5. [3] S. Banik, S. K. Pandey, T. Peyrin, Y. Sasaki, S. M. Sim and Y. Todo, GIFT: {A} small present, in Cryptographic Hardware and Embedded Systems - CHES 2017, Lecture Notes in Comput. Sci., 10529, Springer, 2017,321–345. doi: 10.1007/978-3-319-66787-4_16. [4] C. Beierle, G. Leander, A. Moradi and S. Rasoolzadeh, CRAFT: Lightweight tweakable block cipher with efficient protection against DFA attacks, IACR Trans. Symmetric Cryptol., 2019 (2019), 5-45.  doi: 10.46586/tosc.v2019.i1.5-45. [5] E. Biham and A. Shamir, Differential fault analysis of secret key cryptosystems, in Advances in Cryptology - CRYPTO '97, Lecture Notes in Comput. Sci., 1294, Springer, 1997,513–525. doi: 10.1007/BFb0052259. [6] D. Boneh, R. A. DeMillo and R. J. Lipton, On the importance of checking cryptographic protocols for faults (extended abstract), in Advances in Cryptology - EUROCRYPT '97 (Konstanz), Lecture Notes in Comput. Sci., 1233, Springer, Berlin, 1997, 37–51. doi: 10.1007/3-540-69053-0_4. [7] M. Nageler, C. Dobraunig and M. Eichlseder, Information-combining differential fault attacks on DEFAULT, IACR Cryptol. ePrint Arch., (2021). Available from: https://eprint.iacr.org/2021/1374.pdf. [8] G. Piret and J.-J. Quisquater, A differential fault attack technique against SPN structures, with application to the AES and KHAZAD, in Cryptographic Hardware and Embedded Systems - CHES 2003, Lecture Notes in Comput. Sci., 2779, Springer, 2003, 77–88. doi: 10.1007/978-3-540-45238-6_7. [9] D. Saha, D. Mukhopadhyay and D. Roy Chowdhury, A diagonal fault attack on the advanced encryption standard., IACR Cryptol. ePrint Arch., (2009). Available from: https://eprint.iacr.org/2009/581.pdf. [10] T. Simon, L. Batina, J. Daemen, V. Grosso, P. M. C. Massolino, K. Papagiannopoulos, F. Regazzoni and and N. Samwel, Friet: An authenticated encryption scheme with built-in fault detection, in Advances in Cryptology - EUROCRYPT 2020, Lecture Notes in Comput. Sci., 12105, Springer, Cham, 2020,581–611. doi: 10.1007/978-3-030-45721-1_21.

show all references

##### References:
 [1] A. Baksi, Classical and physical security of symmetric key cryptographic algorithms, IFIP/IEEE 29th International Conference on Very Large Scale Integration (VLSI-SoC), Singapore, 2021. doi: 10.1109/VLSI-SoC53125.2021.9606988. [2] A. Baksi, S. Bhasin, J. Breier, M. Khairallah, T. Peyrin, S. Sarkar and S. M. Sim, DEFAULT: Cipher level resistance against differential fault attack, in Advances in Cryptology - ASIACRYPT 2021, Lecture Notes in Comput. Sci., 13091, Springer, 2021,124–156. doi: 10.1007/978-3-030-92075-3_5. [3] S. Banik, S. K. Pandey, T. Peyrin, Y. Sasaki, S. M. Sim and Y. Todo, GIFT: {A} small present, in Cryptographic Hardware and Embedded Systems - CHES 2017, Lecture Notes in Comput. Sci., 10529, Springer, 2017,321–345. doi: 10.1007/978-3-319-66787-4_16. [4] C. Beierle, G. Leander, A. Moradi and S. Rasoolzadeh, CRAFT: Lightweight tweakable block cipher with efficient protection against DFA attacks, IACR Trans. Symmetric Cryptol., 2019 (2019), 5-45.  doi: 10.46586/tosc.v2019.i1.5-45. [5] E. Biham and A. Shamir, Differential fault analysis of secret key cryptosystems, in Advances in Cryptology - CRYPTO '97, Lecture Notes in Comput. Sci., 1294, Springer, 1997,513–525. doi: 10.1007/BFb0052259. [6] D. Boneh, R. A. DeMillo and R. J. Lipton, On the importance of checking cryptographic protocols for faults (extended abstract), in Advances in Cryptology - EUROCRYPT '97 (Konstanz), Lecture Notes in Comput. Sci., 1233, Springer, Berlin, 1997, 37–51. doi: 10.1007/3-540-69053-0_4. [7] M. Nageler, C. Dobraunig and M. Eichlseder, Information-combining differential fault attacks on DEFAULT, IACR Cryptol. ePrint Arch., (2021). Available from: https://eprint.iacr.org/2021/1374.pdf. [8] G. Piret and J.-J. Quisquater, A differential fault attack technique against SPN structures, with application to the AES and KHAZAD, in Cryptographic Hardware and Embedded Systems - CHES 2003, Lecture Notes in Comput. Sci., 2779, Springer, 2003, 77–88. doi: 10.1007/978-3-540-45238-6_7. [9] D. Saha, D. Mukhopadhyay and D. Roy Chowdhury, A diagonal fault attack on the advanced encryption standard., IACR Cryptol. ePrint Arch., (2009). Available from: https://eprint.iacr.org/2009/581.pdf. [10] T. Simon, L. Batina, J. Daemen, V. Grosso, P. M. C. Massolino, K. Papagiannopoulos, F. Regazzoni and and N. Samwel, Friet: An authenticated encryption scheme with built-in fault detection, in Advances in Cryptology - EUROCRYPT 2020, Lecture Notes in Comput. Sci., 12105, Springer, Cham, 2020,581–611. doi: 10.1007/978-3-030-45721-1_21.

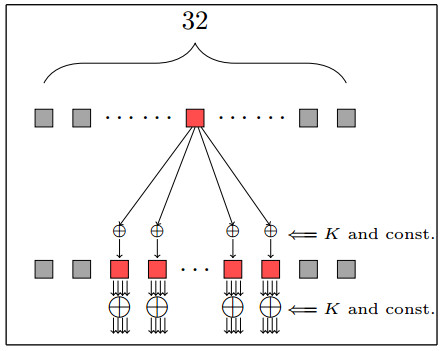

Fault at penultimate round ( corresponds to faulty nibble)
DEFAULT permutation
 $i$ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 $P_{128}(i)$ 0 33 66 99 96 1 34 67 64 97 2 35 32 65 98 3 4 37 70 103 100 5 38 71 68 101 $i$ 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 $P_{128}(i)$ 6 39 36 69 102 7 8 41 74 107 104 9 42 75 72 105 10 43 40 73 106 11 12 45 78 111 $i$ 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 $P_{128}(i)$ 108 13 46 79 76 109 14 47 44 77 110 15 16 49 82 115 112 17 50 83 80 113 18 51 48 81 $i$ 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 $P_{128}(i)$ 114 19 20 53 86 119 116 21 54 87 84 117 22 55 52 85 118 23 24 57 90 123 120 25 58 91 $i$ 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 $P_{128}(i)$ 88 121 26 59 56 89 122 27 28 61 94 127 124 29 62 95 92 125 30 63 60 93 126 31
 $i$ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 $P_{128}(i)$ 0 33 66 99 96 1 34 67 64 97 2 35 32 65 98 3 4 37 70 103 100 5 38 71 68 101 $i$ 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 $P_{128}(i)$ 6 39 36 69 102 7 8 41 74 107 104 9 42 75 72 105 10 43 40 73 106 11 12 45 78 111 $i$ 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 $P_{128}(i)$ 108 13 46 79 76 109 14 47 44 77 110 15 16 49 82 115 112 17 50 83 80 113 18 51 48 81 $i$ 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 $P_{128}(i)$ 114 19 20 53 86 119 116 21 54 87 84 117 22 55 52 85 118 23 24 57 90 123 120 25 58 91 $i$ 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 $P_{128}(i)$ 88 121 26 59 56 89 122 27 28 61 94 127 124 29 62 95 92 125 30 63 60 93 126 31
DEFAULT round constants
 Cipher Round constants # of rounds DEFAULT-LAYER 1, 3, 7, 15, 31, 62, 61, 59, 55, 47, 30, 60, 57, 51, 39, 14, 29, 58, 53, 43, 22, 44, 24, 48, 33, 2, 5, 11 28 DEFAULT-CORE 1, 3, 7, 15, 31, 62, 61, 59, 55, 47, 30, 60, 57, 51, 39, 14, 29, 58, 53, 43, 22, 44, 24, 48 24
 Cipher Round constants # of rounds DEFAULT-LAYER 1, 3, 7, 15, 31, 62, 61, 59, 55, 47, 30, 60, 57, 51, 39, 14, 29, 58, 53, 43, 22, 44, 24, 48, 33, 2, 5, 11 28 DEFAULT-CORE 1, 3, 7, 15, 31, 62, 61, 59, 55, 47, 30, 60, 57, 51, 39, 14, 29, 58, 53, 43, 22, 44, 24, 48 24
Toy version's permutation
 $i$ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 $\mathcal{P}_T(i)$ 0 5 10 15 12 1 6 11 8 13 2 7 4 9 14 3
 $i$ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 $\mathcal{P}_T(i)$ 0 5 10 15 12 1 6 11 8 13 2 7 4 9 14 3
Comparison of Attack Complexities with changing number of faults for initial version of DEFAULT
 Round Number of Faults Attack Complexity Last Round 64 $2^{64}$ Last two rounds 80 $2^{48}$ Last two rounds 96 $2^{32}$ Last two rounds 112 $2^{16}$
 Round Number of Faults Attack Complexity Last Round 64 $2^{64}$ Last two rounds 80 $2^{48}$ Last two rounds 96 $2^{32}$ Last two rounds 112 $2^{16}$
