Deep image prior with sparsity constraint for limited-angle computed tomography reconstruction

Leonardo A. Ferreira; Roberto G. Beraldo; Ricardo Suyama; André K. Takahata; John A. Sims

doi:10.3934/ammc.2023009

Article Contents

2023, Volume 1, Issue 2: 105-125. Doi: 10.3934/ammc.2023009

This issue Previous Article Model-based deep learning approaches to the Helsinki Tomography Challenge 2022 Next Article Limited-angle tomography reconstruction via deep end-to-end learning on synthetic data

Deep image prior with sparsity constraint for limited-angle computed tomography reconstruction

1.
Information Engineering, Center for Engineering, Modeling and Applied Social Sciences, Federal University of ABC - 09210-580, Av. dos Estados, 5001 - Bairro Bangú, Santo André - SP, Brazil
2.
AI R & D Lab, Samsung R&D Institute Brazil - 13097-104, Av. Cambacicas, 1200 - Parque Rural Fazenda Santa Cândida, Campinas - SP, Brazil
3.
Biomedical Engineering, Center for Engineering, Modeling and Applied Social Sciences, Federal University of ABC - 09606-045, Alameda da Universidade, s/nº - Bairro Anchieta, São Bernardo do Campo - SP, Brazil

^*Corresponding author: Leonardo A. Ferreira
^*Corresponding author: Leonardo A. Ferreira

Received: April 2023

Revised: November 2023

Early access: November 2023

Published: December 2023

Abstract / Introduction Full Text(HTML) Figure(10) / Table(4) Related Papers Cited by

Abstract

Computed tomography (CT) from full-angle data is of great importance to medical imaging and other areas. However, restrictions during data acquisition, such as measuring the target in a limited angular range, can lead to poorer quality results due to the increased difficulty of the image reconstruction problem. For challenging situations like this, traditional techniques may not be able to produce CT images with enough quality. In this study, we propose software for reconstruction of limited-angle CT images using a combination of deep image prior (DIP) and matching pursuit (MMP). Evaluation of our proposal was performed on the dataset provided by the Helsinki Tomographic Challenge 2022 (HTC 2022). Our results indicate that, by using MMP as a regularizer for the problem, the quality of DIP image reconstructions can be improved. Furthermore, we obtained images with a minimum Matthews correlation coefficient of 0.936 in five of seven difficulty levels of the HTC 2022, showing that it is a promising technique for this application.

Keywords:

Mathematics Subject Classification: 68T07, 68U10.

Citation:

FullText(HTML)

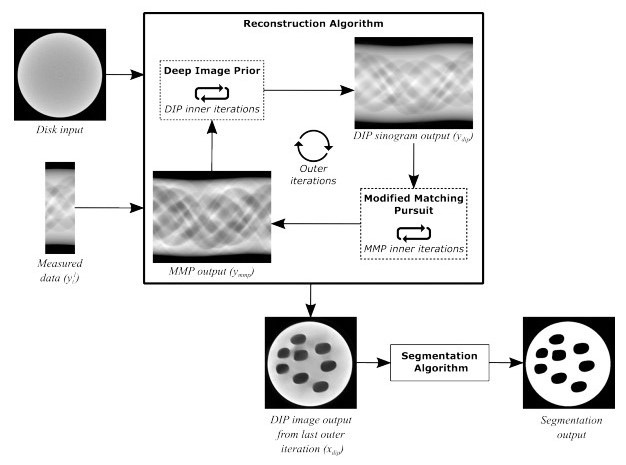

Figure 1. Overview of the proposed technique

Download: Full-size image PowerPoint slide

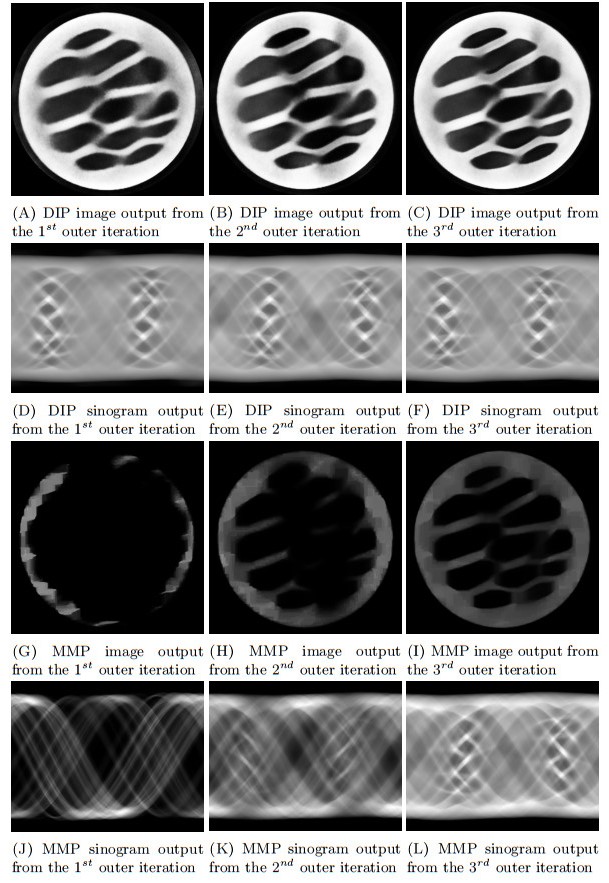

Figure 2. Example of output images and sinograms throughout the iterations of the outer loop

Download: Full-size image PowerPoint slide

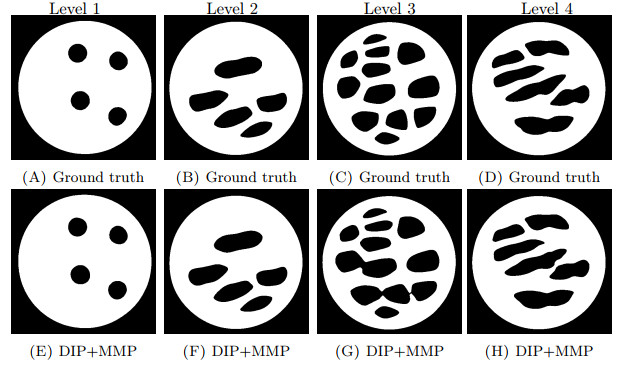

Figure 4. Example of reconstructions with the proposed method (DIP+MMP) in the lower levels of the challenge

Download: Full-size image PowerPoint slide

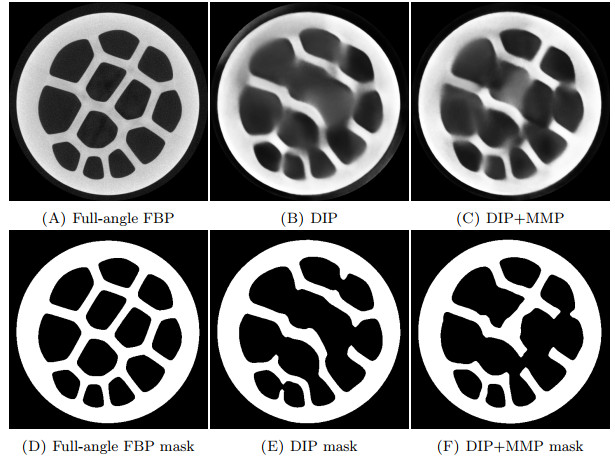

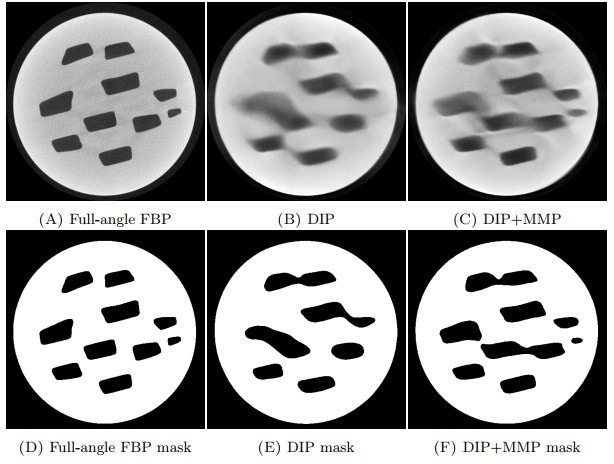

Figure 6. Example of reconstructions and their corresponding masks for an image from level 5 of the test dataset

Download: Full-size image PowerPoint slide

Figure 8. Example of reconstructions for an image (from level 4 of the test dataset) where the MCC metric was better for the method without MMP

Download: Full-size image PowerPoint slide

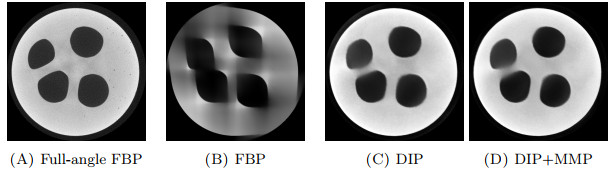

Figure 10. Example of reconstructions of an image from level 1, including the reconstruction of the limited-angle data using FBP

Download: Full-size image PowerPoint slide

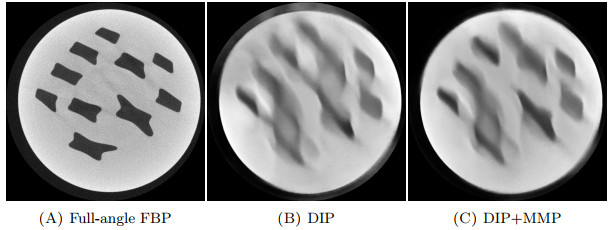

Figure 12. Example of reconstructions for an image from level 6 of the test dataset

Download: Full-size image PowerPoint slide

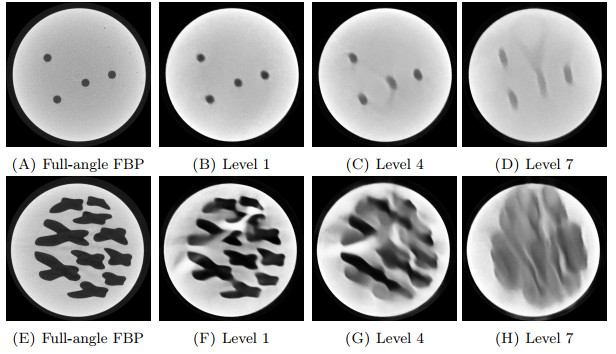

Figure 14. Example of reconstructions with the angular range of the levels 1, 4, and 7 (from left to right) for the image with easier holes (first row) and harder holes (second row)

Download: Full-size image PowerPoint slide

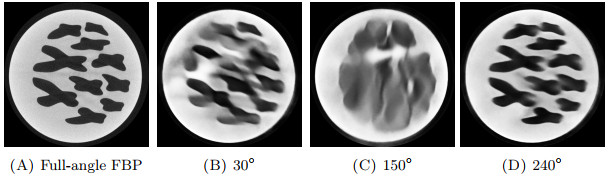

Figure 16. Example of reconstructions of an image from level 7 with different starting angles of the angular range

Download: Full-size image PowerPoint slide

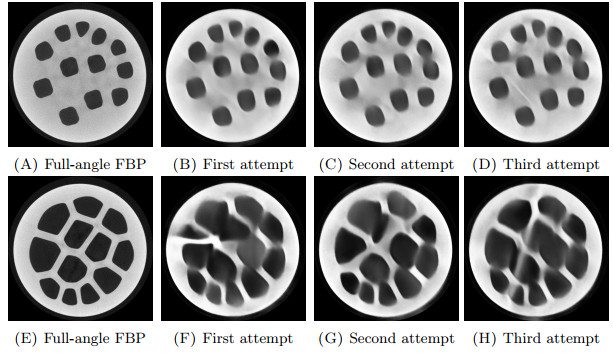

Figure 18. Example of repeated reconstructions of images from levels 3 (first row) and 4 (second row)

Download: Full-size image PowerPoint slide

Table 1. Overview of each difficulty level

Difficulty level $ l $	1	2	3	4	5	6	7
Angular range	$ 90^\circ $	$ 80^\circ $	$ 70^\circ $	$ 60^\circ $	$ 50^\circ $	$ 40^\circ $	$ 30^\circ $
Angular increment	$ 0.5^\circ $	$ 0.5^\circ $	$ 0.5^\circ $	$ 0.5^\circ $	$ 0.5^\circ $	$ 0.5^\circ $	$ 0.5^\circ $
Number of projections $ N^l_p $	$ 181 $	$ 161 $	$ 141 $	$ 121 $	$ 101 $	$ 81 $	$ 61 $

| Show Table

DownLoad: CSV

Table 2. Results of MCC obtained for the reconstructions of each of the levels of the test dataset. Values presented in the format "Mean (standard deviation)"

Method / Level	1	2	3	4	5	6	7
DIP	0.987 (0.006)	0.987 (0.003)	0.963 (0.018)	0.937 (0.055)	0.936 (0.021)	0.731 (0.139)	0.653 (0.030)
DIP+MMP	0.988 (0.007)	0.987 (0.003)	0.967 (0.014)	0.936 (0.059)	0.951 (0.004)	0.765 (0.124)	0.680 (0.009)

| Show Table

DownLoad: CSV

Table 3. Results of MCC obtained for the reconstructions of images originally from level 1 (easier) and 7 (harder). The full-angle data of each image was used to generate limited-angle data with the angular range of each level

Difficulty / Level	1	2	3	4	5	6	7
Easier	0.993	0.990	0.988	0.988	0.987	0.984	0.970
Harder	0.932	0.927	0.843	0.810	0.741	0.700	0.671

| Show Table

DownLoad: CSV

Table 4. Neural network architecture used for the DIP

Parameter	DIP
Input size	$ 512 \times 512 \times 1 $
Output size	$ 512 \times 512 \times 1 $
No. of encoder layers	6
No. of decoder layers	6
No. of filters in each encoder layer	128 (all)
No. of filters in each decoder layer	128 (all)
Filters size in each encoder/decoder layer	$ 3 \times 3 $ (all)
No. of skip layers	6
No. of filters in each skip layer	12
Filters size in each skip layer	$ 1 \times 1 $
Activation function	Leaky ReLU
Activation function (last layer)	Sigmoid

| Show Table

DownLoad: CSV
