A deep learning approach using boundary shape information for limited-angle tomography reconstruction

Chao Wang; Ji Li

doi:10.3934/ammc.2023012

Article Contents

2023, Volume 1, Issue 2: 219-231. Doi: 10.3934/ammc.2023012

This issue Previous Article HD-DCDM: Hybrid-domain network for limited-angle computed tomography with deconvolution and conditional diffusion model Next Article Preface

A deep learning approach using boundary shape information for limited-angle tomography reconstruction

Chao Wang^1, , and
Ji Li^2,

1.
Department of Statistics and Data Science, National University of Singapore, Singapore
2.
Academy for Multidisciplinary Studies, Capital Normal University, Beijing, China

^*Corresponding author: Chao Wang
^*Corresponding author: Chao Wang

Received: June 2023

Revised: November 2023

Early access: December 13, 2023

Published online: December 13, 2023

Abstract / Introduction Full Text(HTML) Figure(5) / Table(1) Related Papers Cited by

Abstract

In this paper, we focused on the deep learning solution to the severely ill-posed inverse problem of limited angle computed tomography. The limited measurement data does not hold all the information of the imaging object to enable high-precision inversion. In this scenario, as the analytical filtered back-projection (FBP) method inevitably introduced artifacts in the reconstruction, a variational approach was more suitable to solve such a problem, where prior information was incorporated as a regularization term. Though the traditional prior from the handcrafted sparsity promoting regularization has been widely used in the past decade, these regularization-based approaches do not perform well for the extremely hard cases of missing many angle views in the sinogram. To address the issue of hard cases, deep learning was leveraged in this paper to learn the solution map from the sinogram to the reconstruction. To reduce the computational demand, instead of the optimization-unrolling-based network architecture, we adopted the FBP plus U-Net refinement framework, where the FBP reconstruction serves as the initial reconstruction and the input to the refinement network. The prerequisite of the training dataset is the main challenge for the Helsinki Tomography Challenge 2022 (HTC2022) task since only the full-angle sinograms of five phantoms are provided. Thus, we roll the sinogram and rotate the provided ground truth to augment the dataset for each level of the number of observed angles. To better reconstruct the object, we fed the information of the outer circle boundary into the network. Although the test performance shows that our approach is a competitive method, yet not the leading solution in the competition, our idea can be incorporated into other award-winning solutions to improve their performance.

Keywords:

Mathematics Subject Classification: Primary: 68T07, 68U10; Secondary: 94A08.

Citation:

FullText(HTML)

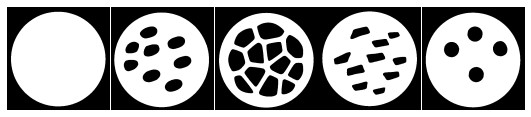

Figure 1. The total five phantoms used in the training dataset

Download: Full-size image PowerPoint slide

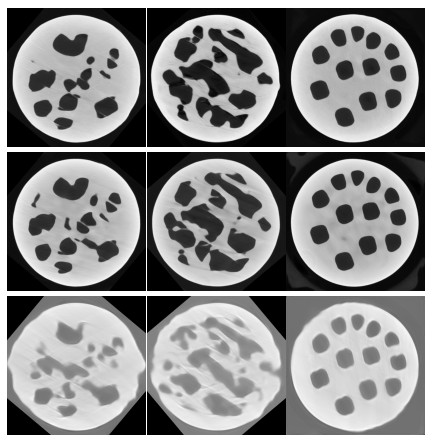

Figure 2. Comparison of reconstructions of the phantom from our built test dataset with $ 70^\circ $ angles. The first row is the reconstruction with the shape prior; the second row is the one without the shape prior. The third row is the one with combined training loss and the shape prior. The fourth row is the one from the learned primal-dual algorithm [1]

Download: Full-size image PowerPoint slide

Figure 3. Comparison of reconstructions of the phantom from the testing dataset with $ 70^\circ $ angles. The first row is the reconstruction with the shape prior. The second row is the one with combined training loss and the shape prior. The third row is the one from the learned primal-dual algorithm [1]

Download: Full-size image PowerPoint slide

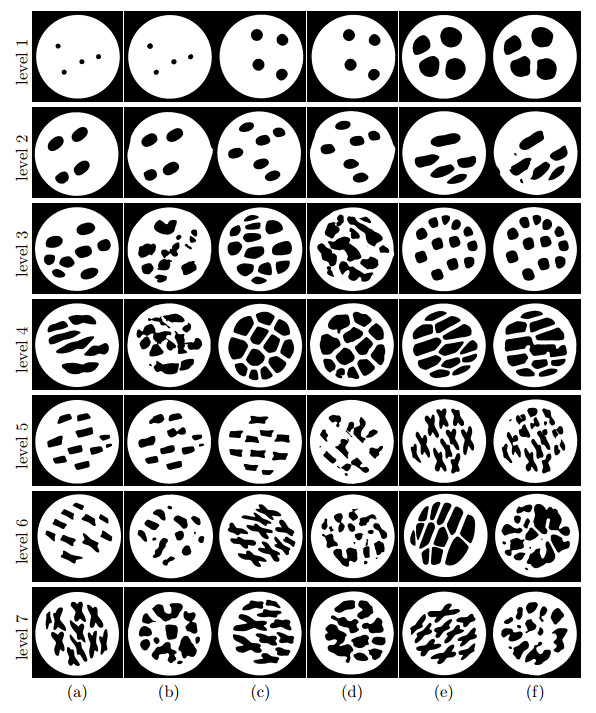

Figure 4. Reconstruction of the phantoms for seven levels. The (a), (c) and (e) columns are the truth and the (b), (d) and (f) columns are the reconstruction

Download: Full-size image PowerPoint slide

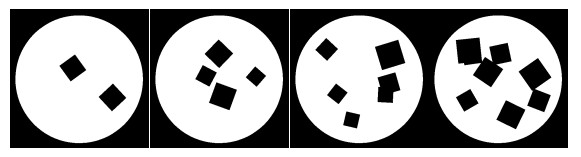

Figure 5. Generated patterns with rectangle holes

Download: Full-size image PowerPoint slide

Table 1. Scores of reconstruction results of samples in the test dataset

Sample	Level 1	Level 2	Level 3	Level 4	Level 5	Level 6	Level 7
A	0.98991	0.86566	0.59670	0.74181	0.96497	0.85329	0.58669
B	0.98584	0.84429	0.50683	0.64274	0.68449	0.67221	0.75349
C	0.98032	0.70310	0.96522	0.65008	0.92236	0.56497	0.61420

| Show Table

DownLoad: CSV
