SDF: A self-supervised denoiser framework for X-Ray computed tomography

Emilien Valat; Andreas Hauptmann; Ozan Öktem

doi:10.3934/ammc.2025012

Article Contents

September 2025, Volume 5, 86-100. Doi: 10.3934/ammc.2025012

This volume Previous Article Dual-grid parameter choice method with application to image deblurring Next Article Solution of an inverse problem to estimate airway resistance in mechanically ventilated patients from 3-D electrical impedance tomography data

SDF: A self-supervised denoiser framework for X-Ray computed tomography

1.
Kungliga Tekniska Högskolan, Sweden
2.
Research Unit of Mathematical Sciences, University of Oulu, Finland
3.
Department of Computer Science, University College London, UK

^*Corresponding author: Emilien Valat
^*Corresponding author: Emilien Valat

Received: June 2025

Revised: September 2025

Published online: September 30, 2025

OÖ and EV acknowledge support from Swedish Energy Agency grant P2022-00286 and FORMAS grant 2022-00469. AH acknowledges support from DigitalFutures Scholar-in-Residence grant KTH-RPROJ-0146472 2 and from the Research Council of Finland project Nos. 353093, 359186, 338408.

Abstract / Introduction Full Text(HTML) Figure(6) / Table(2) Related Papers Cited by

Abstract

We introduce the self-supervised denoiser framework (SDF), a training procedure for learned image denoisers in the context of X-ray computed tomography (CT). Computing a computed tomography CT image amounts to recovering a model parameter from indirect observations of the said model. A popular approach to solve this problem is to train a neural network in a supervised way to enhance an initial approximation of the model, learning the observation-to-image mapping, thus requiring image-observation pairs. In this work, we introduce a method that relies only on observations for pretraining and a few images for fine-tuning image denoisers for sparse-view and low-dose X-ray Computed Tomography (CT).

We propose to train an image denoiser in the sinogram space by defining the learning task of an image denoiser as the prediction of one sinogram subset from another. Our approach does not require ground-truth image data, leverages the abundant data modality in CT, the sinogram, and can drastically enhance the quality of images reconstructed from a fraction of the measurements. We demonstrate that SDF produces better image quality in terms of peak signal-to-noise ratio than other analytical and self-supervised frameworks in 2D fan-beam and 3D cone-beam CT settings. Moreover, we show that the enhancement provided by SDF carries over when fine-tuning the image denoiser on a few examples, making it a suitable pretraining technique when there is little high-quality image data. Our results are established on experimental datasets, making SDF a strong candidate for being the building block of foundational, image-enhancement models in CT.

Keywords:

Mathematics Subject Classification: Primary: 94A08, 68U10, 65R32.

Citation:

FullText(HTML)

Figure 1. The blue nodes represent sinogram-space data, and the orange nodes represent image-space data. $ \Gamma_{i,j}^{\theta} $, the composition of $ \operatorname{\mathcal{A}}^{\dagger}_i $ with $ \Lambda_{\theta} $ (denoted by $ \operatorname{\mathcal{E}}_i $) and $ A_j $ (denoted $ \operatorname{\mathcal{D}}_j $), can be seen as a sinogram autoencoder that has $ \mathcal{X} $ (the image manifold) as its latent space

Download: Full-size image PowerPoint slide

Figure 2. Slices of an object reconstructed from mode1 (A) and mode2 (B) sinograms of the 2DeteCT dataset, and the central slices of a volume reconstructed from Feldkamp-Davis-Kress (FDK) ran on orbit 1 (C), and least-squares (LS) ran on all orbits (D) of the Walnuts dataset

Download: Full-size image PowerPoint slide

Figure 3. Architecture of the image denoiser $ \Lambda_{\theta} $ used in all our experiments. $ C(n,m) $ denotes a convolutional layer with $ n $ input layers and $ m $ output layers, a kernel size of 5, and a padding of 2, with LeakyReLU activation. For 3D CT, $ n_{\text{filters}} = 8 $ and for 2D CT, $ n_{\text{filters}} = 32 $

Download: Full-size image PowerPoint slide

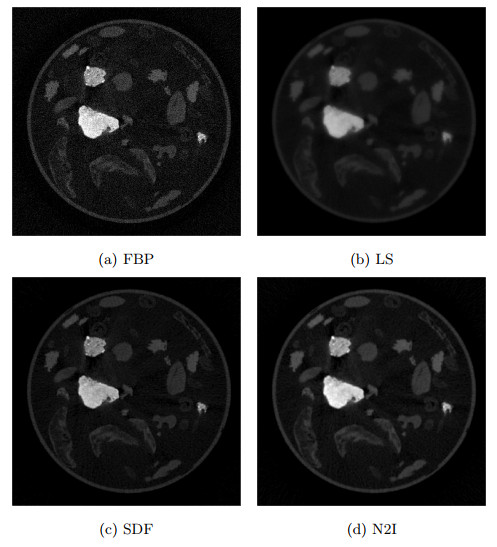

Figure 4. Qualitative comparison of a Mode2 image reconstructed with FBP 4a, LS 4b, SDF 4c, and N2I 4d

Download: Full-size image PowerPoint slide

Figure 5. Evolution of the PSNR (solid lines) and SSIM (dashed lines) against the angular sparsity

Download: Full-size image PowerPoint slide

Figure 6. Central slice of Walnut 39 reconstructed with LS on full sinogram and SDF on subsampled sinogram

Download: Full-size image PowerPoint slide

Table 1. Performance of self-supervised, analytic, and iterative methods, before and after fine tuning

		Before Fine-Tuning		After Fine-Tuning
Mode	Method	SSIM	PSNR	SSIM	PSNR
1	FBP	$ 0.04 \pm 0.01 $	$ 6.77 \pm 2.00 $	$ 0.21 \pm 0.02 $	$ 27.52 \pm 1.95 $
	LS	$ \mathbf{0.55 \pm 0.04} $	$ 26.65 \pm 1.94 $	$ 0.32 \pm 0.03 $	$ \mathbf{29.19 \pm 1.90} $
	SDF	$ 0.26 \pm 0.03 $	$ \mathbf{26.96 \pm 1.94} $	$ \mathbf{0.34 \pm 0.04} $	$ 28.34 \pm 1.95 $
	N2I	$ 0.23 \pm 0.03 $	$ 23.05 \pm 1.96 $	$ 0.28 \pm 0.03 $	$ 27.61 \pm 1.94 $
	EI	$ 0.09 \pm 0.01 $	$ 14.23 \pm 2.00 $	$ 0.20 \pm 0.03 $	$ 25.13 \pm 1.98 $
2	FBP	$ 0.14 \pm 0.01 $	$ 21.99 \pm 1.95 $	$ \mathbf{0.46 \pm 0.05} $	$ 33.32 \pm 1.93 $
	LS	$ \mathbf{0.81 \pm 0.04} $	$ \mathbf{31.03 \pm 1.88} $	$ 0.27 \pm 0.03 $	$ 30.59 \pm 1.89 $
	SDF	$ 0.24 \pm 0.02 $	$ 30.59 \pm 1.91 $	$ 0.31 \pm 0.02 $	$ 33.97 \pm 1.94 $
	N2I	$ 0.41 \pm 0.04 $	$ 28.66 \pm 1.93 $	$ 0.39 \pm 0.03 $	$ 32.59 \pm 1.92 $
	EI	$ 0.29 \pm 0.03 $	$ 29.25 \pm 1.93 $	$ 0.44 \pm 0.04 $	$ \mathbf{34.14 \pm 1.94} $

| Show Table

DownLoad: CSV

Table 2. Results of experiments on angular and orbital subsets of the Walnuts dataset

Method	PSNR	SSIM
FDK	$ 28.65 \pm 2.34 $	$ 0.58 \pm 0.08 $
SDF	$ 36.76 \pm 2.39 $	$ 0.98 \pm 0.08 $
CNN	$ 25.31 \pm 1.99 $	$ 0.03 \pm 0.01 $

| Show Table

DownLoad: CSV
