Regularized inverse filtering and machine learning methods for speech enhancement - the Helsinki Speech Challenge 2024

1.
Department of Applied Mathematics and Computer Science, Technical University of Denmark, Denmark
2.
Alvenir.ai, Denmark

^*Corresponding author: Kim Knudsen
^*Corresponding author: Kim Knudsen

Received: August 15, 2025

Revised: November 27, 2025

Published online: December 12, 2025

KK was supported by The Villum Foundation (Grant No. 25893).

Abstract / Introduction Full Text(HTML) Figure(10) / Table(3) Related Papers Cited by

Abstract

Speech enhancement can be seen as an ill-posed inverse problem modeled by convolution with an impulse response, where the goal is to recover the clean speech signal from a corrupted one. In this work, we propose various methods for solving this problem in the cases of low-pass filtered and reverberated speech signals. Based on energy time curves, and energy decay curves we first estimate the impulse response functions, which can then be used as inverse filters in a deconvolution. We propose methods combining in different ways spectral subtraction, deconvolution by inverse filtering, regularized inverse filtering, and a machine learning method based on convolutional neural networks. We systematically collect results for the performance of the methods on different cases and different levels of complexity. The results highlight that no single method is superior across all tasks and levels, but in general a successful approach should be based on both spectral subtraction and a mathematical impulse response model, possibly together with a neural network. The work was done in the context of the Helsinki Speech Challenge 2024.

Keywords:

Mathematics Subject Classification: Primary: 15A29, 94A12; Secondary: 68T10.

Citation:

FullText(HTML)

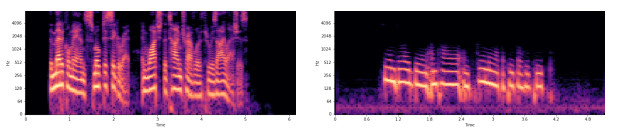

Figure 1. Spectrogram comparison between a clean signal (left) and a recorded signal (right) for T1L3 in the HSC dataset. The figure is from [17]

Download: Full-size image PowerPoint slide

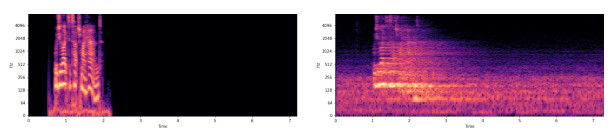

Figure 2. Spectrogram comparison between a clean signal (left) and a recorded signal (right) for T2L2 in the HSC dataset. The figure is from [17]

Download: Full-size image PowerPoint slide

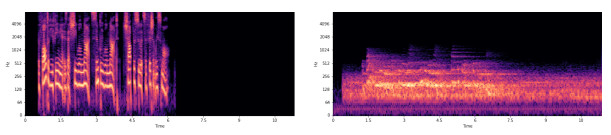

Figure 3. Spectrogram comparison between a clean signal (left) and a recorded signal (right) for T3L2 in the HSC dataset. The figure is from [17]

Download: Full-size image PowerPoint slide

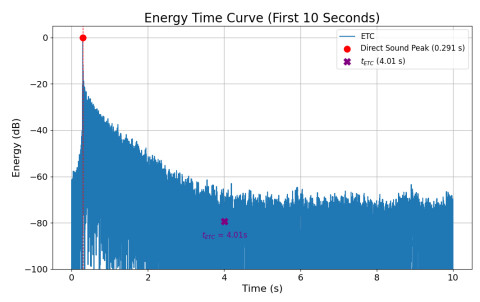

Figure 4. Energy time curve (ETC) computed from the impulse response (T2L1) derived via deconvolution of a swept sine signal. The curve shows an initial decay followed by a flattening trend, indicating the presence of background noise

Download: Full-size image PowerPoint slide

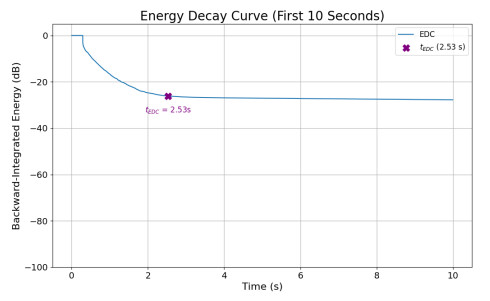

Figure 5. Energy decay curve (EDC) computed from the same impulse response (T2L1) using backward integration. The curve demonstrates exponential decay until it flattens

Download: Full-size image PowerPoint slide

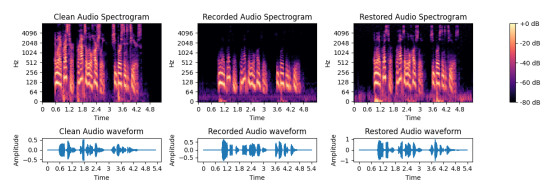

Figure 6. T1L2 results showing clean, recorded, and restored audio with IR-method in both spectrograms and waveforms

Download: Full-size image PowerPoint slide

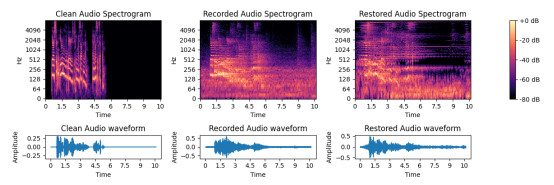

Figure 7. T2L2 results showing clean, recorded, and restored audio in both spectrograms and waveforms recovered using a regularized inverse filter

Download: Full-size image PowerPoint slide

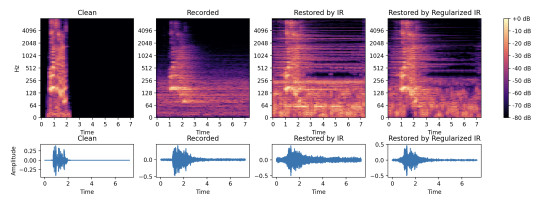

Figure 8. Spectrogram comparisons for T2L2 showing clean, recorded, and reconstructed signals using the IR method with no regularization and with (15) regularization

Download: Full-size image PowerPoint slide

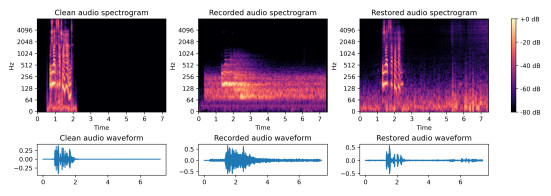

Figure 9. T3L1 results showing clean, recorded, and restored audio in both spectrograms and waveforms recovered using a combination of two different impulse responses (one for a low-pass filter and one for reverb) with one of them regularized and VoiceFixer

Download: Full-size image PowerPoint slide

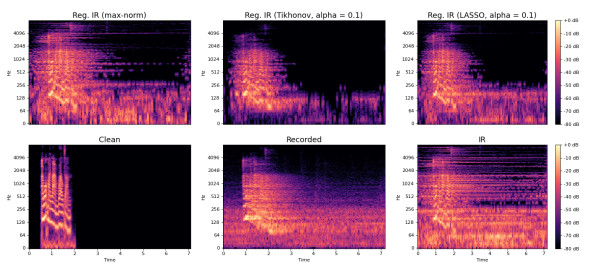

Figure 10. Spectrogram showcasing clean, recorded, and the restored audio (T2L2) using the IR-method, and regularization with max-norm, Tikhonov, and Lasso described by equation (16) and (17). For Tikhonov and Lasso regularization, the parameters are $ \alpha_T = \alpha_L = 0.1 $

Download: Full-size image PowerPoint slide

Table 1. Mean character error rates (CER) for various methods on training data. We consider spectral subtraction (Spec. sub.), the impulse response (IR)-based recovery as described in 4.2, VoiceFixer (VF), and the combination IR + VF. The lowest rates for each level are shown in bold, while underlined rates corresponds to the submitted winning solution methods. *Note that the Task 3 IR solutions are combinations of level-specific Task 1 and 2 filters, see 6.3

		Mean CER on Training data (%)
Task	ID	Recorded	Spec. sub.	IR	Reg. IR	Voicefixer	IR + Voicefixer
Filtering	T1L1	4.0	4.0	1.5	3.3	2.8	3.7
	T1L2	7.0	7.2	1.9	4.6	4.2	1.8
	T1L3	31.9	28.1	7.8	15.9	16.0	8.4
	T1L4	66.7	68.4	35.4	44.2	41.3	31.0
	T1L5	82.7	83.4	46.9	54.9	51.1	44.7
	T1L6	90.6	87.8	61.3	64.6	62.0	59.4
	T1L7	85.7	82.1	68.1	72.5	67.3	67.5
Reverb	T2L1	12.7	12.3	36.4	17.5	13.1	34.0
	T2L2	47.5	47.9	44.4	23.4	40.2	46.3
	T2L3	55.8	56.9	21.3	11.3	47.4	24.0
Combined	T3L1	90.8	92.2	65.6*		73.5	63.1*
	T3L2	99.9	99.9	77.8*		80.0	67.8*

| Show Table

DownLoad: CSV

Table 2. Mean character error rates (CER) for various methods on test data. We consider spectral subtraction (Spec. sub.), the impulse response (IR)-based recovery as described in 4.2, VoiceFixer (VF), and the combination IR + VF. The lowest rates for each level are shown in bold, while underlined rates corresponds to the submitted winning solution methods. *Note that the Task 3 IR solutions are level-specific combinations of existing Task 1 and 2 filters, see 6.3

		Mean CER on Test data (%)
Task	ID	Recorded	Spec. sub.	IR	Reg. IR	Voicefixer	IR + Voicefixer
Filtering	T1L1	3.4	2.8	0.9	2.0	1.0	2.2
	T1L2	5.7	5.7	1.5	4.2	2.8	1.2
	T1L3	29.1	26.7	8.4	19.1	18.3	9.0
	T1L4	65.5	67.2	41.4	49.0	45.0	34.4
	T1L5	82.5	82.4	48.4	57.1	52.3	45.1
	T1L6	89.5	86.0	63.4	68.8	63.2	61.7
	T1L7	85.8	81.9	66.0	71.2	65.4	66.4
Reverb	T2L1	12.2	12.8	39.4	18.7	12.5	36.5
	T2L2	47.3	48.1	46.3	27.8	41.6	45.4
	T2L3	56.0	57.4	23.1	11.3	49.7	25.5
Combined	T3L1	91.5	93.2	72.6*		73.5	64.2*
	T3L2	99.7	99.8	78.5*		79.6	68.7*

| Show Table

DownLoad: CSV

Table 3. Mean character error rates (CER) in (%) for various methods on a training data example from Task 2 Level 2

Clean	Recorded	IR	Max-norm	Tikhonov	Lasso
0.0	33.3	62.5	25.0	50.0	37.5

| Show Table

DownLoad: CSV
