A novel recurrent neural network of gated unit based on Euler's method and application

Pinchao Meng; Lin Wang; Weishi Yin; Linhua Zhou

doi:10.3934/cac.2023007

Article Contents

2023, Volume 1, Issue 2: 116-134. Doi: 10.3934/cac.2023007

This issue Previous Article New results for variational regularization with oversmoothing penalty term in Banach spaces Next Article Denoising convolution algorithms and applications to SAR signal processing

A novel recurrent neural network of gated unit based on Euler's method and application

School of Mathematics and Statistics, Changchun University of Science and Technology, Changchun, China

^*Corresponding author: Pinchao Meng
^*Corresponding author: Pinchao Meng

Received: January 2023

Revised: March 2023

Early access: March 2023

Published: June 2023

This research is supported by the Jilin Provincial Science Foundation and Technology Program. [Project No. 20220101040JC].

Abstract / Introduction Full Text(HTML) Figure(12) / Table(1) Related Papers Cited by

Abstract

The main focus of this paper is to interpret the neural networks as the discretizations of differential equations, which has more benefits for analyzing the intrinsic mechanisms of neural networks. Under this theoretical framework, we propose a conditionally stable network unit called the GUEM, which is based on the Euler's method for ordinary differential equations and the gated thought in recurrent neural networks. Moreover, we build a sequence-to-sequence recurrent neural network based on the GUEM and fully connected layers, which does not amplify perturbations caused by noises of the input features. Finally, the numerical experiments of inverse scattering problems demonstrate the effectiveness and efficiency of our network.

Keywords:

Mathematics Subject Classification: 34D20, 65L07, 35R30, 68T07.

Citation:

FullText(HTML)

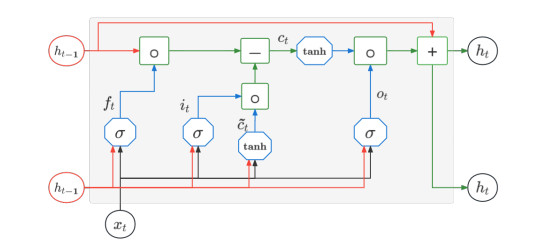

Figure 1. The architecture diagram of GUEM with $ \mu = 1 $

Download: Full-size image PowerPoint slide

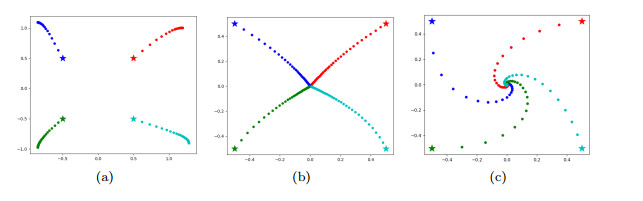

Figure 2. Visualization of the dynamics with weight matrices $ W_{\tilde{c}h}^{1} $, $ W_{\tilde{c}h}^{2} $ and $ W_{\tilde{c}h}^{3} $ respectively, where the stars represent the four initial hidden states in two dimensions

Download: Full-size image PowerPoint slide

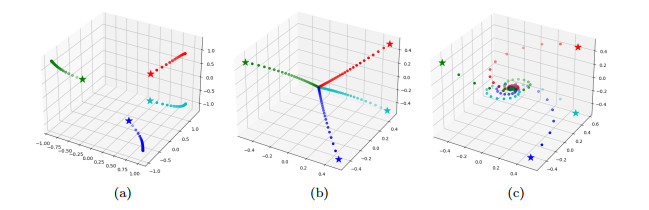

Figure 3. Visualization of the dynamics with weight matrices $ W_{\tilde{c}h}^{4} $, $ W_{\tilde{c}h}^{5} $ and $ W_{\tilde{c}h}^{6} $ respectively, where the stars represent the four initial hidden states in three dimensions

Download: Full-size image PowerPoint slide

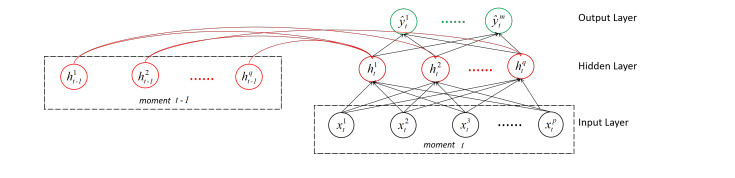

Figure 4. The architecture diagram of the recurrent neural network

Download: Full-size image PowerPoint slide

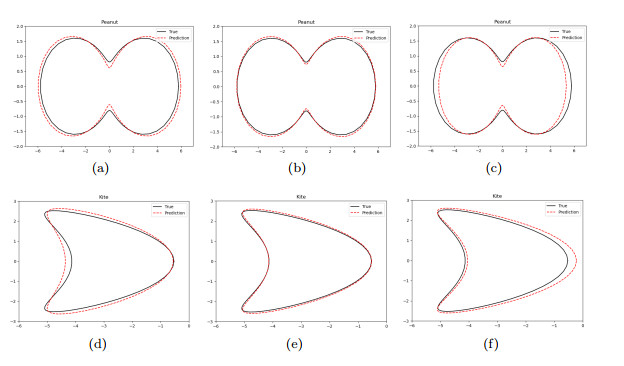

Figure 5. Recoveries of a peanut-shape obstacle and a kite-shape obstacle by the GUEM-RNN with the learning rate $ \eta = 0.001, 0.0001, 0.00001 $, respectively

Download: Full-size image PowerPoint slide

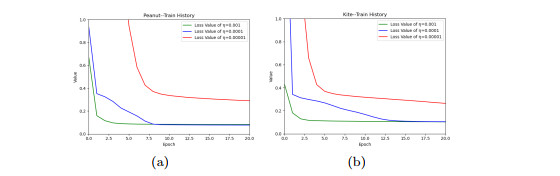

Figure 6. Reconstruction losses of peanut-shape obstacles and kite-shape obstacles by the GUEM-RNN with the learning rate $ \eta = 0.001, 0.0001, 0.00001 $, respectively

Download: Full-size image PowerPoint slide

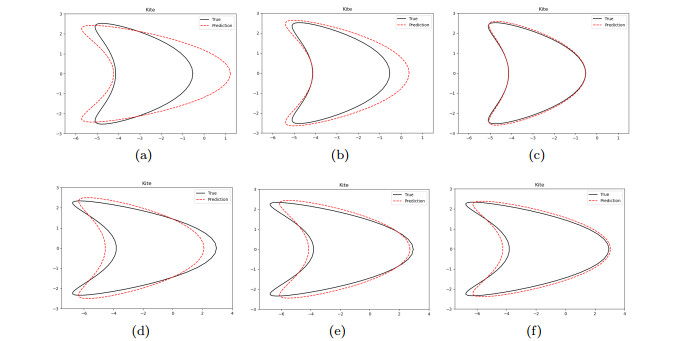

Figure 7. Recoveries of two forms of peanut-shape obstacles by the GUEM-RNN with $ n' = 15, 25, 35 $, respectively

Download: Full-size image PowerPoint slide

Figure 8. Recoveries of two forms of kite-shape obstacles by the GUEM-RNN with $ n' = 15, 25, 35 $, respectively

Download: Full-size image PowerPoint slide

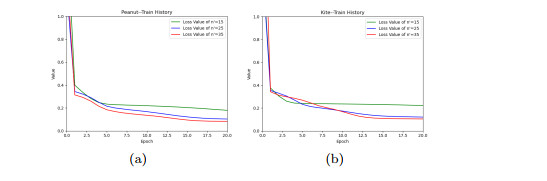

Figure 9. Reconstruction losses of peanut-shape obstacles and kite-shape obstacles by the GUEM-RNN with $ n' = 15, 25, 35 $, respectively

Download: Full-size image PowerPoint slide

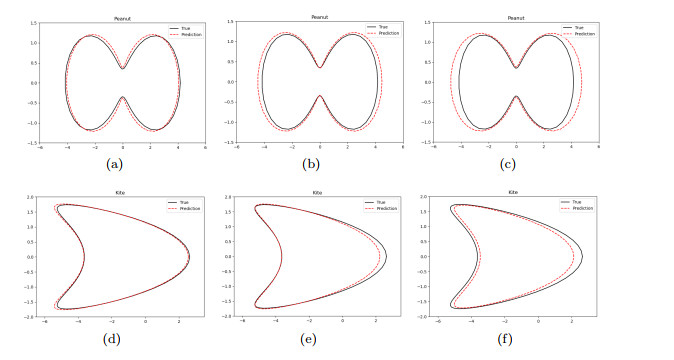

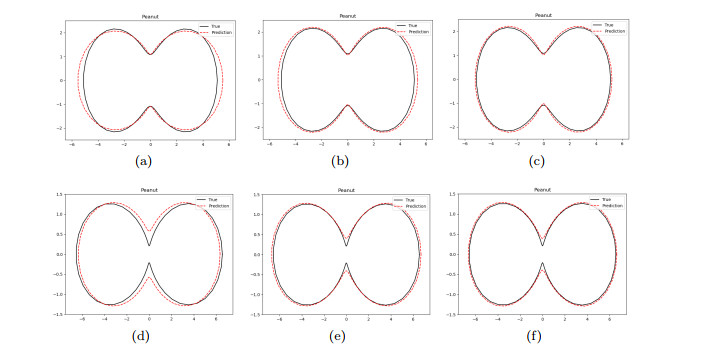

Figure 10. Recoveries of a peanut-shape obstacle and a kite-shape obstacle by the GUEM-RNN with $ 5\%, 10\%, 20\% $ noise levels, respectively

Download: Full-size image PowerPoint slide

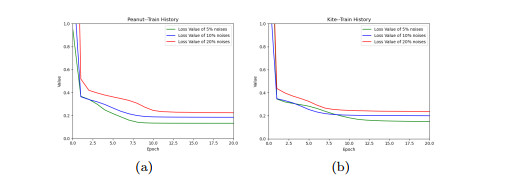

Figure 11. Reconstruction losses of peanut-shape obstacles and kite-shape obstacles by the GUEM-RNN with $ 5\%, 10\%, 20\% $ noise levels, respectively

Download: Full-size image PowerPoint slide

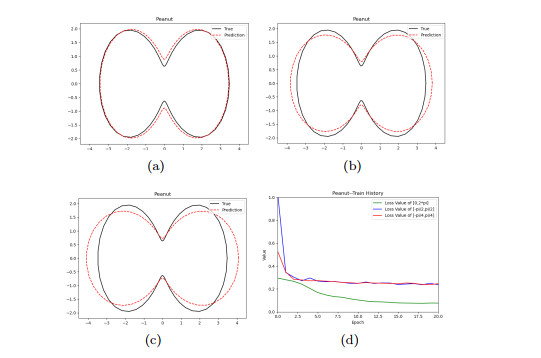

Figure 12. Recoveries of a peanut-shape obstacle by the GUEM-RNN with the observation aperture $ \left[0, 2\pi\right] $, $ \left[-\frac{\pi}{2}, \frac{\pi}{2}\right] $, $ \left[-\frac{\pi}{4}, \frac{\pi}{4}\right] $, respectively. Figure 12(d) shows the reconstruction losses with different observation apertures by the GUEM-RNN

Download: Full-size image PowerPoint slide

Table 1. The hyper parameters of GUEM-RNN

Parameter	Hidden Neurons	Learning Rate	Weight-Decay	Batch Size	Iteration Epochs
Value	128	$ 0.0001 $	$ 0.00001 $	64	20

| Show Table

DownLoad: CSV
