Efficient numerical method for shape optimization problem constrained by stochastic elliptic interface equation

Qingguang Guan; Xu Guo; Wenju Zhao

doi:10.3934/cac.2023016

Article Contents

2023, Volume 1, Issue 4: 321-346. Doi: 10.3934/cac.2023016

This issue Previous Article Next Article Reconstruction of extended regions in EIT with a generalized Robin transmission condition

Efficient numerical method for shape optimization problem constrained by stochastic elliptic interface equation

1.
School of Mathematics and Natural Sciences, University of Southern Mississippi, Hattiesburg, MS 39406, USA
2.
Geotechnical and Structural Engineering Research Center, Shandong University, Jinan, Shandong 250061, China
3.
School of Mathematics, Shandong University, Jinan, Shandong 250100, China

^*Corresponding author: Wenju Zhao
^*Corresponding author: Wenju Zhao

Received: June 2023

Revised: October 2023

Early access: October 26, 2023

Published online: October 26, 2023

The second author is funded in part by the National Natural Science Foundation of China under Grants 12271303, and by Taishan Scholars Program of Shandong Province of China (tsqn201909044).
The third author is partially supported by the National Natural Science Foundation of China (Nos. 12001325)..

Abstract / Introduction Full Text(HTML) Figure(14) / Table(3) Related Papers Cited by

Abstract

This paper provides a computational framework for stochastic shape optimization problems. The primary control objective involves minimizing the expected value of a tracking cost function while adhering to constraints posed by a stochastic elliptic interface equation. This study incorporates stochastic shape variation and shape derivatives, enabling the establishment of a diminishing sequence of admissible interfaces. The finite element method is employed for discretizing both state and adjoint systems, yielding mesh displacement directions. Notably, the mesh manipulation technique utilized within the optimization process is subject to regularization through cubic spline interpolation employing a centripetal scheme. To ensure the fidelity of the interface curve and prevent undesirable twisting, the convex hull technique is incorporated, thus upholding mesh displacement consistency. To mitigate the computational demands associated with uncertainty quantification, the sparse grid collocation method is enlisted. This technique facilitates the matching of probability distributions, particularly in scenarios involving relatively high-dimensional problems. Moreover, for extensive-scale sampling optimization, a stochastic sampling-based descent method is integrated. The effectiveness and efficiency of the proposed algorithms are underscored through a series of numerical experiments, which serve to validate their performance.

Keywords:

Stochastic shape optimization,
shape variation,
sparse grid,
stochastic sampling-based descent method.

Mathematics Subject Classification: Primary: 35R60, 49Q10, 93E20.

Citation:

FullText(HTML)

Figure 1. In domian $ \mathcal{D} $, $ \Gamma $ moves to $ \Gamma' $ by a distance $ \kappa( {\bf{x}}) $ along the outer normal vector $ {\bf{n}}( {\bf{x}}) $

Download: Full-size image PowerPoint slide

Figure 2. The numerical solutions on mesh Level 4. Left: numerical solution with the circular interface; Right: Numerical solution with concave-convex interface

Download: Full-size image PowerPoint slide

Figure 3. Circular and concave-convex interfaces

Download: Full-size image PowerPoint slide

Figure 4. Evolution of deterministic cost functional

Download: Full-size image PowerPoint slide

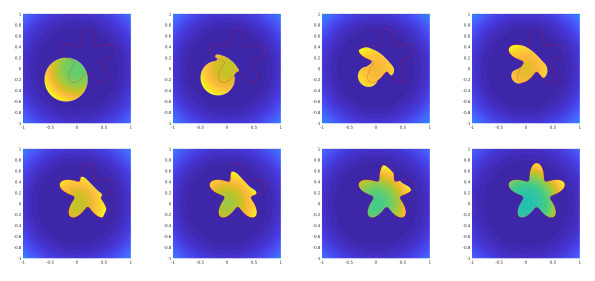

Figure 5. Evolution of deterministic state variable $ u_{iter}( {\bf{x}}) $

Download: Full-size image PowerPoint slide

Figure 6. The evolution of deterministic state variable $ u_{iter}( {\bf{x}}) $

Download: Full-size image PowerPoint slide

Figure 7. Evolution of cost functional with sparse grid collocation

Download: Full-size image PowerPoint slide

Figure 8. The evolution of $ \mathbb E [u_{iter}( {\bf{x}})] $

Download: Full-size image PowerPoint slide

Figure 9. The evolution of $ \mathbb E[u_{iter}( {\bf{x}})] $

Download: Full-size image PowerPoint slide

Figure 10. Evolution of sampling-based cost functional

Download: Full-size image PowerPoint slide

Figure 11. The evolution of sampling-based state variable $ u_{iter}( {\bf{x}}, \omega_t) $

Download: Full-size image PowerPoint slide

Figure 12. The evolution of sampling-based state variable $ u_{iter}( {\bf{x}}, \omega_t) $

Download: Full-size image PowerPoint slide

Figure 13. Mesh moving with projection

Download: Full-size image PowerPoint slide

Figure 14. Mesh moving without projection

Download: Full-size image PowerPoint slide

Table 1. Numerical convergence results with the circular interface

Mesh	#Element	$ L^2 $ Error	$ L^2 $ Order	$ H^1 $ Error	$ H^1 $ Order
Level 1	2716	1.3371E-04	-	4.6025E-03	-
Level 2	10864	1.6407E-05	3.0267	1.1588E-03	1.9897
Level 3	43456	2.0530E-06	2.9985	2.9124E-04	1.9924
Level 4	173824	2.5745E-07	2.9953	7.3030E-05	1.9956

| Show Table

DownLoad: CSV

Table 2. Numerical convergence results with the concave-convex interface

Mesh	#Element	$ L^2 $ Error	$ L^2 $ Order	$ H^1 $ Error	$ H^1 $ Order
Level 1	1940	1.5739E-04	-	5.3861E-03	-
Level 2	7760	1.9463E-05	3.0155	1.3578E-03	1.9879
Level 3	31040	2.4334E-06	2.9996	3.4123E-04	1.9924
Level 4	124160	3.0472E-07	2.9974	8.5553E-05	1.9958

| Show Table

DownLoad: CSV

Table 3. Comparison between Experiment 6.3 and 6.4

	sample number	iteration number	total number
Experiment 6.3	385	850	327250
Experiment 6.4	1	10000	10000

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	R. A. Adams and J. J. F. Fournier, Sobolev Spaces, vol. 140 of Pure and Applied Mathematics (Amsterdam), 2nd edition, Elsevier/Academic Press, Amsterdam, 2003.
[2]	I. Babuˇ ska, F. Nobile and R. Tempone, A stochastic collocation method for elliptic partial differential equations with random input data, SIAM J. Numer. Anal., 45 (2007), 1005-1034. doi: 10.1137/050645142.
[3]	I. Babuˇ ska, R. Tempone and G. E. Zouraris, Galerkin finite element approximations of stochastic elliptic partial differential equations, SIAM J. Numer. Anal., 42 (2004), 800-825. doi: 10.1137/S0036142902418680.
[4]	J. H. Bramble and J. T. King, A finite element method for interface problems in domains with smooth boundaries and interfaces, Adv. Comput. Math., 6 (1996), 109-138. doi: 10.1007/BF02127700.
[5]	M. C. Delfour and J.-P. Zolésio, Shapes and Geometries: Metrics, analysis, differential calculus, and optimization, vol. 22 of Advances in Design and Control, 2nd edition, Society for Industrial and Applied Mathematics (SIAM), Philadelphia, PA, 2011. doi: 10.1137/1.9780898719826.
[6]	M. Griebel, M. Schneider and C. Zenger, A combination technique for the solution of sparse grid problems, in Iterative Methods in Linear Algebra (Brussels, 1991), North-Holland, Amsterdam, 1992,263-281.
[7]	Q. Guan, Weak galerkin finite element method for poisson's equation on polytopal meshes with small edges or faces, Journal of Computational and Applied Mathematics, 368 (2020), 112584. doi: 10.1016/j.cam.2019.112584.
[8]	Q. Guan, M. Gunzburger, C. G. Webster and G. Zhang, Reduced basis methods for nonlocal diffusion problems with random input data, Computer Methods in Applied Mechanics and Engineering, 317 (2017), 746-770. doi: 10.1016/j.cma.2016.12.019.
[9]	Q. Guan, M. Gunzburger and W. Zhao, Weak-galerkin finite element methods for a second-order elliptic variational inequality, Computer Methods in Applied Mechanics and Engineering, 337 (2018), 677-688. doi: 10.1016/j.cma.2018.04.006.
[10]	Q. Guan, G. Queisser and W. Zhao, Weak galerkin finite element method for second order problems on curvilinear polytopal meshes with lipschitz continuous edges or faces, Computers & Mathematics with Applications, 148 (2023), 282-292. doi: 10.1016/j.camwa.2023.08.017.
[11]	H. Harbrecht and J. Li, First order second moment analysis for stochastic interface problems based on low-rank approximation, ESAIM Math. Model. Numer. Anal., 47 (2013), 1533-1552.
[12]	X. He, T. Lin and Y. Lin, Immersed finite element methods for elliptic interface problems with non-homogeneous jump conditions, Int. J. Numer. Anal. Model., 8 (2011), 284-301.
[13]	F. Heiss and V. Winschel, Likelihood approximation by numerical integration on sparse grids, J. Econometrics, 144 (2008), 62-80. doi: 10.1016/j.jeconom.2007.12.004.
[14]	B. Mohammadi and O. Pironneau, Applied Shape Optimization for Fluids, 2nd edition, Numerical Mathematics and Scientific Computation, Oxford University Press, Oxford, 2010.
[15]	F. Nobile, R. Tempone and C. G. Webster, A sparse grid stochastic collocation method for partial differential equations with random input data, SIAM J. Numer. Anal., 46 (2008), 2309-2345. doi: 10.1137/060663660.
[16]	O. Pironneau, Optimal Shape Design for Elliptic Systems, Springer Series in Computational Physics, Springer-Verlag, New York, 1984. doi: 10.1007/978-3-642-87722-3.
[17]	M. Schmidt, N. Le Roux and F. Bach, Minimizing finite sums with the stochastic average gradient, Math. Program., 162 (2017), 83-112. doi: 10.1007/s10107-016-1030-6.
[18]	T. Tang, Moving mesh methods for computational fluid dynamics, in Recent Advances in Adaptive Computation, vol. 383 of Contemp. Math., Amer. Math. Soc., Providence, RI, 2005,141-173. doi: 10.1090/conm/383/07162.
[19]	W. Zhao and Q. Guan, Numerical analysis of energy stable weak galerkin schemes for the cahn-hilliard equation, Communications in Nonlinear Science and Numerical Simulation, 118 (2023), 106999. doi: 10.1016/j.cnsns.2022.106999.
[20]	W. Zhao and M. Gunzburger, Stochastic collocation method for stochastic optimal boundary control of the Navier-Stokes equations, Appl. Math. Optim., 87 (2023), Paper No. 6, 28pp. doi: 10.1007/s00245-022-09910-y.
[21]	Y. C. Zhou and G. W. Wei, On the fictitious-domain and interpolation formulations of the matched interface and boundary (MIB) method, J. Comput. Phys., 219 (2006), 228-246. doi: 10.1016/j.jcp.2006.03.027.
