Reconstruction of extended regions in EIT with a generalized Robin transmission condition

Govanni Granados; Isaac Harris; Heejin Lee

doi:10.3934/cac.2023017

Article Contents

2023, Volume 1, Issue 4: 347-368. Doi: 10.3934/cac.2023017

This issue Previous Article Efficient numerical method for shape optimization problem constrained by stochastic elliptic interface equation Next Article Operator-valued martingale transform on mixed martingale Hardy spaces

Reconstruction of extended regions in EIT with a generalized Robin transmission condition

1.
Department of Mathematics, Purdue University, West Lafayette, IN 47907, USA

^*Corresponding author: Isaac Harris
^*Corresponding author: Isaac Harris

Received: November 2022

Revised: November 2023

Early access: December 2023

Published: December 2023

The authors G. Granados, I. Harris and H. Lee are supported by NSF grant 2107891.

Abstract / Introduction Full Text(HTML) Figure(4) Related Papers Cited by

Abstract

In this paper, we consider an inverse shape problem coming from electrical impedance tomography (EIT) with a generalized Robin transmission condition. We will derive an algorithm in order to detect whether two materials that should be in contact are separated or delaminated. More precisely, we assume that the undamaged material or background state is known and shares an interface or boundary with the damaged subregion. The Robin transmission condition on this boundary asymptotically models delamination. We assume that the Dirichlet-to-Neumann (DtN) operator is given from measuring the current on the surface of the material from an imposed voltage. We show that this mapping uniquely recovers the boundary parameters. Furthermore, using this electrostatic Cauchy data as physical measurements, we can determine if all of the coefficients from the Robin transmission condition are real-valued or complex-valued. We study these two cases separately and show that the regularized factorization method can be used to detect whether delamination has occurred and recover the damaged subregion. Numerical examples will be presented for both cases in two dimensions in the unit circle.

Keywords:

Mathematics Subject Classification: Primary: 35J05, 35J25.

Citation:

FullText(HTML)

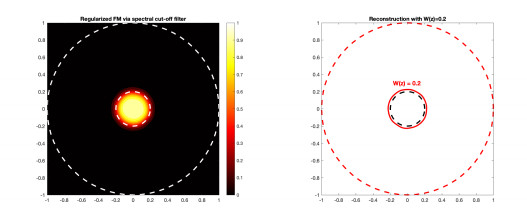

Figure 1. Reconstruction of a circular region with $ \rho = 0.2 $ via the regularized factorization method. Boundary coefficients are $ \gamma = 2 - 0.5 \text{i} $ and $ \mu = 0.1 - \text{i} $. Contour plot of $ W(z) $ on the left and level curve when $ W(z) = 0.2 $ on the right

Download: Full-size image PowerPoint slide

Figure 2. Reconstruction of a circular region with $ \rho = 0.7 $ via the regularized factorization method. Boundary coefficients are $ \gamma = 2-3 \text{i} $ and $ \mu = 1 - 4 \text{i} $. Contour plot of $ W(z) $ on the left and level curve when $ W(z) = 0.2 $ on the right

Download: Full-size image PowerPoint slide

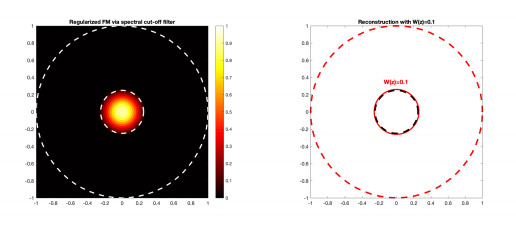

Figure 3. Reconstruction of a circular region with $ \rho = 0.25 $ via the regularized factorization method. Boundary coefficients are $ \gamma = 1.2 $ and $ \mu = 0.5 $. Contour plot of $ W(z) $ on the left and level curve when $ W(z) = 0.1 $ on the right

Download: Full-size image PowerPoint slide

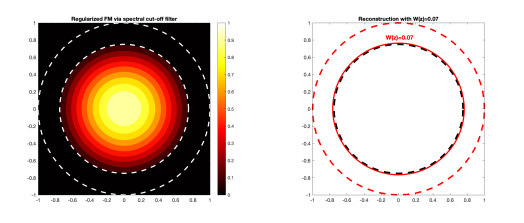

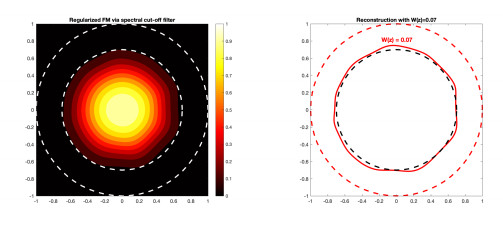

Figure 4. Reconstruction of a circular region with $ \rho = 0.75 $ via the regularized factorization method. Boundary coefficients are $ \gamma = 0.6 $ and $ \mu = 1.6 $. Contour plot of $ W(z) $ on the left and level curve when $ W(z) = 0.07 $ on the right

Download: Full-size image PowerPoint slide
