The anisotropic interior transmission eigenvalue problem with a conductive boundary

Victor Hughes; Isaac Harris; Jiguang Sun

doi:10.3934/cac.2025007

Article Contents

June 2025, Volume 4, 60-82. Doi: 10.3934/cac.2025007

This volume Previous Article Recent progress in Carleman estimates for mean field games Next Article Estimating properties of a homogeneous bounded soil using machine learning models

The anisotropic interior transmission eigenvalue problem with a conductive boundary

1.
Department of Mathematics, Purdue University, West Lafayette, IN 47907, USA
2.
Department of Mathematics, Michigan Technological University, Houghton, MI 49931, USA

^*Corresponding author: Isaac Harris
^*Corresponding author: Isaac Harris

Received: April 2025

Published online: May 6, 2025

The research of I. Harris and V. Hughes is partially supported by the [NSF DMS Grant 2107891].

Abstract / Introduction Full Text(HTML) Figure(1) / Table(5) Related Papers Cited by

Abstract

In this paper, we study the transmission eigenvalue problem for an anisotropic material with a conductive boundary. We prove that the transmission eigenvalues for this problem exist and are, at most, a discrete set. We also study the dependence of the transmission eigenvalues on the physical parameters and prove that the first transmission eigenvalue is monotonic. We then consider the limiting behavior of the transmission eigenvalues as the conductive boundary parameter $ \eta $ vanishes or goes to infinity in magnitude. Finally, we provide numerical examples on three domains to demonstrate our theoretical results.

Keywords:

Mathematics Subject Classification: Primary: 35P25, 35J30; Secondary: 65N30.

Citation:

FullText(HTML)

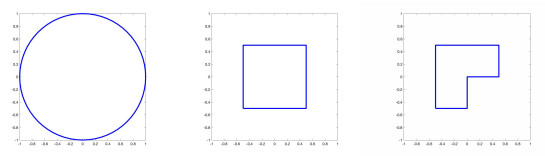

Figure 1. The unit circle, unit square and L–Shaped domains

Download: Full-size image PowerPoint slide

Table 1. Convergence with respect to $ \eta \to 0 $ for the unit disk ($ A = 0.4 I $ and $ n = 3 $ for $ \eta>0 $; $ A = 3 I $ and $ n = 0.7 $ for $ \eta<0 $)

$ \eta $	$ k_{\eta} $	EOC	$ \eta $	$ k_\eta $	EOC
1	1.6010	N/A	-1	5.8032	N/A
1/2	1.7353	1.7003	-1/2	5.8143	0.9223
1/4	1.7697	1.2386	-1/4	5.8203	0.9542
1/8	1.7832	1.1004	-1/8	5.8234	0.9556
1/16	1.7893	1.0498	-1/16	5.8250	0.9569
1/32	1.7922	1.0255	-1/32	5.8258	0.9175
1/64	1.7936	1	-1/64	5.8262	0.8480
1/128	1.7943	1	-1/128	5.8264	0.7370
1/256	1.7946	1	-1/256	5.8265	0.5850
1/512	1.7948	1	-1/512	5.8266	1

| Show Table

DownLoad: CSV

Table 2. Convergence with respect to $ \eta \to \pm \infty $ for the unit disk. ($ A = 0.4 I $ and $ n = 3 $ for $ \eta>0 $ and $ A = 3 I $ and $ n = 0.7 $ for $ \eta<0 $)

$ \eta $	$ k_{\eta} $	EOC	$ \eta $	$ k_\eta $	EOC
1	1.6010	N/A	-1	5.8032	N/A
2	1.1415	1.4565	-2	5.7839	0.00822
4	0.9828	1.3310	-4	5.7537	0.01295
8	0.9258	1.1342	-8	5.7124	0.0179
16	0.9010	1.0586	-16	2.5944	4.1248
32	0.8893	1.0318	-32	2.4881	1.1866
64	0.8837	1	-64	2.4443	1.0765
128	0.8809	1	-128	2.4241	1.0333
256	0.8795	1	-256	2.4143	1.0266
512	0.8788	1	-512	2.4095	1.0153

| Show Table

DownLoad: CSV

Table 3. Monotonicity with respect to $ A = aI $ for the unit square. Here, we take $ n = 0.75 $ and $ \eta = -2 $ for $ a>1 $ where as $ n = 2 $ and $ \eta = 2 $ for $ a<1 $

$ a $	$ k_{1}(a) $	$ a $	$ k_{1}(a) $
$ 1.5 $	$ 18.3370 $	$ 0.3 $	$ 3.3113 $
$ 2 $	$ 14.1549 $	$ 0.4 $	$ 4.2377 $
$ 2.5 $	$ 11.8953 $	$ 0.5 $	$ 5.4361 $
$ 3 $	$ 10.7253 $	$ 0.6 $	$ 6.5176 $
$ 3.5 $	$ 10.2221 $	$ 0.7 $	$ 7.6965 $
$ 4 $	$ 9.9292 $	$ 0.8 $	$ 9.2953 $

| Show Table

DownLoad: CSV

Table 4. Monotonicity with respect to $ n $ for the L–Shaped domain. Here, we take $ A = 0.7 I $ and $ \eta = 2 $ for $ n>1 $ where as $ A = 3 I $ and $ \eta = -2 $ for $ n<1 $

$ n $	$ k_{1}(n) $	$ n $	$ k_1(n) $
$ 1.5 $	$ 12.9868 $	$ 0.3 $	$ 10.5159 $
$ 2 $	$ 9.0795 $	$ 0.4 $	$ 11.0014 $
$ 2.5 $	$ 7.2272 $	$ 0.5 $	$ 11.5661 $
$ 3 $	$ 6.0632 $	$ 0.6 $	$ 12.2386 $
$ 3.5 $	$ 5.3701 $	$ 0.7 $	$ 12.9390 $
$ 4 $	$ 4.8812 $	$ 0.8 $	$ 13.5370 $

| Show Table

DownLoad: CSV

Table 5. Convergence with respect to $ \eta \to \pm \infty $ for the L-shaped domain ($ A = 0.4 I $ and $ n = 3 $ for $ \eta>0 $ and $ A = 3 I $ and $ n = 0.7 $ for $ \eta<0 $)

$ \eta $	$ k_{\eta} $	$ \eta $	$ k_\eta $
$ 1 $	$ 3.9995 $	$ -1 $	$ 13.0503 $
$ 2 $	$ 3.8281 $	$ -2 $	$ 12.9390 $
$ 4 $	$ 3.4828 $	$ -4 $	$ 12.6623 $
$ 8 $	$ 2.7805 $	$ -8 $	$ 11.7693 $
$ 16 $	$ 2.4898 $	$ -16 $	$ 10.1467 $
$ 32 $	$ 2.3732 $	$ -32 $	$ 7.2242 $
$ 64 $	$ 2.3196 $	$ -64 $	$ 6.6044 $
$ 128 $	$ 2.2936 $	$ -128 $	$ 6.3938 $
$ 256 $	$ 2.2807 $	$ -256 $	$ 6.3000 $
$ 512 $	$ 2.2742 $	$ -512 $	$ 6.2549 $

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	L. Audibert, L. Chesnel, H. Haddar and K. Napal, Qualitative indicator functions for imaging crack networks using acoustic waves, SIAM J. Sci. Comput., 43 (2021), B271-B297. doi: 10.1137/20M134650X.
[2]	L. Audibert and H. Haddar, A generalized formulation of the linear sampling method with exact characterization of targets in terms of far-field measurements, Inverse Problems, 30 (2014), 035011. doi: 10.1088/0266-5611/30/3/035011.
[3]	E. Blasten, L. Paivarinta and J. Sylvester, Corners always scatter, Comm. Math. Phys., 331 (2014), 725-753. doi: 10.1007/s00220-014-2030-0.
[4]	O. Bondarenko, I. Harris and A. Kleefeld, The interior transmission eigenvalue problem for an inhomogeneous media with a conductive boundary, Applicable Analysis, 96 (2017), 2-22. doi: 10.1080/00036811.2016.1204440.
[5]	O. Bondarenko and X. Liu, The factorization method for inverse obstacle scattering with conductive boundary condition, Inverse Problems, 29 (2013), 095021. doi: 10.1088/0266-5611/29/9/095021.
[6]	L. Borcea and S. Meng, Factorization method versus migration imaging in a waveguide, Inverse Problems, 35 (2019), 124006. doi: 10.1088/1361-6420/ab2c9b.
[7]	F. Cakoni, D. Colton and H. Haddar, The interior transmission problem for regions with cavities, SIAM J. Math. Anal., 42 (2010), 145-162. doi: 10.1137/090754637.
[8]	F. Cakoni, D. Colton and H. Haddar, On the determination of Dirichlet or transmission eigenvalues from far field data, C. R. Acad. Sci. Paris, Ser. I, 348 (2010), 379-383. doi: 10.1016/j.crma.2010.02.003.
[9]	F. Cakoni, D. Colton and H. Haddar, Inverse Scattering Theory and Transmission Eigenvalues, CBMS Series, SIAM 88, Philadelphia, 2016.
[10]	F. Cakoni, H. Haddar and I. Harris, Homogenization approach for the transmission eigenvalue problem for periodic media and application to the inverse problem, Inverse Problems and Imaging, 9 (2015), 1025-1049. doi: 10.3934/ipi.2015.9.1025.
[11]	F. Cakoni and A. Kirsch, On the interior transmission eigenvalue problem, Int. Jour. Comp. Sci. Math., 3 (2010), 142-167. doi: 10.1504/IJCSM.2010.033932.
[12]	F. Cakoni, P. Monk and J. Sun, Error analysis of the finite element approximation of transmission eigenvalues, Comput. Methods Appl. Math., 14 (2014), 419-427. doi: 10.1515/cmam-2014-0021.
[13]	F. Cakoni, M. Vogelius and J. Xiao, On the regularity of non-scattering anisotropic inhomogeneities, Archive for Rational Mechanics and Analysis Volume, 247 (2023), 31. doi: 10.1007/s00205-023-01863-y.
[14]	R. Ceja Ayala, I. Harris, A. Kleefeld and N. Pallikarakis, Analysis of the transmission eigenvalue problem with two conductivity parameters, Applicable Analysis, 103 (2022), 211-239. doi: 10.1080/00036811.2023.2181167.
[15]	D. Colton, P. Monk and J. Sun, Analytical and computational methods for transmission eigenvalues., Inverse Problems, 26 (2010), 045011. doi: 10.1088/0266-5611/26/4/045011.
[16]	H. Diao, X. Cao and H. Liu, On the geometric structures of transmission eigenfunctions with a conductive boundary condition and applications, Com. in Partial Differential Equation, 46 (2021), 630-679. doi: 10.1080/03605302.2020.1857397.
[17]	D. Gintides and N. Pallikarakis, A computational method for the inverse transmission eigenvalue problem, Inverse Problems, 29 (2013), 104010. doi: 10.1088/0266-5611/29/10/104010.
[18]	Y. Hao, Electromagnetic interior transmission eigenvalue problem for an inhomogeneous medium with a conductive boundary, Com. on Pure and Applied Analysis, 19 (2020), 1387-1397.
[19]	I. Harris, Regularized factorization method for a perturbed positive compact operator applied to inverse scattering, Inverse Problems, 39 (2023), 115007. doi: 10.1088/1361-6420/acfd59.
[20]	I. Harris, Analysis of two transmission eigenvalue problems with a coated boundary condition, Applicable Analysis, 100 (2021), 1996-2019. doi: 10.1080/00036811.2019.1672869.
[21]	I. Harris and A. Kleefeld, The inverse scattering problem for a conductive boundary condition and transmission eigenvalues, Applicable Analysis, 99 (2020), 508-529. doi: 10.1080/00036811.2018.1504028.
[22]	I. Harris and A. Kleefeld, Analysis and computation of the transmission eigenvalues with a conductive boundary condition, Applicable Analysis, 101 (2022), 1880-1895. doi: 10.1080/00036811.2020.1789598.
[23]	I. Harris, D.-L. Nguyen, J. Sands and T. Truong, On the inverse scattering from anisotropic periodic layers and transmission eigenvalues, Applicable Analysis, 101 (2022), 3065-3081. doi: 10.1080/00036811.2020.1836349.
[24]	G. Hsiao, F. Liu, J. Sun and L. Xu, A coupled BEM and FEM for the interior transmission problem in acoustics, Journal of Computational and Applied Mathematics, 235 (2011), 5213-5221. doi: 10.1016/j.cam.2011.05.011.
[25]	X. Ji and J. Sun, A multi-level method for transmission eigenvalues of anisotropic media, J. Comput. Phys., 255 (2013), 422-435. doi: 10.1016/j.jcp.2013.08.030.
[26]	A. Kirsch A and N. Grinberg, The Factorization Method for Inverse Problems, Oxford Lecture Ser. Math. Appl., 36, Oxford University Press, Oxford, 2008.
[27]	A. Kirsch and A. Lechleiter, The inside-outside duality for scattering problems by inhomogeneous media, Inverse Problems, 29 (2013), 104011. doi: 10.1088/0266-5611/29/10/104011.
[28]	A. Kleefeld and L. Pieronek, The method of fundamental solutions for computing acoustic interior transmission eigenvalues, Inverse Problems, 34 (2018), 035007. doi: 10.1088/1361-6420/aaa72d.
[29]	A. Kleefeld and L. Pieronek, Computing interior transmission eigenvalues for homogeneous and anisotropic media, Inverse Problems, 34 (2018), 105007. doi: 10.1088/1361-6420/aad7c4.
[30]	E. Kreyszig, Introductory Functional Analysis with Applications, Wiley Classics Library, 1989.
[31]	L. Pieronek and A. Kleefeld, On trajectories of complex-valued interior transmission eigenvalues, Inverse Problems and Imaging, 18 (2023), 480-516. doi: 10.3934/ipi.2023041.
[32]	M. Salo and H. Shahgholian, Free boundary methods and non-scattering phenomena, Res. Math. Sci., 8 (2023), 58.
[33]	S. Salsa, Partial Differential Equations in Action From Modelling to Theory, Springer Italia, Milano, 2008.
[34]	J. Sun, Iterative methods for transmission eigenvalues, SIAM J. Numer. Anal., 49 (2011), 1860-1874. doi: 10.1137/100785478.
[35]	J. Sun and A. Zhou, Finite element methods for eigenvalue problems, Chapman and Hall/CRC Publications, Boca Raton, 1st Edition, (2016).
