Analysis on hybrid fractals

1.

University of Connecticut, 341 Mansfield Road, Storrs CT 06269-1009, USA

2.

The University of Chicago, 5747 S. Ellis Avenue, Chicago, IL 60637, USA

3.

University of California Berkeley, 2333 College Ave, Berkeley, CA 94704, USA

4.

Cornell University, 310 Malott Hall, Ithaca NY 14853, USA

5.

University of California Berkeley, 2301 Durant Avenue, Berkeley CA 94704, USA

* Corresponding author

Received  April 2018 Revised  March 2019 Published  July 2019

Fund Project: The first author is partially supported by a Feodor Lynen Fellowship from the Humboldt Foundation

We introduce hybrid fractals as a class of fractals constructed by gluing several fractal pieces in a specific manner and study energy forms and Laplacians on them. We consider in particular a hybrid based on the $ 3 $-level Sierpinski gasket, for which we construct explicitly an energy form with the property that it does not "capture" the $ 3 $-level Sierpinski gasket structure. This characteristic type of energy forms that "miss" parts of the structure of the underlying space is investigated in the more general framework of finitely ramified cell structures. The spectrum of the associated Laplacian and its asymptotic behavior in two different hybrids is analyzed theoretically and numerically. A website with further numerical data analysis is available at http://www.math.cornell.edu/~harry970804/.

Citation: P. Alonso Ruiz, Y. Chen, H. Gu, R. S. Strichartz, Z. Zhou. Analysis on hybrid fractals. Communications on Pure & Applied Analysis, 2020, 19 (1) : 47-84. doi: 10.3934/cpaa.2020004
References:
[1]

B. Adams, S. A. Smith, R. S. Strichartz and A. Teplyaev, The spectrum of the Laplacian on the pentagasket, Fractals in Graz 2001, Trends Math., Birkhäuser, Basel, 2003, 1–24. Google Scholar

[2]

E. AkkermansO. Benichou and G. V. Dunne, A. Teplyaev and R. Voituriez, Spatial log-periodic oscillations of first-passage observables in fractals, Phys. Rev. E, 86 (2012), 061125. Google Scholar

[3]

E. Akkermans, G. V. Dunne and E. Levy, Wave propagation in one-dimension: Methods and applications to complex and fractal structures, Optics of Aperiodic Structures - Fundamentals and Device Applications, L. Dal Negro (Ed), Pan Stanford Press, 2014, 407–449.Google Scholar

[4]

P. Alonso RuizU. Freiberg and J. Kigami, Completely symmetric resistance forms on the stretched Sierpiński gasket, J. of Fractal Geometry, 5 (2018), 227-277. doi: 10.4171/JFG/61. Google Scholar

[5]

P. Alonso-RuizD. J. Kelleher and A. Teplyaev, Energy and Laplacian on Hanoi-type fractal quantum graphs, Journal of Physics A: Mathematical and Theoretical, 49 (2016), 165206. doi: 10.1088/1751-8113/49/16/165206. Google Scholar

[6]

Patricia Alonso Ruiz, Power dissipation in fractal Feynman-Sierpinski AC circuits, J. Math. Phys., 58 (2017), 073503, 16. doi: 10.1063/1.4994197. Google Scholar

[7]

N. BajorinT. ChenA. DaganC. EmmonsM. HusseinM. KhalilP. ModyB. Steinhurst and A. Teplyaev, Vibration modes of 3 n -gaskets and other fractals, Journal of Physics A: Mathematical and Theoretical, 41 (2008), 015101. doi: 10.1088/1751-8113/41/1/015101. Google Scholar

[8]

M. Begué, T. Kalloniatis and R. S. Strichartz, Harmonic functions and the spectrum of the Laplacian on the Sierpinski carpet, Fractals, 21 (2013), 1350002, 32. doi: 10.1142/S0218348X13500023. Google Scholar

[9]

O. Ben-BassatR. S. Strichartz and A. Teplyaev, What is not in the domain of the Laplacian on Sierpinski gasket type fractals, J. Funct. Anal., 166 (1999), 197-217. doi: 10.1006/jfan.1999.3431. Google Scholar

[10]

G. Berkolaiko and P. Kuchment, Introduction to Quantum Graphs, Mathematical Surveys and Monographs, vol. 186, American Mathematical Society, Providence, RI, 2013. Google Scholar

[11]

J. P. Chen, L. G. Rogers, L. Anderson, U. Andrews, A. Brzoska, A. Coffey, H. Davis, L. Fisher, M. Hansalik, S. Loew and A. Teplyaev, Power dissipation in fractal AC circuits, J. Phys. A, 50 (2017), 325205, 20. doi: 10.1088/1751-8121/aa7a66. Google Scholar

[12]

Y. Chen, H. Gu, R. S. Strichartz and Z. Zhou, Hybrid fractals, Available at http://www.math.cornell.edu/~harry970804/, 2017.Google Scholar

[13]

M. Fukushima and T. Shima, On a spectral analysis for the Sierpiński gasket, Potential Anal., 1 (1992), 1-35. doi: 10.1007/BF00249784. Google Scholar

[14]

B. M. HamblyV. Metz and A. Teplyaev, Self-similar energies on post-critically finite self-similar fractals, J. London Math. Soc., 74 (2006), 93-112. doi: 10.1112/S002461070602312X. Google Scholar

[15]

B. M. Hambly and S. O. G. Nyberg, Finitely ramified graph-directed fractals, spectral asymptotics and the multidimensional renewal theorem, Proc. Edinb. Math. Soc., 46 (2003), 1-34. doi: 10.1017/S0013091500000730. Google Scholar

[16]

M. Hata, On some properties of set-dynamical systems, Proc. Japan Acad. Ser. A Math. Sci., 61 (1985), 99-102. Google Scholar

[17]

M. Hinz, Sup-norm-closable bilinear forms and Lagrangians, Ann. Mat. Pura Appl., 195 (2016), 1021-1054. doi: 10.1007/s10231-015-0503-1. Google Scholar

[18]

M. Hinz and A. Teplyaev, Closability, regularity, and approximation by graphs for separable bilinear forms, Zap. Nauchn. Sem. S.-Peterburg. Otdel. Mat. Inst. Steklov. (POMI), 441 (2015), no. Veroyatnost$\prime$ i Statistika. 22,299–317. doi: 10.1007/s10958-016-3149-7. Google Scholar

[19]

M. IonescuL. G. Rogers and A. Teplyaev, Derivations and Dirichlet forms on fractals, J. Funct. Anal., 263 (2012), 2141-2169. doi: 10.1016/j.jfa.2012.05.021. Google Scholar

[20]

J. Kigami, A harmonic calculus on the Sierpiński spaces, Japan J. Appl. Math., 6 (1989), 259-290. doi: 10.1007/BF03167882. Google Scholar

[21]

_____, Harmonic calculus on p.c.f. self-similar sets, Trans. Amer. Math. Soc., 335 (1993), 721–755. doi: 10.2307/2154402. Google Scholar

[22]

_____, Analysis on Fractals, Cambridge Tracts in Mathematics, vol. 143, Cambridge University Press, Cambridge, 2001. doi: 10.1017/CBO9780511470943. Google Scholar

[23]

_____, Resistance forms, quasisymmetric maps and heat kernel estimates, Mem. Amer. Math. Soc., 216 (2012), ⅵ+132.Google Scholar

[24]

J. Kigami and M. L. Lapidus, Weyl's problem for the spectral distribution of Laplacians on p.c.f. self-similar fractals, Comm. Math. Phys., 158 (1993), 93-125. Google Scholar

[25]

R. D. Mauldin and S. C. Williams, Hausdorff dimension in graph directed constructions, Trans. Amer. Math. Soc., 309 (1988), 811-829. doi: 10.2307/2000940. Google Scholar

[26]

J. Murai, Diffusion processes on mandala, Osaka J. Math., 32 (1995), 887-917. Google Scholar

[27]

L. G. Rogers and A. Teplyaev, Laplacians on the basilica Julia sets, Commun. Pure Appl. Anal., 9 (2010), 211-231. doi: 10.3934/cpaa.2010.9.211. Google Scholar

[28]

R. S. Strichartz, Taylor approximations on Sierpinski gasket type fractals, J. Funct. Anal., 174 (2000), 76-127. doi: 10.1006/jfan.2000.3580. Google Scholar

[29]

_____, Differential Equations on Fractals, Princeton University Press, Princeton, NJ, 2006, A tutorial.Google Scholar

[30]

R. S. Strichartz and J. Zhu, Spectrum of the Laplacian on the Vicsek set "with no loose ends", Fractals, 25 (2017), 1750062, 15. doi: 10.1142/S0218348X17500621. Google Scholar

[31]

A. Teplyaev, Harmonic coordinates on fractals with finitely ramified cell structure, Canad. J. Math., 60 (2008), 457-480. doi: 10.4153/CJM-2008-022-3. Google Scholar

show all references

References:
[1]

B. Adams, S. A. Smith, R. S. Strichartz and A. Teplyaev, The spectrum of the Laplacian on the pentagasket, Fractals in Graz 2001, Trends Math., Birkhäuser, Basel, 2003, 1–24. Google Scholar

[2]

E. AkkermansO. Benichou and G. V. Dunne, A. Teplyaev and R. Voituriez, Spatial log-periodic oscillations of first-passage observables in fractals, Phys. Rev. E, 86 (2012), 061125. Google Scholar

[3]

E. Akkermans, G. V. Dunne and E. Levy, Wave propagation in one-dimension: Methods and applications to complex and fractal structures, Optics of Aperiodic Structures - Fundamentals and Device Applications, L. Dal Negro (Ed), Pan Stanford Press, 2014, 407–449.Google Scholar

[4]

P. Alonso RuizU. Freiberg and J. Kigami, Completely symmetric resistance forms on the stretched Sierpiński gasket, J. of Fractal Geometry, 5 (2018), 227-277. doi: 10.4171/JFG/61. Google Scholar

[5]

P. Alonso-RuizD. J. Kelleher and A. Teplyaev, Energy and Laplacian on Hanoi-type fractal quantum graphs, Journal of Physics A: Mathematical and Theoretical, 49 (2016), 165206. doi: 10.1088/1751-8113/49/16/165206. Google Scholar

[6]

Patricia Alonso Ruiz, Power dissipation in fractal Feynman-Sierpinski AC circuits, J. Math. Phys., 58 (2017), 073503, 16. doi: 10.1063/1.4994197. Google Scholar

[7]

N. BajorinT. ChenA. DaganC. EmmonsM. HusseinM. KhalilP. ModyB. Steinhurst and A. Teplyaev, Vibration modes of 3 n -gaskets and other fractals, Journal of Physics A: Mathematical and Theoretical, 41 (2008), 015101. doi: 10.1088/1751-8113/41/1/015101. Google Scholar

[8]

M. Begué, T. Kalloniatis and R. S. Strichartz, Harmonic functions and the spectrum of the Laplacian on the Sierpinski carpet, Fractals, 21 (2013), 1350002, 32. doi: 10.1142/S0218348X13500023. Google Scholar

[9]

O. Ben-BassatR. S. Strichartz and A. Teplyaev, What is not in the domain of the Laplacian on Sierpinski gasket type fractals, J. Funct. Anal., 166 (1999), 197-217. doi: 10.1006/jfan.1999.3431. Google Scholar

[10]

G. Berkolaiko and P. Kuchment, Introduction to Quantum Graphs, Mathematical Surveys and Monographs, vol. 186, American Mathematical Society, Providence, RI, 2013. Google Scholar

[11]

J. P. Chen, L. G. Rogers, L. Anderson, U. Andrews, A. Brzoska, A. Coffey, H. Davis, L. Fisher, M. Hansalik, S. Loew and A. Teplyaev, Power dissipation in fractal AC circuits, J. Phys. A, 50 (2017), 325205, 20. doi: 10.1088/1751-8121/aa7a66. Google Scholar

[12]

Y. Chen, H. Gu, R. S. Strichartz and Z. Zhou, Hybrid fractals, Available at http://www.math.cornell.edu/~harry970804/, 2017.Google Scholar

[13]

M. Fukushima and T. Shima, On a spectral analysis for the Sierpiński gasket, Potential Anal., 1 (1992), 1-35. doi: 10.1007/BF00249784. Google Scholar

[14]

B. M. HamblyV. Metz and A. Teplyaev, Self-similar energies on post-critically finite self-similar fractals, J. London Math. Soc., 74 (2006), 93-112. doi: 10.1112/S002461070602312X. Google Scholar

[15]

B. M. Hambly and S. O. G. Nyberg, Finitely ramified graph-directed fractals, spectral asymptotics and the multidimensional renewal theorem, Proc. Edinb. Math. Soc., 46 (2003), 1-34. doi: 10.1017/S0013091500000730. Google Scholar

[16]

M. Hata, On some properties of set-dynamical systems, Proc. Japan Acad. Ser. A Math. Sci., 61 (1985), 99-102. Google Scholar

[17]

M. Hinz, Sup-norm-closable bilinear forms and Lagrangians, Ann. Mat. Pura Appl., 195 (2016), 1021-1054. doi: 10.1007/s10231-015-0503-1. Google Scholar

[18]

M. Hinz and A. Teplyaev, Closability, regularity, and approximation by graphs for separable bilinear forms, Zap. Nauchn. Sem. S.-Peterburg. Otdel. Mat. Inst. Steklov. (POMI), 441 (2015), no. Veroyatnost$\prime$ i Statistika. 22,299–317. doi: 10.1007/s10958-016-3149-7. Google Scholar

[19]

M. IonescuL. G. Rogers and A. Teplyaev, Derivations and Dirichlet forms on fractals, J. Funct. Anal., 263 (2012), 2141-2169. doi: 10.1016/j.jfa.2012.05.021. Google Scholar

[20]

J. Kigami, A harmonic calculus on the Sierpiński spaces, Japan J. Appl. Math., 6 (1989), 259-290. doi: 10.1007/BF03167882. Google Scholar

[21]

_____, Harmonic calculus on p.c.f. self-similar sets, Trans. Amer. Math. Soc., 335 (1993), 721–755. doi: 10.2307/2154402. Google Scholar

[22]

_____, Analysis on Fractals, Cambridge Tracts in Mathematics, vol. 143, Cambridge University Press, Cambridge, 2001. doi: 10.1017/CBO9780511470943. Google Scholar

[23]

_____, Resistance forms, quasisymmetric maps and heat kernel estimates, Mem. Amer. Math. Soc., 216 (2012), ⅵ+132.Google Scholar

[24]

J. Kigami and M. L. Lapidus, Weyl's problem for the spectral distribution of Laplacians on p.c.f. self-similar fractals, Comm. Math. Phys., 158 (1993), 93-125. Google Scholar

[25]

R. D. Mauldin and S. C. Williams, Hausdorff dimension in graph directed constructions, Trans. Amer. Math. Soc., 309 (1988), 811-829. doi: 10.2307/2000940. Google Scholar

[26]

J. Murai, Diffusion processes on mandala, Osaka J. Math., 32 (1995), 887-917. Google Scholar

[27]

L. G. Rogers and A. Teplyaev, Laplacians on the basilica Julia sets, Commun. Pure Appl. Anal., 9 (2010), 211-231. doi: 10.3934/cpaa.2010.9.211. Google Scholar

[28]

R. S. Strichartz, Taylor approximations on Sierpinski gasket type fractals, J. Funct. Anal., 174 (2000), 76-127. doi: 10.1006/jfan.2000.3580. Google Scholar

[29]

_____, Differential Equations on Fractals, Princeton University Press, Princeton, NJ, 2006, A tutorial.Google Scholar

[30]

R. S. Strichartz and J. Zhu, Spectrum of the Laplacian on the Vicsek set "with no loose ends", Fractals, 25 (2017), 1750062, 15. doi: 10.1142/S0218348X17500621. Google Scholar

[31]

A. Teplyaev, Harmonic coordinates on fractals with finitely ramified cell structure, Canad. J. Math., 60 (2008), 457-480. doi: 10.4153/CJM-2008-022-3. Google Scholar

Figure 1.  The Hanoi attractor or stretched Sierpinski gasket

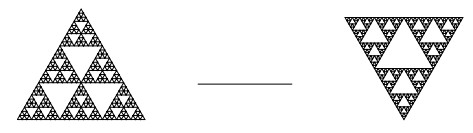

Figure 2.  3-level Sierpinski gasket, interval and regular inverted Sierpinski gasket

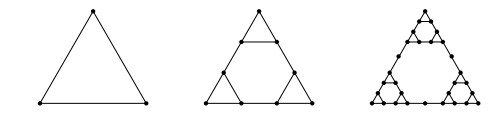

Figure 3.  The $ 3 $-level Sierpinski gasket
Figure 4.  Line segments and one inverted $ \operatorname{SG} $ join the six triangular $ 1 $-cells of the first level approximation of $ \operatorname{SG}_3 $

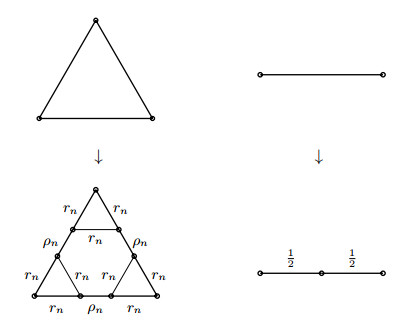

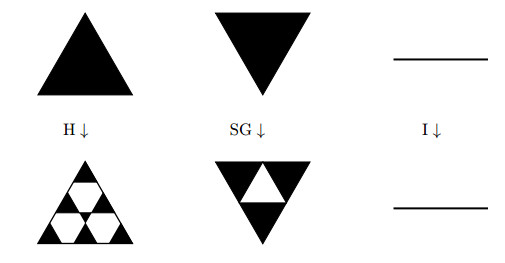

Figure 5.  Generators of the hybrid fractal $ \rm H $ based on the the upright triangle

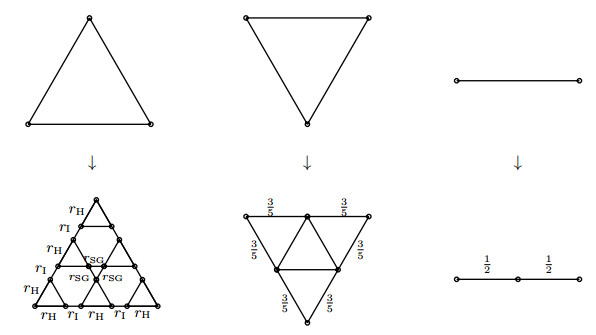

Figure 6.  Graph subdivision and corresponding resistance scaling factors

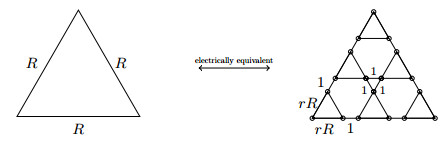

Figure 7.  As networks, each triangular cell must be equivalent to its (n + 1)th-level subdivision
Figure 8.  The bonds $ \operatorname{I}\in\{K_j\}_{j\in B} $
Figure 9.  Graph subdivision and corresponding resistance scaling factors at level n
Figure 10.  Approximating graphs $ \Gamma_0 $, $ \Gamma_1 $ and $ \Gamma_2 $

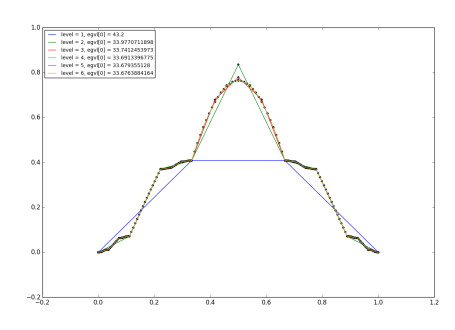

Figure 11.  Localized D-N eigenfunctions, see [12] for further examples

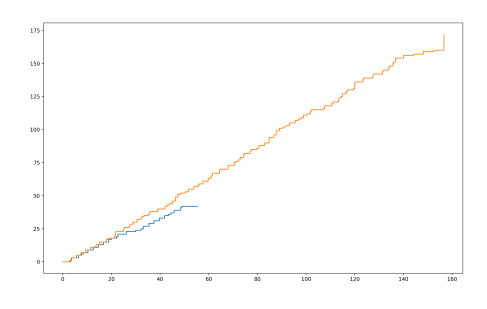

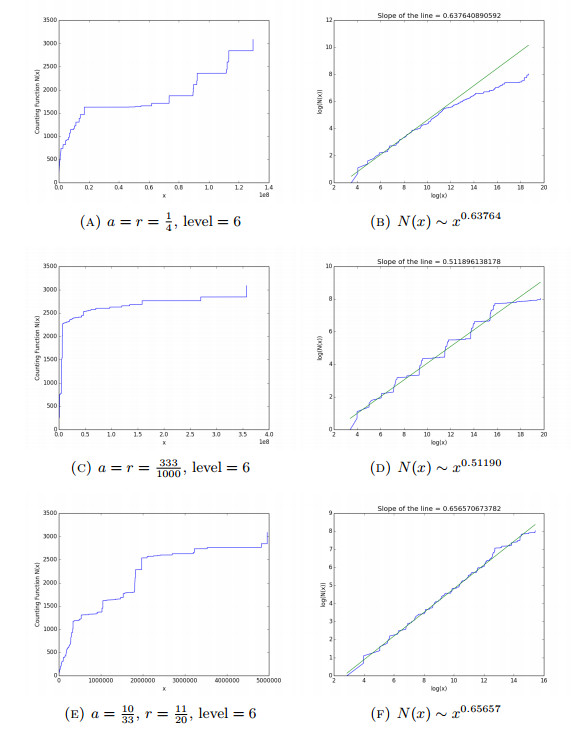

Figure 12.  Eigenvalue counting functions of discrete Dirichlet Laplacians, see [12] for further examples

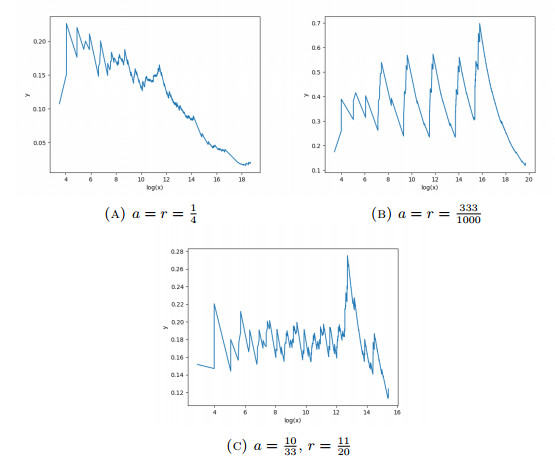

Figure 13.  '$ y $-$ \log x $' plots of Weyl ratios corresponding to different choices of $ a $ and $ r $ at level 6, see [12] for further examples

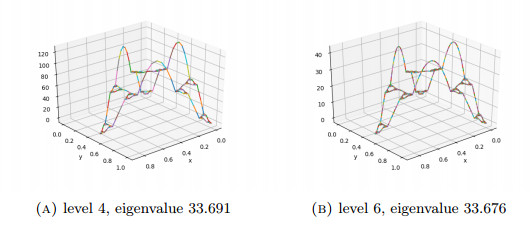

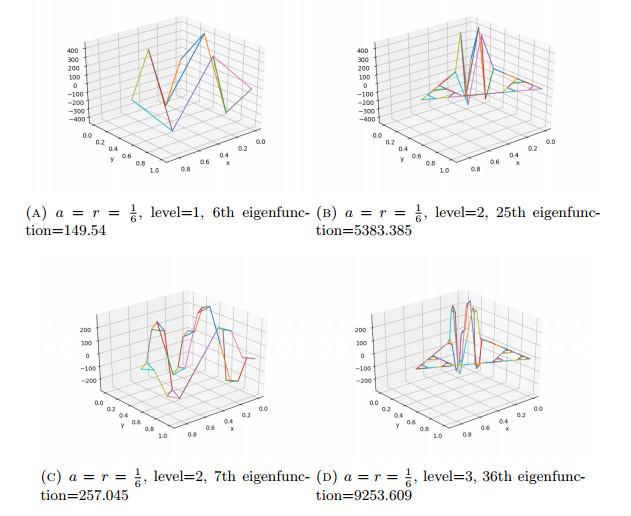

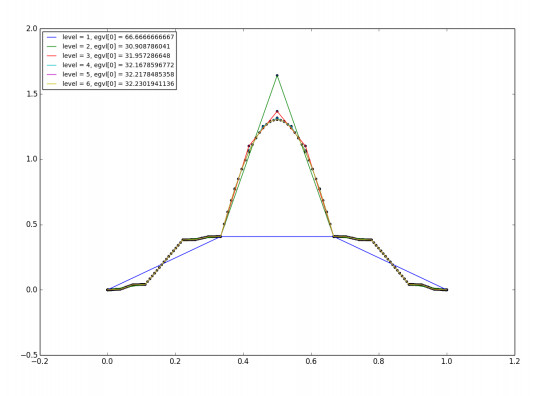

Figure 14.  Restriction of the eigenfunction corresponding to the lowest eigenvalue to one edge, $ r = a = \frac{1}{6} $, levels $ 1 $ through $ 6 $
Figure 15.  Restriction of the eigenfunction corresponding to the lowest eigenvalue to one edge, $ r = a = \frac{1}{10} $, levels $ 1 $ through $ 6 $

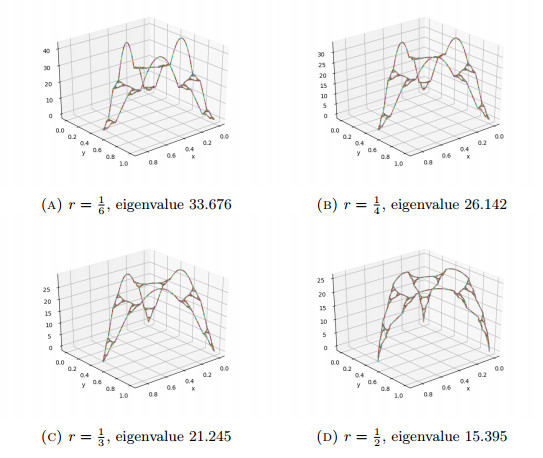

Figure 17.  Eigenfunction corresponding to the lowest eigenvalue, $ a = \frac{1}{6} $, level 6, increasing $ r $

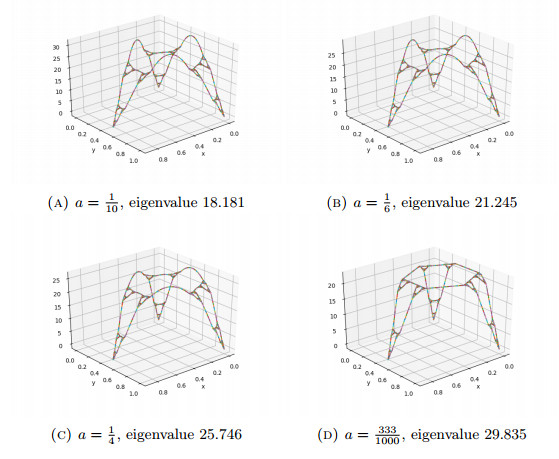

Figure 18.  Eigenfunction corresponding to the lowest eigenvalue, $ r = \frac{1}{3} $, level $ 6 $, increasing $ a $, see [12] for further examples
Figure 19.  Plot of $ N_{Q_m}(\sqrt{x}) $ for level 1 (blue) and level 2 (yellow) quantum hybrid SG-based graph with scaling factor $ r = \frac{1}{6} $

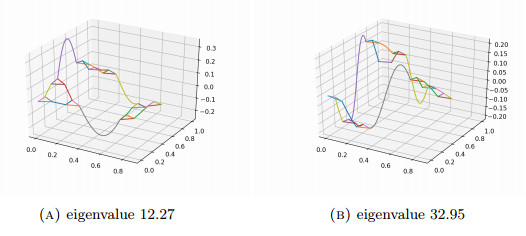

Figure 20.  Eigenfunctions for level 1 quantum graph approximation of $ \rm H $, see [12] for further examples
Figure 16.  Eigenfunction corresponding to the lowest eigenvalue, $ r = a = \frac{1}{6} $, see [12] for further examples

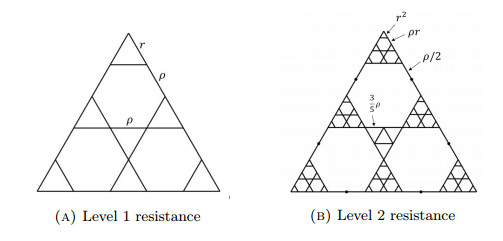

Figure 21.  Contraction property of the resistance

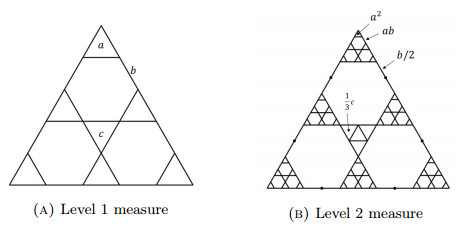

Figure 22.  Contraction property of measure

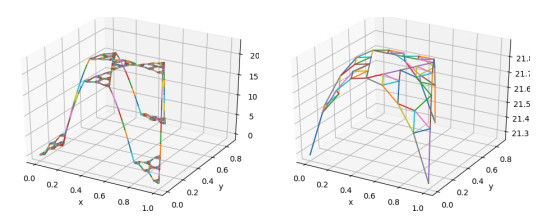

Figure 23.  Level 4 eigenfunction, see [12] for further examples

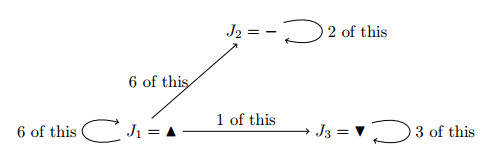

Figure 25.  Directed graph associated with the hybrid $ \rm H $ with base $ \operatorname{SG}_3 $ from Section 2
