Hopf bifurcations and transitions of two-dimensional Quasi-Geostrophic flows

Zhigang Pan; Chanh Kieu; Quan Wang

doi:10.3934/cpaa.2021025

Article Contents

2021, Volume 20, Issue 4: 1385-1412. Doi: 10.3934/cpaa.2021025

This issue Previous Article $ C^{2, \alpha} $ estimates for solutions to almost Linear elliptic equations Next Article Expanding solutions of quasilinear parabolic equations

Hopf bifurcations and transitions of two-dimensional Quasi-Geostrophic flows

1.
School of Mathematics, Southwest Jiaotong University, Chengdu, 610031, China
2.
Department of Earth and Atmospheric Sciences, Indiana University, Bloomington, IN 47405, USA
3.
College of Mathematics, Sichuan University, Chengdu, Sichuan, 610065, China

^* Corresponding author
^* Corresponding author

Received: August 31, 2020

Revised: November 30, 2020

Early access: March 2021

Published: April 2021

The research of the corresponding author was supported by National Science Foundation of China (NSFC) grant 11901408. The research of C. Kieu was supported by ONR Awards N000141812588 and N000142012411

Abstract Full Text(HTML) Figure(11) / Table(1) Related Papers Cited by

Abstract

This study examines the Hopf (double Hopf) bifurcations and transitions of two dimensional quasi-geostrophic (QG) flows that model various large-scale oceanic and atmospheric circulations. Using the Kolmogorov function to represent an external forcing in the tropical region, it is shown that the equilibrium of the QG model loses its stability if the combination of the Rossby number, the Ekman number, and the eddy viscosity satisfies a specific condition. Further use of the center manifold technique reveals two different types of the dynamical transition from either a pair of simple complex eigenvalues or a double pair of complex conjugate eigenvalues. These dynamical transitions are confirmed in the numerical analyses of the QG dynamics at the equilibrium, which capture Hopf (double Hopf) bifurcations due to the existence of a nonzero imaginary part of the first eigenvalue. The transition from a pair of simple complex eigenvalues is of particular interest, because it indicates the existence of a stable periodic pattern that is similar to atmospheric easterly waves and related tropical cyclone formation in the tropical atmosphere.

Keywords:

Mathematics Subject Classification: Primary: 37L10, 37L15; Secondary: 76D99, 76E20.

Citation:

Full Text(HTML)

Figure 1. Illustration of the steady-state flow $ \psi_{S} $ driven by the Kolmogorov forcing, which is obtained from the QG model (2.1). The blue dashed curve represents the horizontal profile of the mean flow, while the black arrows represent the direction of the mean flow on the horizontal domain $ \Omega_a $

Download: Full-size image PowerPoint slide

Figure 2. Marginal stability curves $ \text{R}_{m}^*(a) $ determined by equation $ \text{Re}\rho_{m, 1}( \text{R}) = 0 $ for $ 0.1\leq a\leq0.35 $

Download: Full-size image PowerPoint slide

Figure 3. Marginal stability curves $ \text{R}^*(a) $ determined by $ \text{R}^*(a) = \min\{ \text{R}: \text{Re}\rho_{m, 1}( \text{R}) = 0, m = 1, 2, \cdots, k\} $ for $ 0.1\leq a\leq0.35 $

Download: Full-size image PowerPoint slide

Figure 4. Illustration of the first critical wave number $ n $ for a range of the aspect ratio parameter $ 0.1\leq a\leq0.35 $ and $ E = 0.05 $

Download: Full-size image PowerPoint slide

Figure 5. The topological structure of the continuous transition

Download: Full-size image PowerPoint slide

Figure 6. The topological structure of the catastrophic transition and a separation of periodic orbits

Download: Full-size image PowerPoint slide

Figure 7. The case $ \delta \text{Re}(\rho_{n, 1}) < \text{Re}(\rho_{n+1, 1}) $ in Theorem 4.4

Download: Full-size image PowerPoint slide

Figure 8. The case $ \delta \text{Re}(\rho_{n, 1}) > \text{Re}(\rho_{n+1, 1}) $ in Theorem 4.4

Download: Full-size image PowerPoint slide

Figure 9. The regions in the $ \text{Re}(\rho_{n, 1}) $--$ \text{Re}(\rho_{n+1, 1}) $ plane with different dynamical behaviours according to Theorem 4.4. In region $ \texttt{IV} $, the basic steady state is locally asymptotically stable. In regions $ \texttt{I}, \texttt{III} $ and $\texttt{V}$, the system undergoes a supercritical Hopf bifurcation. In region $ \texttt{II} $, the system will tend to a double time periodic solution. This solution corresponds to an invariant 2D torus

Download: Full-size image PowerPoint slide

Figure 10. Transition number with $ 0.1\leq a\leq0.35 $ and $ \epsilon = 0.3 $

Download: Full-size image PowerPoint slide

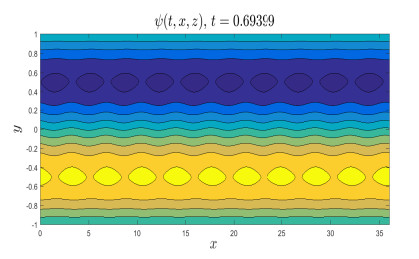

Figure 11. The observed periodic solution and $ \epsilon = 0.3 $ with $ E = 0.05 $ at $ \text{R} = 3.8717> \text{R}^* = 3.8517 $, whose period is T = 2.776. The real period is 3.2116 days

Download: Full-size image PowerPoint slide

Table 1. Coefficients in equations (4.6) with various $ E $ and $ \epsilon = 0.3 $ at the critical $ \text{R}^* $

$ a $	$ E $	$ n $	$ \text{R}^* $	$ A_{1} $	$ B_{1} $	$ C_{1} $	$ D_{1} $
0.11934208	0.01	4(5)	2.9824	-0.5545	-1.6917	-1.8423	-1.1788
0.11935935	0.03	4(5)	3.4699	-0.2779	-0.8562	-0.8955	-0.5052
0.09768743	0.01	5(6)	2.9518	-0.6002	-1.7218	-1.8647	-1.1083
0.09771521	0.03	5(6)	3.4344	-0.2983	-0.8626	-0.8986	-0.4841
0.08267975	0.01	6(7)	2.9345	-0.6330	-1.7385	-1.8711	-1.0615
0.08271008	0.03	6(7)	3.4141	-0.3127	-0.8655	-0.8982	-0.4697

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	P. Berloff and S. Meacham, On the stability of the wind-driven circulation, J. Mar. Res., 56 (1998), 937-993. doi: 10.1357/002224098765173437.
[2]	P. Cessi and G. R. Ierley, Symmetry-breaking multiple equilibria in quasi-geostrophic, wind-driven flows, J. Phys. Oceanogr., 25 (1995), 1196-1205. doi: 10.1175/1520-0485(1995)025<1196:SBMEIQ>2.0.CO;2.
[3]	J. Charney and D. Straus, Form-drag instability, multiple equilibria and propagating planetary waves in baroclinic, orographically forced, planetary wave systems, J. Atmos. Sci., 37 (1980), 1157-1176. doi: 10.1175/1520-0469(1980)037<1157:FDIMEA>2.0.CO;2.
[4]	J. G. Charney and J. DeVore, Multiple flow equilibria in the atmosphere and blocking, J. Atmos. Sci., 36 (1979), 1205-1216. doi: 10.1175/1520-0469(1979)036<1205:mfeita>2.0.co;2.
[5]	J. G. Charney, J. Shukla and K. C. Mo, Comparison of a barotropic blocking theory with observation, J. Atmos. Sci., 38 (1981), 762-779. doi: 10.1175/1520-0469(1981)038<0762:COABBT>2.0.CO;2.
[6]	Z. Chen, M. Ghil, E. Simonnet and S. Wang, Hopf bifurcation in quasi-geostrophic channel flow, SIAM J. Appl. Math., 64 (2003), 343-368. doi: 10.1137/S0036139902406164.
[7]	Z. Chen and X. Xiong, Equilibrium states of the charney-devore quasi-geostrophic equation in mid-latitude atmosphere, J. Math. Anal. Appl., 444 (2016), 1403-1416. doi: 10.1016/j.jmaa.2016.07.021.
[8]	H. Dijkstra, T. Sengul, J. Shen and S. Wang, Dynamic transitions of quasi-geostrophic channel flow, SIAM J. Appl. Math., 75 (2015), 2361-2378. doi: 10.1137/15M1008166.
[9]	R. N. Ferreira and W. H. Schubert, Barotropic aspects of itcz breakdown, J. Atmos. Sci., 54 (19997), 261-285. doi: 10.1175/1520-0469(1997)054<0261:BAOIB>2.0.CO;2.
[10]	M. Ghil, The wind-driven ocean circulation: applying dynamical systems theory to a climate problem, Discrete Contin. Dyn. Syst., 37 (2017), 189-228. doi: 10.3934/dcds.2017008.
[11]	M. Ghil, M. D. Chekround and E. Simonnete, Climate dynamics and fluid mechanics: Natural variability and related uncertainties, Physica D, 237 (2008), 2111-2126. doi: 10.1016/j.physd.2008.03.036.
[12]	D. Han, M. Hernandez and Q. Wang, Dynamic bifurcation and transition in the Rayleigh-Bénard enard convection with internal heating and varying gravity, Commun. Math. Sci., 17 (2019), 175-192. doi: 10.4310/CMS.2019.v17.n1.a7.
[13]	D. Han, M. Hernandez and Q. Wang, On the instabilities and transitions of the western boundary current, Commun. Computa. Phys., 26 (2019), 35-56. doi: 10.4208/cicp.oa-2018-0066.
[14]	D. Han, M. Hernandez and Q. Wang, Dynamic Transitions and Bifurcations for a Class of Axisymmetric Geophysical Fluid Flow, SIAM J. Appl. Dyn. Syst., 20 (2020), 38-64. doi: 10.1137/20M1321139.
[15]	S. Jiang, F. F. Jin and M. Ghil, Multiple equilibria, periodic, and aperiodic solutions in a wind-driven, double-gyre, shallow-water model, J. Phys. Oceanogr., 25 (1995), 764-786. doi: 10.1175/1520-0485(1995)025<0764:MEPAAS>2.0.CO;2.
[16]	E. Kalnay, Atmospheric Modeling, Data Assimilation and Predictability, Cambridge University Press, 2002.
[17]	C. Kieu, T. Sengul, Q. Wang and D. Yan, On the Hopf (double Hopf) bifurcations and transitions of two-layer western boundary currents, Commun. Nonlinear Sci. Numer. Simul., 65 (2018), 196-215. doi: 10.1016/j.cnsns.2018.05.010.
[18]	Y. A. Kuznetsov, Elements of applied bifurcation theory, Springer-Verlag, New York, 2004. doi: 10.1007/978-1-4757-3978-7.
[19]	B. Legras and M. Ghil, Persistent anomalies, blocking and variations in atmospheric predictability, J. Atmos. Sci., 42 (1985), 433-471. doi: 10.1175/1520-0469(1985)042<0433:PABAVI>2.0.CO;2.
[20]	C. Lu, Y. Mao, Q. Wang and D. Yan, Hopf bifurcation and transition of three-dimensional wind-driven ocean circulation problem, J. Differ. Equ., 267 (2019), 2560-2593. doi: 10.1016/j.jde.2019.03.021.
[21]	C. Lu, Y. Mao, T. Sengul and Q. Wang, On the spectral instability and bifurcation of the 2d-quasi-geostrophic potential vorticity equation with a generalized kolmogorov forcing, Physica D, 43 (2020), 132296. doi: 10.1016/j.physd.2019.132296.
[22]	T. Ma and A. Wang, Rayleigh-Bénard convection: dynamics and structure in the physical space, Commun. Math. Sci., 5 (2007), 553-574.
[23]	T. Ma and S. Wang, Phase Transition Dynamics, Springer-Verlag, New York, 2014. doi: 10.1007/978-1-4614-8963-4.
[24]	S. P. Meacham, Low-frequency variability in the wind-driven circulation, J. Phys. Oceanogr., 30 (2000), 269-293. doi: 10.1175/1520-0485(2000)030<0269:LFVITW>2.0.CO;2.
[25]	B. T. Nadiga and B. P. Luce, Global bifurcation of shilnikov type in a double-gyre ocean model, J. Phys. Oceanogr., 31 (2001), 2669-2690. doi: 10.1175/1520-0485(2001)031<2669:GBOSTI>2.0.CO;2.
[26]	J. Pedlosky, Geophysical Fluid Dynamics, Springer-Verlag, New York, 1987. doi: 10.1007/978-1-4612-4650-3.
[27]	S. Rambaldi and K. Mo, Forced stationary solutions in a barotropic channel: Multiple equilibria and theory of nonlinear resonance, J. Atmos. Sci., 41 (1984), 3135-3146. doi: 10.1175/1520-0469(1984)041<3135:FSSIAB>2.0.CO;2.
[28]	J. Shen, T. T. Medjo and S. Wang, On a wind-driven, double-gyre, quasi-geostrophic ocean model: numerical simulations and structural analysis, J. Comput. Phys., 155, 387–409. doi: 10.1006/jcph.1999.6344.
[29]	J. Shen, T. Tang and L. L. Wang, Spectral Methods: Algorithms, Analysis and Applications, Springer-Verlag, Berlin Heidelberg, 2011. doi: 10.1007/978-3-540-71041-7.
[30]	V. A. Sheremet, G. R. Ierley and V. M. Kamenkovich, Eigenanalysis of the two-dimensional wind-driven ocean circulation problem, J. Mar. Res., 55 (1997), 57-92. doi: 10.1357/0022240973224463.
[31]	E. Simonnet, M. Ghi, K. Ide, R. Temam and S. Wang, Low-frequency variability in shallow-water models of the wind-driven ocean circulation. Part I: Steady-state solution, J. Phys. Oceanogr., 33 (2003), 712-728. doi: 10.1175/1520-0485(2003)33<712:LVISMO>2.0.CO;2.
[32]	E. Simonnet, M. Ghi, K. Ide, R. Temam and S. Wang, Low-frequency variability in shallow-water models of the wind-driven ocean circulation. Part II: time-dependent solutions, J. Phys. Oceanogr., 33 (2003), 729-751. doi: 10.1175/1520-0485(2003)33<729:LVISMO>2.0.CO;2.
[33]	E. Simonnet, M. Ghil and H. Dijkstra, Homoclinic bifurcations in the quasi-geostrophic double-gyre circulation, J. Mar. Res., 63 (2005), 931-956. doi: 10.1357/002224005774464210.
[34]	T. Ma and S. Wang, Stability and bifurcation of the taylor problem, Arch. Rational Mech. Anal., 181 (2006), 149-176. doi: 10.1007/s00205-006-0415-8.
[35]	G. Veronis, Wind-driven ocean circulation: Part 1. linear theory and perturbation analysis, Deep-Sea Research, 13 (1966), 17–29. doi: 10.1016/0011-7471(66)90003-9.
[36]	G. Veronis, Wind-driven ocean circulation: Part 2. numerical solutions of the non-linear problem, Deep-Sea Research, 13 (1966), 31–55. doi: 10.1016/0011-7471(66)90004-0.
[37]	C. C. Wang and G. Magnusdottir, The itcz in the central and eastern pacific on synoptic time scales, Mon. Wea. Rev., 134 (2006), 1405-1421. doi: 10.1175/MWR3130.1.
[38]	Q. Wang, C. Kieu and T. A. Vu, Large-scale dynamics of tropical cyclone formation associated with ITCZ breakdown, Atmos. Chem. Phys., 19 (2019), 8383-8397. doi: 10.5194/acp-19-8383-2019.
[39]	G. Wolansky, Existence, uniqueness, and stability of stationary barotropic flow with forcing and dissipation, Commun. Pure Appl. Math., 41 (1988), 19-46. doi: 10.1002/cpa.3160410104.
[40]	G. Wolansky, The barotropic vorticity equation under forcing and dissipation: Bifurcations of nonsymmetric responses and multiplicity of solutions, SIAM J. Appl. Math., 41 (1989), 1585-1607. doi: 10.1137/0149096.
