A second-order accurate structure-preserving scheme for the Cahn-Hilliard equation with a dynamic boundary condition

Makoto Okumura; Takeshi Fukao; Daisuke Furihata; Shuji Yoshikawa

doi:10.3934/cpaa.2021181

Article Contents

2022, Volume 21, Issue 2: 355-392. Doi: 10.3934/cpaa.2021181

This issue Previous Article Next Article A convergent finite difference method for computing minimal Lagrangian graphs

A second-order accurate structure-preserving scheme for the Cahn-Hilliard equation with a dynamic boundary condition

1.
Research Institute for Electronic Science, Hokkaido University, N12W7, Kita-Ward, Sapporo, Hokkaido, 060-0812, Japan
2.
Department of Mathematics, Faculty of Education, Kyoto University of Education, 1 Fujinomori, Fukakusa, Fushimi-ku, Kyoto, 612-8522, Japan
3.
Cybermedia Center, Osaka University, 1-32 Machikaneyama, Toyonaka, Osaka, 560-0043, Japan
4.
Division of Mathematical Sciences, Faculty of Science and Technology, Oita University, 700 Dannoharu, Oita, 870-1192, Japan

^* Corresponding author
^* Corresponding author

Received: February 2021

Revised: September 2021

Early access: October 2021

Published: February 2022

This work was partially supported by JSPS KAKENHI, Grant No. JP20KK0308, JP20K03687, JP20K20883, JP21K03309, JP21K20314, and The Sumitomo Foundation, Grant No. 190367

Abstract Full Text(HTML) Figure(22) / Table(4) Related Papers Cited by

Abstract

We propose a structure-preserving finite difference scheme for the Cahn–Hilliard equation with a dynamic boundary condition using the discrete variational derivative method (DVDM) proposed by Furihata and Matsuo [14]. In this approach, it is important and essential how to discretize the energy which characterizes the equation. By modifying the conventional manner and using an appropriate summation-by-parts formula, we can use a standard central difference operator as an approximation of an outward normal derivative on the discrete boundary condition of the scheme. We show that our proposed scheme is second-order accurate in space, although the previous structure-preserving scheme proposed by Fukao–Yoshikawa–Wada [13] is first-order accurate in space. Also, we show the stability, the existence, and the uniqueness of the solution for our proposed scheme. Computation examples demonstrate the effectiveness of our proposed scheme. Especially through computation examples, we confirm that numerical solutions can be stably obtained by our proposed scheme.

Keywords:

Mathematics Subject Classification: 65M06, 65M12.

Citation:

Full Text(HTML)

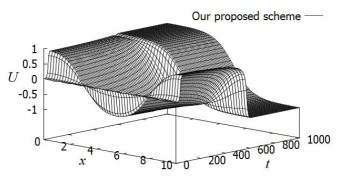

Figure 1. Numerical solution by our scheme with $ \Delta x = 1/2 $

Download: Full-size image PowerPoint slide

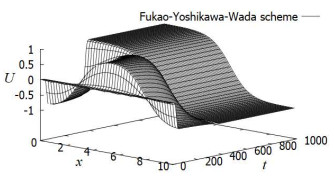

Figure 2. Numerical solution by Fukao-Yoshikawa-Wada scheme with $ \Delta x = 1/2 $

Download: Full-size image PowerPoint slide

Figure 3. Numerical solution by our scheme with $ \Delta x = 1/40 $

Download: Full-size image PowerPoint slide

Figure 4. Numerical solution by Fukao-Yoshikawa-Wada scheme with $ \Delta x = 1/40 $

Download: Full-size image PowerPoint slide

Figure 5. Time development of $ M_{\rm d}(\boldsymbol{U}^{(n)}) $ obtained by our scheme with $ \Delta x = 1/40 $: $ M_{\rm d}(\boldsymbol{U}^{(n)}) $ is preserved to accuracy $ 10^{-11} $

Download: Full-size image PowerPoint slide

Figure 6. Time development of $ E_{\rm d}^{(n)} - J_{\rm d}(\boldsymbol{U}^{(0)}) $ obtained by our scheme with $ \Delta x = 1/40 $: $ E_{\rm d}^{(n)} $ is preserved to accuracy $ 10^{-6} $

Download: Full-size image PowerPoint slide

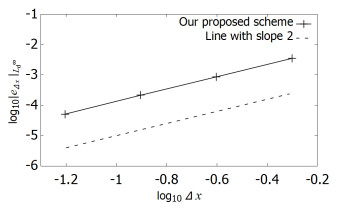

Figure 7. The discrete $ L^{\infty} $-norm error $ \|\boldsymbol{e}_{\Delta x} \|_{L_{\rm d}^{\infty}} $ versus the space mesh size $ \Delta x $ at time $ T = 400 $: our scheme is second-order accurate in space
