Rank-one strange attractors versus heteroclinic tangles

Alexandre A. Rodrigues

doi:10.3934/cpaa.2022097

Article Contents

2022, Volume 21, Issue 9: 3213-3245. Doi: 10.3934/cpaa.2022097

This issue Previous Article Existence of solutions for a class of quasilinear elliptic equations with a parameter Next Article

Rank-one strange attractors versus heteroclinic tangles

Alexandre A. Rodrigues^1,2,

1.
Center of Mathematics, University of Porto, Rua do Campo Alegre, 687, 4169-007 Porto, Portugal
2.
Lisbon School of Economics & Management, University of Lisbon, Rua do Quelhas, 6, 1200-781 Lisbon, Portugal

Received: December 2021

Early access: June 2022

Published: September 2022

AR was partially supported by CMUP (UID/MAT/00144/2020), which is funded by FCT with national (MCTES) and European structural funds through the programs FEDER, under the partnership agreement PT2020. AR also acknowledges financial support from Program INVESTIGADOR FCT (IF/00107/2015).

Abstract / Introduction Full Text(HTML) Figure(8) / Table(5) Related Papers Cited by

Abstract

We present two different mechanisms for the emergence of strange attractors (observable chaos) in a two-parameter periodically-perturbed family of differential equations on the plane. The two parameters are independent and act on different ways in the invariant manifolds of consecutive saddles in the cycle. When both parameters are zero, the flow exhibits an attracting heteroclinic cycle associated to two equilibria. The first parameter makes the two-dimensional invariant manifolds of consecutive saddles in the cycle to pull apart; the second forces transverse intersection. The unfolding of each parameter is associated to the emergence of different dynamical scenarios (rank-one attractors and heteroclinic tangles). These relative positions may be determined using the Melnikov method.

Extending the previous theory on the field, we prove the existence of many complicated dynamical objects in the two-parameter family, ranging from "lar-ge" strange attractors supporting SRB (Sinai-Ruelle-Bowen) measures to superstable sinks and non-uniformly hyperbolic attractors. We draw a plausible bifurcation diagram associated to the problem under consideration and we show that the occurrence of heteroclinic tangles is a prevalent phenomenon.

Keywords:

Mathematics Subject Classification: Primary: 34C28; 34C37; 37D05; Secondary: 37D45; 37G35.

Citation:

Full Text(HTML)

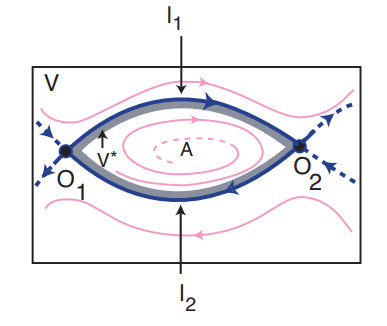

Figure 1. The dynamics of $ (2.1) $ defined $ \mathcal{V}\subset {\mathbb{R}}^2 $ is governed by the existence of an heteroclinic cycle associated to $ O_1 $ and $ O_2 $. $ \ell_1, \ell_2 $: heteroclinic connections; $ \mathcal{V}^\star $: inner basin of attraction of the cycle (absorbing domain); $ \mathcal{A}: $ region limited by the cycle

Download: Full-size image PowerPoint slide

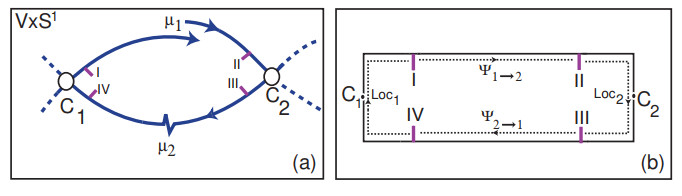

Figure 2. (a) Scheme of the effects of the parameters $ \mu_1, \mu_2 $ on the equations (2.3). (b) Sketch of the local and transition maps. $ I, II, III $ and $ IV $ represent cross sections $ {\text{Out}}( \textbf{C}_1) $, $ {\text{In}}( \textbf{C}_2) $, $ {\text{Out}}( \textbf{C}_2) $ and $ {\text{In}}( \textbf{C}_1) $, respectively

Download: Full-size image PowerPoint slide

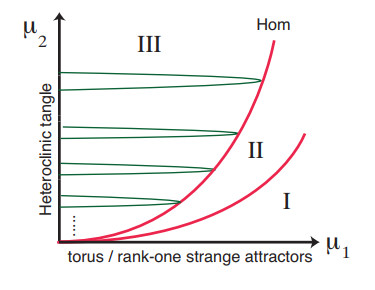

Figure 3. Plausible bifurcation diagram associated to an element $ f_{(\mu_1, \mu_2)} $ of the family $ \mathfrak{X}_{\Gamma}^4(\mathbb{V}) $. I – the flow has an invariant two-dimensional torus if $ \omega\approx 0 $ and a rank-one strange attractor if $ \omega \gg 1 $. II – transition region; III – heteroclinic tangle; Hom – curve that corresponds to the emergence of a homoclinic tangency associated to $ \textbf{C}_1 $

Download: Full-size image PowerPoint slide

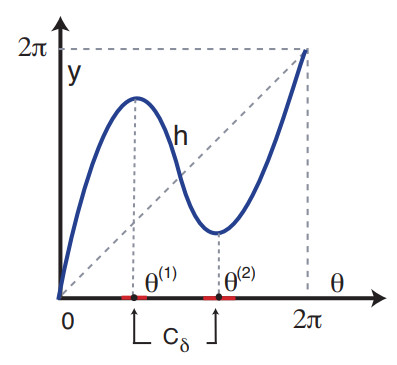

Figure 4. Example of a Misiurewicz-type map $ h_a: {\mathbb{S}}^1 \rightarrow {\mathbb{R}} $. For $ \delta>0 $, the set $ C_{\delta} $ is a $ \delta $-neighbourhood of the set of critical points $ C $

Download: Full-size image PowerPoint slide

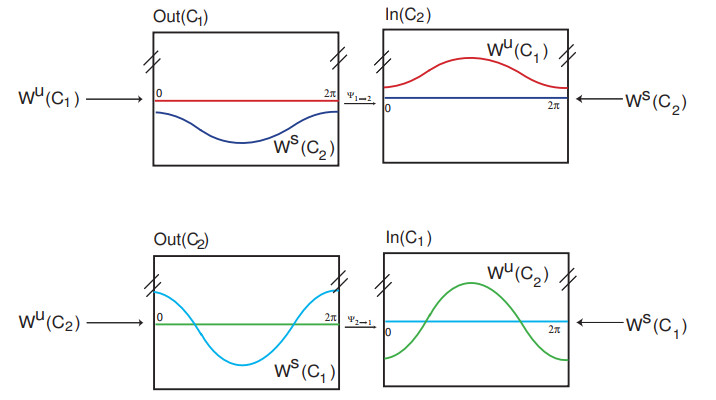

Figure 5. Transition maps from $ {\text{Out}}( \textbf{C}_1) $ to $ {\text{In}} ( \textbf{C}_2) $ (Case I) and from $ {\text{Out}}( \textbf{C}_2) $ to $ {\text{In}} ( \textbf{C}_1) $ (Case II). In Case I: $ W^u( \textbf{C}_1) \cap W^s( \textbf{C}_2) = \emptyset $. In Case II: $ W^u( \textbf{C}_2) \pitchfork W^s( \textbf{C}_1) $. Double bars mean that the sides are identified

Download: Full-size image PowerPoint slide

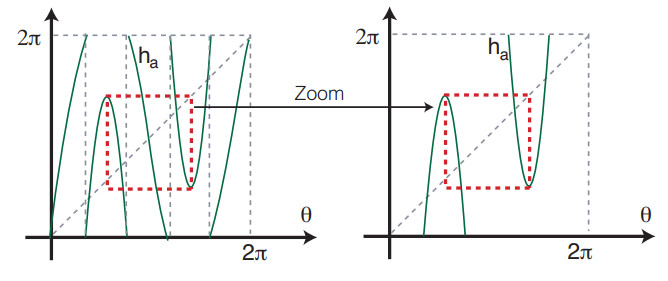

Figure 6. Graph of the map $ h_a $ for $ a = \mu_n $ and $ \omega \gg 1 $ with $ q = 2 $ (number of critical points). Indicated is a superstable periodic orbit of period 2

Download: Full-size image PowerPoint slide

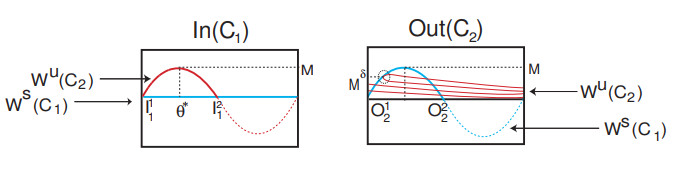

Figure 7. The set $ \eta_u = W^u( \textbf{C}_2)\cap {\text{In}}^+ ( \textbf{C}_1) $ is mapped by $ {Loc}_2\circ \Psi_{1\rightarrow 2}\circ Loc_1 $ into a spiral accumulating on the circle defined by $ \overline{y}_1^{(2)} = 0 $ (ie the parametrisation of $ {\text{Out}}( \textbf{C}_2)\cap W^u( \textbf{C}_2) $). There is a sequence $ (\mu_i)_i $ for which the flow of $ \mathcal{G}_{\mu_i} $ exhibits a quadratic heteroclinic tangency

Download: Full-size image PowerPoint slide

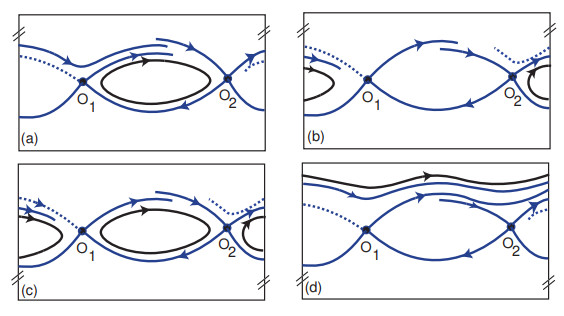

Figure 8. Four types of configuration for (2.2) when $ \mu_1>0 $ and $ \mu_2 = 0 $. (a), (b): one contractible periodic solution; (c): two contractible periodic solutions; (d) one non-contractible periodic solution. Double bars mean that the sides are identified
