Rate of convergence for a nonlocal-to-local limit in one dimension

José A. Carrillo; Charles Elbar; Stefano Fronzoni; Jakub Skrzeczkowski

doi:10.3934/cpaa.2025114

Article Contents

2025. Doi: 10.3934/cpaa.2025114 open access

Previous Article Next Article

Early Access

Early Access articles are published articles within a journal that have not yet been assigned to a formal issue. This means they do not yet have a volume number, issue number, or page numbers assigned to them, however, they can still be found and cited using their DOI (Digital Object Identifier). Early Access publication benefits the research community by making new scientific discoveries known as quickly as possible.

Readers can access Early Access articles via the “Early Access” tab for the selected journal.

Rate of convergence for a nonlocal-to-local limit in one dimension

1.
Mathematical Institute, University of Oxford, Woodstock Road, Oxford, OX2 6GG, United Kingdom
2.
Université Claude Bernard Lyon 1, ICJ UMR5208, CNRS, Ecole Centrale de Lyon, INSA Lyon, Université Jean Monnet, 69622 Villeurbanne, France

^*Corresponding author: jose.carrillo@maths.ox.ac.uk
^*Corresponding author: jose.carrillo@maths.ox.ac.uk

Received: May 2025

Revised: October 2025

Early access: November 5, 2025

Published online: November 5, 2025

The first and fourth authors are supported by the Advanced Grant Nonlocal-CPD (Nonlocal PDEs for Complex Particle Dynamics: Phase Transitions, Patterns and Synchronization) of the European Research Council Executive Agency (ERC) under the European Union's Horizon 2020 research and innovation programme (grant agreement No. 883363). The first author was also partially supported by the EPSRC grant numbers EP/T022132/1 and EP/V051121/1. The second author was supported by the ERC AdG 101054420 EYAWKAJKOS project.

Abstract / Introduction Full Text(HTML) Figure(7) Related Papers Cited by

Abstract

We consider a nonlocal approximation of the quadratic porous medium equation where the pressure is given by a convolution with a mollification kernel. It is known that when the kernel concentrates around the origin, the nonlocal equation converges to the local one. In one spatial dimension, for a particular choice of the kernel, and under mere assumptions on the initial condition, we quantify the rate of convergence in the 2-Wasserstein distance. Our proof is very simple, exploiting the so-called evolutionary variational inequality for both the nonlocal and local equations as well as a priori estimates. We also present numerical simulations using the finite volume method, which suggests that the obtained rate can be improved; this will be addressed in a forthcoming work.

Keywords:

Mathematics Subject Classification: Primary: 35A15, 35Q70, 35B40, 65M08.

Citation:

FullText(HTML)

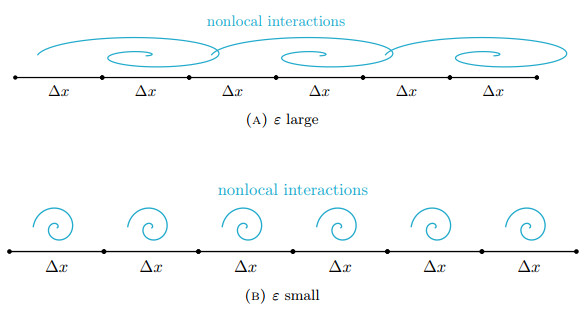

Figure 1. Finite-Volume scheme: size of cells and $ \varepsilon $

Download: Full-size image PowerPoint slide

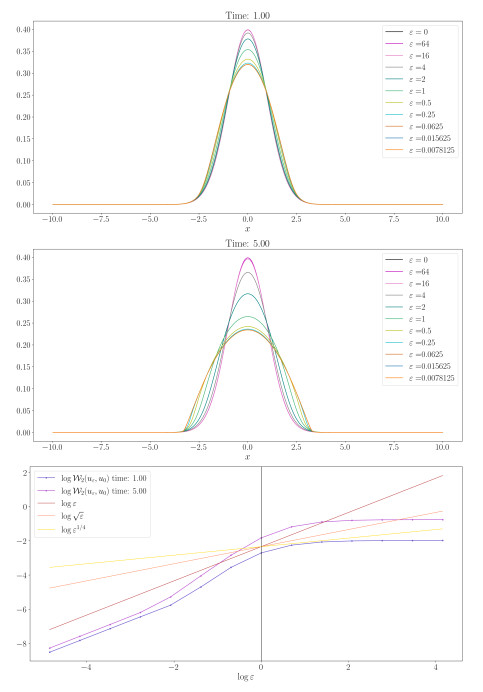

Figure 2. Porous medium equation versus blob method: Order of convergence for $ \mathcal{W}_2( u_{\varepsilon}, u_0) $, $ u_0 $ solution of (1.3), and $ u_{\varepsilon} $ solution of (1.1). The computational domain is $ \Omega = (-10, 10) $, $ u^0(x) = (1/\sqrt{2\pi}) \exp(-|x|^2/2) $ is the initial datum, and a uniform grid of $ N = 2^{12} $ cells was used with $ \Delta t = 0.01 $

Download: Full-size image PowerPoint slide

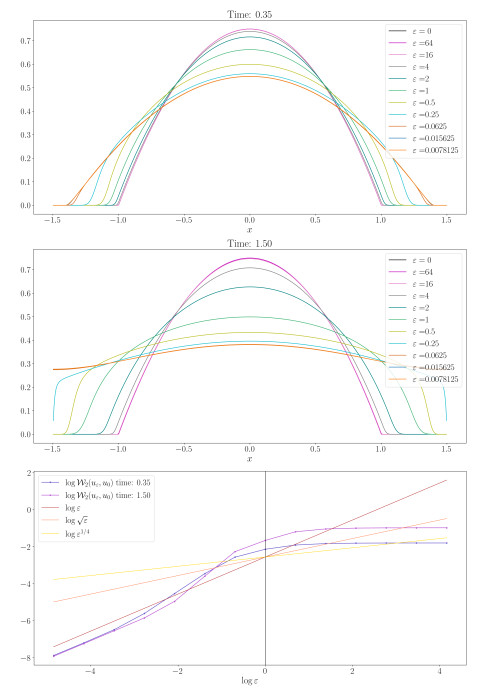

Figure 3. Porous medium equation and blob method: Order of convergence for $ \mathcal{W}_2( u_{\varepsilon}, u_0) $, $ u_0 $ solution of (1.3), and $ u_{\varepsilon} $ solution of (1.1). The computational domain $ \Omega = (-3, 3) $, $ u^0(x) = (1-x^2)_+ $ is the initial datum, a uniform grid of $ N = 2^{10} $ cells with $ \Delta t = 0.01 $ was used, periodic boundary conditions were imposed

Download: Full-size image PowerPoint slide

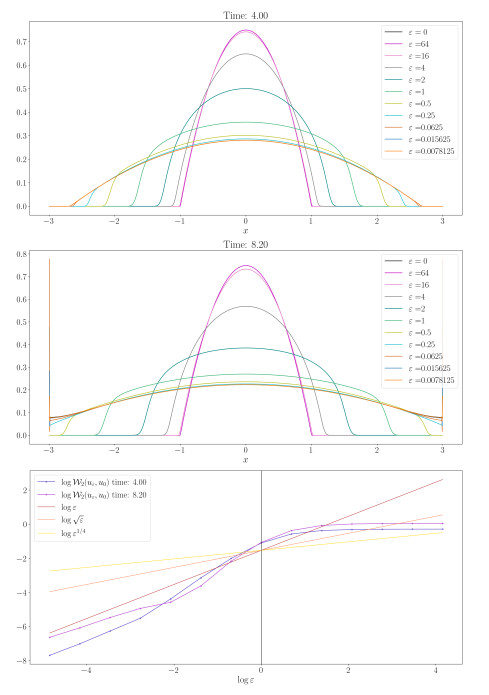

Figure 4. Porous medium equation and blob method: Order of convergence for $ \mathcal{W}_2( u_{\varepsilon}, u_0) $, $ u_0 $ solution of (1.3), and $ u_{\varepsilon} $ solution of (1.1). The computational domain is $ \Omega = (-3, 3) $, $ u^0(x) = (1-x^2)_+ $ is the initial datum, a uniform grid of $ N = 2^{10} $ cells was used with $ \Delta t = 0.01 $, and no-flux boundary conditions were imposed

Download: Full-size image PowerPoint slide

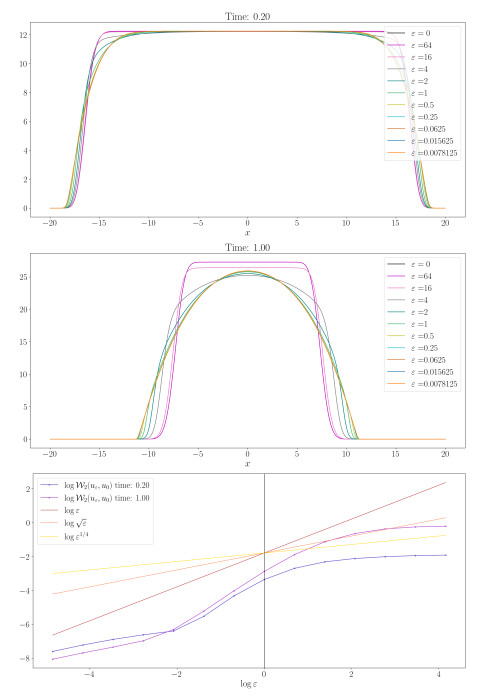

Figure 5. Porous medium Fokker-Planck equation and blob method: order of convergence for $ \mathcal{W}_2( u_{\varepsilon}, u_0) $, $ u_0 $ solution of (3.6), and $ u_{\varepsilon} $ solution of (3.7). The computational domain is $ \Omega = (-20, 20) $, $ u^0(x) = 1/|\Omega| + 10 $ is the initial datum, and a uniform grid of $ N = 2^{13} $ cells was used with $ \Delta t = 0.01 $

Download: Full-size image PowerPoint slide

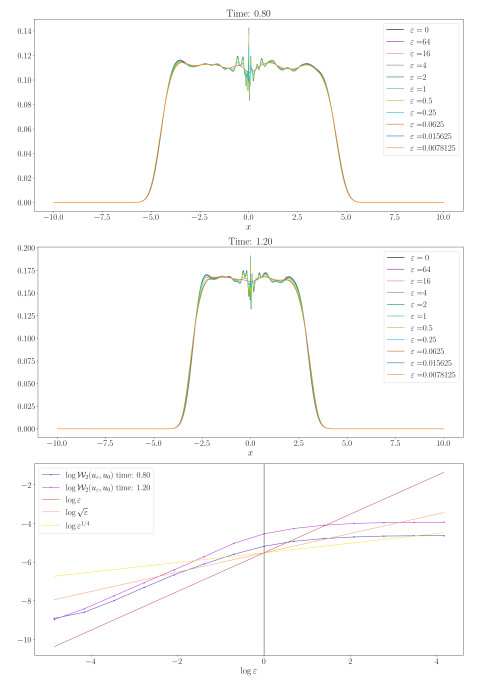

Figure 6. Porous medium equation and blob method: Order of convergence for $ \mathcal{W}_2( u_{\varepsilon}, u_0) $, $ u_0 $ (solution of (3.6)), and $ u_{\varepsilon} $ (solution of (3.7)). The computational domain is $ \Omega = (-10, 10) $, $ u^0(x) = u(x, 0) $, a the initial datum is generated using random values on a uniform grid of $ N = 2^{12} $ cells, with $ \Delta t = 0.01 $

Download: Full-size image PowerPoint slide

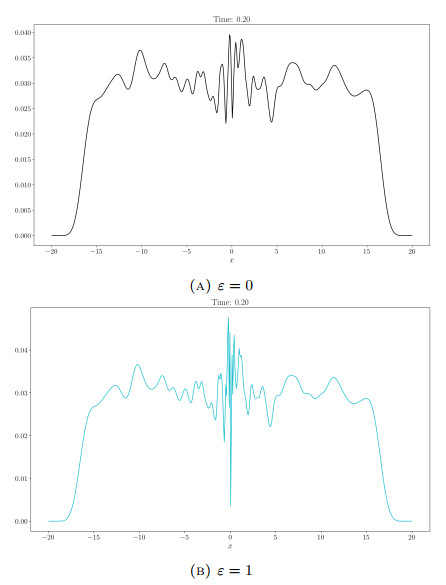

Figure 7. Porous medium equation and blob method: $ u $ (solution of (3.6)) and $ u_{\varepsilon} $ (solution of (3.7)) for $ \varepsilon = 1 $. $ \Omega = (-20, 20) $, $ u^0(x) = u(x, 0) $ initial datum generated using random values on a uniform grid of $ N = 2^9 $ cells, $ \Delta t = 0.01 $

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	A. Amassad and D. Zhou, A deterministic particle method for the porous media equation, arXiv preprint, arXiv: 2501.18745, 2025.
[2]	L. Ambrosio and N. Gigli, A user's guide to optimal transport, In Modelling and Optimisation of Flows on Networks, volume 2062 of Lecture Notes in Math., Springer, Heidelberg, 2013, 1-155. doi: 10.1007/978-3-642-32160-3_1.
[3]	L. Ambrosio, N. Gigli and G. Savaré, Gradient Flows in Metric Spaces and in the Space of Probability Measures, Lectures in Mathematics ETH Zürich. Birkhäuser Verlag, Basel, second edition, 2008.
[4]	R. Bailo, J. A. Carrillo, S. Fronzoni and D. Gómez-Castro, A finite-volume scheme for fractional diffusion on bounded domains, European Journal of Applied Mathematics, 36 (2025), 398-418. doi: 10.1017/S0956792524000172.
[5]	M. Burger and A. Esposito, Porous medium equation and cross-diffusion systems as limit of nonlocal interaction, Nonlinear Anal., 235 (2023), Paper No. 113347, 30 pp. doi: 10.1016/j.na.2023.113347.
[6]	J. Carrillo, P. Gwiazda and J. Skrzeczkowski, A new semigroup formula for the Wasserstein distance between two Wasserstein gradient flows, In preparation, 2025.
[7]	J. A. Carrillo, A. Chertock and Y. Huang, A finite-volume method for nonlinear nonlocal equations with a gradient flow structure, Commun. Comput. Phys., 17 (2015), 233-258. doi: 10.4208/cicp.160214.010814a.
[8]	J. A. Carrillo, K. Craig and F. S. Patacchini, A blob method for diffusion, Calc. Var. Partial Differential Equations, 58 (2019), Paper No. 53, 53 pp. doi: 10.1007/s00526-019-1486-3.
[9]	J. A. Carrillo, A. Esposito, J. Skrzeczkowski and J. S.-H. Wu, Nonlocal particle approximation for linear and fast diffusion equations, arXiv preprint, arXiv: 2408.02345, 2024.
[10]	J. A. Carrillo, A. Esposito and J. S.-H. Wu, Nonlocal approximation of nonlinear diffusion equations, Calc. Var. Partial Differential Equations, 63 (2024), Paper No. 100, 44 pp. doi: 10.1007/s00526-024-02690-z.
[11]	J. A. Carrillo, L. C. F. Ferreira and J. C. Precioso, A mass-transportation approach to a one dimensional fluid mechanics model with nonlocal velocity, Adv. Math., 231 (2012), 306-327. doi: 10.1016/j.aim.2012.03.036.
[12]	K. Craig, M. Jacobs and O. Turanova, Nonlocal approximation of slow and fast diffusion, J. Differential Equations, 426 (2025), 782-852. doi: 10.1016/j.jde.2025.01.035.
[13]	N. David, T. Dębiec, M. Mandal and M. Schmidtchen, A degenerate cross-diffusion system as the inviscid limit of a nonlocal tissue growth model, SIAM J. Math. Anal., 56 (2024), 2090-2114. doi: 10.1137/23M1575573.
[14]	N. David and B. Perthame, Free boundary limit of a tumor growth model with nutrient, J. Math. Pures Appl. (9), 155 (2021), 62-82. doi: 10.1016/j.matpur.2021.01.007.
[15]	T. Dębiec, B. Perthame, M. Schmidtchen and N. Vauchelet, Incompressible limit for a two-species model with coupling through Brinkman's law in any dimension, J. Math. Pures Appl. (9), 145 (2021), 204-239. doi: 10.1016/j.matpur.2020.11.002.
[16]	T. Dębiec and M. Schmidtchen, Incompressible limit for a two-species tumour model with coupling through Brinkman's law in one dimension, Acta Appl. Math., 169 (2020), 593-611. doi: 10.1007/s10440-020-00313-1.
[17]	M. Doumic, S. Hecht, B. Perthame and D. Peurichard, Multispecies cross-diffusions: From a nonlocal mean-field to a porous medium system without self-diffusion, J. Differential Equations, 389 (2024), 228-256. doi: 10.1016/j.jde.2024.01.017.
[18]	C. Elbar and J. Skrzeczkowski, On the inviscid limit connecting Brinkman's and Darcy's models of tissue growth with nonlinear pressure, J. Math. Fluid Mech., 27 (2025), Paper No. 28, 14 pp. doi: 10.1007/s00021-025-00933-3.
[19]	P.-L. Lions and S. Mas-Gallic, Une méthode particulaire déterministe pour des équations diffusives non linéaires, C. R. Acad. Sci. Paris Sér. I Math., 332 (2001), 369-376. doi: 10.1016/S0764-4442(00)01795-X.
[20]	A. Mellet, B. Perthame and F. Quirós, A Hele-Shaw problem for tumor growth, J. Funct. Anal., 273 (2017), 3061-3093. doi: 10.1016/j.jfa.2017.08.009.
[21]	K. Oelschläger, Large systems of interacting particles and the porous medium equation, J. Differential Equations, 88 (1990), 294-346. doi: 10.1016/0022-0396(90)90101-T.
[22]	B. Perthame, F. Quirós and J. L. Vázquez, The Hele-Shaw asymptotics for mechanical models of tumor growth, Arch. Ration. Mech. Anal., 212 (2014), 93-127. doi: 10.1007/s00205-013-0704-y.
[23]	B. Perthame, M. Tang and N. Vauchelet, Traveling wave solution of the Hele-Shaw model of tumor growth with nutrient, Math. Models Methods Appl. Sci., 24 (2014), 2601-2626. doi: 10.1142/S0218202514500316.
[24]	B. Perthame and N. Vauchelet, Incompressible limit of a mechanical model of tumour growth with viscosity, Philos. Trans. Roy. Soc. A, 373 (2015), 20140283, 16 pp. doi: 10.1098/rsta.2014.0283.
[25]	F. Santambrogio, Optimal Transport for Applied Mathematicians, volume 87 of Progress in Nonlinear Differential Equations and their Applications, Birkhäuser/Springer, Cham, 2015, Calculus of Variations, PDEs, and Modeling. doi: 10.1007/978-3-319-20828-2.
[26]	M. Tang, N. Vauchelet, I. Cheddadi, I. Vignon-Clementel, D. Drasdo and B. Perthame, Composite waves for a cell population system modeling tumor growth and invasion, Chinese Ann. Math. Ser. B, 34 (2013), 295-318. doi: 10.1007/s11401-013-0761-4.
[27]	J. M. Urbano, The Method of Intrinsic Scaling, volume 1930 of Lecture Notes in Mathematics, Springer-Verlag, Berlin, 2008, A Systematic Approach to Regularity for Degenerate and Singular PDEs. doi: 10.1007/978-3-540-75932-4.
[28]	C. Villani, Topics in Optimal Transportation, volume 58 of Graduate Studies in Mathematics, American Mathematical Society, Providence, RI, 2003. doi: 10.1090/gsm/058.
