Large-time behaviour for coupled systems of Lotka-Volterra-type Fokker-Planck equations

Giuseppe Toscani; Mattia Zanella

doi:10.3934/cpaa.2026050

Article Contents

2026. Doi: 10.3934/cpaa.2026050

Previous Article Next Article

Early Access

Early Access articles are published articles within a journal that have not yet been assigned to a formal issue. This means they do not yet have a volume number, issue number, or page numbers assigned to them, however, they can still be found and cited using their DOI (Digital Object Identifier). Early Access publication benefits the research community by making new scientific discoveries known as quickly as possible.

Readers can access Early Access articles via the “Early Access” tab for the selected journal.

Large-time behaviour for coupled systems of Lotka-Volterra-type Fokker-Planck equations

Giuseppe Toscani^{1, 2,} and
Mattia Zanella^1, ,

1.
Department of Mathematics, University of Pavia, Italy
2.
Institute for Applied Mathematics and Information Technologies (IMATI), CNR, Italy

^*Corresponding author: Mattia Zanella
^*Corresponding author: Mattia Zanella

Received: November 17, 2025

Revised: February 12, 2026

Early access: April 2, 2026

Published online: April 2, 2026

M.Z. is partial support by PRIN2022PNRR project No. P2022Z7ZAJ, European Union - NextGenerationEU and by ICSC – Centro Nazionale di Ricerca in High Performance Computing, Big Data and Quantum Computing, funded by European Union – NextGenerationEU.

Abstract / Introduction Full Text(HTML) Figure(5) / Table(1) Related Papers Cited by

Abstract

We study a system of Fokker-Planck equations recently introduced to describe the temporal evolution of statistical distributions of population densities with predator-prey interactions. At the macroscopic level, the system recovers a Lotka-Volterra model and defines an explicit family of equilibrium densities that depend on the form of the diffusion coefficient. By introducing Energy-type distances, we rigorously establish exponential convergence to equilibrium in appropriate homogeneous Sobolev spaces, with a rate explicitly determined by the dissipative contribution of the interaction term. The analysis highlights the intrinsic energy dissipation mechanism governing the dynamics and clarifies how the evolution of expected quantities determines the emergence of a stable equilibrium configuration. This approach provides a new perspective on the convergence to equilibrium for problems with time-dependent coefficients.

Keywords:

Mathematics Subject Classification: Primary: 35Q20; 35Q84; Secondary: 92D25.

Citation:

FullText(HTML)

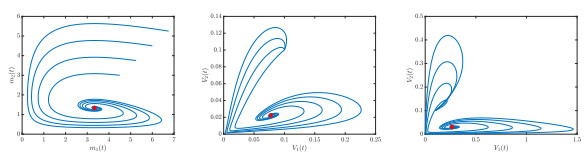

Figure 1. Left: convergence of expected values $ \mathbf m = (m_1, m_2) $ toward equilibrium $ \mathbf m^\infty $ defined in (3.2). Center: convergence of the variances solution to (3.8) obtained in the case $ p = 1/2 $ toward $ \mathbf V^\infty_{(p = 1/2)} $ in (3.9). Right: convergence of the variance solution to (3.10) obtained in the case $ p = 1 $ toward $ \mathbf V^\infty_{(p = 1)} $ in (3.11). The equilibrium points have been highlighted in red, we considered the parameters in Table 1 and as initial conditions $ \mathbf m(0) = (\frac{9}{2}, \frac 3 4), ( \frac{21}{4}, \frac{15}{4}), (\frac{27}{4}, \frac{21}{4}), (\frac{15}{2}, 6) $, and $ \mathbf V_{(p = 1/2)} = \mathbf{V}_{(p = 1)} = (\frac{1}{10}, \frac{1}{10}) $

Download: Full-size image PowerPoint slide

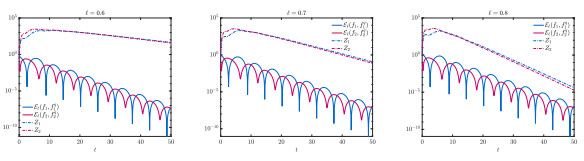

Figure 2. Evolution of the Energy distance $ \mathcal E_\ell(f_1, f_1^q) $ and $ \mathcal E_\ell(f_2, f_2^q) $ from the solution to (1.3) with $ p = 1/2 $ and the coefficients (3.4). The upper bounds are the ones obtained in Section 4

Download: Full-size image PowerPoint slide

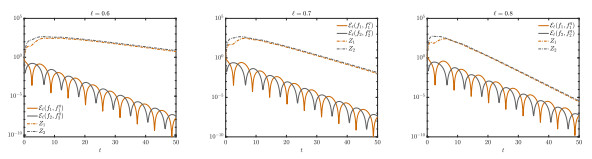

Figure 3. Evolution of the Energy distance $ \mathcal E_\ell(f_1, f_1^q) $ and $ \mathcal E_\ell(f_2, f_2^q) $ from the solution to (1.3) with $ p = 1 $ and the coefficients (3.4). The upper bounds are the ones obtained in Section 4

Download: Full-size image PowerPoint slide

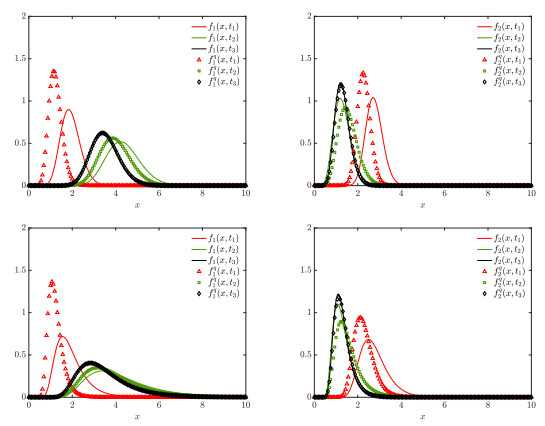

Figure 4. We represent $ f_1, f_2 $ and $ f_1^q, f_2^q $ for three time steps $ t_1 = 1 $, $ t_2 = 10 $, and $ t_3 = 20 $. The approximation of $ f_1, f_2 $ is obtained with a second-order semi-implicit SP scheme for the Fokker-Planck system of equations (1.3) under the choice of parameters in (3.4) and coefficients in Table 1

Download: Full-size image PowerPoint slide

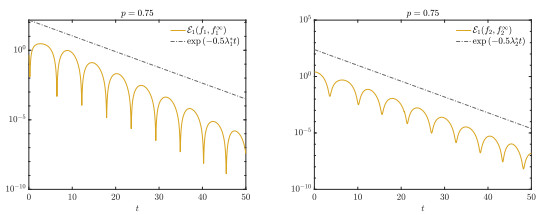

Figure 5. Evolution of $ \mathcal E_1(f_k, f_k^\infty) $, $ k = 1, 2 $, and of the obtained exponential trend to equilibrium

Download: Full-size image PowerPoint slide

Table 1. Set of parameters considered

Parameter	Value	Meaning
$ \alpha $	1.0	Birth rate $ f_1 $
$ \beta $	0.5	Removal rate due to contact between $ f_1 $ and $ f_2 $
$ \gamma $	0.15	Birth rate $ f_2 $ due to contact with $ f_1 $
$ \sigma_1 $	0.05	Diffusion strength $ f_1 $
$ \sigma_2 $	0.05	Diffusion strength $ f_2 $
$ K $	0.01	Carrying capacity
$ \delta $	0.5	Death rate $ f_2 $
$ \chi $	0	Intensity redistribution particles $ f_1 $
$ \theta $	0	Intensity redistribution particles $ f_2 $
$ \nu $	1.0	Birth rate $ f_1 $
$ \mu $	10	Threshold death rate $ f_2 $
$ \delta = \gamma\mu-\nu $	$ 0.5 $	Death rate $ f_2 $

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	G. Albi, L. Pareschi and M. Zanella, Boltzmann-type control of opinion consensus through leaders, Phi. Trans. R. Soc. A, 372 (2014), 18 pp.
[2]	L. Alasio, H. Ranetbauer, M. Schmidtchen and M.-T. Wolfram, Trend to equilibrium for systems with small cross-diffusion, ESAIM: M2AN, 54 (2020), 1661-1688. doi: 10.1051/m2an/2020008.
[3]	L. Ambrosio, M. Fornasier, M. Morandotti and G. Savaré, Spatially inhomogeneous evolutionary games, Commun. Pure Appl. Math., 74 (2021), 1353-1402. doi: 10.1002/cpa.21995.
[4]	A. Arnold, P. Markowich, G. Toscani and A. Unterreiter, On convex Sobolev inequalities and the rate of convergence to equilibrium for Fokker-Planck type equations, Comm. Partial Differential Equations, 26 (2001), 43-100. doi: 10.1081/PDE-100002246.
[5]	F. Auricchio, G. Toscani and M. Zanella, Trends to equilibrium for a nonlocal Fokker-Planck equation, Appl. Math. Lett., 145 (2023), Paper No. 108746, 8 pp.
[6]	F. Auricchio, M. Carraturo, G. Toscani and M. Zanella, Impact of interaction forces in first-order many-agent systems for swarm manufacturing, Disc. Cont. Dyn. Syst. S, 17 (2024), 78-97.
[7]	G. Auricchio, G. Brigati, P. Giudici, and G. Toscani. From kinetic theory to AI: a rediscovery of high-dimensional divergences and their properties. Math. Mod. Meth. Appl. Scie. (in press).
[8]	G. Auricchio and G. Toscani, Energy distance and evolution problems: a promising tool for kinetic equations. Ric. Mat. in press.
[9]	M.G. Bellemare et al., The Cramer distance as a solution to biased Wasserstein gradients, preprint, 2017, arXiv: 1705.10743.
[10]	L. Baringhaus and R. Grübel, On a class of characterization problems for random convex combinations, Ann. Inst. Statist. Math., 49 (1997), 555-567. doi: 10.1023/A:1003127114209.
[11]	M. Bisi, G. Spiga and G. Toscani, Kinetic models of conservative economies with wealth redistribution, Commun. Math. Sci., 7 (2009), 901-916.
[12]	A. Bondesan, M. Menale, G. Toscani and M. Zanella, Lotka-Volterra-type kinetic equations for interacting species, Nonlinearity, 38 (2025), Paper No. 075026, 35 pp. doi: 10.1088/1361-6544/addfa1.
[13]	G. Borghi, M. Herty and A. Stavitskiy, Dynamics of measure-valued agents in the space of probabilities, SIAM J. Math. Anal., 57 (2025), 5107-5134. doi: 10.1137/24M1675515.
[14]	M. Burger and A. Esposito, Porous medium equation and cross-diffusion systems as limit of nonlocal interaction, Nonlinear Anal., 235 (2023), Paper No. 113347, 30 pp. doi: 10.1016/j.na.2023.113347.
[15]	J. Cañizo, J. Carrillo and S. Cuadrado, Measure solutions for some models in population dynamics, Acta Appl. Math., 123 (2013), 141-156. doi: 10.1007/s10440-012-9758-3.
[16]	J. A. Carrillo, Y. Huang and M. Schmidtchen, Zoology of a nonlocal cross-diffusion model for two species, SIAM J. Appl. Math., 78 (2018), 1078-1104. doi: 10.1137/17M1128782.
[17]	C. Cercignani, R. Illner and M. Pulvirenti, The Mathematical Theory of Dilute Gases, Springer-Verlag, New York, 1994.
[18]	N. Champagnat, P.-E. Jabin and G. Raoul, Convergence to equilibrium in competitive Lotka-Volterra and chemostat systems, C. R. Math. Acad. Sci. Paris, 348 (2010), 1267-1272. doi: 10.1016/j.crma.2010.11.001.
[19]	L. Chen, E. S. Daus, A. Holzinger and A. Jüngel, Rigorous derivation of population cross-diffusion systems from moderately interacting particle systems, J. Nonlin. Sci., 31 (2021), Paper No. 94, 38 pp.
[20]	L. Chen, E. S. Daus and A. Jüngel, Rigorous mean-field limit and cross-diffusion, Z. fur Angew. Math. Phys., 70 (2019), Paper No. 122, 21 pp.
[21]	Y. S. Choi, R. Lui and Y. Yamada, Existence of global solutions for the Shigesada-Kawasaki-Teramoto model with strongly coupled cross-diffusion, Discrete Contin. Dyn. Syst., 10 (2004), 719-730. doi: 10.3934/dcds.2004.10.719.
[22]	H. Cramér, On the composition of elementary errors, Skandinavisk Aktuarietidskrift, 11 (1928), 141-180.
[23]	F. Conforto and L. Desvillettes, Rigorous passage to the limit in a system of reaction-diffusion equations toward a system including cross diffusions, Commun. Math. Sci., 12 (2014), 457-472. doi: 10.4310/CMS.2014.v12.n3.a3.
[24]	E. S. Daus, M. Fellner and A. Jüngel, Random-batch method for multi-species stochastic interacting particle systems, J. Comput. Phys., 463 (2022), Paper No. 111220, 27 pp. doi: 10.1016/j.jcp.2022.111220.
[25]	O. Diekmann, P.-E. Jabin, S. Mischler and B. Perthame, The dynamics of adaptation: An illuminating example and a Hamilton–Jacobi approach, Theor. Popul. Biol., 67 (2005), 257-271.
[26]	G. Dimarco, B. Perthame, G. Toscani and M. Zanella, Kinetic models for epidemic dynamics with social heterogeneity, J. Math. Biol., 83 (2021), Paper No. 4, 32 pp.
[27]	G. Furioli, A. Pulvirenti, E. Terraneo and G. Toscani, Fokker-Planck equations in the modeling of socio-economic phenomena, Math. Models Methods Appl. Sci., 27 (2017), 115-158. doi: 10.1142/S0218202517400048.
[28]	G. Furioli, A. Pulvirenti, E. Terraneo and G. Toscani, Wright-Fisher-type equations for opinion formation, large time behavior and weighted logarithmic-Sobolev inequalities, Ann. Inst. H. Poincaré C Anal. Non Linéaire, 36 (2019), 2065-2082. doi: 10.1016/j.anihpc.2019.07.005.
[29]	E. Gabetta, G. Toscani and B. Wennberg, Metrics for probability measures and the trend to equilibrium for solutions of the Boltzmann equation, Journal of Statistical Physics, 81 (1995), 901-934. doi: 10.1007/BF02179298.
[30]	J. Haskovec, Ss Hittmeir, P. Markowich and A. Mielke, Decay to equilibrium for energy-reaction-diffusion systems, SIAM J. Math. Anal., 50 (2018), 1037-1075. doi: 10.1137/16M1062065.
[31]	P.-E. Jabin and H. Liu, On a non-local selection-mutation model with a gradient flow structure, Nonlinearity, 30 (2017), 4220-4238. doi: 10.1088/1361-6544/aa85da.
[32]	P.-E. Jabin and G. Raoul, On selection dynamics for competitive interactions, J. Math. Biol., 63 (2011), 493-517. doi: 10.1007/s00285-010-0370-8.
[33]	C. Le Bris and P.-L. Lions, Existence and uniqueness of solutions to Fokker-Planck type equations with irregular coefficients, Commun. Part. Differ. Equat., 33 (2008), 1272-1317. doi: 10.1080/03605300801970952.
[34]	E. H. Lieb, Sharp Constants in the Hardy-Littlewood-Sobolev and related inequalities, Ann. Math., 118 (1983), 349-374. doi: 10.2307/2007032.
[35]	T. Lorenzi, H. Tettamanti and M. Zanella, Kinetic and mean-field modeling of muscular dystrophies, preprint, 2025, arXiv: 2511.15599.
[36]	G. Martalò, G. Toscani and M. Zanella, Individual-Based Foundation of SIR-type epidemic models: mean-field limit and large time behaviour, Proc. R. Soc. A, 482 (2026), 25 pp. doi: 10.1098/rspa.2025.0633.
[37]	M. Menale and G. Toscani, Measuring inequality in society-oriented Lotka-Volterra-type kinetic equations, Physica A, 680 (2025), Paper No. 131023, 12 pp. doi: 10.1016/j.physa.2025.131023.
[38]	L. Pareschi and G. Toscani, Interacting Multiagent Systems: Kinetic equations and Monte Carlo methods, OUP, Oxford, 2013.
[39]	L. Pareschi and M. Zanella, Structure preserving schemes for nonlinear Fokker-Planck equations and applications, J. Sci. Comput, 74 (2018), 1575-1600. doi: 10.1007/s10915-017-0510-z.
[40]	R. Pearl and L. Slobodkin, The Growth of Populations, The Quarterly Review of Biology, 51 (1976), 6-24. doi: 10.1086/408971.
[41]	C. Pouchol and E. Trélat, Global stability with selection in integro-differential Lotka-Volterra systems modelling trait-structured populations, J. Biol. Dyn., 12 (2018), 872-893.
[42]	E.W. Stacy, A generalization of the gamma distribution, Ann. Math. Statist., 33 (1962), 1187-1192. doi: 10.1214/aoms/1177704481.
[43]	E. Stein, Singular Integrals and Differentiability Properties of Functions, Princeton University Press, Princeton, New Jersey, 1971. doi: 10.1515/9781400883882.
[44]	G.J. Székely, Potential and Kinetic Energy in Statistics, Lecture Notes, Budapest Institute of Technology, 1989. Avaiable from https://eric-bunch.github.io/static/Szekely_estats.pdf.
[45]	G.J. Székely, E-statistics: Energy of Statistical Samples, Bowling Green State University, Department of Mathematics and Statistics Technical Report No. 03-05, 2003. Avaiable from https://eric-bunch.github.io/static/Szekely_estats.pdf.
[46]	G. J. Székely and M. L. Rizzo, The Energy of Data and Distance Correlation, Chapman & Hall/CRC Press, Boca Raton, Florida, 2023.
[47]	M. Torregrossa and G. Toscani, Wealth distribution in presence of debts. A Fokker-Planck description, Commun. Math. Sci., 16 (2018), 537-560. doi: 10.4310/CMS.2018.v16.n2.a11.
[48]	G. Toscani and M. Zanella, On a kinetic description of Lotka-Volterra dynamics, Riv. Mat. Univ. Parma, 15 (2024), 61-77.
[49]	C. Villani, Optimal transport: old and new, Springer-Verlag, Basel, 2009.
[50]	Y. Yamada, Global solutions for the Shigesada-Kawasaki-Teramoto model with cross-diffusion, in Recent Progress on Reaction-diffusion Systems and Viscosity Solutions, World Sci. Publ., Hackensack, NJ, 2009,282-299.
