The Riemann Problem at a Junction for a Phase Transition Traffic Model

Figure 1.  The free phase $F$ and the congested phase $C$ resulting from (1) in the coordinates, from left to right, $(\rho,\eta)$ and $(\rho, \rho v)$. In the $(\rho,\eta)$ plane, the curves $\eta= \check w \rho $, $\eta= \hat w \rho $ and the curve $\eta= \frac{V_{\max}}{\psi(\rho)}\rho $ that divides the two phases are represented. The densities $\sigma_-$ and $\sigma_+$ are given by the intersections between the previous curves. Similarly in the $(\rho, \rho v)$ plane, the curves $\rho v= \check w \psi(\rho)\rho $, $\rho v= \hat w \psi(\rho)\rho $ and the densities $\sigma_-$ and $\sigma_+$ are represented

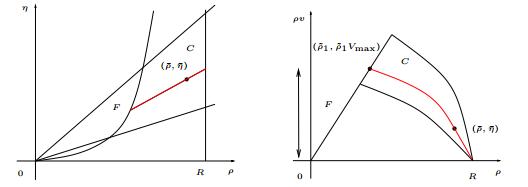

Figure 2.  The case $(\bar \rho,\bar \eta)\in C$. The set $\mathcal T_{inc}\left(\bar \rho, \bar \eta\right)$ it is represented in red in the coordinates, from left to right, $(\rho,\eta)$ and $(\rho, \rho v)$. The set $\mathcal T_{inc}^f \left(\bar \rho, \bar \eta\right)$ is represented on the $\rho v$ axis in the $(\rho, \rho v)$ plane

Figure 3.  The case $(\bar \rho,\bar \eta)\in F$. The set $\mathcal T_{inc}\left(\bar \rho, \bar \eta\right)$ it is represented in red in the coordinates, from left to right, $(\rho,\eta)$ and $(\rho, \rho v)$. The set $\mathcal T_{inc}^f \left(\bar \rho, \bar \eta\right)$ is represented on the $\rho v$ axis in the $(\rho, \rho v)$ plane

Figure 4.  The case $(\bar \rho,\bar \eta)\in F$. The set $\mathcal T_{out}\left(w, \bar \rho, \bar \eta \right)$ it is represented in red in the coordinates, from left to right, $(\rho,\eta)$ and $(\rho, \rho v)$. The set $\mathcal T_{out}^f \left(w,\bar \rho, \bar \eta\right)$ is represented on the $\rho v$ axis in the $(\rho, \rho v)$ plane

Figure 5.  The case $(\bar \rho,\bar \eta)\in C$. The set $\mathcal T_{out}\left(w, \bar \rho, \bar \eta \right)$ it is represented in red in the coordinates, from left to right, $(\rho,\eta)$ and $(\rho, \rho v)$. The set $\mathcal T_{out}^f \left(w,\bar \rho, \bar \eta\right)$ is represented on the $\rho v$ axis in the $(\rho, \rho v)$ plane

Figure 6.  The case $(\bar \rho,\bar \eta)\in F$ in an outgoing road for the approach in Subsection 4.1. The set of all the possible traces it is represented in red in the coordinates, from left to right, $(\rho,\eta)$ and $(\rho, \rho v)$. The corresponding set of flows is represented on the $\rho v$ axis in the $(\rho, \rho v)$ plane

Figure 7.  The case $(\bar \rho,\bar \eta)\in C$ in an outgoing road for the approach in Subsection 4.1. The set of all the possible traces it is represented in red in the coordinates, from left to right, $(\rho,\eta)$ and $(\rho, \rho v)$. The corresponding set of flows is represented on the $\rho v$ axis in the $(\rho, \rho v)$ plane

Figure 8.  The situation in the outgoing road related to the approach of Subsection 4.1. Left, in the $\left(\rho, \eta\right)$-plane, the states $\left(\rho_3^\ast, \eta_3^\ast\right)$ and $\left(\bar \rho_3, \bar \eta_3\right)$, connected through the middle state $\left(\rho^m, \eta^m\right)$. Right, in the $(t,x)$-plane, the waves generated by the Riemann problem. Note that the first wave has negative speed, so that it is not contained in the feasible region of the outgoing road

Figure 9.  The case $\gamma_{1}^{*}+\gamma_{2}^{*}=\Gamma_{3}^{w_{3}}$. At left the case $\gamma_1^* < \Gamma_1$ and $\gamma_2^* < \Gamma_2$. At right the case $\gamma_1^* = \Gamma_1$

Figure 10.  The case $\gamma_{1}^{*}+\gamma_{2}^{*}<\Gamma_{3}^{w_{3}}$
