Adaptive isogeometric methods with hierarchical splines: An overview

Cesare Bracco; Annalisa Buffa; Carlotta Giannelli; Rafael Vázquez

doi:10.3934/dcds.2019010

Article Contents

2019, Volume 39, Issue 1: 241-261. Doi: 10.3934/dcds.2019010

This issue Previous Article Asymptotic behavior in time of solution to the nonlinear Schrödinger equation with higher order anisotropic dispersion Next Article Double minimality, entropy and disjointness with all minimal systems

Adaptive isogeometric methods with hierarchical splines: An overview

1.
Dipartimento di Matematica e Informatica 'U. Dini', Università degli Studi di Firenze, viale Morgagni 67a, 50134 Firenze, Italy
2.
Institute of Mathematics, Ecole Polytechnique Fédérale de Lausanne, Station 8, 1015 Lausanne, Switzerland
3.
Istituto di Matematica Applicata e Tecnologie Informatiche "E. Magenes" del CNR, via Ferrata 5, 27100 Pavia, Italy

* Corresponding author: Annalisa Buffa
* Corresponding author: Annalisa Buffa

Received: December 2017

Revised: June 2018

Published: January 2019

Abstract / Introduction Full Text(HTML) Figure(10) / Table(2) Related Papers Cited by

Abstract

We consider an adaptive isogeometric method (AIGM) based on (truncated) hierarchical B-splines and present the study of its numerical properties. By following [10,12,11], optimal convergence rates of the AIGM can be proved when suitable approximation classes are considered. This is in line with the theory of adaptive methods developed for finite elements, recently well reviewed in [43]. The important output of our analysis is the definition of classes of admissibility for meshes underlying hierarchical splines and the design of an optimal adaptive strategy based on these classes of meshes. The adaptivity analysis is validated on a selection of numerical tests. We also compare the results obtained with suitably graded meshes related to different classes of admissibility for 2D and 3D configurations.

Keywords:

Mathematics Subject Classification: Primary: 41A15, 65N30; Secondary: 65D07, 65N12.

Citation:

Full Text(HTML)

Figure 1. A univariate quadratic B-spline of level $\ell$ (left) and its truncation obtained by considering $\Omega^{\ell+1} = [1,3.0]$ (right)

Download: Full-size image PowerPoint slide

Figure 2. The REFINE and REFINE_RECURSIVE modules

Download: Full-size image PowerPoint slide

Figure 3. Exact solutions for the smooth function with a peak (left) and the singular function (right)

Download: Full-size image PowerPoint slide

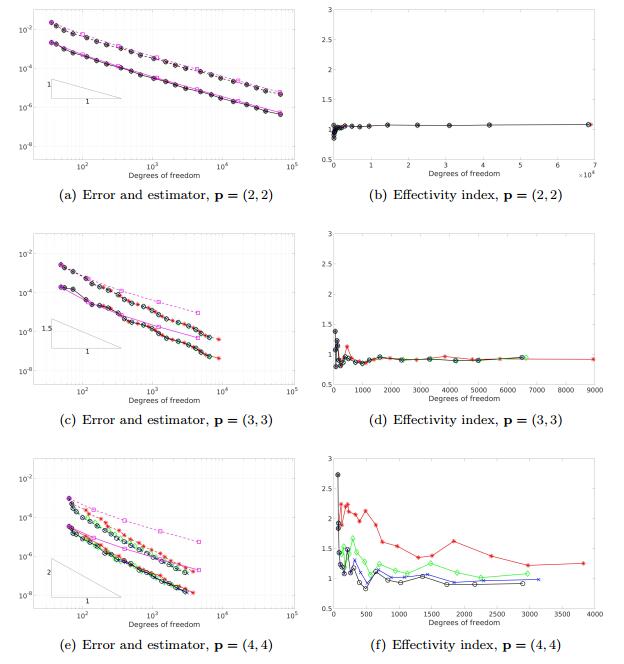

Figure 4. Numerical error and estimator (left) and effectivity index (right) for the smooth function with a peak. On the left, the error (solid lines) and the estimator (dashed lines) are plotted for different degrees. The red, green, blue and black lines (star, diamond, cross and circle markers, respectively) represent admissibility classes $m = 2,3,4,\infty$, respectively, while the magenta line (square marker) corresponds to uniform refinement. The same coloring and marking is used for the effectivity index (divided by 10) on the right figure

Download: Full-size image PowerPoint slide

Figure 5. Hierarchical meshes obtained for the smooth solution with a peak

Download: Full-size image PowerPoint slide

Figure 6. Numerical error and estimator (left) and effectivity index (right) for the example with singular solution. On the left, the error (solid lines) and the estimator (dashed lines) are plotted for different degrees. The red, green, blue and black lines (star, diamond, cross and circle markers, respectively) represent admissibility classes $m = 2,3,4,\infty$, respectively, while the magenta line (square marker) corresponds to uniform refinement. The same coloring and marking is used for the effectivity index (divided by 10) on the right figure

Download: Full-size image PowerPoint slide

Figure 7. Hierarchical meshes obtained for the example with singular solution

Download: Full-size image PowerPoint slide

Figure 8. Geometry and solution for the 3D example

Download: Full-size image PowerPoint slide

Figure 9. Convergence of the estimator for the 3D example. The red, green, blue and black lines (star, diamond, cross and circle markers, respectively) represent admissibility classes $m = 2,3,4,\infty$, respectively, while the magenta line (square marker) corresponds to uniform refinement

Download: Full-size image PowerPoint slide

Figure 10. Meshes obtained for the 3D example degree $\mathbf{p} = (4,4)$ and different values of the admissibility class $m$

Download: Full-size image PowerPoint slide

Table 1. Number of elements ($\# {\cal Q}$) and degrees of freedom ($\# {\cal T}({\cal Q})$) for Example 1

	$\mathbf{p}=(2,2)$		$\mathbf{p}=(3,3)$		$\mathbf{p}=(4,4)$
	$\# {\cal Q}$	$\# {\cal T}({\cal Q})$	$\# {\cal Q}$	$\# {\cal T}({\cal Q})$	$\# {\cal Q}$	$\# {\cal T}({\cal Q})$
$m=2$	$3232$	$2876$	$3880 $	$3313$	$3736 $	$3400$
$m=3$	$2500$	$2244$	$3868 $	$3317$	$2824 $	$2224$
$m=4$	$3628$	$3272$	$3064 $	$2614$	$2224 $	$1672$
$m=\infty$	$3616$	$3244$	$2980 $	$2446$	$2284 $	$1756$

| Show Table

DownLoad: CSV

Table 2. Number of elements ($\# {\cal Q}$) and degrees of freedom ($\# {\cal T}({\cal Q})$) for Example 2

	$\mathbf{p}=(2,2)$		$\mathbf{p}=(3,3)$		$\mathbf{p}=(4,4)$
	$\# {\cal Q}$	$\# {\cal T}({\cal Q})$	$\# {\cal Q}$	$\# {\cal T}({\cal Q})$	$\# {\cal Q}$	$\# {\cal T}({\cal Q})$
$m=2$	$68677$	$68860$	$8776 $	$8938$	$3700 $	$3822$
$m=3$	$68014$	$68201$	$6346 $	$6631$	$2875 $	$2966$
$m=4$	$68008$	$68195$	$6208 $	$6484$	$3010 $	$3138$
$m=\infty$	$68008$	$68195$	$6208 $	$6484$	$2827 $	$2895$

| Show Table

DownLoad: CSV
