A stage structured model of delay differential equations for Aedes mosquito population suppression

Mugen Huang; Moxun Tang; Jianshe Yu; Bo Zheng

doi:10.3934/dcds.2020042

Article Contents

2020, Volume 40, Issue 6: 3467-3484. Doi: 10.3934/dcds.2020042 open access

This issue Previous Article The sign of traveling wave speed in bistable dynamics Next Article Cauchy problem of semilinear inhomogeneous elliptic equations of Matukuma-type with multiple growth terms

A stage structured model of delay differential equations for Aedes mosquito population suppression

1.
School of Statistics and Mathematics, Guangdong University of Finance and Economics, Guangzhou 510320, China
2.
Department of Mathematics, Michigan State University, East Lansing, MI 48824, USA
3.
Center for Applied Mathematics
4.
College of Mathematics and Information Sciences, Guangzhou University, Guangzhou 510006, China

^* Corresponding author: Moxun Tang
^* Corresponding author: Moxun Tang

Received: February 2019

Published online: June 2020

Abstract / Introduction Full Text(HTML) Figure(4) / Table(3) Related Papers Cited by

Abstract

Tremendous efforts have been devoted to the development and analysis of mathematical models to assess the efficacy of the endosymbiotic bacterium Wolbachia in the control of infectious diseases such as dengue and Zika, and their transmission vector Aedes mosquitoes. However, the larval stage has not been included in most models, which causes an inconvenience in testing directly the density restriction on population growth. In this work, we introduce a system of delay differential equations, including both the adult and larval stages of wild mosquitoes, interfered by Wolbachia infected males that can cause complete female sterility. We clarify its global dynamics rather completely by using delicate analyses, including a construction of Liapunov-type functions, and determine the threshold level $ R_0 $ of infected male releasing. The wild population is suppressed completely if the releasing level exceeds $ R_0 $ uniformly. The dynamical complexity revealed by our analysis, such as bi-stability and semi-stability, is further exhibited through numerical examples. Our model generates a temporal profile that captures several critical features of Aedes albopictus population in Guangzhou from 2011 to 2016. Our estimate for optimal mosquito control suggests that the most cost-efficient releasing should be started no less than 7 weeks before the peak dengue season.

Keywords:

Mathematics Subject Classification: 92B05, 37N25, 34D23, 92D30.

Citation:

FullText(HTML)

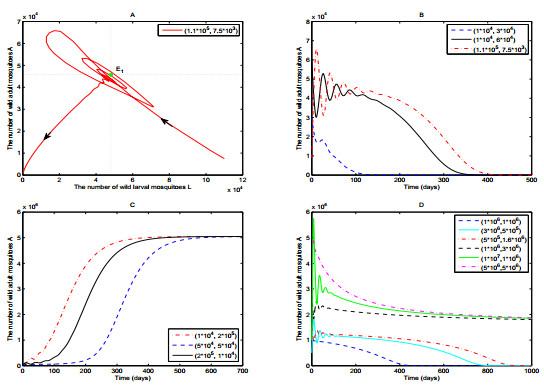

Figure 1. The dynamical complexity of (3) not covered by Theorems 2.4 and 2.5. The parameter values are specified in (25) and $ K_L = 5\times 10^5 $. $ \overline{R} = 10^5\in (0, R_0) $ in A-C, and $ \overline{R} = R_0 = 1.073\times 10^6 $ in D. A. The solution with $ \overline\phi = 1.1\times 10^5>L_1 $ and $ \overline\psi = 7.5\times 10^3<A_1 $ rotates around the unstable equilibrium point $ E_1 $ before moving towards $ E_0 $. B and C. Either $ E_0 $ or $ E_2 $ may attract solutions with $ \overline\phi>L_1 $ and $ \overline\psi<A_1 $, or $ \overline\phi<L_1 $ and $ \overline\psi>A_1 $; see (26) for the values of $ L_1 $ and $ A_1 $. D. Either $ E_0 $ or $ E^*_2 $ may attract solutions with $ \overline\phi>L_2^* $ and $ \overline\psi<A_2^* $, or solutions with $ \overline\phi<L_2^* $ and $ \overline\psi>A_2^* $.

Download: Full-size image PowerPoint slide

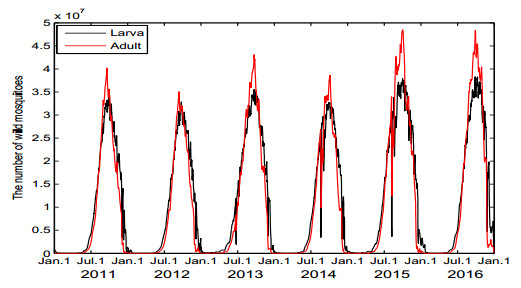

Figure 2. The temporal profiles of wild Aedes albopictus population in Guangzhou from 2011 to 2016. The profiles were simulated by (3) with $ \overline{R}\equiv 0 $, supplemented by the temperature-dependent rates estimated from (27) and Table 2.

Download: Full-size image PowerPoint slide

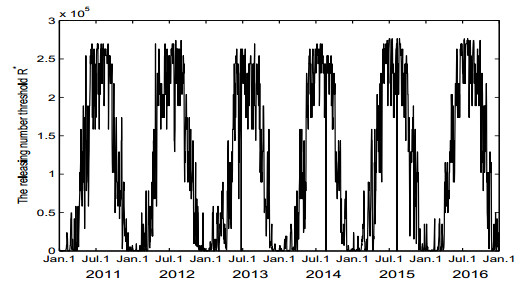

Figure 3. The temperature dependency of the threshold releasing level $ R_0 $. The figure was simulated by (24) with the daily rates estimated from (27) and Table 2. It exhibits a quasi-periodicity as temperature annually, and peaks from July to October during the high-risk season of dengue fever.
