Global well-posedness of a nonlinear Fokker-Planck type model of grain growth

Batuhan Bayir; Yekaterina Epshteyn; William M Feldman

doi:10.3934/dcds.2025146

Article Contents

2026, Volume 48: 404-422. Doi: 10.3934/dcds.2025146

This volume Previous Article Analysis of splitting schemes for stochastic evolution equations with non-Lipschitz nonlinearities driven by fractional noise Next Article Forward self-similar solutions to the MHD equations: Existence and pointwise estimates

Global well-posedness of a nonlinear Fokker-Planck type model of grain growth

Department of Mathematics, University of Utah, Salt Lake City, UT 84112, USA

^*Corresponding author: Batuhan Bayir
^*Corresponding author: Batuhan Bayir

Received: February 2025

Revised: August 2025

Early access: September 9, 2025

Published online: September 9, 2025

The work of B. Bayir and Y. Epshteyn was partially supported by the NSF grant DMS-2118172, and the work of Y. Epshteyn was also partially supported by the Simons Foundation Fellowship SFI-MPS-SFM-00010667. The work of W. M. Feldman was partially supported by the NSF grant DMS-2407235.

Abstract / Introduction Full Text(HTML) Figure(1) / Table(1) Related Papers Cited by

Abstract

Most technologically useful materials spanning multiple length scales are polycrystalline. Polycrystalline microstructures are composed of a myriad of small crystals or grains with different lattice orientations which are separated by interfaces or grain boundaries. The changes in the grain and grain boundary structure of polycrystals highly influence the material's properties, including, but not limited to, electrical, mechanical, and thermal. Thus, an understanding of how microstructures evolve is essential for the engineering of new materials. In this paper, we consider a recently introduced nonlinear Fokker–Planck-type system and establish a global well-posedness result for it. Such systems under specific energy laws emerge in the modeling of the grain boundary dynamics in polycrystals.

Keywords:

Mathematics Subject Classification: Primary: 74A25, 74N15, 35Q84, 35A01.

Citation:

Full Text(HTML)

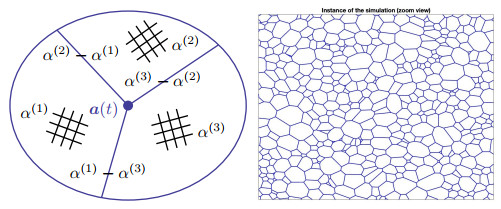

Figure 1. Left figure: A schematic plot of three grain boundaries that meet at a triple junction point $ \boldsymbol{a}(t) $. For each $ i, j \in \{1, 2, 3\} $, $ \alpha^{(j)} = \alpha^{(j)}(t) $ represents the lattice orientation that corresponds to grid lines on the figure, and the differences $ \alpha^{(i)}-\alpha^{(j)} $ represent the lattice misorientations. Right figure: An instance of the simulation of the two-dimensional grain network that is a collection of grain boundaries and triple junction points [15,4]

Download: Full-size image PowerPoint slide

Table 1. Summary of the functions that appear in (nFP). Assumptions on these functions can be found in Section 2.2

Function	Description
$f(x, t)$	Unknown probability density function
$f_0(x)$	Initial condition
$f^ \rm{eq}(x)$	Energy minimizing equilibrium state defined in (3)
$\pi(x, t)$	Mobility
$D(x)$	Inhomogeneous absolute temperature coefficient
$\phi(x)$	Grain boundary energy density
$V(x, t)$	Coefficient of the nonlinear part defined by $V(x, t) := \frac{ \nabla D(x)}{\pi(x, t)}$

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	V. Barbu and M. Röckner, Nonlinear Fokker-Planck Flows and Their Probabilistic Counterparts, Lecture Notes in Mathematics, Springer Nature Switzerland, 2024, URL https://books.google.com/books?id = vwIPEQAAQBAJ. doi: 10.1007/978-3-031-61734-8.
[2]	P. Bardsley, K. Barmak, E. Eggeling, Y. Epshteyn, D. Kinderlehrer and S. Ta'asan, Towards a gradient flow for microstructure, Atti Accad. Naz. Lincei Rend. Lincei Mat. Appl., 28 (2017), 777-805. doi: 10.4171/rlm/785.
[3]	K. Barmak, E. Eggeling, M. Emelianenko, Y. Epshteyn, D. Kinderlehrer, R. Sharp and S. Ta'asan, Critical events, entropy, and the grain boundary character distribution, Phys. Rev. B, 83 (2011), 134117. doi: 10.1103/PhysRevB.83.134117.
[4]	K. Barmak, A. Dunca, Y. Epshteyn, C. Liu and M. Mizuno, Grain growth and the effect of different time scales, in Research in Mathematics of Materials Science, Cham: Springer, 2022, 33-58. doi: 10.1007/978-3-031-04496-0_2.
[5]	K. Barmak, E. Eggeling, M. Emelianenko, Y. Epshteyn, D. Kinderlehrer, R. Sharp and S. Ta'asan, An entropy based theory of the grain boundary character distribution, Discrete Contin. Dyn. Syst., 30 (2011), 427-454. doi: 10.3934/dcds.2011.30.427.
[6]	K. Barmak, J. M. Rickman and M. J. Patrick, Advances in experimental studies of grain growth in thin films, JOM, 1-15. doi: 10.1007/s11837-024-06475-9.
[7]	M. Bäurer, H. Störmer, D. Gerthsen and M. J. Hoffmann, Linking grain boundaries and grain growth in ceramics, Adv. Eng. Mater., 12 (2010), 1230-1234. doi: 10.1002/adem.201000214.
[8]	K. Bhattacharya and R. V. Kohn, Symmetry, texture and the recoverable strain of shape-memory polycrystals, Acta Mater., 44 (1996), 529-542. doi: 10.1016/1359-6454(95)00198-0.
[9]	J. A. Carrillo, M. D. M. González, M. P. Gualdani and M. E. Schonbek, Classical solutions for a nonlinear Fokker-Planck equation arising in computational neuroscience, Commun. Partial Differ. Equ., 38 (2013), 385-409. doi: 10.1080/03605302.2012.747536.
[10]	P. Degond, M. Herda and S. Mirrahimi, A Fokker-Planck approach to the study of robustness in gene expression, Math. Biosci. Eng., 17 (2020), 6459-6486. doi: 10.3934/mbe.2020338.
[11]	H. Dong and H. Zhang, Schauder estimates for higher-order parabolic systems with time irregular coefficients, Calc. Var., 54 (2015), 47-74. doi: 10.1007/s00526-014-0777-y.
[12]	Y. Epshteyn, C. Liu, C. Liu and M. Mizuno, Nonlinear inhomogeneous Fokker–Planck models: Energetic-variational structures and long-time behavior, Anal. Appl., Singap., 20 (2022), 1295-1356. doi: 10.1142/S0219530522400036.
[13]	Y. Epshteyn, C. Liu, C. Liu and M. Mizuno, Local well-posedness of a nonlinear Fokker–Planck model, Nonlinearity, 36 (2023), 1890-1917. doi: 10.1088/1361-6544/acb7c2.
[14]	Y. Epshteyn, C. Liu and M. Mizuno, A stochastic model of grain boundary dynamics: A Fokker-Planck perspective, Math. Models Methods Appl. Sci., 32 (2022), 2189-2236. doi: 10.1142/S021820252250052X.
[15]	Y. Epshteyn, C. Liu and M. Mizuno, Motion of grain boundaries with dynamic lattice misorientations and with triple junctions drag, SIAM J. Math. Anal., 53 (2021), 3072-3097. doi: 10.1137/19M1265855.
[16]	Y. Epshteyn, C. Liu and M. Mizuno, Longtime asymptotic behavior of nonlinear Fokker-Planck type equations with periodic boundary conditions, 2024. URL https://arXiv.org/abs/2404.05157
[17]	A. Friedman, Partial Differential Equations of Parabolic Type, Dover Books on Mathematics, Dover Publications, 2008, URL https://books.google.com/books?id = e0HDAgAAQBAJ.
[18]	M.-H. Giga, A. Kirshtein and C. Liu, Variational modeling and complex fluids, Handbook of Mathematical Analysis in Mechanics of Viscous Fluids, 2017, 1-41. doi: 10.1007/978-3-319-10151-4_2-1.
[19]	M. H. Gorji, M. Torrilhon and P. Jenny, Fokker-Planck model for computational studies of monatomic rarefied gas flows, J. Fluid Mech., 680 (2011), 574-601. doi: 10.1017/jfm.2011.188.
[20]	R. Jordan, D. Kinderlehrer and F. Otto, The variational formulation of the Fokker-Planck equation, SIAM J. Math. Anal., 29 (1998), 1-17. doi: 10.1137/S0036141096303359.
[21]	R. V. Kohn, Irreversibility and the statistics of grain boundaries, Physics, (2011), Physics 4, 33. doi: 10.1103/Physics.4.33.
[22]	N. Krylov, Lectures on Elliptic and Parabolic Equations in Hölder Spaces, vol. 12 of Graduate Studies in Mathematics, American Mathematical Society, 1996, URL https://books.google.com/books?id = oh4SCgAAQBAJ. doi: 10.1090/gsm/012/10.
[23]	S. K. Kurtz and F. Carpay, Microstructure and normal grain growth in metals and ceramics. Part Ⅰ. Theory, J. Appl. Phys., 51 (1980), 5725-5744. doi: 10.1063/1.327580.
[24]	O. A. Ladyzhenskaya, V. A. Solonnikov and N. N. Ural'tseva, Linear and Quasi-Linear Equations of Parabolic Type. Translated from the Russian by S. Smith, vol. 23 of Translations of Mathematical Monographs, American Mathematical Society, 1968, URL https://books.google.com/books?id = PxiR6DZ45BYC.
[25]	G. M. Lieberman, Second Order Parabolic Differential Equations, World scientific, 1996, URL https://books.google.com/books?id = s9Guiwylm3cC. doi: 10.1142/3302.
[26]	B. Liu, E. Ocegueda, M. Trautner, A. M. Stuart and K. Bhattacharya, Learning macroscopic internal variables and history dependence from microscopic models, J. Mech. Phys. Solids, 178 (2023), Paper No. 105329, 21 pp. doi: 10.1016/j.jmps.2023.105329.
[27]	F. Michael and M. D. Johnson, Financial market dynamics, Physica A, 320 (2003), 525-534. doi: 10.1016/S0378-4371(02)01558-3.
[28]	M. J. Patrick, G. S. Rohrer, O. Chirayutthanasak, S. Ratanaphan, E. R. Homer, G. L. Hart, Y. Epshteyn and K. Barmak, Relative grain boundary energies from triple junction geometry: Limitations to assuming the Herring condition in nanocrystalline thin films, Acta Mater., 242 (2023), 118476. doi: 10.1016/j.actamat.2022.118476.
[29]	A. G. Peeters and D. Strintzi, The Fokker-Planck equation, and its application in plasma physics, Ann. Phys. (8), 17 (2008), 142-157. doi: 10.1002/andp.200852002-310.
[30]	C. Qiu, D. J. Srolovitz, G. S. Rohrer, J. Han and M. Salvalaglio, Why grain growth is not curvature flow, Proc. Natl. Acad. Sci. U.S.A., 122 (2025), e2500707122. doi: 10.1073/pnas.2500707122.
[31]	R. W. Rice, C. C. Wu and F. Boichelt, Hardness-grain-size relations in ceramics, J. Am. Ceram. Soc., 77 (1994), 2539-2553. doi: 10.1111/j.1151-2916.1994.tb04641.x.
[32]	J. Rickman, K. Barmak, Y. Epshteyn and C. Liu, Point process microstructural model of metallic thin films with implications for coarsening, npj Comput. Mater., 9 (2023), 27. doi: 10.1038/s41524-023-00986-w.
[33]	M. Schienbein and H. Gruler, Langevin equation, Fokker-Planck equation and cell migration, Bull. Math. Biol., 55 (1993), 585-608. doi: 10.1007/BF02460652.
[34]	C. V. Thompson, Grain growth in polycrystalline thin films, MRS Online Proc. Libr., 343 (1994), 3. doi: 10.1557/PROC-343-3.
[35]	C. E. Torres, M. Emelianenko, D. Golovaty, D. Kinderlehrer and S. Ta'asan, Numerical analysis of the vertex models for simulating grain boundary networks, SIAM J. Appl. Math., 75 (2015), 762-786. doi: 10.1137/140999232.
[36]	E. Vasiliev, A new Fokker–Planck approach for the relaxation-driven evolution of galactic nuclei, Astrophys. J., 848 (2017), 10. doi: 10.3847/1538-4357/aa8cc8.
