Semi-Markovian capacities in production network models

Simone Göttlich , and  Stephan Knapp

University of Mannheim, Department of Mathematics, 68131 Mannheim, Germany

* Corresponding author: Simone Göttlich

Received  July 2016 Revised  December 2016 Published  March 2017

Fund Project: This work was financially supported by the DAAD project "DAAD-PPP VR China" (Projekt-ID: 57215936).

In this paper, we focus on production network models based on ordinary and partial differential equations that are coupled to semi-Markovian failure rates for the processor capacities. This modeling approach allows for intermediate capacity states in the range of total breakdown to full capacity, where operating and down times might be arbitrarily distributed. The mathematical challenge is to combine the theory of semi-Markovian processes within the framework of conservation laws. We show the existence and uniqueness of such stochastic network solutions, present a suitable simulation method and explain the link to the common queueing theory. A variety of numerical examples emphasizes the characteristics of the proposed approach.

Keywords: Production networks, conservation laws, semi-Markovian processes.
Mathematics Subject Classification: Primary:90B15, 65Cxx; Secondary:65Mxx.
Citation: Simone Göttlich, Stephan Knapp. Semi-Markovian capacities in production network models. Discrete & Continuous Dynamical Systems - B, 2017, 22 (9) : 3235-3258. doi: 10.3934/dcdsb.2017090
References:
[1]

D. Armbruster, P. Degond and C. Ringhofer, A model for the dynamics of large queuing networks and supply chains, SIAM J. Appl. Math., 66 (2006), 896-920.  doi: 10.1137/040604625.  Google Scholar

[2]

J. Banks, J. S. Carson, B. L. Nelson and D. M. Nicol, Discrete-Event System Simulation 5th edition, Pearson, 2010. Google Scholar

[3]

C. D'Apice, S. Göttlich, M. Herty and B. Piccoli, Modeling, Simulation, and Optimization of Supply Chains 1st edition, SIAM, Philadelphia, 2010. doi: 10.1137/1.9780898717600.  Google Scholar

[4]

C. D'Apice, P. I. Kogut and R. Manzo, On relaxation of state constrained optimal control problem for a PDE-ODE model of supply chains, Netw. Heterog. Media, 9 (2014), 501-518.  doi: 10.3934/nhm.2014.9.501.  Google Scholar

[5]

C. D'Apice, R. Manzo and B. Piccoli, Modelling supply networks with partial differential equations, Quart. Appl. Math., 67 (2009), 419-440.  doi: 10.1090/S0033-569X-09-01129-1.  Google Scholar

[6]

C. D'Apice, R. Manzo and B. Piccoli, Existence of solutions to Cauchy problems for a mixed continuum-discrete model for supply chains and networks, J. Math. Anal. Appl., 362 (2010), 374-386.  doi: 10.1016/j.jmaa.2009.07.058.  Google Scholar

[7]

C. D'Apice, R. Manzo and B. Piccoli, Optimal input flows for a PDE-ODE model of supply chains, Commun. Math. Sci., 10 (2012), 1225-1240.  doi: 10.4310/CMS.2012.v10.n4.a10.  Google Scholar

[8]

C. D'Apice, R. Manzo and B. Piccoli, Numerical schemes for the optimal input flow of a supply chain, SIAM J. Numer. Anal., 51 (2013), 2634-2650.  doi: 10.1137/120889721.  Google Scholar

[9]

M. H. A. Davis, Piecewise-deterministic {M}arkov processes: A general class of nondiffusion stochastic models, J. Roy. Statist. Soc. Ser. B, 46 (1984), 353-388.   Google Scholar

[10]

P. Degond and C. Ringhofer, Stochastic dynamics of long supply chains with random breakdowns, SIAM J. Appl. Math., 68 (2007), 59-79.  doi: 10.1137/060674302.  Google Scholar

[11]

L. Forestier-Coste, S. Göttlich and M. Herty, Data-fitted second-order macroscopic production models, SIAM J. Appl. Math., 75 (2015), 999-1014.  doi: 10.1137/140989832.  Google Scholar

[12]

D. T. Gillespie, A general method for numerically simulating the stochastic time evolution of coupled chemical reactions, J. Computational Phys., 22 (1976), 403-434.  doi: 10.1016/0021-9991(76)90041-3.  Google Scholar

[13]

D. T. Gillespie, Approximate accelerated stochastic simulation of chemically reacting systems, J. Chem. Phys., 115 (2001), 1716-1733.  doi: 10.1063/1.1378322.  Google Scholar

[14]

S. Göttlich, M. Herty and A. Klar, Network models for supply chains, Commun. Math. Sci., 3 (2005), 545-559.  doi: 10.4310/CMS.2005.v3.n4.a5.  Google Scholar

[15]

S. Göttlich, M. Herty and C. Ringhofer, Optimization of order policies in supply networks, European J. Oper. Res., 202 (2010), 456-465.  doi: 10.1016/j.ejor.2009.05.028.  Google Scholar

[16]

S. Göttlich, A. Klar and S. Tiwari, Complex material flow problems: A multi-scale model hierarchy and particle methods, J. Engrg. Math, 92 (2015), 15-29.  doi: 10.1007/s10665-014-9767-5.  Google Scholar

[17]

S. Göttlich, S. Martin and T. Sickenberger, Time-continuous production networks with random breakdowns, Netw. Heterog. Media, 6 (2011), 695-714.  doi: 10.3934/nhm.2011.6.695.  Google Scholar

[18]

F. Grabski, Semi-Markov failure rates processes, Appl. Math. Comput., 217 (2011), 9956-9965.  doi: 10.1016/j.amc.2011.04.055.  Google Scholar

[19]

F. Grabski, Semi-Markov Processes: Applications in System Reliability and Maintenance, 1st edition, Elsevier, Amsterdam, 2015. doi: 10.1007/978-1-4612-0873-0.  Google Scholar

[20]

D. Gross, J. F. Shortle, J. M. Thompson and C. M. Harris, Fundamentals of Queueing Theory, 4th edition, John Wiley & Sons, Inc. , Hoboken, NJ, 2008. doi: 10.1002/9781118625651.  Google Scholar

[21]

B. Harlamov, Continuous Semi-{M}arkov Processes, 1st edition, ISTE, London; John Wiley & Sons, Inc. , Hoboken, NJ, 2008. doi: 10.1002/9780470610923.  Google Scholar

[22]

M. Kolonko, Stochastische Simulation, (German) [Stochastic Simulation], 1st edition, Vieweg+Teubner Verlag, Wiesbaden, 2008. doi: 10.1007/978-3-8348-9290-4.  Google Scholar

[23]

A. M. Lee, Applied Queueing Theory, Reprint edition, Macmillan [u. a. ], London [u. a. ], 1966. doi: 10.1007/978-1-349-00273-3.  Google Scholar

[24]

L. Lipsky, Queueing Theory, 2nd edition, Springer, New York, 2009. doi: 10.1007/978-0-387-49706-8.  Google Scholar

[25]

J. Medhi, Stochastic Processes, 3rd edition, New Age Science, Tunbridge Wells, 2010. Google Scholar

[26]

J. R. Norris, Markov Chains, Reprint edition, Cambridge University Press, Cambridge, 1998.  Google Scholar

[27]

R. Pyke, Markov renewal processes: Definitions and preliminary properties, Ann. Math. Statist., 32 (1961), 1231-1242.  doi: 10.1214/aoms/1177704863.  Google Scholar

show all references

References:
[1]

D. Armbruster, P. Degond and C. Ringhofer, A model for the dynamics of large queuing networks and supply chains, SIAM J. Appl. Math., 66 (2006), 896-920.  doi: 10.1137/040604625.  Google Scholar

[2]

J. Banks, J. S. Carson, B. L. Nelson and D. M. Nicol, Discrete-Event System Simulation 5th edition, Pearson, 2010. Google Scholar

[3]

C. D'Apice, S. Göttlich, M. Herty and B. Piccoli, Modeling, Simulation, and Optimization of Supply Chains 1st edition, SIAM, Philadelphia, 2010. doi: 10.1137/1.9780898717600.  Google Scholar

[4]

C. D'Apice, P. I. Kogut and R. Manzo, On relaxation of state constrained optimal control problem for a PDE-ODE model of supply chains, Netw. Heterog. Media, 9 (2014), 501-518.  doi: 10.3934/nhm.2014.9.501.  Google Scholar

[5]

C. D'Apice, R. Manzo and B. Piccoli, Modelling supply networks with partial differential equations, Quart. Appl. Math., 67 (2009), 419-440.  doi: 10.1090/S0033-569X-09-01129-1.  Google Scholar

[6]

C. D'Apice, R. Manzo and B. Piccoli, Existence of solutions to Cauchy problems for a mixed continuum-discrete model for supply chains and networks, J. Math. Anal. Appl., 362 (2010), 374-386.  doi: 10.1016/j.jmaa.2009.07.058.  Google Scholar

[7]

C. D'Apice, R. Manzo and B. Piccoli, Optimal input flows for a PDE-ODE model of supply chains, Commun. Math. Sci., 10 (2012), 1225-1240.  doi: 10.4310/CMS.2012.v10.n4.a10.  Google Scholar

[8]

C. D'Apice, R. Manzo and B. Piccoli, Numerical schemes for the optimal input flow of a supply chain, SIAM J. Numer. Anal., 51 (2013), 2634-2650.  doi: 10.1137/120889721.  Google Scholar

[9]

M. H. A. Davis, Piecewise-deterministic {M}arkov processes: A general class of nondiffusion stochastic models, J. Roy. Statist. Soc. Ser. B, 46 (1984), 353-388.   Google Scholar

[10]

P. Degond and C. Ringhofer, Stochastic dynamics of long supply chains with random breakdowns, SIAM J. Appl. Math., 68 (2007), 59-79.  doi: 10.1137/060674302.  Google Scholar

[11]

L. Forestier-Coste, S. Göttlich and M. Herty, Data-fitted second-order macroscopic production models, SIAM J. Appl. Math., 75 (2015), 999-1014.  doi: 10.1137/140989832.  Google Scholar

[12]

D. T. Gillespie, A general method for numerically simulating the stochastic time evolution of coupled chemical reactions, J. Computational Phys., 22 (1976), 403-434.  doi: 10.1016/0021-9991(76)90041-3.  Google Scholar

[13]

D. T. Gillespie, Approximate accelerated stochastic simulation of chemically reacting systems, J. Chem. Phys., 115 (2001), 1716-1733.  doi: 10.1063/1.1378322.  Google Scholar

[14]

S. Göttlich, M. Herty and A. Klar, Network models for supply chains, Commun. Math. Sci., 3 (2005), 545-559.  doi: 10.4310/CMS.2005.v3.n4.a5.  Google Scholar

[15]

S. Göttlich, M. Herty and C. Ringhofer, Optimization of order policies in supply networks, European J. Oper. Res., 202 (2010), 456-465.  doi: 10.1016/j.ejor.2009.05.028.  Google Scholar

[16]

S. Göttlich, A. Klar and S. Tiwari, Complex material flow problems: A multi-scale model hierarchy and particle methods, J. Engrg. Math, 92 (2015), 15-29.  doi: 10.1007/s10665-014-9767-5.  Google Scholar

[17]

S. Göttlich, S. Martin and T. Sickenberger, Time-continuous production networks with random breakdowns, Netw. Heterog. Media, 6 (2011), 695-714.  doi: 10.3934/nhm.2011.6.695.  Google Scholar

[18]

F. Grabski, Semi-Markov failure rates processes, Appl. Math. Comput., 217 (2011), 9956-9965.  doi: 10.1016/j.amc.2011.04.055.  Google Scholar

[19]

F. Grabski, Semi-Markov Processes: Applications in System Reliability and Maintenance, 1st edition, Elsevier, Amsterdam, 2015. doi: 10.1007/978-1-4612-0873-0.  Google Scholar

[20]

D. Gross, J. F. Shortle, J. M. Thompson and C. M. Harris, Fundamentals of Queueing Theory, 4th edition, John Wiley & Sons, Inc. , Hoboken, NJ, 2008. doi: 10.1002/9781118625651.  Google Scholar

[21]

B. Harlamov, Continuous Semi-{M}arkov Processes, 1st edition, ISTE, London; John Wiley & Sons, Inc. , Hoboken, NJ, 2008. doi: 10.1002/9780470610923.  Google Scholar

[22]

M. Kolonko, Stochastische Simulation, (German) [Stochastic Simulation], 1st edition, Vieweg+Teubner Verlag, Wiesbaden, 2008. doi: 10.1007/978-3-8348-9290-4.  Google Scholar

[23]

A. M. Lee, Applied Queueing Theory, Reprint edition, Macmillan [u. a. ], London [u. a. ], 1966. doi: 10.1007/978-1-349-00273-3.  Google Scholar

[24]

L. Lipsky, Queueing Theory, 2nd edition, Springer, New York, 2009. doi: 10.1007/978-0-387-49706-8.  Google Scholar

[25]

J. Medhi, Stochastic Processes, 3rd edition, New Age Science, Tunbridge Wells, 2010. Google Scholar

[26]

J. R. Norris, Markov Chains, Reprint edition, Cambridge University Press, Cambridge, 1998.  Google Scholar

[27]

R. Pyke, Markov renewal processes: Definitions and preliminary properties, Ann. Math. Statist., 32 (1961), 1231-1242.  doi: 10.1214/aoms/1177704863.  Google Scholar

Figure 1.  General idea of a semi-Markov process
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 2.  Sample path and its pseudo inverse
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 3.  Comparison with $\lambda = 0.1$
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 4.  Comparison with $\lambda = 0.5$
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 5.  Comparison with $\lambda = 0.75$
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 6.  Comparison with $\lambda = 1.25$
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 7.  Graph representation of the CTMCs
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 8.  Difference of the sampled mean an variance densities
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 9.  Sampled mean and variance of the queue-loads
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 10.  Sample mean and variance of the network outflow
Figure Options

Download full-size image

Download as PowerPoint slide

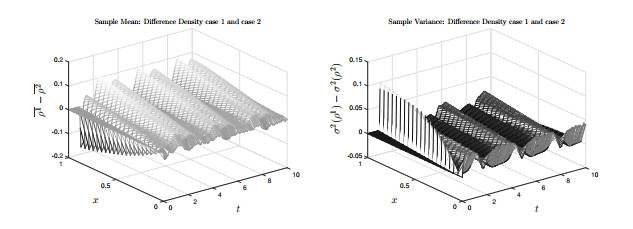

Figure 11.  Difference of the sample mean and variance densities
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 12.  Sample mean and variance of the queue-loads
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 13.  Sample mean and variance of the network outflow
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 14.  Histogram of production times
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 15.  Different pdf of the gamma distribution
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 16.  erial network with five processors
Figure Options

Download full-size image

Download as PowerPoint slide

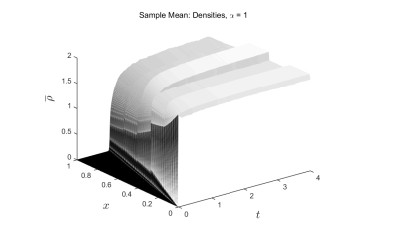

Figure 17.  Sample mean of the density in the exponential case
