A comparison of deterministic and stochastic predator-prey models with disease in the predator

Hongxiao Hu; Liguang Xu; Kai Wang

doi:10.3934/dcdsb.2018289

Article Contents

2019, Volume 24, Issue 6: 2837-2863. Doi: 10.3934/dcdsb.2018289

This issue Previous Article Uniqueness and traveling waves in a cell motility model Next Article A note on the convergence of the solution of the Novikov equation

A comparison of deterministic and stochastic predator-prey models with disease in the predator

1.
College of Science, University of Shanghai for Science and Technology, Shanghai 200093, China
2.
Department of Applied Mathematics, Zhejiang University of Technology, Hangzhou 310023, China
3.
Department of Medical Engineering and Technology, Xinjiang Medical University, Urumqi 830011, China

* Corresponding author: Hongxiao Hu
* Corresponding author: Hongxiao Hu

Received: June 30, 2017

Revised: May 31, 2018

Early access: October 2018

Published: June 2019

This work was supported by the National Science Foundation of China under grants 11401382, 11501518 and 11461073

Abstract Full Text(HTML) Figure(11) / Table(9) Related Papers Cited by

Abstract

In this paper, we study the dynamics of deterministic and stochastic models for a predator-prey, where the predator species is subject to an SIS form of parasitic infection. The deterministic model is a system of ordinary differential equations for a predator-prey model with disease in the predator only. The existence and local stability of the boundary equilibria and the uniform persistence for the ODE model are investigated. Based on these results, some threshold values for successful invasion of disease or prey species are obtained. A new stochastic model is derived in the form of continuous-time Markov chains. Branching process theory is applied to the continuous-time Markov chain models to estimate the probabilities for disease outbreak or prey species invasion. The deterministic and stochastic threshold theories are compared and some relationships between the deterministic and stochastic thresholds are derived. Finally, some numerical simulations are introduced to illustrate the main results and to highlight some of the differences between the deterministic and stochastic models.

Keywords:

Mathematics Subject Classification: Primary: 65C30, 60H10; Secondary: 46N60.

Citation:

Full Text(HTML)

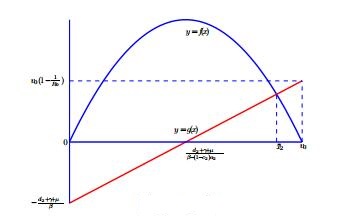

Figure 1.

Download: Full-size image PowerPoint slide

Figure 2. Comparison of ODE and CTMC (3 sample paths) solutions for Case 1. We start the simulation at $x_1(0) = 255$, $S(0) = 355$, $I(0) = 1$

Download: Full-size image PowerPoint slide

Figure 3. Qqplot (see R statistical software) of an outbreak sample paths for $x_1$, $S$ and $I$ of Case 1 when $I(0) = 1$ based on 5000 sample paths at $t = 50$

Download: Full-size image PowerPoint slide

Figure 4. Solution of ODE model for Case 2. We start the simulation at $x_1(0) = 1$, $S(0) = 92$, $I(0) = 218$

Download: Full-size image PowerPoint slide

Figure 5. Comparison of ODE and CTMC (3 sample paths) solutions for Case 2. We start the simulation at $x_1(0) = 1$, $S(0) = 92$, $I(0) = 218$

Download: Full-size image PowerPoint slide

Figure 6. Comparison of ODE and CTMC (3 sample paths) solutions for Case 3. We start the simulation at $x_1(0) = 1$, $S(0) = 92$, $I(0) = 218(P_0' = 0.335)$

Download: Full-size image PowerPoint slide

Figure 7. Qqplot of successful invasion sample paths for $x_1$, $S$ and $I$ of Case 3 when $x_1(0) = 1$ based on 5000 sample paths at $t = 50$

Download: Full-size image PowerPoint slide

Figure 8. Case 1: Boxplot of an outbreak sample paths for prey species $x_1$, susceptible predator species $S$ and infected predator species $I$ with initial value $I(0) = 1$ (first line) and $I(0) = 2$ (second line) based on 5000 sample paths at time $t = 30, 40, 50$

Download: Full-size image PowerPoint slide

Figure 9. Case 3: Boxplot of successful invasion sample paths for prey species $x_1$, susceptible predator species $S$ and infected predator species $I$ with initial value $x_1(0) = 1$ (first line) and $x_2(0) = 2$ (second line) based on 5000 sample paths at time $t = 30, 40, 50$

Download: Full-size image PowerPoint slide

Figure 10. Case 1: Histogram of the probability density function for an outbreak sample paths for prey species $x_1$ (first and second lines), susceptible predator species $S$ (third and fourth lines) and infected predator species $I$ (fifth and sixth lines) of Case 1 when $I(0) = 1$ (odd number lines) and when $I(0) = 2$ (even number lines) based on 5000 sample paths at $t = 30$ (left column), $t = 40$ (middle column), $t = 50$(right column)

Download: Full-size image PowerPoint slide

Figure 11. Case 3: Histogram of the probability density function for successful invasion sample paths for prey species $x_1$ (first and second lines), susceptible predator species $S$ (third and fourth lines) and infected predator species $I$ (fifth and sixth lines) of Case 3 when $x_1(0) = 1$ (odd number lines) and when $x_1(0) = 2$ (even number lines) based on 5000 sample paths at $t = 30$ (left column), $t = 40$ (middle column), $t = 50$(right column)

Download: Full-size image PowerPoint slide

Table 1. State transitions and the infinitesimal probabilities for the CTMC epidemic model.

	Description	State transition $a \to b$	Rate $P(a, b)$
1	Birth of $S$	$(x_1, S, I) \to (x_1, S+1, I)$	$P_1=x_2(b_2-c_2a_2x_2)$
2	Death of $S$	$(x_1, S, I) \to (x_1, S-1, I)$	$P_2=S(d_2+(1-c_2)a_2x_2-\varepsilon\eta x_1)$
3	Infection	$(x_1, S, I) \to (x_1, S-1, I+1)$	$P_3=\beta SI$
4	Death of $I$	$(x_1, S, I) \to (x_1, S, I-1)$	$P_4=I(d_2+(1-c_2)a_2x_2+\mu-pq\varepsilon\eta x_1)$
5	Recover of $I$	$(x_1, S, I) \to (x_1, S+1, I-1)$	$P_5=\gamma I$
6	Birth of $x_1$	$(x_1, S, I) \to (x_1+1, S, I)$	$P_6=x_1(b_1-c_1a_1x_1)$
7	Death of $x_1$	$(x_1, S, I) \to (x_1-1, S, I)$	$P_7=x_1(d_1+(1-c_1)a_1x_1+\eta(S+qI))$

| Show Table

DownLoad: CSV

Table 2. Parameter Values for Cases 1, 2 and 3

Parameter	Interpretation	Case 1	Case2	Case3
$a_1$	Density dependent of prey	$0.0005$	$0.0005$	$0.0005$
$a_2$	Density dependent of predator	$0.0006$	$0.0006$	$0.0006$
$b_1$	Intrinsic birth rate of prey	$2$	$0.7795$	$2$
$b_2$	Intrinsic birth rate of predator	$1$	$1$	$1$
$c_1$	Density dependence effects of prey	$0.5$	$0.5$	$0.5$
$c_2$	Density dependence effects of predator	$0.5$	$0.5$	$0.5$
$d_1$	Natural mortality of prey	$0.1$	$0.1$	$0.1$
$d_2$	Natural mortality of predator	$0.8$	$0.8$	$0.8$
$\eta$	Predation rate of susceptible predator	$0.005$	$0.005$	$0.005$
$\varepsilon$	Conversion rate of susceptible predator	$0.01$	$0.01$	$0.01$
$p\eta$	Predation rate of infected predator	$0.0005$	$0.0005$	$0.0005$
$q\varepsilon$	Conversion rate of infected predator	$0.002$	0.002	$0.001$
$\beta$	Transmission	$0.01$	$0.01$	$0.01$
$\gamma$	Recover rate	$0.01$	$0.01$	$0.01$
$\mu$	Disease related mortality	$0.02$	$0.02$	$0.02$

| Show Table

DownLoad: CSV

Table 3. Equilibria in the form $(x_1, S, I)$ and their local stability for the ODE model (2) with parameters given in Table 2, U = unstable, S = stable

Case 1		Case 2		Case 3
Equilibria	S/U	Equilibria	S/U	Equilibria	S/U
$(0, 0, 0)$	U	$(0, 0, 0)$	U	$(0, 0, 0)$	U
$(3800, 0, 0)$	U	$(1359, 0, 0)$	U	$(3800, 0, 0)$	U
$(0, 333, 0)$	U	$(0, 333, 0)$	U	$(0, 333, 0)$	U
$(255, 355, 0)$	U	$(0, 92.298, 217.629)$	U	$(255, 355, 0)$	U
$(0, 92, 218)$	U	$(0.724, 92.298, 217.647)$	S	(0, 92, 218)	U
$(2327, 94, 268)$	S			(2590, 94, 272)	S

| Show Table

DownLoad: CSV

Table 4. Case 1: Probability of an outbreak $(1-P_0)$ computed from the theory of branching processes, and based on 5000 sample paths of the CTMC model for initial values of $I(0) = 1$ and $I(0) = 2$ at $t = 50$

Cases	Initial value	$1-P_0$	CTMC
1	$I(0)=1$	0.7359	0.7440
1	$I(0)=2$	0.9303	0.9288

| Show Table

DownLoad: CSV

Table 5. Case 1: Using the Kolmogorov-Smirnov test to compare the distributions of an outbreak sample paths of $x_1$, $S$ and $I$ at $t = 30, 40, 50$ based on 5000 sample paths, where $(n_i, m_j)$ means test whether the sample paths at $t = n$ with $I(0) = i$ and $t = m$ with $I(0) = j$ are from the same distribution

		$(30_1, 40_1)$	$(40_1, 50_1)$	$(30_1, 30_2)$	$(40_1, 40_2)$	$(50_1, 50_2)$
$p$	$x_1$	0.9571	0.8605	0.9115	0.81	0.7619
	$S$	0.3127	0.1434	0.9989	0.2852	0.9961
	$I$	0.3411	0.5824	0.5220	0.4625	1
$D$	$x_1$	0.0118	0.014	0.0123	0.014	0.0147
	$S$	0.0223	0.0266	0.0083	0.0217	0.009
	$I$	0.0218	0.0118	0.0179	0.0187	0.0068

| Show Table

DownLoad: CSV

Table 6. Case 1: Using the Shapiro-Wilk normality test to verify whether an outbreak sample paths of $x_1$, $S$ and $I$ with initial value $I(0) = 1$ at time $t = 50$ follow the normal distribution

	$x_1$	$S$	$I$
W	0.9996	0.9974	0.9995
p-value	0.6331	4.672e-06	0.454

| Show Table

DownLoad: CSV

Table 7. Case 3: Probability of prey species invasion $(1-P'_0)$ computed from the theory of branching processes, and based on 5000 sample paths of the CTMC model for initial values of $x_1(0) = 1$ and $x_1(0) = 2$ at $t = 50$

Cases	Initial value	$1-P_0'$	CTMC
3	$x_1(0)=1$	0.6647	0.6784
3	$x_1(0)=2$	0.8876	0.8922

| Show Table

DownLoad: CSV

Table 8. Case 3: Using the Kolmogorov-Smirnov test to compare the distributions of an outbreak sample paths of $x_1$, $S$ and $I$ at $t = 30, 40, 50$ based on 5000 sample paths, where $(n_i, m_j)$ means test whether the sample paths at $t = n$ with $x_1(0) = i$ and $t = m$ with $x_1(0) = j$ are from the same distribution

		$(30_1, 40_1)$	$(40_1, 50_1)$	$(30_1, 30_2)$	$(40_1, 40_2)$	$(50_1, 50_2)$
$p$	$x_1$	0.9481	0.7244	0.5647	0.8352	0.7135
	$S$	0.3127	0.1434	0.9989	0.2852	0.9961
	$I$	0.0684	0.6225	0.0022	0.6726	0.3696
$D$	$x_1$	0.0127	0.0168	0.0179	0.0141	0.0159
	$S$	0.0223	0.0266	0.0083	0.0217	0.009
	$I$	0.0315	0.0183	0.0421	0.0165	0.0209

| Show Table

DownLoad: CSV

Table 9. Case 3: Using the Shapiro-Wilk normality test to verify whether the sample paths of $x_1$, $S$ and $I$ with initial value $x_1(0) = 1$ at time $t = 50$ follow the normal distribution

	$x_1$	$S$	$I$
W	0.9996	0.9972	0.9992
p-value	0.7315	6.957e-06	0.1244

| Show Table

DownLoad: CSV
