Bautin bifurcation in a minimal model of immunoediting

Joaquín Delgado 1,, , Eymard Hernández–López 2,3, and  Lucía Ivonne Hernández–Martínez 2,3,

1.

Departamento de Matemáticas, UAM-Iztapalapa, Av. San Rafael Atlixco 186, Col. Vicentina, México City, C.P. 09340, México
2.

Posgrado en Ciencias Naturales e Ingeniería, UAM-Cuajimalpa, Av. Vasco de Quiroga 4871, Col. Santa Fé Cuajimalpa, México City, 05348, México
3.

Universidad Autónoma de la Ciudad de México, Plantel San Lorenzo Tezonco, Calle Prolongación San Isidro 151, Col. San Lorenzo Tezonco, México City, 09790, México

* Corresponding author: Joaquín Delgado

Received  July 2018 Revised  May 2019 Published  April 2020 Early access  November 2019

Fund Project: Authors were supported by Conacyt grant A1-S-41007, "Bifurcaciones en el estudio de la existencia y estabilidad de EDP". EHL was also supported by a Ph.D. Conacyt grant.

One of the simplest model of immune surveillance and neoplasia was proposed by Delisi and Resigno [6]. Later Liu et al [10] proved the existence of non-degenerate Takens-Bogdanov (BT) bifurcations defining a surface in the whole set of five positive parameters. In this paper we prove the existence of Bautin bifurcations completing the scenario of possible codimension two bifurcations that occur in this model. We give an interpretation of our results in terms of the Immuno Edition Theory (IET) of three phases: elimination, equilibrium and escape.

Keywords: Bautin bifurcation, cancer modeling, immunoediting.
Mathematics Subject Classification: Primary: 34C23, 34C60; Secondary: 37G15.
Citation: Joaquín Delgado, Eymard Hernández–López, Lucía Ivonne Hernández–Martínez. Bautin bifurcation in a minimal model of immunoediting. Discrete & Continuous Dynamical Systems - B, 2020, 25 (4) : 1397-1414. doi: 10.3934/dcdsb.2019233
References:
[1]

J. A. Adam, Effects of vascularization on lymphocyte/tumor cell dynamics: Qualitative features, Math. Comput. Modelling, 23 (1996), 1-10.   Google Scholar

[2]

B. Al-Hdaibat, W. Govaerts, Y. A. Kuznetsov and H. G. E. Meijer, Initialization of homoclinic solutions near Bogdanov-Takens points: Lindstedt-Poincaré compared with regular perturbation method, SIAM J. Applied Dynamical Systems, 15 (2016), 952-980.  doi: 10.1137/15M1017491.  Google Scholar

[3]

G. I. Bell, Predator-prey simulating an immune response, Mathematical Biosciences, 16 (1973), 291-314.   Google Scholar

[4]

W.-J. Beyn, Numerical analysis of homoclinic orbits emanating from a Takens-Bogdanov point, IMA Journal of Numerical Analysis, 14 (1994), 381-410.  doi: 10.1093/imanum/14.3.381.  Google Scholar

[5]

A. R. Champneys and Y. A. Kuznetzov, Numerical detection and continuation of codimension-two homoclinic bifurcation, International Journal of Bifurcation and Chaos, 4 (1994), 785-822.  doi: 10.1142/S0218127494000587.  Google Scholar

[6]

C. DeLisi and A. Rescigno, Immune surveillance and neoplasia-I. A minimal mathematical model, Bull. Math. Bio., 39 (1977), 201-221.  doi: 10.1007/bf02462859.  Google Scholar

[7]

G. P. Dunn, L. J. Old and R. D. Schreiber, The three ES of Cancer Immunoediting, Annual Review of Immunology, 22 (2004), 329-360.   Google Scholar

[8]

R. Kim, M. Emi and K. Tanabe, Cancer immunoediting from immune surveillance to immune escape, Immunology, 21 (2007), 11-14.   Google Scholar

[9]

Y. A. Kuznetsov, Elements of Applied Bifurcation Theory, 2nd edition, Applied Mathematical Sciences, 112. Springer-Verlag, New York, 1998.  Google Scholar

[10]

D. Liu, S. G. Ruan and D. M. Zhu, Bifurcation analysis in models of tumor and immune system interactions, Discrete and Continuous Dynamical Systems series B, 12 (2009), 151-168.  doi: 10.3934/dcdsb.2009.12.151.  Google Scholar

show all references

References:
[1]

J. A. Adam, Effects of vascularization on lymphocyte/tumor cell dynamics: Qualitative features, Math. Comput. Modelling, 23 (1996), 1-10.   Google Scholar

[2]

B. Al-Hdaibat, W. Govaerts, Y. A. Kuznetsov and H. G. E. Meijer, Initialization of homoclinic solutions near Bogdanov-Takens points: Lindstedt-Poincaré compared with regular perturbation method, SIAM J. Applied Dynamical Systems, 15 (2016), 952-980.  doi: 10.1137/15M1017491.  Google Scholar

[3]

G. I. Bell, Predator-prey simulating an immune response, Mathematical Biosciences, 16 (1973), 291-314.   Google Scholar

[4]

W.-J. Beyn, Numerical analysis of homoclinic orbits emanating from a Takens-Bogdanov point, IMA Journal of Numerical Analysis, 14 (1994), 381-410.  doi: 10.1093/imanum/14.3.381.  Google Scholar

[5]

A. R. Champneys and Y. A. Kuznetzov, Numerical detection and continuation of codimension-two homoclinic bifurcation, International Journal of Bifurcation and Chaos, 4 (1994), 785-822.  doi: 10.1142/S0218127494000587.  Google Scholar

[6]

C. DeLisi and A. Rescigno, Immune surveillance and neoplasia-I. A minimal mathematical model, Bull. Math. Bio., 39 (1977), 201-221.  doi: 10.1007/bf02462859.  Google Scholar

[7]

G. P. Dunn, L. J. Old and R. D. Schreiber, The three ES of Cancer Immunoediting, Annual Review of Immunology, 22 (2004), 329-360.   Google Scholar

[8]

R. Kim, M. Emi and K. Tanabe, Cancer immunoediting from immune surveillance to immune escape, Immunology, 21 (2007), 11-14.   Google Scholar

[9]

Y. A. Kuznetsov, Elements of Applied Bifurcation Theory, 2nd edition, Applied Mathematical Sciences, 112. Springer-Verlag, New York, 1998.  Google Scholar

[10]

D. Liu, S. G. Ruan and D. M. Zhu, Bifurcation analysis in models of tumor and immune system interactions, Discrete and Continuous Dynamical Systems series B, 12 (2009), 151-168.  doi: 10.3934/dcdsb.2009.12.151.  Google Scholar

Figure 1.  The catastrophe surface in coordinates $ (\psi, x_c, x_0) $, where $ x_0 $ is the abscissa of the critical point. For a given value of $ (\psi,x_c) $ there are up to two critical points with $ x_0>0 $ and the trivial critical point corresponding to $ x_0 = 0 $. Notice that there are critical points with $ x_0<0 $ that are not considered. The folding of the surface projects into the saddle–node curve given by (10) in the plane $ \psi $–$ x_c $
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 10-b. The codes of the lines are as follows: SS (blue) symmetric–saddle; H (green) Hopf; SN (black dotted) saddle–node; LPC (red) limit point of cycles; Hom (magenta) homoclinic. Special points are BT(Takens–Bogdanov) and GH(Bautin)">Figure 3.  Schema of the bifurcation diagram computed numerically in Figure 10-b. The codes of the lines are as follows: SS (blue) symmetric–saddle; H (green) Hopf; SN (black dotted) saddle–node; LPC (red) limit point of cycles; Hom (magenta) homoclinic. Special points are BT(Takens–Bogdanov) and GH(Bautin)
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 2.  Local diagram of Bautin bifurcacion
Figure Options

Download full-size image

Download as PowerPoint slide

Figure 10.  Numerical continuation of bifurcation diagram with MatCont. Saddle-node: black; Hopf: green; limit point of cycles: red; symmetric saddles: blue; homoclinic: violet
Figure Options

Download full-size image

Download as PowerPoint slide

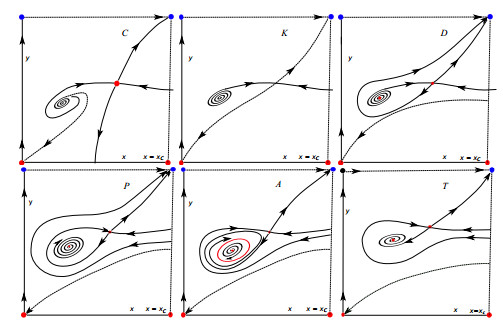

Figure 3">Figure 4.  Qualitative phase portrait along the line $ CKDPAT $ of the bifurcation scheme in Figure 3
