Numerical investigation of ensemble methods with block iterative solvers for evolution problems

Lili Ju; Wei Leng; Zhu Wang; Shuai Yuan

doi:10.3934/dcdsb.2020132

Article Contents

2020, Volume 25, Issue 12: 4905-4923. Doi: 10.3934/dcdsb.2020132

This issue Previous Article A game-theoretic framework for autonomous vehicles velocity control: Bridging microscopic differential games and macroscopic mean field games Next Article Corrigendum on “H. Li and M. Ma, global dynamics of a virus infection model with repulsive effect, Discrete and Continuous Dynamical Systems, Series B, 24(9) 4783-4797, 2019”

Numerical investigation of ensemble methods with block iterative solvers for evolution problems

1.
Department of Mathematics, University of South Carolina, Columbia, SC 29208
2.
State Key Laboratory of Scientific and Engineering Computing, Chinese Academy of Sciences, Beijing 100190, China

^* Corresponding author: Zhu Wang
^* Corresponding author: Zhu Wang

Received: November 2019

Revised: January 2020

Early access: April 2020

Published: December 2020

The first author's research was partially supported by U.S. National Science Foundation under grant number DMS-1818438 and U.S. Department of Energy under grant numbers DE-SC0016540 and DE-SC0020270. The second author's research was partially supported the National Key Research and Development Program of China under grant number 2016YFB0201304, National Natural Science Foundation of China under grant numbers 91430215, 91530323, 11501553 and 11771440, State Key Laboratory of Scientific and Engineering Computing (LSEC), and National Center for Mathematics and Interdisciplinary Sciences of Chinese Academy of Sciences (NCMIS). The third author's research was partially supported by U.S. Department of Energy under grant numbers DE-SC0016540 and DE-SC0020270, U.S. National Science Foundation under grant number DMS-1913073 and Office of the Vice President for Research at the University of South Carolina through an ASPIRE grant.

Abstract / Introduction Full Text(HTML) Figure(5) / Table(7) Related Papers Cited by

Abstract

The ensemble method has been developed for accelerating a sequence of numerical simulations of evolution problems. Its main idea is, by manipulating the time stepping and grouping discrete problems, to make all members in the same group share a common coefficient matrix. Thus, at each time step, instead of solving a sequence of linear systems each of which contains only one right-hand-side vector, the ensemble method simultaneously solves a single linear system with multiple right-hand-side vectors for each group. Such a system could be solved efficiently by using direct linear solvers when the problems are of small scale, as the same LU factorization would work for the entire group members. However, for large-scale problems, iterative linear solvers often have to be used and then this appealing advantage becomes not obvious. In this paper we systematically investigate numerical performance of the ensemble method with block iterative solvers for two typical evolution problems: the heat equation and the incompressible Navier-Stokes equations. In particular, the block conjugate gradient (CG) solver is considered for the former and the block generalized minimal residual (GMRES) solver for the latter. Our numerical results demonstrate the effectiveness and efficiency of the ensemble method when working together with these block iterative solvers.

Keywords:

Mathematics Subject Classification: Primary: 65M60.

Citation:

Full Text(HTML)

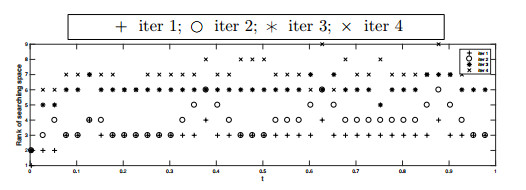

Figure 1. Time evolution of the dimension of the search space at different iterations in BFBCG

Download: Full-size image PowerPoint slide

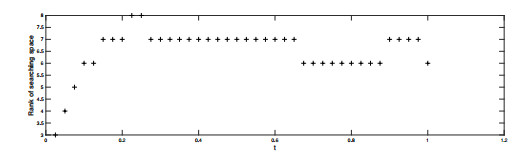

Figure 2. Time evolution of the rank of RHS vectors using the BGMRES-D solver in Problem 2

Download: Full-size image PowerPoint slide

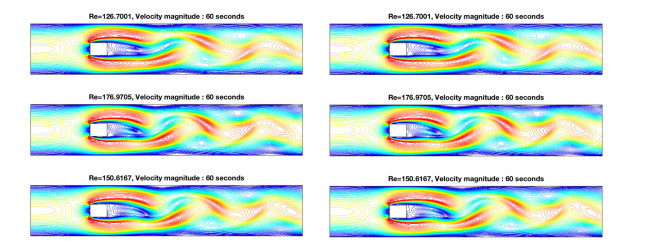

Figure 3. Speed fields at $ t = 60 $ for three problems in the ensemble simulation (left column) and individual simulations (right column) in Problem 3

Download: Full-size image PowerPoint slide

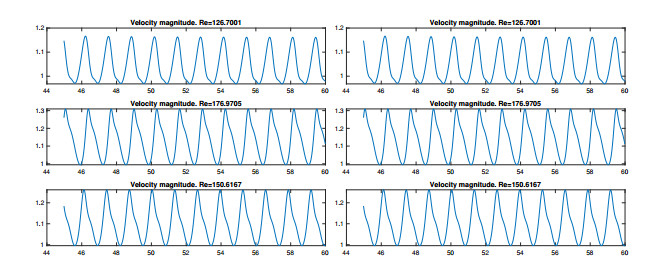

Figure 4. Time evolutions of velocity magnitude for three problems in the ensemble simulation (left column) and individual simulations (right column) in Problem 3

Download: Full-size image PowerPoint slide

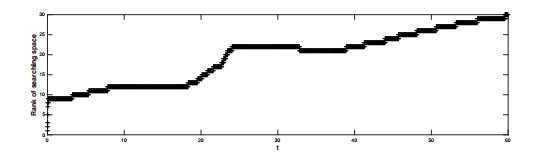

Figure 5. Time evolution of the rank of RHS vectors using BGMRES-D solver in Problem 3

Download: Full-size image PowerPoint slide

Table 1. The $ L_2 $ errors at final time: first-order ensemble, $ Q_1 $ elements in Problem 1

($ N_x $, $ N_y $, $ K $)	$ \mathcal{E}_1^N $	Rate	$ \mathcal{E}_{50}^N $	Rate	$ \mathcal{E}_{100}^N $	Rate
(16, 32, 50)	5.8005$ \times 10^{-2} $	–	4.3544$ \times 10^{-2} $	–	4.8908$ \times 10^{-2} $	–
(32, 64,100)	2.9140$ \times 10^{-2} $	0.99	2.1972$ \times 10^{-2} $	0.99	2.4615$ \times 10^{-2} $	0.99
(64,128,200)	1.4629$ \times 10^{-2} $	0.99	1.1061$ \times 10^{-2} $	0.99	1.2371$ \times 10^{-2} $	0.99
(128,256,400)	7.3326$ \times 10^{-3} $	1.00	5.5529$ \times 10^{-3} $	1.00	6.2053$ \times 10^{-3} $	1.00

| Show Table

DownLoad: CSV

Table 2. The $ L_2 $ errors at final time: second-order ensemble, $ Q_2 $ elements in Problem 1

($ N_x $, $ N_y $, $ K $)	$ \mathcal{E}_1^N $	Rate	$ \mathcal{E}_{50}^N $	Rate	$ \mathcal{E}_{100}^N $	Rate
(8, 16, 50)	3.1827$ \times 10^{-3} $	–	2.4799$ \times 10^{-3} $	–	2.7259$ \times 10^{-3} $	–
(16, 32,100)	7.6003$ \times 10^{-4} $	2.07	5.8014$ \times 10^{-4} $	2.10	6.4617$ \times 10^{-4} $	2.08
(32, 64,200)	1.9288$ \times 10^{-4} $	1.98	1.4695$ \times 10^{-4} $	1.98	1.6366$ \times 10^{-4} $	1.98
(64,128,400)	4.9629$ \times 10^{-5} $	1.96	3.7682$ \times 10^{-5} $	1.96	4.2046$ \times 10^{-5} $	1.96

| Show Table

DownLoad: CSV

Table 3. CPU time comparison in Problem 1

Iteration & CPU time	BFBCG	100 CG
Average iteration number per time step	4	4$ \times $ 100
Average execution time per step (seconds)	5.6362$ \times 10^{-1} $	(1.1482$ \times 10^{-2} $) $ \times $ 100
Total CPU time for integration (seconds)	5.658$ \times 10^{2} $	1.464$ \times 10^{3} $

| Show Table

DownLoad: CSV

Table 4. The $ L_2 $ errors at final time: first-order ensemble, $ Q_2/Q_1 $ elements in Problem 2

($ N_x $, $ N_y $, $ K $)	$ \mathcal{E}_1^N $	Rate	$ \mathcal{E}_{20}^N $	Rate	$ \mathcal{E}_{40}^N $	Rate
(128,128, 5)	3.7899$ \times 10^{-3} $	–	3.4660$ \times 10^{-3} $	–	3.6324$ \times 10^{-3} $	–
(128,128, 10)	1.9331$ \times 10^{-3} $	0.97	1.7626$ \times 10^{-3} $	0.98	1.8478$ \times 10^{-3} $	0.98
(128,128, 20)	9.7905$ \times 10^{-4} $	0.98	8.9096$ \times 10^{-4} $	0.98	9.3418$ \times 10^{-4} $	0.98
(128,128, 40)	4.8947$ \times 10^{-4} $	1.00	4.4499$ \times 10^{-4} $	1.00	4.6666$ \times 10^{-4} $	1.00

| Show Table

DownLoad: CSV

Table 5. The $ L_2 $ errors at final time: second-order ensemble, $ Q_2/Q_1 $ elements in Problem 2

($ N_x $, $ N_y $, $ K $)	$ \mathcal{E}_1^N $	Rate	$ \mathcal{E}_{20}^N $	Rate	$ \mathcal{E}_{40}^N $	Rate
(256,256, 5)	1.0597$ \times 10^{-3} $	–	9.5139$ \times 10^{-4} $	–	9.9694$ \times 10^{-4} $	–
(256,256, 10)	2.5992$ \times 10^{-4} $	2.03	2.3215$ \times 10^{-4} $	2.03	2.4328$ \times 10^{-4} $	2.03
(256,256, 20)	6.3997$ \times 10^{-5} $	2.02	5.7010$ \times 10^{-5} $	2.03	5.9748$ \times 10^{-5} $	2.02
(256,256, 40)	1.5905$ \times 10^{-5} $	2.00	1.4112$ \times 10^{-5} $	2.01	1.4796$ \times 10^{-5} $	2.01

| Show Table

DownLoad: CSV

Table 6. CPU time comparison in Problem 2

Iteration & CPU time	BGMRES-D	40 GMRES
average iteration number per time step	5	5$ \times $ 40
average execution time per step (seconds)	19.658	12.032 $ \times $ 40
total CPU time for integration (seconds)	1.965$ \times 10^{3} $	2.103$ \times 10^{4} $

| Show Table

DownLoad: CSV

Table 7. CPU time comparison in Problem 3

Iteration & CPU time	BGMRES-D	40 GMRES
Average iteration number per time step	7	8$ \times $ 40
Average execution time per step (seconds)	4.7894	1.7313 $ \times $ 40
Total CPU time for integration (seconds)	7.106$ \times 10^{4} $	4.836$ \times 10^{5} $

| Show Table

DownLoad: CSV
