Global analysis of a model of competition in the chemostat with internal inhibitor

Mohamed Dellal; Bachir Bar

doi:10.3934/dcdsb.2020156

Article Contents

2021, Volume 26, Issue 2: 1129-1148. Doi: 10.3934/dcdsb.2020156

This issue Previous Article Flocking of non-identical Cucker-Smale models on general coupling network Next Article Global dynamics in a tumor-immune model with an immune checkpoint inhibitor

Global analysis of a model of competition in the chemostat with internal inhibitor

Mohamed Dellal^a,c, , and
Bachir Bar^b,c,

a.
TAG_SUP Université Ibn Khaldoun, Tiaret 14000, Algérie
b.
TAG_SUP Ecole Normale Supérieure, Mostaganem 27000, Algérie
c.
TAG_SUP Université Djillali Liabès, LDM, Sidi Bel Abbès 22000, Algérie

^* Corresponding author: Mohamed Dellal
^* Corresponding author: Mohamed Dellal

Received: August 2019

Revised: January 2020

Early access: May 2020

Published: February 2021

The authors are supported by the "Directorate General for Scientific Research and Technological Development, Ministry of Higher Education and Scientific Research, Algeria" and the Euro-Mediterranean research network TREASURE (http://www.inra.fr/treasure)

Abstract Full Text(HTML) Figure(7) / Table(5) Related Papers Cited by

Abstract

A model of two microbial species in a chemostat competing for a single resource in the presence of an internal inhibitor is considered. The model is a four-dimensional system of ordinary differential equations. Using general growth rate functions of the species, we give a complete analysis for the existence and local stability of all steady states. We describe the behavior of the system with respect to the operating parameters represented by the dilution rate and the input concentrations of the substrate. The operating diagram has the operating parameters as its coordinates and the various regions defined in it correspond to qualitatively different asymptotic behavior: washout, competitive exclusion of one species, coexistence of the species, bistability, multiplicity of positive steady states. This bifurcation diagram which determines the effect of the operating parameters, is very useful to understand the model from both the mathematical and biological points of view, and is often constructed in the mathematical and biological literature.

Keywords:

Mathematics Subject Classification: Primary: 34C23, 34D20; Secondary: 92B05, 92D25.

Citation:

Full Text(HTML)

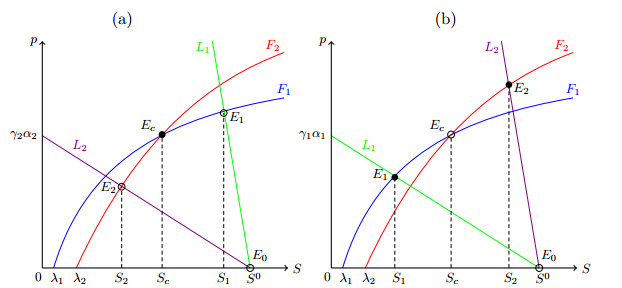

Figure 1. Projection of equilibria $ E_0 $, $ E_1 $, $ E_2 $ and $ E_c $ in the plane $ (S,p) $ and existence and stability conditions of these points. Where stable equilibrium points are denoted by filled circles and unstable equilibrium points are denoted by empty circles

Download: Full-size image PowerPoint slide

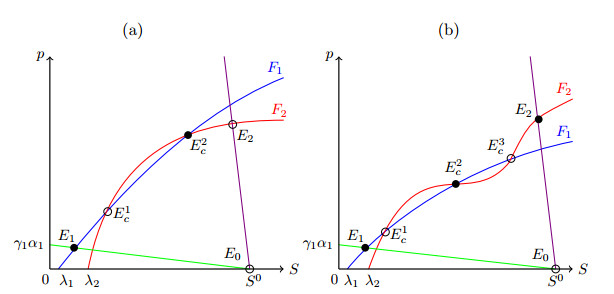

Figure 2. The existence of multiple positive equilibria when the condition (20) $ \rm(a) $: is not satisfied; $ \rm(b) $: is satisfied

Download: Full-size image PowerPoint slide

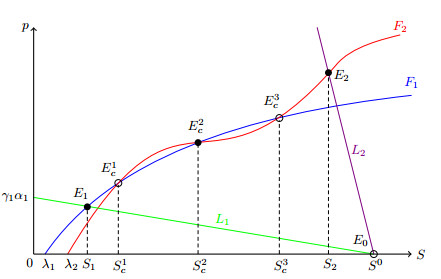

Figure 3. Case $ n = 3 $: Local stability of $ E_1 $, $ E_2 $, $ E_c^2 $ and instability of $ E_c^1 $, $ E_c^2 $, $ E_0 $

Download: Full-size image PowerPoint slide

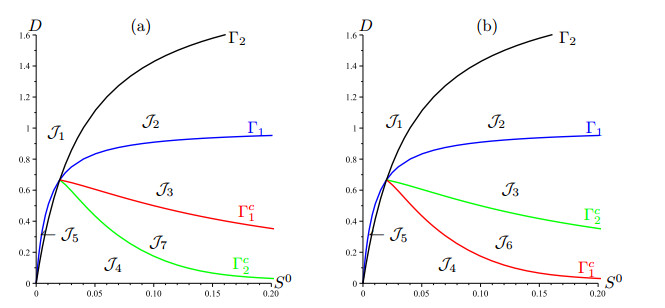

Figure 5. The operating diagram of the system (1) where $ \mu_i $ are given by (2) and the curves $ \Gamma_i^c $ do not intersect. $ \rm(a) $: The occurrence of the bistability region $ \mathcal{J}_7 $, where the coexistence region $ \mathcal{J}_6 $ does not exist. $ \rm(b) $: The occurrence of the coexistence region $ \mathcal{J}_6 $. The biological parameters used to construct Figs. Figs. 5(a, b) are exactly the same except that the values of $ \alpha_i $ have been inverted

Download: Full-size image PowerPoint slide

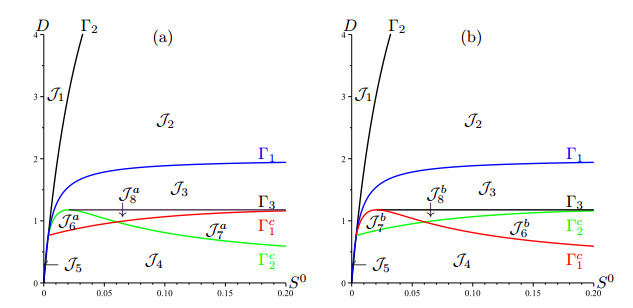

Figure 6. The operating diagram of the system (1) where $ \mu_i $ are given by (2) and the curves $ \Gamma_i^c $ intersect. The pictures show the occurrence of the bistability region $ \mathcal{J}_8 $ of $ E_2 $ and $ E_c^i $, The biological parameters used to construct Figs. Figs. 6(a, b) are exactly the same except that the values of $ \alpha_i $ have been inverted

Download: Full-size image PowerPoint slide

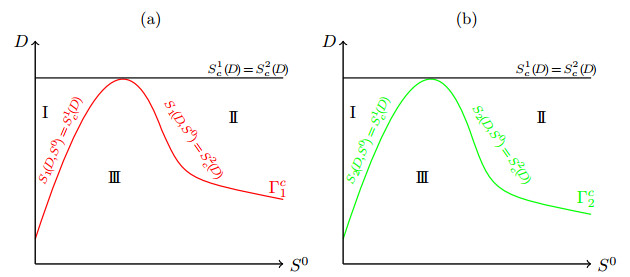

Figure 4. Illustrative graph of $ \Gamma_i^c $, $ i = 1,2 $ defined by (33), showing the relative positions of the roots $ S_c^1(\!D\!) $ and $ S_c^2(\!D\!) $ of (39) with respect to the root $ S_i(\!D\!,\!S^0\!) $ of (38). Region Ⅰ: $ S_i<S_c^1<S_c^2 $; region Ⅱ: $ S_c^1<S_c^2<S_i $; region Ⅲ : $ S_c^1<S_i<S_c^2 $

Download: Full-size image PowerPoint slide

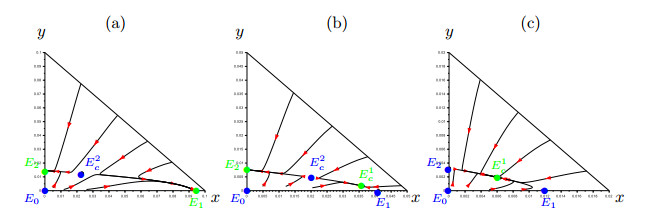

Figure 7. The trajectories of the reduced model (28) where $ (S^0,D) $ are chosen in regions of Fig. 6(a). (a): Bistability of $ E_1 $ and $ E_2 $ when $ (S^0,D) = (0.1,0.9)\in\mathcal{J}_7^a $. (b): Bistability of $ E_c^1 $ and $ E_2 $ when $ (S^0,D) = (0.05,1.15)\in\mathcal{J}_8^a $. (c): Global stability of $ E_c^1 $ when $ (S^0,D) = (0.02,1.15)\in\mathcal{J}_6^a $

Download: Full-size image PowerPoint slide

Table 1. Existence and local asymptotic stability of equilibria of system (1)

Equilibria	Existence	Local exponential stability
$ E_0 $	Always	$ \lambda_1>S^0 $ and $ \lambda_2>S^0 $
$ E_1 $	$ \lambda_1<S^0 $	$ F_1(S_1)>F_2(S_1) $
$ E_2 $	$ \lambda_2<S^0 $	$ F_2(S_2)>F_1(S_2) $
$ E_{c} $	(23) has a solution	$ (\alpha_1\gamma_1-\alpha_2\gamma_2)[F'_2(S_c)-F'_1(S_c)]>0 $

| Show Table

DownLoad: CSV

Table 2. Parameter values used in Section 5 where $ \mu_i $ are given by (2)

Parameters	$ m_1 $	$ m_2 $	$ a_1 $	$ a_2 $	$ K_1 $	$ K_2 $	$ \alpha_1 $	$ \alpha_2 $	Figures
Units	$ h^{-1} $	$ h^{-1} $	$ gl^{-1} $	$ gl^{-1} $	$ gl^{-1} $	$ gl^{-1} $
Case (a)	1.0	2.0	0.01	0.04	0.01	0.006	0.1	4.0	5(a)
Case (b)	1.0	2.0	0.01	0.04	0.01	0.006	4.0	0.1	5(b)
Case (c)	2.0	9.0	0.006	0.04	0.005	0.001	0.005	0.4	6(a), 7
Case (d)	2.0	9.0	0.006	0.04	0.005	0.001	0.4	0.005	6(b)

| Show Table

DownLoad: CSV

Table 3. Existence and stability of equilibria in the regions of the operating diagrams of Fig. 5, when the curves $ \Gamma_i^c $ do not intersect. The letter S (resp. U) means stable (resp. unstable) and empty if that equilibrium does not exist

Region	The relative positions of $ S_i $ and $ S_c^i $	$ E_0 $	$ E_1 $	$ E_2 $	$ E_{c}^1 $	$ E_{c}^2 $
$ (S^0,D)\in\mathcal J_1 $	$ S_1 $ and $ S_2 $ do not exist	S
$ (S^0,D)\in\mathcal J_2 $	$ S_1 $ does not exist	U		S
$ (S^0,D)\in\mathcal J_3 $	$ S_c^1<S_c^2<S_i, i=1,2 $ $ ^{**} $	U	U	S
$ (S^0,D)\in\mathcal J_4 $	$ S_c^1<S_i<S_c^2, i=1,2 $	U	S	U
$ (S^0,D)\in\mathcal J_5 $	$ S_2 $ does not exist	U	S
$ (S^0,D)\in\mathcal J_6 $	$ S_c^1<S_2<S_c^2<S_1 $	U	U	U		S
$ (S^0,D)\in\mathcal J_7 $	$ S_c^1<S_1<S_c^2<S_2 $	U	S	S		U
^**When S_c¹ and S_c² do not exist, the condition reduces to S_i, i = 1, 2 exist.

| Show Table

DownLoad: CSV

Table 4. Existence and stability of equilibria in the regions of the operating diagrams of Fig. 6, when the curves $ \Gamma_i^c $ intersect

Region	The relative positions of $ S_i $ and $ S_c^i $	$ E_0 $	$ E_1 $	$ E_2 $	$ E_{c}^1 $	$ E_{c}^2 $
$ (S^0,D)\in\mathcal J_1 $	$ S_1 $ and $ S_2 $ do not exist	S
$ (S^0,D)\in\mathcal J_2 $	$ S_1 $ does not exist	U		S
$ (S^0,D)\in\mathcal J_3 $	$ S_i<S_c^1<S_c^2, i=1,2 $ $ ^{**} $	U	U	S
$ (S^0,D)\in\mathcal J_4 $	$ S_c^1<S_i<S_c^2, i=1,2 $	U	S	U
$ (S^0,D)\in\mathcal J_5 $	$ S_2 $ does not exist	U	S
$ (S^0,D)\in\mathcal J_6^a $	$ S_1<S_c^1<S_2<S_c^2 $	U	U	U	S
$ (S^0,D)\in\mathcal J_7^a $	$ S_c^1<S_1<S_c^2<S_2 $	U	S	S		U
$ (S^0,D)\in\mathcal J_8^a $	$ S_1<S_c^1<S_c^2<S_2 $	U	U	S	S	U
$ (S^0,D)\in\mathcal J_6^b $	$ S_c^1<S_2<S_c^2<S_1 $	U	U	U		S
$ (S^0,D)\in\mathcal J_7^b $	$ S_2<S_c^1<S_1<S_c^2 $	U	S	S	U
$ (S^0,D)\in\mathcal J_8^b $	$ S_2<S_c^1<S_c^2<S_1 $	U	U	S	U	S
^**When S_c¹ and S_c² do not exist, the condition reduces to S_i, i = 1, 2 exist.

| Show Table

DownLoad: CSV

Table 5. Parameter values of $ S_i $ and $ S_c^i $ used in Fig.7

$ (S^0,D) $	Regions	$ S_1 $	$ S_2 $	$ S_c^1 $	$ S_c^2 $	Figures
$ (0.1,0.9) $	$ \mathcal{J}_7^a $	0.006	0.085	0.005	0.064	7(a)
$ (0.05,1.15) $	$ \mathcal{J}_8^a $	0.009	0.042	0.012	0.025	7(b)
$ (0.02,1.15) $	$ \mathcal{J}_6^a $	0.008	0.017	0.012	0.025	7(c)

| Show Table

DownLoad: CSV
