A nonuniform anisotropic FEM for elliptic boundary layer optimal control problems

Hongbo Guan; Yong Yang; Huiqing Zhu

doi:10.3934/dcdsb.2020179

Article Contents

2021, Volume 26, Issue 3: 1711-1722. Doi: 10.3934/dcdsb.2020179

This issue Previous Article Finite element approximation of nonlocal dynamic fracture models Next Article Existence results for fractional differential equations in presence of upper and lower solutions

A nonuniform anisotropic FEM for elliptic boundary layer optimal control problems

1.
College of Mathematics and Information Science, Zhengzhou University of Light Industry, Zhengzhou 450002, China
2.
College of Science, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
3.
School of Mathematics and Natural Sciences, The University of Southern Mississippi, Hattiesburg, MS 39406, USA

^* Corresponding author: Huiqing Zhu
^* Corresponding author: Huiqing Zhu

Received: April 30, 2019

Revised: January 31, 2020

Early access: June 2020

Published: March 2021

The first author is supported by National Natural Science Foundation of China (No. 11501527)

Abstract Full Text(HTML) Figure(6) / Table(2) Related Papers Cited by

Abstract

In this paper, an anisotropic bilinear finite element method is constructed for the elliptic boundary layer optimal control problems. Supercloseness properties of the numerical state and numerical adjoint state in a $ \epsilon $-norm are established on anisotropic meshes. Moreover, an interpolation type post-processed solution is shown to be superconvergent of order $ O(N^{-2}) $, where the total number of nodes is of $ O(N^2) $. Finally, numerical results are provided to verify the theoretical analysis.

Keywords:

Mathematics Subject Classification: Primary: 65M60, 49K20; Secondary: 65J10.

Citation:

Full Text(HTML)

Figure 1. Anisotropic mesh (left) and uniform mesh (right)

Download: Full-size image PowerPoint slide

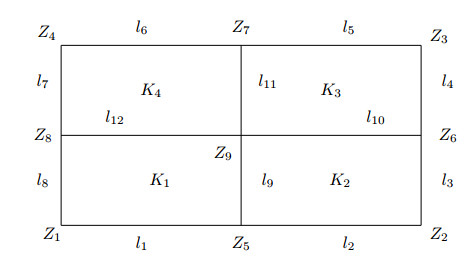

Figure 2. Big element $ K_{0} $

Download: Full-size image PowerPoint slide

Figure 3. The profile of $ y_h $ (left plot) and $ p_h $ (right plot) on a uniform mesh with $ N = 8 $

Download: Full-size image PowerPoint slide

Figure 4. Pointwise errors of $ |y-y_h| $ (left plot) and $ |p-p_h| $ (right plot) on a uniform mesh with $ N = 8 $

Download: Full-size image PowerPoint slide

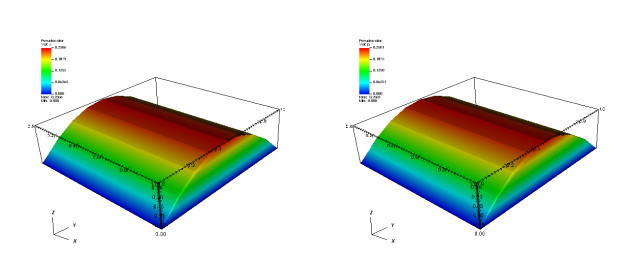

Figure 5. The profile of $ y_h $ (left plot) and $ p_h $ (right plot) on an anisotropic mesh with $ N = 8 $

Download: Full-size image PowerPoint slide

Figure 6. Pointwise errors of $ |y-y_h| $ (left plot) and $ |p-p_h| $ (right plot) on an anisotropic mesh with $ N = 8 $

Download: Full-size image PowerPoint slide

Table 1. Errors and convergence rates on uniform meshes

$N$	4	8	16	32	64
$\\|u-u_h\\|_{0}$	4.1470E-02	2.7610E-02	1.7622E-02	1.0661E-02	5.6118E-03
order	/	0.5869	0.6478	0.7250	0.9258
$\|\|\|\Pi_{h} y-y_h\|\|\|$	5.0583E-02	3.5215E-02	2.4487E-02	1.6591E-02	9.9351E-03
order	/	0.5225	0.5242	0.5616	0.7398
$\|\|\|\Pi_{h} p-p_h\|\|\|$	4.8403E-02	3.4837E-02	2.4420E-02	1.6569E-02	9.9076E-03
order	/	0.4745	0.5126	0.5596	0.7419
$\|\|\|y-\Pi_{2h}y_h\|\|\|$	1.7466E-01	9.7410E-02	5.7862E-02	3.5868E-02	2.1591E-02
order	/	0.8424	0.7515	0.6899	0.7323
$\|\|\|p-\Pi_{2h}p_h\|\|\|$	1.7207E-01	9.6955E-02	5.7777E-02	3.5844E-02	2.1562E-02
order	/	0.8276	0.7468	0.6888	0.7332

| Show Table

DownLoad: CSV

Table 2. Errors and convergence rates on anisotropic meshes

$N$	4	8	16	32	64
$\\|u-u_h\\|_{0}$	1.1762E-02	3.0109E-03	7.5308E-04	1.8747E-04	4.6824E-05
order	/	1.9659	1.9993	2.0062	2.0013
$\|\|\|\Pi_{h} y-y_h\|\|\|$	8.5488E-03	2.9582E-03	8.8988E-04	2.3807E-04	6.2920E-05
order	/	1.5310	1.7330	1.9022	1.9198
$\|\|\|\Pi_{h} p-p_h\|\|\|$	6.3618E-03	2.5354E-03	7.8790E-04	2.1187E-04	5.8477E-05
order	/	1.3272	1.6861	1.8949	1.8572
$\|\|\|y-\Pi_{2h}y_h\|\|\|$	1.2562E-02	4.3649E-03	1.2406E-03	3.0455E-04	7.6278E-05
order	/	1.5250	1.8149	2.0263	1.9974
$\|\|\|p-\Pi_{2h}p_h\|\|\|$	1.0955E-02	4.0558E-03	1.1598E-03	2.8267E-04	7.3036E-05
order	/	1.4335	1.8061	2.0367	1.9524

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	A. Allendes, E. Hernández and E. Otárola, A robust numerical method for a control problem involving singularly perturbed equations, Computers and Mathematics with Applications, 72 (2016), 974-991. doi: 10.1016/j.camwa.2016.06.010.
[2]	T. Apel and G. Lube, Anisotropic mesh refinement for a singularly perturbed reaction diffusion model problem, Applied Numerical Mathematics, 26 (1998), 415-433. doi: 10.1016/S0168-9274(97)00106-2.
[3]	R. Becker, H. Kapp and R. Rannacher, Adaptive finite element methods for optimal control of partial differential equations: Basic concept, SIAM Journal on Control and Optimization, 39 (2000), 113-132. doi: 10.1137/S0363012999351097.
[4]	J. Bonnans and H. Zidani, Optimal control problems with partially polyhedric constraints, SIAM Journal on Control and Optimization, 37 (1999), 1726-1741. doi: 10.1137/S0363012998333724.
[5]	S. C. Brenner and L. R. Scott, The Mathematical Theory of Finite Element Methods, Springer-Verlag, Berlin, 1994. doi: 10.1007/978-1-4757-4338-8.
[6]	P. Das, An a posteriori based convergence analysis for a nonlinear singularly perturbed system of delay differential equations on an adaptive mesh, Numerical Algorithms, 81 (2019), 465-487. doi: 10.1007/s11075-018-0557-4.
[7]	R. Dur$\acute{a}$n and A. Lombardi, Error estimates on anisotropic $Q_1$ elements for functions in weighted Sobolev spaces, Mathematics of Computation, 74 (2005), 1679-1706. doi: 10.1090/S0025-5718-05-01732-1.
[8]	R. S. Falk, Approximation of a class of optimal control problems with order of convergence estimates, Journal of Mathematical Analysis and Applications, 44 (1973), 28-47. doi: 10.1016/0022-247X(73)90022-X.
[9]	W. Gong and N. N. Yan, Adaptive finite element method for elliptic optimal control problems: Convergence and optimality, Numerische Mathematik, 135 (2017), 1121-1170. doi: 10.1007/s00211-016-0827-9.
[10]	W. Gong, H. P. Liu and N. N. Yan, Adaptive finite element method for parabolic equations with Dirac measure, Computer Methods in Applied Mechanics and Engineering, 328 (2018), 217-241. doi: 10.1016/j.cma.2017.08.051.
[11]	H. B. Guan and D. Y. Shi, A high accuracy NFEM for constrained optimal control problems governed by elliptic equations, Applied Mathematics and Computation, 245 (2014), 382-390. doi: 10.1016/j.amc.2014.07.077.
[12]	H. B. Guan, D. Y. Shi and X. F. Guan, High accuracy analysis of nonconforming MFEM for constrained optimal control problems governed by Stokes equations, Applied Mathematics Letters, 53 (2016), 17-24. doi: 10.1016/j.aml.2015.09.016.
[13]	H. B. Guan and D. Y. Shi, An efficient NFEM for optimal control problems governed by a bilinear state equation, Computers and Mathematics with Applications, 77 (2019), 1821-1827. doi: 10.1016/j.camwa.2018.11.017.
[14]	W. Hackbusch, Multigrid Methods and Applications, Springer-Verlag, Berlin, 1985. doi: 10.1007/978-3-662-02427-0.
[15]	M. Hinze, A variational discretization concept in control constrained optimization: The linear-quadratic case, Computational Optimization and Applications, 30 (2005), 45-63. doi: 10.1007/s10589-005-4559-5.
[16]	S. Kumar and M. Kumar, An analysis of overlapping domain decomposition methods for singularly perturbed reaction-diffusion problems, Journal of Computational and Applied Mathematics, 281 (2015), 250-262. doi: 10.1016/j.cam.2014.12.018.
[17]	S. Kumar and S. C. S. Rao, A robust domain decomposition algorithm for singularly perturbed semilinear systems, International Journal of Computer Mathematics, 94 (2017), 1108-1122. doi: 10.1080/00207160.2016.1184257.
[18]	J. C. Li, Convergence and superconvergence analysis of finite element methods on highly nonuniform anisotropic meshes for singularly perturbed reaction-diffusion problems, Applied Numerical Mathematics, 36 (2001), 129-154. doi: 10.1016/S0168-9274(99)00145-2.
[19]	J. C. Li and M. F. Wheeler, Uniform convergence and superconvergence of mixed finite element methods on anisotropically refined grids, SIAM Journal on Numerical Analysis, 38 (2000), 770-798. doi: 10.1137/S0036142999351212.
[20]	J.-L. Lions, Optimal Control of Systems Governed by Partial Differential Equations, Springer-Verlag, Berlin, 1971.
[21]	Q. Lin, L. Tobiska and A.H. Zhou, Superconvergence and extrapolation of non-conforming low order finite elements applied to the Poisson equation, IMA Journal of Numerical Analysis, 25 (2005), 160-181. doi: 10.1093/imanum/drh008.
[22]	L. B. Liu and Y. P. Chen, An adaptive moving grid method for a system of singularly perturbed initial value problems, Journal of Computational and Applied Mathematics, 274 (2015), 11-22. doi: 10.1016/j.cam.2014.06.022.
[23]	W. B. Liu and N. N. Yan, A posteriori error estimates for control problems governed by Stokes equations, SIAM Journal on Numerical Analysis, 40 (2002), 1850-1869. doi: 10.1137/S0036142901384009.
[24]	G. Lube and B. Tews, Optimal control of singularly perturbed advection-diffusion-reaction problems, Mathematical Models and Methods in Applied Sciences, 20 (2010), 375-395. doi: 10.1142/S0218202510004271.
[25]	J. J. H. Miller, E. O'Riordan and G. I. Shishkin, Fitted Numerical Methods for Singular Perturbation Problems, World Scientific, Singapore, 1995. doi: 10.1142/2933.
[26]	H.-G. Roos, Layer-adapted grids for singular perturbation problems, Journal of Applied Mathematics and Mechanics, 78 (1998), 291-309. doi: 10.1002/(SICI)1521-4001(199805)78:5<291::AID-ZAMM291>3.0.CO;2-R.
[27]	H.-G. Roos and C. Reibiger, Numerical analysis of a system of singularly perturbed convection-diffusion equations related to optimal control, Numerical Mathematics: Theory, Methods and Applications, 4 (2011), 562-575. doi: 10.4208/nmtma.2011.m1101.
[28]	Z. M. Zhang, Finite element superconvergence on Shishkin mesh for 2-D convection-diffusion problems, Mathematics of Computation, 72 (2003), 1147-1177. doi: 10.1090/S0025-5718-03-01486-8.
[29]	Z. M. Zhang and H. Q. Zhu, Uniform convergence of the LDG method for a singularly perturbed problem with the exponential boundary layer, Mathematics of Computation, 83 (2014), 635-663. doi: 10.1090/S0025-5718-2013-02736-6.
[30]	H. Q. Zhu and Z. M. Zhang, Convergence analysis of the LDG method applied to singularly perturbed problems, Numerical Methods for Partial Differential Equations, 29 (2013), 396-421. doi: 10.1002/num.21711.
