Higher-order time-stepping schemes for fluid-structure interaction problems

Daniele Boffi; Lucia Gastaldi; Sebastian Wolf

doi:10.3934/dcdsb.2020229

Article Contents

2020, Volume 25, Issue 10: 3807-3830. Doi: 10.3934/dcdsb.2020229

This issue Previous Article Existence and asymptotic results for an intrinsic model of small-strain incompatible elasticity Next Article Generalized solutions to models of inviscid fluids

Higher-order time-stepping schemes for fluid-structure interaction problems

1.
Computer, Electrical and Mathematical Sciences and Engineering, King Abdullah University of Science and Technology, Thuwal 23955-6900, Saudi Arabia
2.
Dipartimento di Matematica "F. Casorati", University of Pavia, Pavia, Italy
3.
DICATAM, University of Brescia, Brescia, Italy
4.
Technische Universität München (TUM), München, Germany

^* Corresponding author: Daniele Boffi
^* Corresponding author: Daniele Boffi

Received: June 2019

Revised: March 2020

Early access: July 2020

Published: October 2020

Abstract / Introduction Full Text(HTML) Figure(7) / Table(9) Related Papers Cited by

Abstract

We consider a recently introduced formulation for fluid-structure interaction problems which makes use of a distributed Lagrange multiplier in the spirit of the fictitious domain method. In this paper we focus on time integration methods of second order based on backward differentiation formulae and on the Crank–Nicolson method. We show the stability properties of the resulting method; numerical tests confirm the theoretical results.

Keywords:

Mathematics Subject Classification: Primary: 65M60, 65M85; Secondary: 65M12, 74F10.

Citation:

Full Text(HTML)

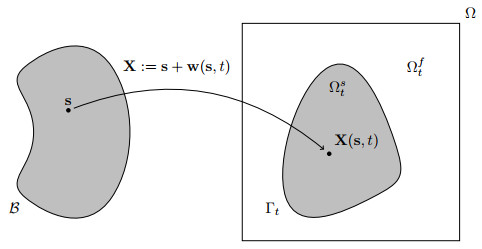

Figure 1. Geometrical configuration of the FSI problem

Download: Full-size image PowerPoint slide

Figure 2. Sparsity pattern for a matrix arising from Equation (24)

Download: Full-size image PowerPoint slide

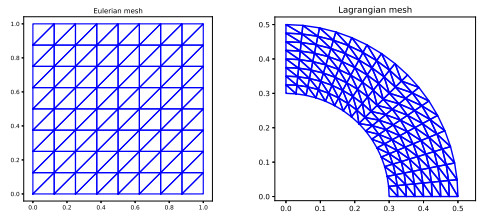

Figure 3. Meshes for the fluid and the structure

Download: Full-size image PowerPoint slide

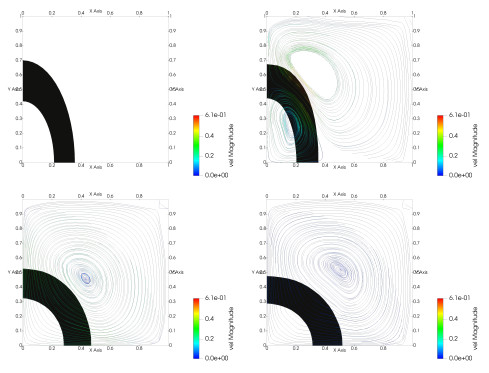

Figure 4. The deformed annulus ¹

Download: Full-size image PowerPoint slide

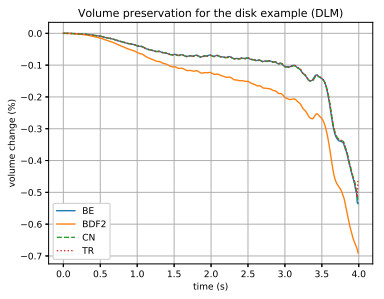

Figure 5. Volume preservation over time

Download: Full-size image PowerPoint slide

Figure 6. Volume preservation over time for coarser parameters

Download: Full-size image PowerPoint slide

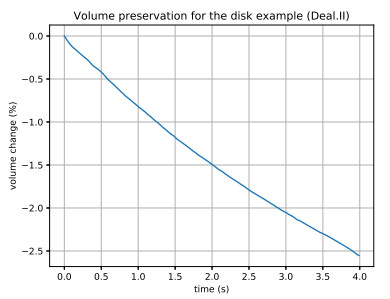

Figure 7. Volume preservation over time for IFEM method

Download: Full-size image PowerPoint slide

Table 1. Mesh parameters

	DOFs $ \mathbf{u}_h $	DOFs $ p_h $	DOFs $ \mathbf{X}_h $	DOFs $ \lambda_h $
coarse mesh (M = $ 8 $)	$ 578 $	$ 209 $	$ 306 $	$ 306 $
fine mesh (M = $ 16 $)	$ 2,178 $	$ 801 $	$ 1,122 $	$ 1,122 $

| Show Table

DownLoad: CSV

Table 2. Convergence results for the fully implicit scheme on the coarse mesh

Fluid velocity
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 7.63\cdot 10^{-2} $		$ 2.97\cdot 10^{-2} $		$ 2.37\cdot 10^{-1} $		$ 2.42\cdot 10^{-1} $
$ 0.025 $	$ 4.11\cdot 10^{-2} $	$ 0.89 $	$ 4.90\cdot 10^{-3} $	$ 2.60 $	$ 6.24\cdot 10^{-2} $	$ 1.92 $	$ 6.02\cdot 10^{-2} $	$ 2.00 $
$ 0.0125 $	$ 2.13\cdot 10^{-2} $	$ 0.95 $	$ 1.13\cdot 10^{-3} $	$ 2.11 $	$ 1.21\cdot 10^{-2} $	$ 2.36 $	$ 1.10\cdot 10^{-2} $	$ 2.45 $
$ 0.00625 $	$ 1.08\cdot 10^{-2} $	$ 0.97 $	$ 2.86\cdot 10^{-4} $	$ 1.98 $	$ 2.03\cdot 10^{-3} $	$ 2.58 $	$ 9.95\cdot 10^{-4} $	$ 3.47 $
Structure deformation
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 1.60\cdot 10^{-3} $		$ 4.39\cdot 10^{-4} $		$ 1.43\cdot 10^{-3} $		$ 2.95\cdot 10^{-4} $
$ 0.025 $	$ 8.40\cdot 10^{-4} $	$ 0.93 $	$ 9.75\cdot 10^{-5} $	$ 2.17 $	$ 7.90\cdot 10^{-4} $	$ 0.86 $	$ 6.89\cdot 10^{-5} $	$ 2.10 $
$ 0.0125 $	$ 4.29\cdot 10^{-4} $	$ 0.97 $	$ 2.53\cdot 10^{-5} $	$ 1.95 $	$ 4.06\cdot 10^{-4} $	$ 0.96 $	$ 7.53\cdot 10^{-6} $	$ 3.19 $
$ 0.00625 $	$ 2.17\cdot 10^{-4} $	$ 0.98 $	$ 6.41\cdot 10^{-6} $	$ 1.98 $	$ 2.04\cdot 10^{-4} $	$ 0.99 $	$ 2.05\cdot 10^{-6} $	$ 1.88 $

| Show Table

DownLoad: CSV

Table 3. Convergence results for the fully implicit scheme on the fine mesh

Fluid velocity
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 9.05\cdot 10^{-2} $		$ 3.62\cdot 10^{-2} $		$ 2.28\cdot 10^{-1} $		$ 2.26\cdot 10^{-1} $
$ 0.025 $	$ 4.87\cdot 10^{-2} $	$ 0.89 $	$ 5.05\cdot 10^{-3} $	$ 2.84 $	$ 6.23\cdot 10^{-2} $	$ 1.87 $	$ 6.04\cdot 10^{-2} $	$ 1.91 $
$ 0.0125 $	$ 2.54\cdot 10^{-2} $	$ 0.94 $	$ 1.20\cdot 10^{-3} $	$ 2.07 $	$ 2.28\cdot 10^{-2} $	$ 1.45 $	$ 2.07\cdot 10^{-2} $	$ 1.54 $
$ 0.00625 $	$ 1.29\cdot 10^{-2} $	$ 0.98 $	$ 3.53\cdot 10^{-4} $	$ 1.77 $	$ 5.27\cdot 10^{-3} $	$ 2.11 $	$ 4.03\cdot 10^{-3} $	$ 2.36 $
Fluid velocity
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 1.98\cdot 10^{-3} $		$ 5.19\cdot 10^{-4} $		$ 1.65\cdot 10^{-3} $		$ 4.04\cdot 10^{-4} $
$ 0.025 $	$ 1.05\cdot 10^{-3} $	$ 0.92 $	$ 9.79\cdot 10^{-5} $	$ 2.41 $	$ 9.27\cdot 10^{-4} $	$ 0.84 $	$ 8.48\cdot 10^{-5} $	$ 2.25 $
$ 0.0125 $	$ 5.31\cdot 10^{-4} $	$ 0.99 $	$ 3.13\cdot 10^{-5} $	$ 1.64 $	$ 4.90\cdot 10^{-4} $	$ 0.92 $	$ 2.47\cdot 10^{-5} $	$ 1.78 $
$ 0.00625 $	$ 2.70\cdot 10^{-4} $	$ 0.98 $	$ 1.35\cdot 10^{-5} $	$ 1.22 $	$ 2.50\cdot 10^{-4} $	$ 0.97 $	$ 3.47\cdot 10^{-6} $	$ 2.83 $

| Show Table

DownLoad: CSV

Table 4. Maximum iterates of the nonlinear solver on the coarse mesh

$ \Delta t $	$\mathsf{BDF1}$	$\mathsf{BDF2}$	$\mathsf{CNm}$	$\mathsf{CNt}$
$ 0.05 $	$ 5 $	$ 5 $	$ 4 $	$ 7 $
$ 0.025 $	$ 4 $	$ 4 $	$ 3 $	$ 4 $
$ 0.0125 $	$ 3 $	$ 3 $	$ 3 $	$ 3 $
$ 0.00625 $	$ 3 $	$ 3 $	$ 2 $	$ 3 $

| Show Table

DownLoad: CSV

Table 5. Maximum iterates of the nonlinear solver on the fine mesh

$ \Delta t $	$\mathsf{BDF1}$	$\mathsf{BDF2}$	$\mathsf{CNm}$	$\mathsf{CNt}$
$ 0.05 $	$ 10 $	$ 5 $	$ 6 $	$ 6 $
$ 0.025 $	$ 6 $	$ 5 $	$ 5 $	$ 4 $
$ 0.0125 $	$ 6 $	$ 4 $	$ 4 $	$ 4 $
$ 0.00625 $	$ 4 $	$ 4 $	$ 3 $	$ 3 $

| Show Table

DownLoad: CSV

Table 6. Convergence results for the semi-implicit scheme on the coarse mesh

Fluid velocity
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 7.78\cdot 10^{-2} $		$ 3.05\cdot 10^{-2} $		$ 2.49\cdot 10^{-1} $		$ 2.58\cdot 10^{-1} $
$ 0.025 $	$ 4.17\cdot 10^{-2} $	$ 0.90 $	$ 7.89\cdot 10^{-3} $	$ 1.95 $	$ 6.24\cdot 10^{-2} $	$ 2.00 $	$ 6.74\cdot 10^{-2} $	$ 1.94 $
$ 0.0125 $	$ 2.17\cdot 10^{-2} $	$ 0.95 $	$ 3.14\cdot 10^{-3} $	$ 1.33 $	$ 1.24\cdot 10^{-2} $	$ 2.33 $	$ 2.64\cdot 10^{-2} $	$ 1.35 $
$ 0.00625 $	$ 1.10\cdot 10^{-2} $	$ 0.97 $	$ 1.29\cdot 10^{-3} $	$ 1.29 $	$ 2.25\cdot 10^{-3} $	$ 2.47 $	$ 3.18\cdot 10^{-3} $	$ 3.06 $
Structure deformation
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 1.67\cdot 10^{-3} $		$ 6.79\cdot 10^{-4} $		$ 1.44\cdot 10^{-3} $		$ 3.52\cdot 10^{-4} $
$ 0.025 $	$ 8.65\cdot 10^{-4} $	$ 0.95 $	$ 2.70\cdot 10^{-4} $	$ 1.33 $	$ 7.91\cdot 10^{-4} $	$ 0.86 $	$ 2.60\cdot 10^{-4} $	$ 0.44 $
$ 0.0125 $	$ 4.36\cdot 10^{-4} $	$ 0.99 $	$ 1.24\cdot 10^{-4} $	$ 1.12 $	$ 4.05\cdot 10^{-4} $	$ 0.97 $	$ 1.53\cdot 10^{-5} $	$ 4.08 $
$ 0.00625 $	$ 2.17\cdot 10^{-4} $	$ 1.01 $	$ 5.71\cdot 10^{-5} $	$ 1.12 $	$ 2.05\cdot 10^{-4} $	$ 0.98 $	$ 9.43\cdot 10^{-6} $	$ 0.70 $

| Show Table

DownLoad: CSV

Table 7. Convergence results for the semi-implicit scheme on the fine mesh

Fluid velocity
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 9.18\cdot 10^{-2} $		$ 3.89\cdot 10^{-2} $		$ 2.36\cdot 10^{-1} $		$ 2.39\cdot 10^{-1} $
$ 0.025 $	$ 5.05\cdot 10^{-2} $	$ 0.86 $	$ 8.59\cdot 10^{-3} $	$ 2.18 $	$ 7.54\cdot 10^{-2} $	$ 1.64 $	$ 7.06\cdot 10^{-2} $	$ 1.76 $
$ 0.0125 $	$ 2.63\cdot 10^{-2} $	$ 0.94 $	$ 3.32\cdot 10^{-3} $	$ 1.37 $	$ 4.24\cdot 10^{-2} $	$ 0.83 $	$ 2.22\cdot 10^{-2} $	$ 1.67 $
$ 0.00625 $	$ 1.33\cdot 10^{-2} $	$ 0.98 $	$ 1.40\cdot 10^{-3} $	$ 1.24 $	$ 2.19\cdot 10^{-2} $	$ 0.96 $	$ 4.19\cdot 10^{-3} $	$ 2.40 $
Structure deformation
	$\mathsf{BDF1}$		$\mathsf{BDF2}$		$\mathsf{CNm}$		$\mathsf{CNt}$
$ \Delta t $	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate	$ L^2 $ error	rate
$ 0.05 $	$ 2.03\cdot 10^{-3} $		$ 7.86\cdot 10^{-4} $		$ 1.81\cdot 10^{-3} $		$ 6.51\cdot 10^{-4} $
$ 0.025 $	$ 1.06\cdot 10^{-3} $	$ 0.93 $	$ 3.28\cdot 10^{-4} $	$ 1.26 $	$ 9.75\cdot 10^{-4} $	$ 0.89 $	$ 1.31\cdot 10^{-4} $	$ 2.31 $
$ 0.0125 $	$ 5.34\cdot 10^{-4} $	$ 1.00 $	$ 1.44\cdot 10^{-4} $	$ 1.18 $	$ 5.10\cdot 10^{-4} $	$ 0.93 $	$ 4.82\cdot 10^{-5} $	$ 1.44 $
$ 0.00625 $	$ 2.69\cdot 10^{-4} $	$ 0.99 $	$ 6.31\cdot 10^{-5} $	$ 1.19 $	$ 2.55\cdot 10^{-4} $	$ 1.00 $	$ 1.29\cdot 10^{-5} $	$ 1.90 $

| Show Table

DownLoad: CSV

Table 8. Maximum residual in the semi-implicit scheme on the coarse mesh

$ \Delta t $	$\mathsf{BDF1}$	$\mathsf{BDF2}$	$\mathsf{CNm}$	$\mathsf{CNt}$
$ 0.05 $	$ 3.83\cdot 10^{-3} $	$ 3.83\cdot 10^{-3} $	$ 9.87\cdot 10^{-3} $	$ 9.64\cdot 10^{-2} $
$ 0.025 $	$ 2.09\cdot 10^{-3} $	$ 2.30\cdot 10^{-3} $	$ 1.24\cdot 10^{-3} $	$ 2.17\cdot 10^{-2} $
$ 0.0125 $	$ 7.41\cdot 10^{-4} $	$ 8.26\cdot 10^{-4} $	$ 3.62\cdot 10^{-4} $	$ 7.90\cdot 10^{-3} $
$ 0.00625 $	$ 2.23\cdot 10^{-4} $	$ 2.45\cdot 10^{-4} $	$ 1.08\cdot 10^{-4} $	$ 9.55\cdot 10^{-4} $

| Show Table

DownLoad: CSV

Table 9. Maximum residual in the semi-implicit scheme on the fine mesh

$ \Delta t $	$\mathsf{BDF1}$	$\mathsf{BDF2}$	$\mathsf{CNm}$	$\mathsf{CNt}$
$ 0.05 $	$ 3.59\cdot 10^{-2} $	$ 3.59\cdot 10^{-2} $	$ 3.43\cdot 10^{-2} $	$ 3.81\cdot 10^{-2} $
$ 0.025 $	$ 1.03\cdot 10^{-2} $	$ 1.07\cdot 10^{-2} $	$ 8.19\cdot 10^{-3} $	$ 1.02\cdot 10^{-2} $
$ 0.0125 $	$ 5.28\cdot 10^{-3} $	$ 5.87\cdot 10^{-3} $	$ 1.54\cdot 10^{-3} $	$ 2.27\cdot 10^{-3} $
$ 0.00625 $	$ 1.46\cdot 10^{-3} $	$ 1.44\cdot 10^{-3} $	$ 4.33\cdot 10^{-4} $	$ 5.08\cdot 10^{-4} $

| Show Table

DownLoad: CSV
