Local structure-preserving algorithms for the molecular beam epitaxy model with slope selection

Lin Lu; Qi Wang; Yongzhong Song; Yushun Wang

doi:10.3934/dcdsb.2020311

Article Contents

2021, Volume 26, Issue 9: 4745-4765. Doi: 10.3934/dcdsb.2020311

This issue Previous Article Existence-uniqueness and stability of the mild periodic solutions to a class of delayed stochastic partial differential equations and its applications Next Article Invasion dynamics of a diffusive pioneer-climax model: Monotone and non-monotone cases

Local structure-preserving algorithms for the molecular beam epitaxy model with slope selection

1.
Jiangsu Key Laboratory for NSLSCS, School of Mathematical Sciences, Nanjing Normal University, Nanjing 210023, China
2.
Department of Mathematics, University of South Carolina, Columbia, SC 29208, USA

^* Corresponding author: Yushun Wang
^* Corresponding author: Yushun Wang

Received: March 2020

Revised: August 2020

Early access: October 2020

Published: September 2021

The first author is supported by NSFC grant 11771213, 61872422

Abstract Full Text(HTML) Figure(8) / Table(2) Related Papers Cited by

Abstract

Based on the local energy dissipation property of the molecular beam epitaxy (MBE) model with slope selection, we develop three, second order fully discrete, local energy dissipation rate preserving (LEDP) algorithms for the model using finite difference methods. For periodic boundary conditions, we show that these algorithms are global energy dissipation rate preserving (GEDP). For adiabatic, physical boundary conditions, we construct two GEDP algorithms from the three LEDP ones with consistently discretized physical boundary conditions. In addition, we show that all the algorithms preserve the total mass at the discrete level as well. Mesh refinement tests are conducted to confirm the convergence rates of the algorithms and two benchmark examples are presented to show the accuracy and performance of the methods.

Keywords:

Mathematics Subject Classification: Primary: 65M06; Secondary: 80M20.

Citation:

Full Text(HTML)

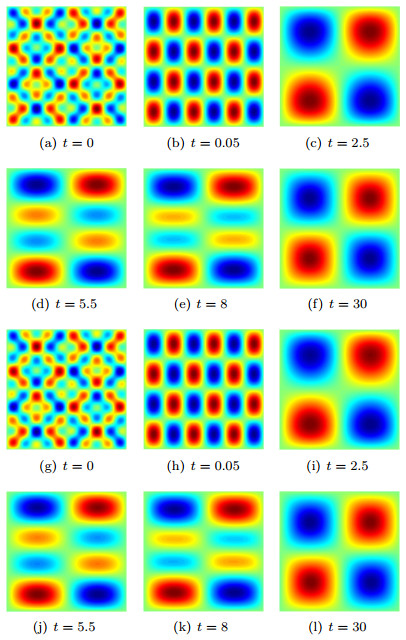

Figure 1. The isolines of numerical solutions of $ \phi $ in Example 2 using LEDP-I and LEDP-II, respectively. (a-f) are obtained from LEDP-I while (g-l) from LEDP-II. Snapshots are taken at $ t = 0, 0.05, 2.5, 5.5, 8, 30 $, respectively. The time step is set as $ \tau = 1.0e-3 $

Download: Full-size image PowerPoint slide

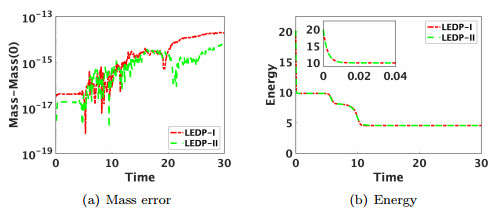

Figure 2. Time evolution of the error in mass and global energy with $ N = 129 $ and $ \tau = 1.0e-3 $ in Example 2 using LEDP-I and LEDP-II, respectively

Download: Full-size image PowerPoint slide

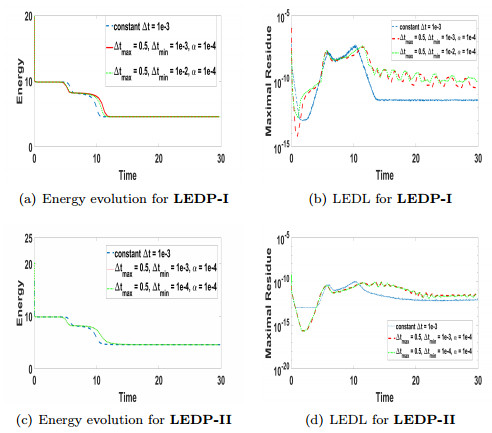

Figure 3. Time evolution of energy and maximal residue of the local energy dissipation law with $ N = 129 $, $ \tau = 1.0e-3 $ and $ \tau $ based on adaptive time stepping algorithm in Example 2 using LEDP-I, LEDP-II, respectively

Download: Full-size image PowerPoint slide

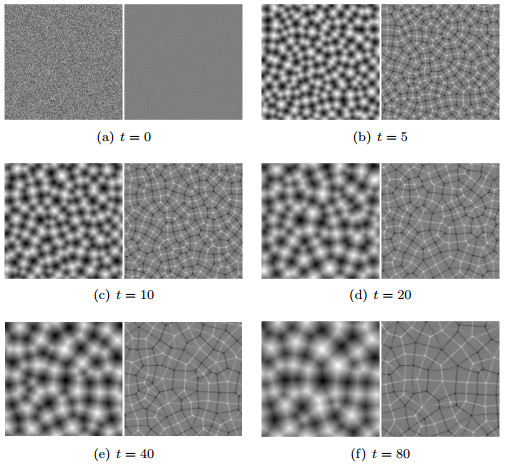

Figure 4. The isolines of numerical solutions of $ \phi $ (left) and its Laplacian $ \Delta \phi $ (right) in Example 3 using LEDP-I. Snapshots are taken at $ t = 0, 5, 10, 20, 40, 80 $. The time and space step are set as $ \tau = 1.0e-3 $ and $ N = 513 $

Download: Full-size image PowerPoint slide

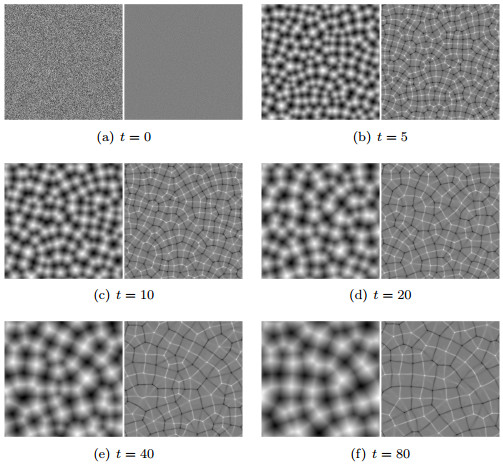

Figure 5. The isolines of numerical solutions of the $ \phi $ (left) and its Laplacian $ \Delta \phi $ (right) in Example 3 using LEDP-II. Snapshots are taken at $ t = 0, 5, 10, 20, 40, 80 $. The time and space step are set as $ \tau = 1.0e-3 $ and $ N = 513 $

Download: Full-size image PowerPoint slide

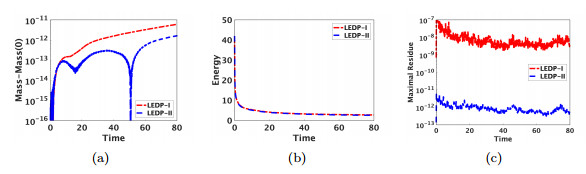

Figure 6. Time evolution of the error in mass, energy and maximal residue with $ N = 513 $ and $ \tau = 1.0e-3 $ in Example 3 using LEDP-I and LEDP-II, respectively

Download: Full-size image PowerPoint slide

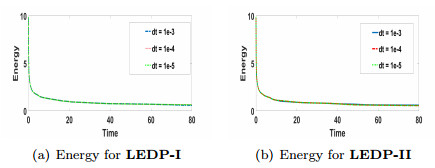

Figure 7. The Energy for LEDP-I and LEDP-II via different time steps

Download: Full-size image PowerPoint slide

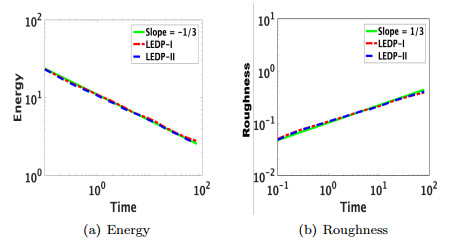

Figure 8. The numerical results show the proper power law behavior in the decaying energy as $ O(t^{-\frac{1}{3} }) $ and roughness as $ O(t^{\frac{1}{3} }) $

Download: Full-size image PowerPoint slide

Table 1. Mesh refinement test for LEDP-I at $ t = 1 $

$ N $	$ \tau $	Error		Order		CPU time
$ N $	$ \tau $	$ L^\infty $ error	$ L^{2} $ error	$ L^\infty $ order	$ L^{2} $ order	CPU time
11	0.1	0.1805	0.5671	–	–	6.24e-1
33	1/30	0.0170	0.0535	2.1495	2.1495	8.71e-1
99	1/90	0.0019	0.0058	2.0160	2.0160	4.82
297	1/270	2.0605e-4	6.4733e-4	2.0018	2.0018	5.75e+1
891	1/810	2.2890e-5	7.1910e-5	2.0002	2.0002	7.37e+2

| Show Table

DownLoad: CSV

Table 2. Mesh refinement test for LEDP-II at $ t = 1 $

$ N $	$ \tau $	Error		Order		CPU time
$ N $	$ \tau $	$ L^\infty $ error	$ L^{2} $ error	$ L^\infty $ order	$ L^{2} $ order	CPU time
11	0.1	1.9180e-4	6.0195e-4	–	–	1.25e-1
33	1/30	2.1309e-5	6.6866e-5	2.0001	2.0002	2.47e-1
99	1/90	2.3678e-6	7.4296e-6	1.9999	2.0000	2.01
297	1/270	2.6376e-7	8.2575e-7	1.9977	1.9997	1.16e+1
891	1/810	2.9864e-8	9.1995e-8	1.9829	1.9976	8.79e+1

| Show Table

DownLoad: CSV
