American Institute of Mathematical Sciences

Advanced
  • Previous Article
    Linear programming estimates for Cesàro and Abel limits of optimal values in optimal control problems
  • DCDS-B Home
  • This Issue
  • Next Article
    Two finite difference methods based on an H2N2 interpolation for two-dimensional time fractional mixed diffusion and diffusion-wave equations
doi: 10.3934/dcdsb.2021073
Online First

Online First articles are published articles within a journal that have not yet been assigned to a formal issue. This means they do not yet have a volume number, issue number, or page numbers assigned to them, however, they can still be found and cited using their DOI (Digital Object Identifier). Online First publication benefits the research community by making new scientific discoveries known as quickly as possible.

Readers can access Online First articles via the “Online First” tab for the selected journal.

A fast high order method for time fractional diffusion equation with non-smooth data

Haili Qiao and  Aijie Cheng ,

School of Mathematics, Shandong University, Jinan, Shandong 250100, China

* Corresponding author: Aijie Cheng

Received  May 2020 Revised  December 2020 Early access March 2021

Fund Project: This work was supported in part by the National Natural Science Foundation of China under Grants 91630207, 11971272

In this paper, we consider the time fractional diffusion equation with Caputo fractional derivative. Due to the singularity of the solution at the initial moment, it is difficult to achieve an ideal convergence order on uniform meshes. Therefore, in order to improve the convergence order, we discrete the Caputo time fractional derivative by a new $ L1-2 $ format on graded meshes, while the spatial derivative term is approximated by the classical central difference scheme on uniform meshes. We analyze the approximation about the time fractional derivative, and obtain the time truncation error, but the stability analysis remains an open problem. On the other hand, considering that the computational cost is extremely large, we present a reduced-order finite difference extrapolation algorithm for the time-fraction diffusion equation by means of proper orthogonal decomposition (POD) technique, which effectively reduces the computational cost. Finally, several numerical examples are given to verify the convergence of the scheme and the effectiveness of the reduced order extrapolation algorithm.

Keywords: Time fractional differential equation, finite difference method, graded meshes, L1-2 formula, POD.
Mathematics Subject Classification: Primary: 26A33, 65M06; Secondary: 65M15.
Citation: Haili Qiao, Aijie Cheng. A fast high order method for time fractional diffusion equation with non-smooth data. Discrete & Continuous Dynamical Systems - B, doi: 10.3934/dcdsb.2021073
References:
[1]

A. A. Alikhanov, A new difference scheme for the time fractional diffusion equation, J. Comput. Phys., 280 (2015), 424-438.  doi: 10.1016/j.jcp.2014.09.031.  Google Scholar

[2]

H. Brunner, L. Ling and M. Yamamoto, Numerical simulations of 2D fractional subdiffusion problems, J. Comput. Phys., 229 (2010), 6613-6622.  doi: 10.1016/j.jcp.2010.05.015.  Google Scholar

[3]

H. Chen and M. Stynes, A high order method on graded meshes for a time-fractional diffusion problem, Finite Difference Methods, 15–27, Lecture Notes in Comput. Sci., 11386, Springer, Cham, 2019. doi: 10.1007/978-3-030-11539-5_2.  Google Scholar

[4]

H. Chen and M. Stynes, Error analysis of a second-order method on fitted meshes for a time-fractional diffusion problem, J. Sci. Comput., 79 (2019), 624-647.  doi: 10.1007/s10915-018-0863-y.  Google Scholar

[5]

N. J. Ford, M. L. Morgado and M. Rebelo, Nonpolynomial collocation approximation of solutions to fractional differential equations, Fract. Calc. Appl. Anal., 16 (2013), 874-891.  doi: 10.2478/s13540-013-0054-3.  Google Scholar

[6]

N. J. Ford and Y. Yan, An approach to construct higher order time discretisation schemes for time fractional partial differential equations with nonsmooth data, Fract. Calc. Appl. Anal., 20 (2017), 1076-1105.  doi: 10.1515/fca-2017-0058.  Google Scholar

[7]

G.-H. Gao and Z.-Z. Sun, A compact finite difference scheme for the fractional sub-diffusion equations, J. Comput. Phys., 230 (2011), 586-595.  doi: 10.1016/j.jcp.2010.10.007.  Google Scholar

[8]

G.-H. Gao, Z.-Z. Sun and H.-W. Zhang, A new fractional numerical differentiation formula to approximate the Caputo fractional derivative and its applications, J. Comput. Phys., 259 (2014), 33-50.  doi: 10.1016/j.jcp.2013.11.017.  Google Scholar

[9]

M. Giona, S. Cerbelli and H. E. Roman, Fractional diffusion equation and relaxation in complex viscoelastic materials, Physica A: Statistical Mechanics and its Applications, 191 (1992), 449-453.  doi: 10.1016/0378-4371(92)90566-9.  Google Scholar

[10]

R. Gorenflo, F. Mainardi, D. Moretti and P. Paradisi, Time fractional diffusion: A discrete random walk approach, Nonlinear Dynam., 29 (2002), 129-143.  doi: 10.1023/A:1016547232119.  Google Scholar

[11]

Y. Lin and C. Xu, Finite difference/spectral approximations for the time-fractional diffusion equation, J. Comput. Phys., 225 (2007), 1533-1552.  doi: 10.1016/j.jcp.2007.02.001.  Google Scholar

[12]

F. Liu, S. Shen, V. Anh and I. Turner, Analysis of a discrete non-Markovian random walk approximation for the time fractional diffusion equation, ANZIAM J., 46 (2004), 488-504.   Google Scholar

[13]

Z. Luo, J. Chen, J. Zhu, R. Wang and I. M. Navon, An optimizing reduced order FDS for the tropical Pacific Ocean reduced gravity model, Internat. J. Numer. Methods Fluids, 55 (2007), 143-161.  doi: 10.1002/fld.1452.  Google Scholar

[14]

Z. Luo, H. Li, P. Sun and J. Gao, A reduced-order finite difference extrapolation algorithm based on POD technique for the non-stationary navier–stokes equations, Appl. Math. Model., 37 (2013), 5464-5473.  doi: 10.1016/j.apm.2012.10.051.  Google Scholar

[15]

Z. Luo, F. Teng and H. Xia, A reduced-order extrapolated Crank–Nicolson finite spectral element method based on POD for the 2D non-stationary Boussinesq equations, J. Math. Anal. Appl., 471 (2019), 564-583.  doi: 10.1016/j.jmaa.2018.10.092.  Google Scholar

[16]

C. Lv and C. Xu, Error analysis of a high order method for time-fractional diffusion equations, SIAM J. Sci. Comput., 38 (2016), A2699–A2724. doi: 10.1137/15M102664X.  Google Scholar

[17]

Z. Mao and J. Shen, Efficient spectral–Galerkin methods for fractional partial differential equations with variable coefficients, J. Comput. Phys., 307 (2016), 243-261.  doi: 10.1016/j.jcp.2015.11.047.  Google Scholar

[18]

R. Metzler and J. Klafter, The random walk's guide to anomalous diffusion: A fractional dynamics approach, Phys. Rep., 339 (2000), 1-77.  doi: 10.1016/S0370-1573(00)00070-3.  Google Scholar

[19]

R. R. Nigmatullin, The realization of the generalized transfer equation in a medium with fractal geometry, Physica Status Solidi (B), 133 (1986), 425-430.  doi: 10.1002/pssb.2221330150.  Google Scholar

[20]

K. B. Oldham and J. Spanier, The Fractional Calculus, Mathematics in Science and Engineering, Vol. 111. Academic Press [A subsidiary of Harcourt Brace Jovanovich, Publishers], New York-London, 1974.  Google Scholar

[21]

I. Podlubny, Fractional Differential Equations, in Mathematics in Science and Engineering, 1999.  Google Scholar

[22]

K. Sakamoto and M. Yamamoto, Initial value/boundary value problems for fractional diffusion-wave equations and applications to some inverse problems, J. Math. Anal. Appl., 382 (2011), 426-447.  doi: 10.1016/j.jmaa.2011.04.058.  Google Scholar

[23]

M. Stynes, Too much regularity may force too much uniqueness, Fract. Calc. Appl. Anal., 19 (2016), 1554-1562.  doi: 10.1515/fca-2016-0080.  Google Scholar

[24]

M. Stynes, E. O'Riordan and J. L. Gracia, Error analysis of a finite difference method on graded meshes for a time-fractional diffusion equation, SIAM J. Numer. Anal., 55 (2017), 1057-1079.  doi: 10.1137/16M1082329.  Google Scholar

[25]

Y. Xing and Y. Yan, A higher order numerical method for time fractional partial differential equations with nonsmooth data, J. Comput. Phys., 357 (2018), 305-323.  doi: 10.1016/j.jcp.2017.12.035.  Google Scholar

[26]

B. Xu and X. Zhang, A reduced fourth-order compact difference scheme based on a proper orthogonal decomposition technique for parabolic equations, Bound. Value Probl., 2019 (2019), 130. doi: 10.1186/s13661-019-1243-8.  Google Scholar

[27]

Y. Yang, Y. Yan and N. J. Ford, Some time stepping methods for fractional diffusion problems with nonsmooth data, Comput. Methods Appl. Math., 18 (2018), 129-146.  doi: 10.1515/cmam-2017-0037.  Google Scholar

[28]

F. Zeng, Z. Zhang and G. E. Karniadakis, A generalized spectral collocation method with tunable accuracy for variable-order fractional differential equations, SIAM J. Sci. Comput., 37 (2015), A2710–A2732. doi: 10.1137/141001299.  Google Scholar

[29]

Y.-N. Zhang and Z.-Z. Sun, Alternating direction implicit schemes for the two-dimensional fractional sub-diffusion equation, J. Comput. Phys., 230 (2011), 8713-8728.  doi: 10.1016/j.jcp.2011.08.020.  Google Scholar

[30]

Z. Zhang, F. Zeng and G. E. Karniadakis, Optimal error estimates of spectral Petrov–Galerkin and collocation methods for initial value problems of fractional differential equations, SIAM J. Numer. Anal., 53 (2015), 2074-2096.  doi: 10.1137/140988218.  Google Scholar

[31]

H. Zhu and C. Xu, A fast high order method for the time-fractional diffusion equation, SIAM J. Numer. Anal., 57 (2019), 2829-2849.  doi: 10.1137/18M1231225.  Google Scholar

[32]

P. Zhuang and F. Liu, Implicit difference approximation for the time fractional diffusion equation, J. Appl. Math. Comput., 22 (2006), 87-99.  doi: 10.1007/BF02832039.  Google Scholar

show all references

References:
[1]

A. A. Alikhanov, A new difference scheme for the time fractional diffusion equation, J. Comput. Phys., 280 (2015), 424-438.  doi: 10.1016/j.jcp.2014.09.031.  Google Scholar

[2]

H. Brunner, L. Ling and M. Yamamoto, Numerical simulations of 2D fractional subdiffusion problems, J. Comput. Phys., 229 (2010), 6613-6622.  doi: 10.1016/j.jcp.2010.05.015.  Google Scholar

[3]

H. Chen and M. Stynes, A high order method on graded meshes for a time-fractional diffusion problem, Finite Difference Methods, 15–27, Lecture Notes in Comput. Sci., 11386, Springer, Cham, 2019. doi: 10.1007/978-3-030-11539-5_2.  Google Scholar

[4]

H. Chen and M. Stynes, Error analysis of a second-order method on fitted meshes for a time-fractional diffusion problem, J. Sci. Comput., 79 (2019), 624-647.  doi: 10.1007/s10915-018-0863-y.  Google Scholar

[5]

N. J. Ford, M. L. Morgado and M. Rebelo, Nonpolynomial collocation approximation of solutions to fractional differential equations, Fract. Calc. Appl. Anal., 16 (2013), 874-891.  doi: 10.2478/s13540-013-0054-3.  Google Scholar

[6]

N. J. Ford and Y. Yan, An approach to construct higher order time discretisation schemes for time fractional partial differential equations with nonsmooth data, Fract. Calc. Appl. Anal., 20 (2017), 1076-1105.  doi: 10.1515/fca-2017-0058.  Google Scholar

[7]

G.-H. Gao and Z.-Z. Sun, A compact finite difference scheme for the fractional sub-diffusion equations, J. Comput. Phys., 230 (2011), 586-595.  doi: 10.1016/j.jcp.2010.10.007.  Google Scholar

[8]

G.-H. Gao, Z.-Z. Sun and H.-W. Zhang, A new fractional numerical differentiation formula to approximate the Caputo fractional derivative and its applications, J. Comput. Phys., 259 (2014), 33-50.  doi: 10.1016/j.jcp.2013.11.017.  Google Scholar

[9]

M. Giona, S. Cerbelli and H. E. Roman, Fractional diffusion equation and relaxation in complex viscoelastic materials, Physica A: Statistical Mechanics and its Applications, 191 (1992), 449-453.  doi: 10.1016/0378-4371(92)90566-9.  Google Scholar

[10]

R. Gorenflo, F. Mainardi, D. Moretti and P. Paradisi, Time fractional diffusion: A discrete random walk approach, Nonlinear Dynam., 29 (2002), 129-143.  doi: 10.1023/A:1016547232119.  Google Scholar

[11]

Y. Lin and C. Xu, Finite difference/spectral approximations for the time-fractional diffusion equation, J. Comput. Phys., 225 (2007), 1533-1552.  doi: 10.1016/j.jcp.2007.02.001.  Google Scholar

[12]

F. Liu, S. Shen, V. Anh and I. Turner, Analysis of a discrete non-Markovian random walk approximation for the time fractional diffusion equation, ANZIAM J., 46 (2004), 488-504.   Google Scholar

[13]

Z. Luo, J. Chen, J. Zhu, R. Wang and I. M. Navon, An optimizing reduced order FDS for the tropical Pacific Ocean reduced gravity model, Internat. J. Numer. Methods Fluids, 55 (2007), 143-161.  doi: 10.1002/fld.1452.  Google Scholar

[14]

Z. Luo, H. Li, P. Sun and J. Gao, A reduced-order finite difference extrapolation algorithm based on POD technique for the non-stationary navier–stokes equations, Appl. Math. Model., 37 (2013), 5464-5473.  doi: 10.1016/j.apm.2012.10.051.  Google Scholar

[15]

Z. Luo, F. Teng and H. Xia, A reduced-order extrapolated Crank–Nicolson finite spectral element method based on POD for the 2D non-stationary Boussinesq equations, J. Math. Anal. Appl., 471 (2019), 564-583.  doi: 10.1016/j.jmaa.2018.10.092.  Google Scholar

[16]

C. Lv and C. Xu, Error analysis of a high order method for time-fractional diffusion equations, SIAM J. Sci. Comput., 38 (2016), A2699–A2724. doi: 10.1137/15M102664X.  Google Scholar

[17]

Z. Mao and J. Shen, Efficient spectral–Galerkin methods for fractional partial differential equations with variable coefficients, J. Comput. Phys., 307 (2016), 243-261.  doi: 10.1016/j.jcp.2015.11.047.  Google Scholar

[18]

R. Metzler and J. Klafter, The random walk's guide to anomalous diffusion: A fractional dynamics approach, Phys. Rep., 339 (2000), 1-77.  doi: 10.1016/S0370-1573(00)00070-3.  Google Scholar

[19]

R. R. Nigmatullin, The realization of the generalized transfer equation in a medium with fractal geometry, Physica Status Solidi (B), 133 (1986), 425-430.  doi: 10.1002/pssb.2221330150.  Google Scholar

[20]

K. B. Oldham and J. Spanier, The Fractional Calculus, Mathematics in Science and Engineering, Vol. 111. Academic Press [A subsidiary of Harcourt Brace Jovanovich, Publishers], New York-London, 1974.  Google Scholar

[21]

I. Podlubny, Fractional Differential Equations, in Mathematics in Science and Engineering, 1999.  Google Scholar

[22]

K. Sakamoto and M. Yamamoto, Initial value/boundary value problems for fractional diffusion-wave equations and applications to some inverse problems, J. Math. Anal. Appl., 382 (2011), 426-447.  doi: 10.1016/j.jmaa.2011.04.058.  Google Scholar

[23]

M. Stynes, Too much regularity may force too much uniqueness, Fract. Calc. Appl. Anal., 19 (2016), 1554-1562.  doi: 10.1515/fca-2016-0080.  Google Scholar

[24]

M. Stynes, E. O'Riordan and J. L. Gracia, Error analysis of a finite difference method on graded meshes for a time-fractional diffusion equation, SIAM J. Numer. Anal., 55 (2017), 1057-1079.  doi: 10.1137/16M1082329.  Google Scholar

[25]

Y. Xing and Y. Yan, A higher order numerical method for time fractional partial differential equations with nonsmooth data, J. Comput. Phys., 357 (2018), 305-323.  doi: 10.1016/j.jcp.2017.12.035.  Google Scholar

[26]

B. Xu and X. Zhang, A reduced fourth-order compact difference scheme based on a proper orthogonal decomposition technique for parabolic equations, Bound. Value Probl., 2019 (2019), 130. doi: 10.1186/s13661-019-1243-8.  Google Scholar

[27]

Y. Yang, Y. Yan and N. J. Ford, Some time stepping methods for fractional diffusion problems with nonsmooth data, Comput. Methods Appl. Math., 18 (2018), 129-146.  doi: 10.1515/cmam-2017-0037.  Google Scholar

[28]

F. Zeng, Z. Zhang and G. E. Karniadakis, A generalized spectral collocation method with tunable accuracy for variable-order fractional differential equations, SIAM J. Sci. Comput., 37 (2015), A2710–A2732. doi: 10.1137/141001299.  Google Scholar

[29]

Y.-N. Zhang and Z.-Z. Sun, Alternating direction implicit schemes for the two-dimensional fractional sub-diffusion equation, J. Comput. Phys., 230 (2011), 8713-8728.  doi: 10.1016/j.jcp.2011.08.020.  Google Scholar

[30]

Z. Zhang, F. Zeng and G. E. Karniadakis, Optimal error estimates of spectral Petrov–Galerkin and collocation methods for initial value problems of fractional differential equations, SIAM J. Numer. Anal., 53 (2015), 2074-2096.  doi: 10.1137/140988218.  Google Scholar

[31]

H. Zhu and C. Xu, A fast high order method for the time-fractional diffusion equation, SIAM J. Numer. Anal., 57 (2019), 2829-2849.  doi: 10.1137/18M1231225.  Google Scholar

[32]

P. Zhuang and F. Liu, Implicit difference approximation for the time fractional diffusion equation, J. Appl. Math. Comput., 22 (2006), 87-99.  doi: 10.1007/BF02832039.  Google Scholar

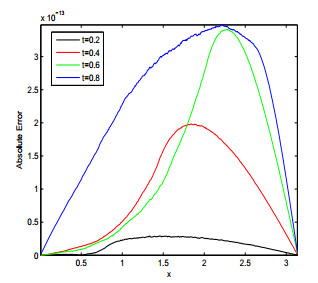

Figure 1.  The absolute error of solutions obtained by the two formats with $ M = 500 $, $ N = 500 $, $ \alpha = 0.6 $, $ r = \frac{3-\alpha}{\alpha} $ for Example 1
Figure Options

Download full-size image

Download as PowerPoint slide

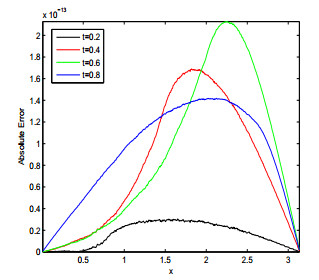

Figure 2.  The absolute error of solutions obtained by the two formats with $ M = 500 $, $ N = 500 $, $ \alpha = 0.6 $, $ r = \frac{3-\alpha}{\alpha} $ for Example 2
Figure Options

Download full-size image

Download as PowerPoint slide

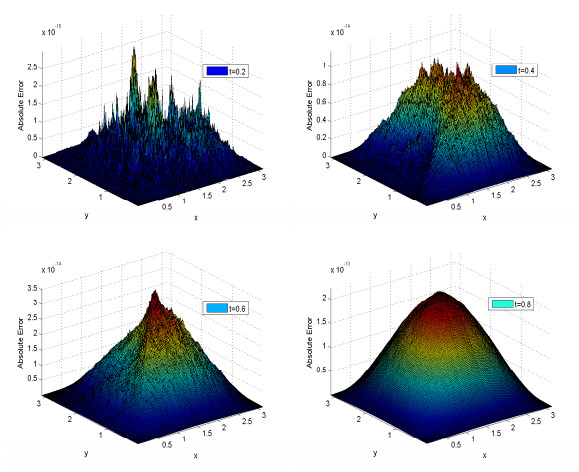

Figure 3.  The absolute error of solutions obtained by FD and RFD $ M = 200 $, $ N = 200 $, $ \alpha = 0.6 $, $ r = \frac{3-\alpha}{\alpha} $ for Example 3
Figure Options

Download full-size image

Download as PowerPoint slide

Table 1.  The CPU time consumed by FD and RFD with different mesh sizes with $ M = 10000 $, $ \alpha = 0.6 $, $ r = \frac{3-\alpha}{\alpha} $ for Example 1
$ N $ $ 2^5 $ $ 2^6 $ $ 2^7 $ $ 2^8 $ $ 2^9 $ $ 2^{10} $
FD (CPU) 235.9671 460.4681 922.5431 1821.1869 3661.3747 7446.4113
RFD (CPU) 0.0624 0.1092 0.2496 0.9360 3.2448 13.5721
Table Options

Download as excel

$ N $ $ 2^5 $ $ 2^6 $ $ 2^7 $ $ 2^8 $ $ 2^9 $ $ 2^{10} $
FD (CPU) 235.9671 460.4681 922.5431 1821.1869 3661.3747 7446.4113
RFD (CPU) 0.0624 0.1092 0.2496 0.9360 3.2448 13.5721
Table 2.  $ M = 10000 $, $ r = 1 $, the $ L^{\infty} $ error and convergence rates for Example 1 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 4.4813e-2 2.1049e-2 6.0226e-3
$ 2^{6} $ 3.5203e-2 0.3482 1.5005e-2 0.4883 4.2132e-3 0.5155
$ 2^{7} $ 2.7395e-2 0.3618 1.0381e-2 0.5316 2.6654e-3 0.6606
$ 2^{8} $ 2.1178e-2 0.3713 7.0548e-3 0.5572 1.6099e-3 0.7273
$ 2^{9} $ 1.6293e-2 0.3783 4.7427e-3 0.5729 9.5001e-4 0.7610
$ 2^{10} $ 1.2489e-2 0.3835 3.1668e-3 0.5827 5.5376e-4 0.7787
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 4.4813e-2 2.1049e-2 6.0226e-3
$ 2^{6} $ 3.5203e-2 0.3482 1.5005e-2 0.4883 4.2132e-3 0.5155
$ 2^{7} $ 2.7395e-2 0.3618 1.0381e-2 0.5316 2.6654e-3 0.6606
$ 2^{8} $ 2.1178e-2 0.3713 7.0548e-3 0.5572 1.6099e-3 0.7273
$ 2^{9} $ 1.6293e-2 0.3783 4.7427e-3 0.5729 9.5001e-4 0.7610
$ 2^{10} $ 1.2489e-2 0.3835 3.1668e-3 0.5827 5.5376e-4 0.7787
Table 3.  $ M = 10000 $, $ r = 1/\alpha $, the $ L^{\infty} $ error and convergence rates for Example 1 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 1.1780e-2 6.1861e-3 3.7802e-3
$ 2^{6} $ 6.0418e-3 0.9633 3.1668e-3 0.9660 2.0794e-3 0.8623
$ 2^{7} $ 3.0601e-3 0.9814 1.6014e-3 0.9837 1.0853e-3 0.9380
$ 2^{8} $ 1.5400e-3 0.9906 8.0511e-4 0.9921 5.5376e-4 0.9708
$ 2^{9} $ 7.7251e-4 0.9953 4.0364e-4 0.9961 2.7944e-4 0.9867
$ 2^{10} $ 3.8687e-4 0.9977 2.0209e-4 0.9981 1.4039e-4 0.9931
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 1.1780e-2 6.1861e-3 3.7802e-3
$ 2^{6} $ 6.0418e-3 0.9633 3.1668e-3 0.9660 2.0794e-3 0.8623
$ 2^{7} $ 3.0601e-3 0.9814 1.6014e-3 0.9837 1.0853e-3 0.9380
$ 2^{8} $ 1.5400e-3 0.9906 8.0511e-4 0.9921 5.5376e-4 0.9708
$ 2^{9} $ 7.7251e-4 0.9953 4.0364e-4 0.9961 2.7944e-4 0.9867
$ 2^{10} $ 3.8687e-4 0.9977 2.0209e-4 0.9981 1.4039e-4 0.9931
Table 4.  $ M = 10000 $, $ r = 2/\alpha $, the $ L^{\infty} $ error and convergence rates for Example 1 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 9.3428e-3 2.5627e-3 9.3566e-4
$ 2^{6} $ 2.3654e-3 1.9818 6.5273e-4 1.9731 2.5124e-4 1.8969
$ 2^{7} $ 5.9358e-4 1.9946 1.6398e-4 1.9929 6.4435e-5 1.9632
$ 2^{8} $ 1.4888e-4 1.9953 4.1050e-5 1.9981 1.6243e-5 1.9880
$ 2^{9} $ 3.7600e-5 1.9854 1.0266e-5 1.9995 4.0700e-6 1.9967
$ 2^{10} $ 9.7725e-6 1.9439 2.5667e-6 1.9999 1.0181e-6 1.9992
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 9.3428e-3 2.5627e-3 9.3566e-4
$ 2^{6} $ 2.3654e-3 1.9818 6.5273e-4 1.9731 2.5124e-4 1.8969
$ 2^{7} $ 5.9358e-4 1.9946 1.6398e-4 1.9929 6.4435e-5 1.9632
$ 2^{8} $ 1.4888e-4 1.9953 4.1050e-5 1.9981 1.6243e-5 1.9880
$ 2^{9} $ 3.7600e-5 1.9854 1.0266e-5 1.9995 4.0700e-6 1.9967
$ 2^{10} $ 9.7725e-6 1.9439 2.5667e-6 1.9999 1.0181e-6 1.9992
Table 5.  $ M = 10000 $, $ r = (3-\alpha)/\alpha $, the $ L^{\infty} $ error and convergence rates for Example 1 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 8.1920e-3 1.9021e-3 8.5782e-4
$ 2^{6} $ 1.3564e-3 2.5944 3.6421e-4 2.3848 2.0153e-4 2.0897
$ 2^{7} $ 2.2375e-4 2.5999 6.9143e-5 2.3971 4.5568e-5 2.1449
$ 2^{8} $ 3.6784e-5 2.6048 1.3105e-5 2.3995 1.0109e-5 2.1724
$ 2^{9} $ 5.9417e-6 2.6301 2.4831e-6 2.3999 2.2188e-6 2.1877
$ 2^{10} $ 8.5465e-7 2.7975 4.7049e-7 2.3999 4.8440e-7 2.1955
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 8.1920e-3 1.9021e-3 8.5782e-4
$ 2^{6} $ 1.3564e-3 2.5944 3.6421e-4 2.3848 2.0153e-4 2.0897
$ 2^{7} $ 2.2375e-4 2.5999 6.9143e-5 2.3971 4.5568e-5 2.1449
$ 2^{8} $ 3.6784e-5 2.6048 1.3105e-5 2.3995 1.0109e-5 2.1724
$ 2^{9} $ 5.9417e-6 2.6301 2.4831e-6 2.3999 2.2188e-6 2.1877
$ 2^{10} $ 8.5465e-7 2.7975 4.7049e-7 2.3999 4.8440e-7 2.1955
Table 6.  The CPU time consumed by FD and RFD with different mesh sizes with $ M = 10000 $, $ \alpha = 0.6 $, $ r = \frac{3-\alpha}{\alpha} $ for Example2
$ N $ $ 2^5 $ $ 2^6 $ $ 2^7 $ $ 2^8 $ $ 2^9 $ $ 2^{10} $
FD (CPU) 216.2954 435.1960 882.8253 1751.2672 3460.3362 7030.6999
RFD(CPU) 0.0156 0.0624 0.1872 0.7488 2.8080 14.0713
Table Options

Download as excel

$ N $ $ 2^5 $ $ 2^6 $ $ 2^7 $ $ 2^8 $ $ 2^9 $ $ 2^{10} $
FD (CPU) 216.2954 435.1960 882.8253 1751.2672 3460.3362 7030.6999
RFD(CPU) 0.0156 0.0624 0.1872 0.7488 2.8080 14.0713
Table 7.  Take $ M = 10000 $, $ r = (3-\alpha)/\alpha $ the $ L^{\infty} $ error and convergence rates for Example 2 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 9.2288e-3 2.1343e-3 9.6882e-4
$ 2^{6} $ 1.5290e-3 2.5936 4.0781e-4 2.3878 2.2141e-4 2.1296
$ 2^{7} $ 2.5250e-4 2.5982 7.7390e-5 2.3977 4.9476e-5 2.1619
$ 2^{8} $ 4.1777e-5 2.5955 1.4667e-5 2.3996 1.0907e-5 2.1815
$ 2^{9} $ 7.0163e-6 2.5739 2.7790e-6 2.3999 2.3867e-6 2.1922
$ 2^{10} $ 1.2826e-6 2.4516 5.2652e-7 2.4000 5.2036e-7 2.1974
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 9.2288e-3 2.1343e-3 9.6882e-4
$ 2^{6} $ 1.5290e-3 2.5936 4.0781e-4 2.3878 2.2141e-4 2.1296
$ 2^{7} $ 2.5250e-4 2.5982 7.7390e-5 2.3977 4.9476e-5 2.1619
$ 2^{8} $ 4.1777e-5 2.5955 1.4667e-5 2.3996 1.0907e-5 2.1815
$ 2^{9} $ 7.0163e-6 2.5739 2.7790e-6 2.3999 2.3867e-6 2.1922
$ 2^{10} $ 1.2826e-6 2.4516 5.2652e-7 2.4000 5.2036e-7 2.1974
Table 8.  $ L1 $ format, $ M = 10000 $, $ r = (2-\alpha)/\alpha $ the $ L^{\infty} $ error and convergence rates for Example 2 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 2.0114e-3 3.4273e-3 5.1455e-3
$ 2^{6} $ 7.1710e-4 1.4880 1.3922e-3 1.2997 2.3995e-3 1.1006
$ 2^{7} $ 2.4927e-4 1.5245 5.5229e-4 1.3339 1.1033e-3 1.1209
$ 2^{8} $ 8.5555e-5 1.5428 2.1578e-4 1.3558 5.0211e-4 1.1358
$ 2^{9} $ 2.9144e-5 1.5537 8.3468e-5 1.3703 2.2670e-4 1.1472
$ 2^{10} $ 9.8709e-6 1.5619 3.2075e-5 1.3798 1.0172e-4 1.1562
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 2.0114e-3 3.4273e-3 5.1455e-3
$ 2^{6} $ 7.1710e-4 1.4880 1.3922e-3 1.2997 2.3995e-3 1.1006
$ 2^{7} $ 2.4927e-4 1.5245 5.5229e-4 1.3339 1.1033e-3 1.1209
$ 2^{8} $ 8.5555e-5 1.5428 2.1578e-4 1.3558 5.0211e-4 1.1358
$ 2^{9} $ 2.9144e-5 1.5537 8.3468e-5 1.3703 2.2670e-4 1.1472
$ 2^{10} $ 9.8709e-6 1.5619 3.2075e-5 1.3798 1.0172e-4 1.1562
Table 9.  $ L2-1_{\sigma} $ format, $ M = 10000 $, $ r = 2/\alpha $ the $ L^{\infty} $ error and convergence rates for Example 2 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 2.3712e-4 1.9954e-4 1.2946e-4
$ 2^{6} $ 6.1882e-5 1.9380 5.2396e-5 1.9291 3.5332e-5 1.8735
$ 2^{7} $ 1.5706e-5 1.9782 1.3317e-5 1.9762 9.2562e-6 1.9325
$ 2^{8} $ 3.9412e-6 1.9946 3.3471e-6 1.9923 2.3634e-6 1.9695
$ 2^{9} $ 9.8622e-7 1.9986 8.3790e-7 1.9981 5.9543e-7 1.9889
$ 2^{10} $ 2.4661e-7 1.9997 2.0955e-7 1.9995 1.4920e-7 1.9967
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 2.3712e-4 1.9954e-4 1.2946e-4
$ 2^{6} $ 6.1882e-5 1.9380 5.2396e-5 1.9291 3.5332e-5 1.8735
$ 2^{7} $ 1.5706e-5 1.9782 1.3317e-5 1.9762 9.2562e-6 1.9325
$ 2^{8} $ 3.9412e-6 1.9946 3.3471e-6 1.9923 2.3634e-6 1.9695
$ 2^{9} $ 9.8622e-7 1.9986 8.3790e-7 1.9981 5.9543e-7 1.9889
$ 2^{10} $ 2.4661e-7 1.9997 2.0955e-7 1.9995 1.4920e-7 1.9967
Table 10.  The CPU time consumed by FD and RFD with different mesh sizes with $ M = 100 $, $ \alpha = 0.6 $, $ r = \frac{3-\alpha}{\alpha} $ for Example3
$ N $ $ 2^5 $ $ 2^6 $ $ 2^7 $ $ 2^8 $
FD (CPU) 2082.2857 4202.6201 8426.9712 16835.3939
RFD(CPU) 0.0468 0.0624 0.1872 0.8112
Table Options

Download as excel

$ N $ $ 2^5 $ $ 2^6 $ $ 2^7 $ $ 2^8 $
FD (CPU) 2082.2857 4202.6201 8426.9712 16835.3939
RFD(CPU) 0.0468 0.0624 0.1872 0.8112
Table 11.  $ M = 500 $, $ r = (3-\alpha)/\alpha $, the $ L^{\infty} $ error and convergence rates for Example 3 on graded meshes
$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 9.1847e-3 2.1075e-3 9.0565e-4
$ 2^{6} $ 1.5275e-3 2.5880 4.0685e-4 2.3730 2.1443e-4 2.0785
$ 2^{7} $ 2.5217e-4 2.5987 7.7358e-5 2.3949 4.8728e-5 2.1377
$ 2^{8} $ 4.1476e-5 2.6040 1.4667e-5 2.3990 1.0858e-5 2.1660
Table Options

Download as excel

$ N $ $ \alpha=0.4 $ $ \alpha=0.6 $ $ \alpha=0.8 $
$ Max\_err $ rate $ Max\_err $ rate $ Max\_err $ rate
$ 2^{5} $ 9.1847e-3 2.1075e-3 9.0565e-4
$ 2^{6} $ 1.5275e-3 2.5880 4.0685e-4 2.3730 2.1443e-4 2.0785
$ 2^{7} $ 2.5217e-4 2.5987 7.7358e-5 2.3949 4.8728e-5 2.1377
$ 2^{8} $ 4.1476e-5 2.6040 1.4667e-5 2.3990 1.0858e-5 2.1660
[1]

Moulay Rchid Sidi Ammi, Ismail Jamiai. Finite difference and Legendre spectral method for a time-fractional diffusion-convection equation for image restoration. Discrete & Continuous Dynamical Systems - S, 2018, 11 (1) : 103-117. doi: 10.3934/dcdss.2018007
[2]

Ömer Oruç, Alaattin Esen, Fatih Bulut. A unified finite difference Chebyshev wavelet method for numerically solving time fractional Burgers' equation. Discrete & Continuous Dynamical Systems - S, 2019, 12 (3) : 533-542. doi: 10.3934/dcdss.2019035
[3]

Yones Esmaeelzade Aghdam, Hamid Safdari, Yaqub Azari, Hossein Jafari, Dumitru Baleanu. Numerical investigation of space fractional order diffusion equation by the Chebyshev collocation method of the fourth kind and compact finite difference scheme. Discrete & Continuous Dynamical Systems - S, 2021, 14 (7) : 2025-2039. doi: 10.3934/dcdss.2020402
[4]

Xiaozhong Yang, Xinlong Liu. Numerical analysis of two new finite difference methods for time-fractional telegraph equation. Discrete & Continuous Dynamical Systems - B, 2021, 26 (7) : 3921-3942. doi: 10.3934/dcdsb.2020269
[5]

Jianguo Huang, Sen Lin. A $ C^0P_2 $ time-stepping virtual element method for linear wave equations on polygonal meshes. Electronic Research Archive, 2020, 28 (2) : 911-933. doi: 10.3934/era.2020048
[6]

Timoteo Carletti. The lagrange inversion formula on non--Archimedean fields, non--analytical form of differential and finite difference equations. Discrete & Continuous Dynamical Systems, 2003, 9 (4) : 835-858. doi: 10.3934/dcds.2003.9.835
[7]

Jinye Shen, Xian-Ming Gu. Two finite difference methods based on an H2N2 interpolation for two-dimensional time fractional mixed diffusion and diffusion-wave equations. Discrete & Continuous Dynamical Systems - B, 2021  doi: 10.3934/dcdsb.2021086
[8]

Vladislav Balashov, Alexander Zlotnik. An energy dissipative semi-discrete finite-difference method on staggered meshes for the 3D compressible isothermal Navier–Stokes–Cahn–Hilliard equations. Journal of Computational Dynamics, 2020, 7 (2) : 291-312. doi: 10.3934/jcd.2020012
[9]

Hassan Emamirad, Arnaud Rougirel. Feynman path formula for the time fractional Schrödinger equation. Discrete & Continuous Dynamical Systems - S, 2020, 13 (12) : 3391-3400. doi: 10.3934/dcdss.2020246
[10]

Alexander Zlotnik, Ilya Zlotnik. Finite element method with discrete transparent boundary conditions for the time-dependent 1D Schrödinger equation. Kinetic & Related Models, 2012, 5 (3) : 639-667. doi: 10.3934/krm.2012.5.639
[11]

Masoumeh Hosseininia, Mohammad Hossein Heydari, Carlo Cattani. A wavelet method for nonlinear variable-order time fractional 2D Schrödinger equation. Discrete & Continuous Dynamical Systems - S, 2021, 14 (7) : 2273-2295. doi: 10.3934/dcdss.2020295
[12]

Wen Chen, Song Wang. A finite difference method for pricing European and American options under a geometric Lévy process. Journal of Industrial & Management Optimization, 2015, 11 (1) : 241-264. doi: 10.3934/jimo.2015.11.241
[13]

Bernard Ducomet, Alexander Zlotnik, Ilya Zlotnik. On a family of finite-difference schemes with approximate transparent boundary conditions for a generalized 1D Schrödinger equation. Kinetic & Related Models, 2009, 2 (1) : 151-179. doi: 10.3934/krm.2009.2.151
[14]

Boshi Tian, Xiaoqi Yang, Kaiwen Meng. An interior-point $l_{\frac{1}{2}}$-penalty method for inequality constrained nonlinear optimization. Journal of Industrial & Management Optimization, 2016, 12 (3) : 949-973. doi: 10.3934/jimo.2016.12.949
[15]

Michael Hintermüller, Monserrat Rincon-Camacho. An adaptive finite element method in $L^2$-TV-based image denoising. Inverse Problems & Imaging, 2014, 8 (3) : 685-711. doi: 10.3934/ipi.2014.8.685
[16]

Imtiaz Ahmad, Siraj-ul-Islam, Mehnaz, Sakhi Zaman. Local meshless differential quadrature collocation method for time-fractional PDEs. Discrete & Continuous Dynamical Systems - S, 2020, 13 (10) : 2641-2654. doi: 10.3934/dcdss.2020223
[17]

Yu-Feng Sun, Zheng Zeng, Jie Song. Quasilinear iterative method for the boundary value problem of nonlinear fractional differential equation. Numerical Algebra, Control & Optimization, 2020, 10 (2) : 157-164. doi: 10.3934/naco.2019045
[18]

Anatoli F. Ivanov, Sergei Trofimchuk. Periodic solutions and their stability of a differential-difference equation. Conference Publications, 2009, 2009 (Special) : 385-393. doi: 10.3934/proc.2009.2009.385
[19]

Weipeng Hu, Zichen Deng, Yuyue Qin. Multi-symplectic method to simulate Soliton resonance of (2+1)-dimensional Boussinesq equation. Journal of Geometric Mechanics, 2013, 5 (3) : 295-318. doi: 10.3934/jgm.2013.5.295
[20]

Hongsong Feng, Shan Zhao. A multigrid based finite difference method for solving parabolic interface problem. Electronic Research Archive, , () : -. doi: 10.3934/era.2021031

2020 Impact Factor: 1.327

Tools

Metrics

  • PDF downloads (359)
  • HTML views (405)
  • Cited by (0)

Other articles
by authors

[Back to Top]

Copyright © 2021 American Institute of Mathematical Sciences
