Tempered fractional order compartment models and applications in biology

Yejuan Wang; Lijuan Zhang; Yuan Yuan

doi:10.3934/dcdsb.2021275

Article Contents

2022, Volume 27, Issue 9: 5297-5316. Doi: 10.3934/dcdsb.2021275

This issue Previous Article Stability and applications of multi-order fractional systems Next Article Pullback attractors via quasi-stability for non-autonomous lattice dynamical systems

Tempered fractional order compartment models and applications in biology

1.
School of Mathematics and Statistics, Gansu Key Laboratory of Applied Mathematics and Complex Systems, Lanzhou University, Lanzhou 730000, China
2.
Department of Mathematics and Statistics, Memorial University of Newfoundland, St. Johns, NL, A1C 5S7, Canada

^* Corresponding author
^* Corresponding author

Received: January 2021

Revised: October 2021

Early access: November 2021

Published: September 2022

This work was supported by the National Natural Science Foundation of China under grant 41875084

Abstract Full Text(HTML) Figure(10) / Table(2) Related Papers Cited by

Abstract

Compartment models with classical derivatives have diverse applications and attracted a lot of interest among scientists. To model the dynamical behavior of the particles that existed in the system for a long period of time with little chance to be removed, a power-law waiting time technique was introduced in the most recent work of Angstmann et al. [2]. The divergent first moment makes the power-law waiting time distribution less physical because of the finite lifespan of the particles. In this work, we take the tempered power-law function as the waiting time distribution, which has finite first moment while keeping the power-law properties. From the underlying physical stochastic process with the exponentially truncated power-law waiting time distribution, we build the tempered fractional compartment model. As an application, the tempered fractional SEIR epidemic model is proposed to simulate the real data of confirmed cases of pandemic AH1N1/09 influenza from Bogotá D.C. (Colombia). Some analysis and numerical simulations are carried out around the equilibrium behavior.

Keywords:

Mathematics Subject Classification: Primary: 34A08, 60G22, 60K40, 92D30.

Citation:

Full Text(HTML)

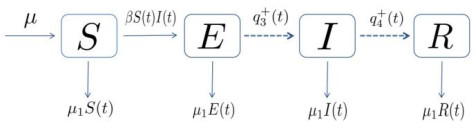

Figure 1. Flux flow of tempered fractional SEIR model

Download: Full-size image PowerPoint slide

Figure 2. The endemic steady state plotted as the functions of $ \lambda_2 $ $ ( $Left$ ) $ and $ \lambda_3 $ $ ( $Right$ ) $ for the tfrSEIR model

Download: Full-size image PowerPoint slide

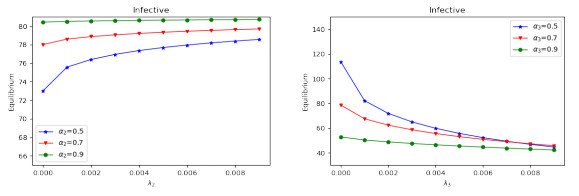

Figure 3. The endemic steady state plotted as the functions of $ \alpha_2 $ $ ( $Left$ ) $ and $ \alpha_3 $ $ ( $Right$ ) $ for the tfrSEIR model

Download: Full-size image PowerPoint slide

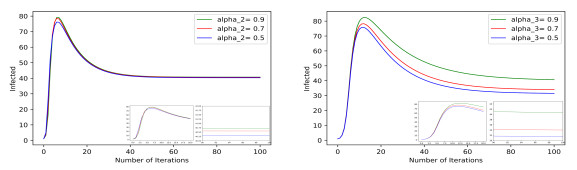

Figure 4. Plots of Infected $ I(t) $ with respect to time in the tfrSEIR model with $ \alpha_2 = 0.5, 0.7, 0.9, \alpha_3 = 0.7, \lambda_2 = \lambda_3 = 0.0001 $ $ ( $Left$ ) $ and $ \alpha_3 = 0.5, 0.7, 0.9, \alpha_2 = 0.7, \lambda_2 = \lambda_3 = 0.0001 $ $ ( $Right$ ) $

Download: Full-size image PowerPoint slide

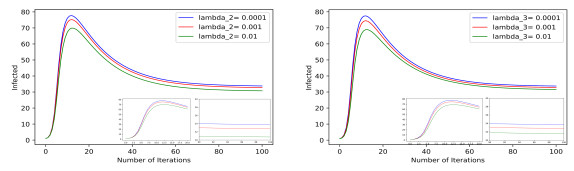

Figure 5. Plots of Infected $ I(t) $ with respect to time in the tfrSEIR model with $ \lambda_2 = 0.0001, 0.001, 0.01, \lambda_3 = 0.0001, \alpha_2 = \alpha_3 = 0.7 $ $ ( $Left$ ) $ and $ \lambda_3 = 0.0001, 0.001, 0.01, \lambda_2 = 0.0001, \alpha_2 = \alpha_3 = 0.7 $ $ ( $Right$ ) $

Download: Full-size image PowerPoint slide

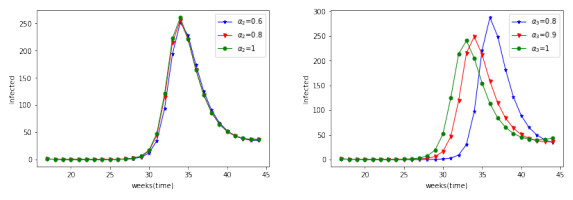

Figure 6. The variation of Infected $ I(t) $ in the tfrSEIR model for $ \alpha_2 = 0.6,0.8,1 $ $ ( $Left$ ) $ and $ \alpha_3 = 0.8,0.9,1 $ $ ( $Right$ ) $

Download: Full-size image PowerPoint slide

Figure 7. The variation of Infected $ I(t) $ in the tfrSEIR model for $ \beta = 2.69e-3,2.79e-3,2.89e-3. $

Download: Full-size image PowerPoint slide

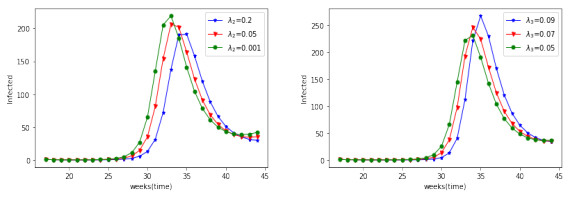

Figure 8. The variation of Infected $ I(t) $ in the tfrSEIR model for $ \lambda_2 = 0.2,0.05,0.001 $ $ ( $Left$ ) $ and $ \lambda_3 = 0.09,0.07,0.05 $ $ ( $Right$ ) $

Download: Full-size image PowerPoint slide

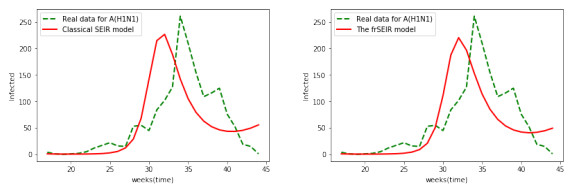

Figure 9. Comparing with the real data of confirmed cases of pandemic AH1N1/09 influenza from Bogotá D.C. $ ( $Colombia$ ) $, the numerical solutions of the classical SEIR model $ ( $Left$ ) $ and the frSEIR model $ ( $Right$ ) $ with $ \alpha_2 = 0.6 $, $ \alpha_3 = 0.88 $

Download: Full-size image PowerPoint slide

Figure 10. Numerical solution of the tfrSEIR model adjusted to real data of people infected with influenza AH1N1/09 in Bogotá D.C. $ ( $Colombia$ ) $ with $ \alpha_2 = 0.6 $, $ \alpha_3 = 0.88 $, $ \lambda_2 = 0.015 $, $ \lambda_3 = 0.09 $

Download: Full-size image PowerPoint slide

Table 1. Data provided by the Secretaria be Salud Distrital de Bogotá D.C. First row corresponds to the week number of year 2009. Second row presents the number of infectious individuals by AH1N1/09 detected in each week

Week	17	18	19	20	21	22	23	24	25	26	27	28	29	30
Cases	4	1	0	1	2	5	12	17	22	16	15	53	55	45
Week	31	32	33	34	35	36	37	38	39	40	41	42	43	44
Cases	84	102	127	261	210	155	109	116	125	76	52	19	15	1

| Show Table

DownLoad: CSV

Table 2. Values of various parameters and initial conditions

Model	$ \mu $	$ \mu_1 $	$ \beta $	$ \Omega_2 $	$ \Omega_3 $	$ \alpha_2 $	$ \alpha_3 $
cSEIR	5.038e+01	1.0e-08	2.89e-03	2.25e-01	1.373e+00	1	1
frSEIR	5.038e+01	1.0e-08	2.89e-03	2.25e-01	1.373e+00	0.6	0.88
tfrSEIR	5.038e+01	1.0e-08	2.89e-03	2.25e-01	1.373e+00	0.6	0.88
Model	$ \lambda_2 $	$ \lambda_3 $	$ S_0 $	$ E_0 $	$ I_0 $	$ R_0 $
cSEIR	0	0	100	0	1	0
frSEIR	0	0	100	0	1	0
tfrSEIR	0.015	0.09	100	0	1	0

| Show Table

DownLoad: CSV
