All global bifurcation diagrams of stationary solutions to a phase field model

Tatsuki Mori; Sohei Tasaki; Tohru Tsujikawa; Shoji Yotsutani

doi:10.3934/dcdsb.2022183

Article Contents

2023, Volume 28, Issue 12: 6306-6344. Doi: 10.3934/dcdsb.2022183 open access

This issue Previous Article Modeling bacterial traveling wave patterns with exact cross-diffusion and population growth Next Article Front propagation and blocking for the competition-diffusion system in a domain of half-lines with a junction

All global bifurcation diagrams of stationary solutions to a phase field model

1.
Department of Mathematical Engineering, Faculty of Engineering, Musashino University, Japan
2.
Department of Mathematics, Faculty of Science, Hokkaido University, Japan
3.
University of Miyazaki, Japan
4.
Ryukoku University, Japan

^*Corresponding author: Tohru Tsujikawa
^*Corresponding author: Tohru Tsujikawa

Dedicated to the memory of Professor Masayasu Mimura

Received: April 2022

Revised: August 2022

Early access: September 16, 2022

Published online: September 16, 2022

T. Mori was supported by Grant-in-Aid. for Grant-in-Aid for Young Scientists (B) 22K13962. S. Tasaki was supported by Grant-in-Aid. for Scientific Research (C) 19K03645 and Grant-in-Aid for Scientific Research on Innovative Areas 17H06327. T. Tsujikawa was supported by Grant-in-Aid. for Scientific Research (C) 17K05334 and 22K03378. S. Yotsutani was supported by Grant-in-Aid. for Scientific Research (C) 19K03593. This work was supported by Joint Research Center for Science and Technology of Ryukoku University in 2021.

Abstract / Introduction Full Text(HTML) Figure(22) Related Papers Cited by

Abstract

We are concerned with bifurcation diagrams of stationary solutions to a phase field model proposed by Fix and followed by Caginalp. We show all the global bifurcation diagrams of stationary solutions to the model in the 1-dimension case. We see that bifurcation diagrams are surprisingly rich in variety depending on the latent heat and the initial total enthalpy. For instance, bifurcation diagrams include the secondary bifurcation point where symmetric breaking occurs, and curves which connect a limit of boundary layer solutions to the other limit of internal layer solutions.

Keywords:

Mathematics Subject Classification: Primary: 34C23, 34B10; Secondary: 37G40.

Citation:

FullText(HTML)

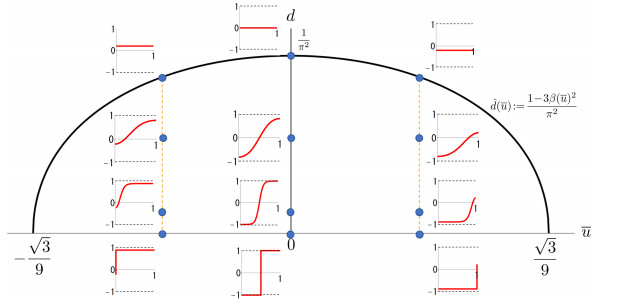

Figure 1.1. Shape of solutions $ \varphi(x; \overline{u}, d) $ for several $ (\overline{u}, d) \in \mathcal{G} $.

Download: Full-size image PowerPoint slide

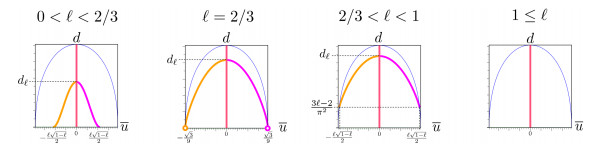

Figure 2.1. Curves of $ \mathcal{B}^{\, \ell, 0} $.

Download: Full-size image PowerPoint slide

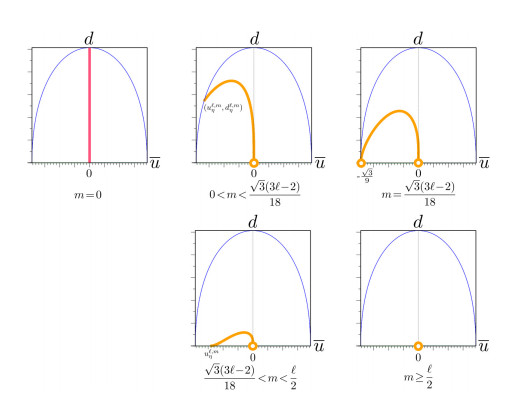

Figure 2.2. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ \ell \geq 1 $.

Download: Full-size image PowerPoint slide

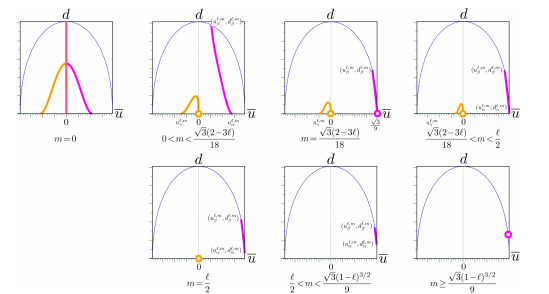

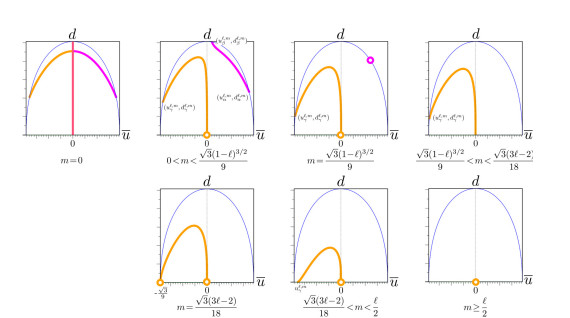

Figure 2.3. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ 3/4 < \ell < 1 $.

Download: Full-size image PowerPoint slide

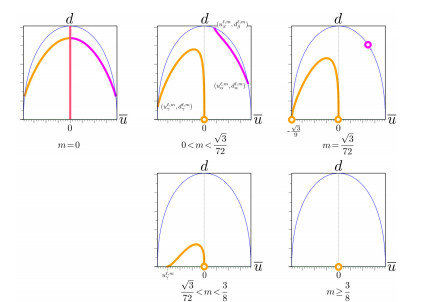

Figure 2.4. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ \ell = 3/4 $.

Download: Full-size image PowerPoint slide

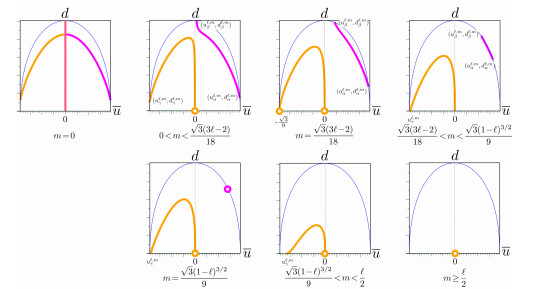

Figure 2.5. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ 2/3 < \ell < 3/4 $.

Download: Full-size image PowerPoint slide

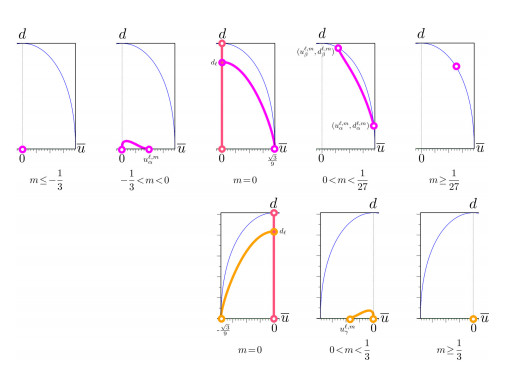

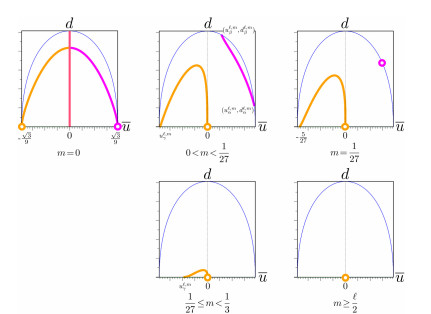

Figure 2.6. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ \ell = 2/3 $.

Download: Full-size image PowerPoint slide

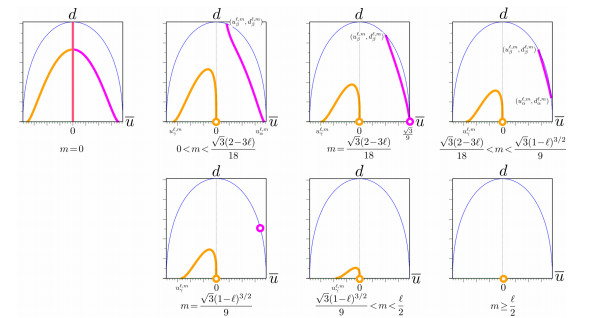

Figure 2.7. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ 1/4 < \ell < 2/3 $.

Download: Full-size image PowerPoint slide

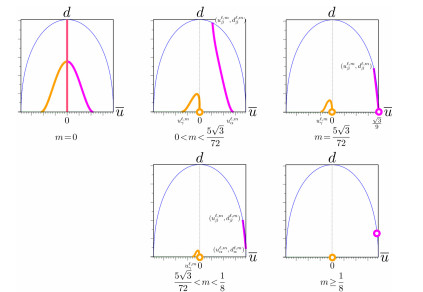

Figure 2.8. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ \ell = 1/4 $.

Download: Full-size image PowerPoint slide

Figure 2.9. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ (\sqrt{3}-1)/3 < \ell < 1/4 $.

Download: Full-size image PowerPoint slide

Figure 2.10. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ \ell = (\sqrt{3}-1)/3 $.

Download: Full-size image PowerPoint slide

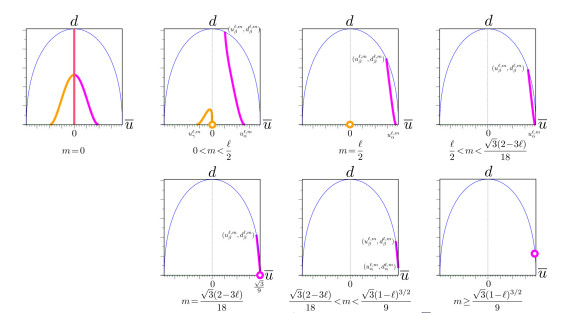

Figure 2.11. Curves of $ \mathcal{B}^{\, \ell, m} $ for $ 0 < \ell < (\sqrt{3}-1)/3 $.

Download: Full-size image PowerPoint slide

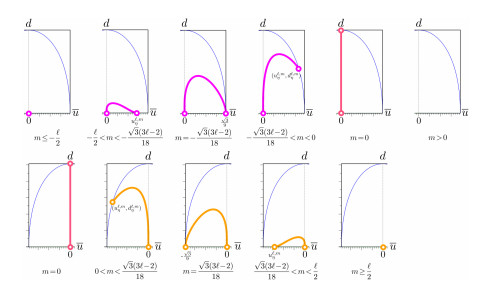

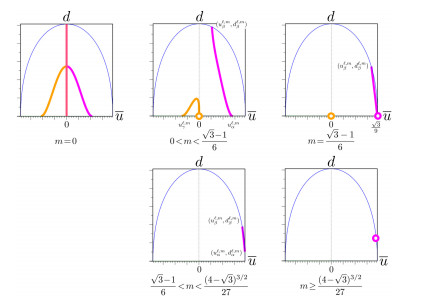

Figure 3.1. Curves of $ \, \mathcal{B}^{\, \ell, m}_{+}\, $ and $ \, \mathcal{B}^{\, \ell, m}_{-} (m \!\geq\! 0)\, $ for $ \ell \geq 1 $.

Download: Full-size image PowerPoint slide

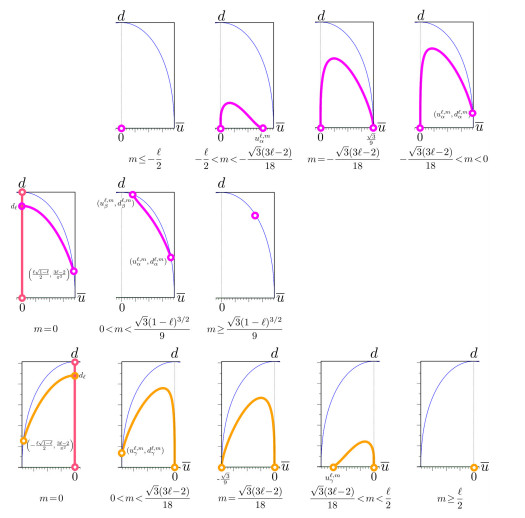

Figure 3.2. Curves of $ \, \mathcal{B}^{\, \ell, m}_{+}\, $ and $ \, \mathcal{B}^{\, \ell, m}_{-} (m \!\geq\! 0)\, $ for $ 2/3 < \ell < 1 $.

Download: Full-size image PowerPoint slide

Figure 3.3. Curves of $ \, \mathcal{B}^{\, \ell, m}_{+}\, $ and $ \, \mathcal{B}^{\, \ell, m}_{-} (m \!\geq\! 0)\, $ for $ \ell = 2/3 $.

Download: Full-size image PowerPoint slide

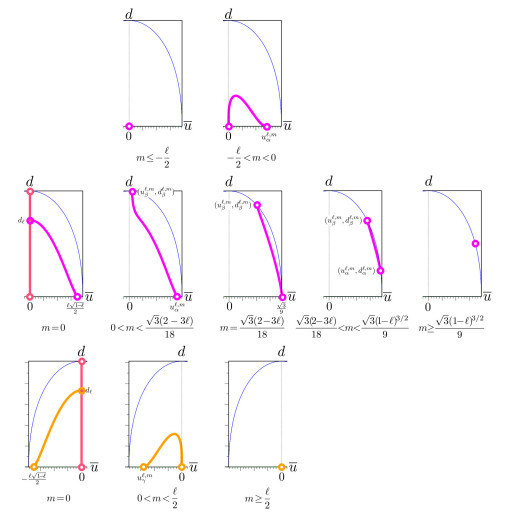

Figure 3.4. Curves of $ \, \mathcal{B}^{\, \ell, m}_{+}\, $ and $ \, \mathcal{B}^{\, \ell, m}_{-} (m \!\geq\! 0)\, $ for $ 0 < \ell < 2/3 $.

Download: Full-size image PowerPoint slide

Figure 3.5. Graphs of $ \ell/2 $, $ \sqrt{3} |3\ell - 2|/18 $ and $ \sqrt{3} (1-\ell)^{3/2}/9 $.

Download: Full-size image PowerPoint slide

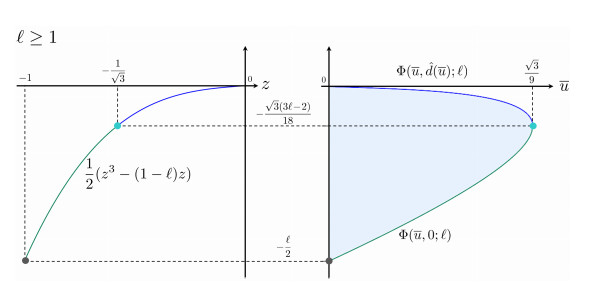

Figure 6.1. $ (z^3 - (1-\ell)z)/2 $, $ \Phi(\overline{u}, \hat{d}(\overline{u}); \ell) $, $ \Phi(\overline{u}, 0; \ell) $ for $ \ell \geq 1 $.

Download: Full-size image PowerPoint slide

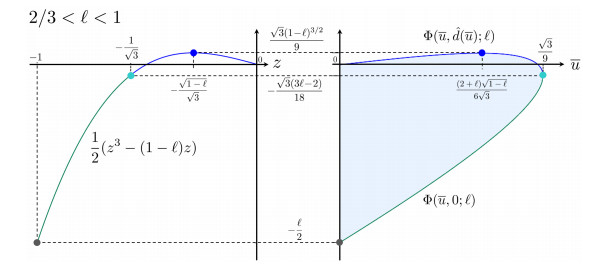

Figure 6.2. $ (z^3 \!-\! (1 \!-\! \ell)z)/2 $, $ \Phi(\overline{u}, \hat{d}(\overline{u}); \ell) $, $ \Phi(\overline{u}, 0; \ell) $ for $ 2/3 < \ell < 1 $.

Download: Full-size image PowerPoint slide

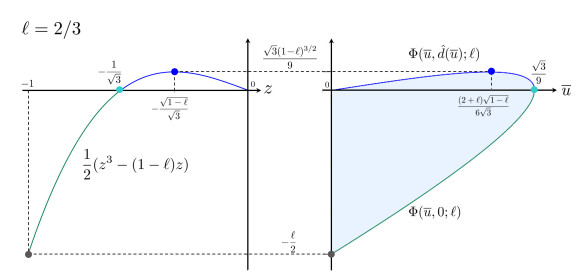

Figure 6.3. $ (z^3 - (1-\ell)z)/2 $, $ \Phi(\overline{u}, \hat{d}(\overline{u}); \ell) $, $ \Phi(\overline{u}, 0; \ell) $ for $ \ell = 2/3 $.

Download: Full-size image PowerPoint slide

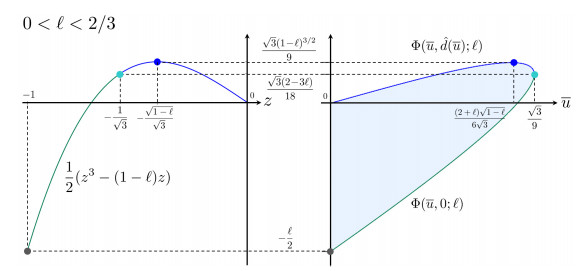

Figure 6.4. $ (z^3 - (1-\ell)z)/2 $, $ \Phi(\overline{u}, \hat{d}(\overline{u}); \ell) $, $ \Phi(\overline{u}, 0; \ell) $ for $ 0 < \ell < 2/3 $.

Download: Full-size image PowerPoint slide

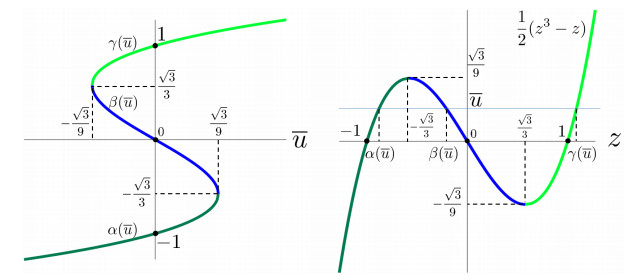

Figure A.1. $ \alpha(\overline{u}) $, $ \beta(\overline{u}) $, $ \gamma(\overline{u}) $ and $ (z^3 - z)/2 $.
