Spatial segregation of multiple species: A singular limit approach

Hirofumi Izuhara; Harunori Monobe; Chang-Hong Wu

doi:10.3934/dcdsb.2022215

Article Contents

2023, Volume 28, Issue 12: 6208-6232. Doi: 10.3934/dcdsb.2022215

This issue Previous Article Singular perturbation approach to a plankton model generating harmful algal bloom Next Article Short note on the position of bifurcation points for the limiting system arising from the two competing species model

Spatial segregation of multiple species: A singular limit approach

1.
Faculty of Engineering, University of Miyazaki, 1-1 Gakuen Kibanadai Nishi, Miyazaki, 889-2192, Japan
2.
Department of Mathematics, Faculty of Science, Osaka Metropolitan University, 1-1 Gakuen-cho, Naka-ku, Sakai, Osaka, 599-8531, Japan
3.
Department of Applied Mathematics, National Yang Ming Chiao Tung University, Hsinchu 300, Taiwan

^*Corresponding author: Chang-Hong Wu
^*Corresponding author: Chang-Hong Wu

In memory of Professor Masayasu Mimura

Received: April 2022

Revised: September 2022

Early access: November 2022

Published: December 2023

H. Izuhara was partially supported by JSPS KAKENHI Grant Number 21K03353. H. Monobe was partially supported by JSPS KAKENHI Grant Number 18K13458. C.-H. Wu was partially supported by the National Science and Technology Council of Taiwan under grant MOST 109-2636-M-009-008 and MOST 111-2115-M-A49-003-MY3.

Abstract / Introduction Full Text(HTML) Figure(13) / Table(2) Related Papers Cited by

Abstract

The spatial segregation of the populations occurs commonly in ecology. One typical way to understand this phenomenon is to consider strong competition in some species. In this paper, we shall consider multiple-species competition-diffusion models. Under the condition that some interspecies competition rates are large, we show that the segregation phenomenon occurs. Furthermore, we derive some two-phase Stefan-like problems appearing as the singular limit, which may provide some modeling interpretation for free boundary problems studied in the literature.

Keywords:

Mathematics Subject Classification: Primary: 35K57, 35K45; Secondary: 92D25.

Citation:

Full Text(HTML)

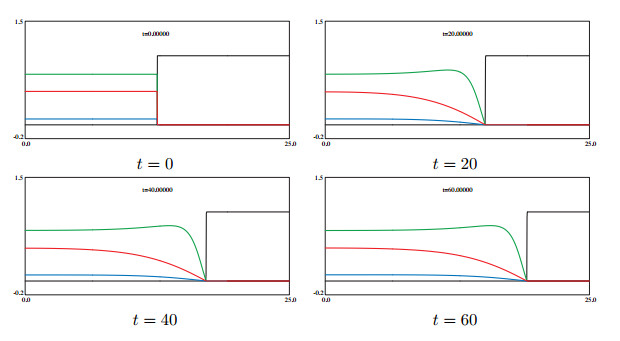

Figure 1. Snapshots of a solution behavior when $ d_w = 0 $, $ \varepsilon = 0.00001 $ and $ L = 25 $. The blue, green, red and black curves respectively mean $ u_1 $, $ u_2 $, $ u_3 $ and $ w $, respectively

Download: Full-size image PowerPoint slide

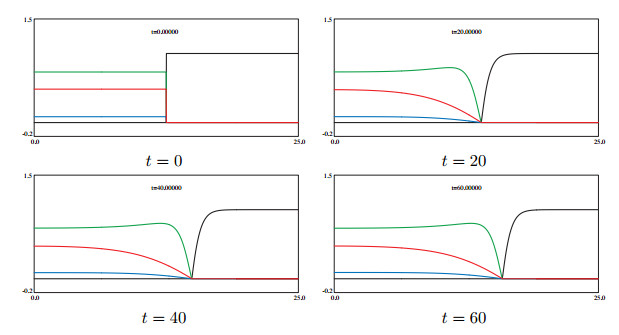

Figure 2. Snapshots of a solution behavior when $ d_w = 0.1 $, $ \varepsilon = 0.00001 $ and $ L = 25 $. The colors of curves indicate the same as the ones in Figure 1

Download: Full-size image PowerPoint slide

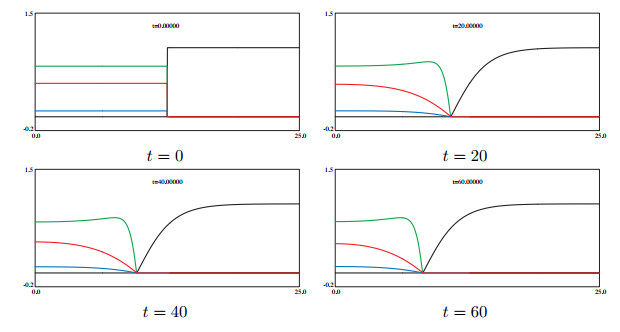

Figure 3. Snapshots of a solution behavior when $ d_w = 0.7 $, $ \varepsilon = 0.00001 $ and $ L = 25 $. The colors of curves indicate the same as the ones in Figure 1

Download: Full-size image PowerPoint slide

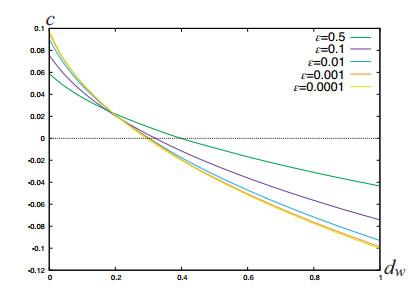

Figure 4. Relations between the diffusivity $ d_w $ and the traveling wave velocity $ c $ for each $ \varepsilon $ value are shown. The horizontal axis is $ d_w $ and the vertical one is $ c $

Download: Full-size image PowerPoint slide

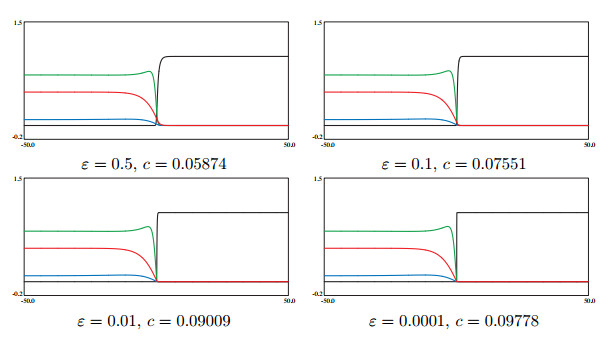

Figure 5. Profiles and velocities of traveling wave solutions with $ d_w = 0.0 $ when $ \varepsilon $ varies. The colors of curves indicate the same as the ones in Figure 1

Download: Full-size image PowerPoint slide

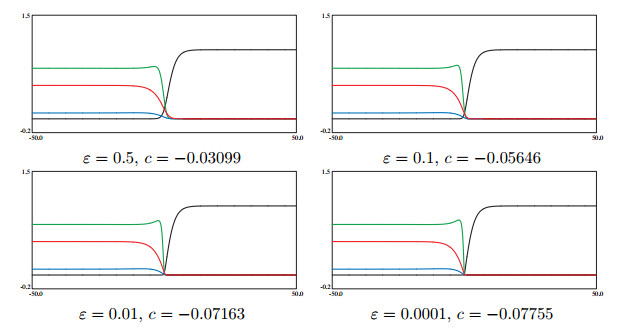

Figure 6. Profiles and velocities of traveling wave solutions with $ d_w = 0.8 $ when $ \varepsilon $ varies. The colors of curves indicate the same as the ones in Figure 1

Download: Full-size image PowerPoint slide

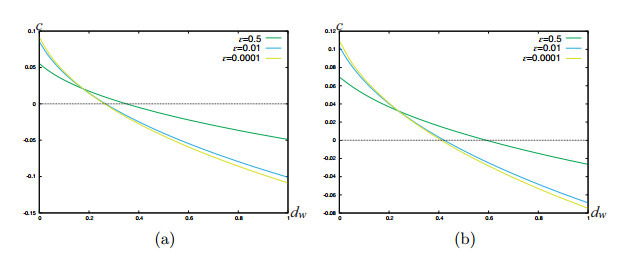

Figure 7. Relations between the diffusivity $ d_w $ and the traveling wave velocity $ c $ for each $ \varepsilon $ value are shown. The horizontal axis is $ d_w $ and the vertical one is $ c $ when $ K_1 $ varies. The parameter values except for $ K_1 $ are the same as the ones in Figure 4. (a) $ K_1 = 0.5 $ (b) $ K_1 = 2.0 $

Download: Full-size image PowerPoint slide

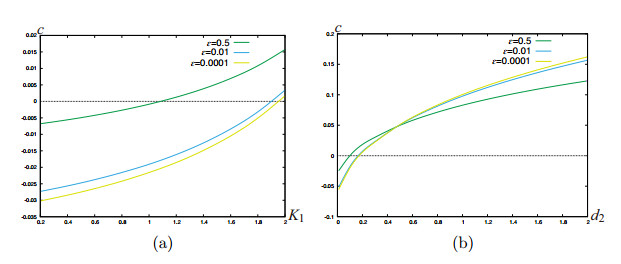

Figure 8. (a) Relations between the carrying capacity $ K_1 $ and the traveling wave velocity $ c $ for each $ \varepsilon $ value when $ d_w = 0.4 $. (b) Relations between the diffusivity $ d_2 $ and the traveling wave velocity $ c $ for each $ \varepsilon $ value when $ d_w = 0.4 $. In both cases, the other parameter values are the same as the ones in Figure 4

Download: Full-size image PowerPoint slide

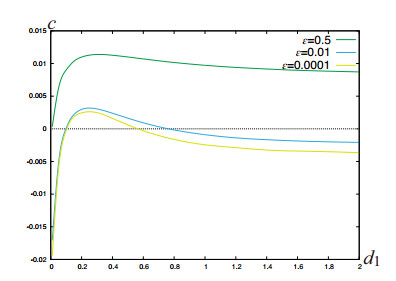

Figure 9. Relations between the diffusivity $ d_1 $ and the traveling wave velocity $ c $ for each $ \varepsilon $ value when $ d_w = 0.3 $. The other parameter values are the same as the ones in Figure 4

Download: Full-size image PowerPoint slide

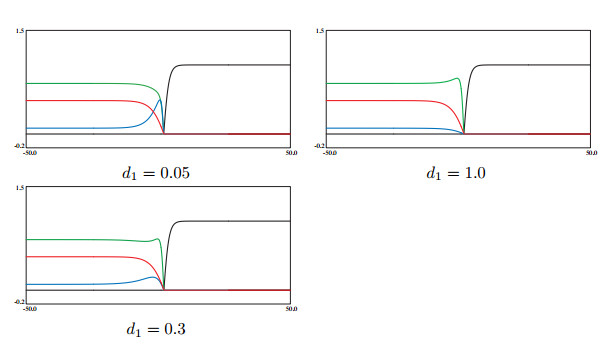

Figure 10. The profiles of traveling wave solutions in Figure 9. The value of $ d_1 $ is indicated below each figure. The upper two traveling waves move to the left, and the lower one moves to the right. The colors of curves indicate the same as the ones in Figure 1

Download: Full-size image PowerPoint slide

Figure 11. Relations in (40) between the diffusivity $ d_w $ and the traveling wave velocity $ c $ for each $ \varepsilon $ value are shown. The horizontal axis is $ d_w $ and the vertical one is $ c $

Download: Full-size image PowerPoint slide

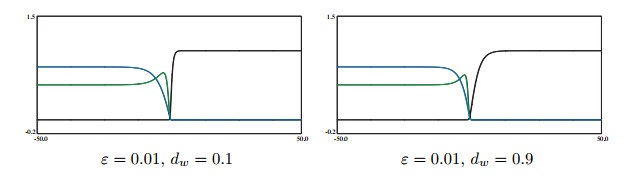

Figure 12. The profiles of traveling wave solutions in Figure 11. The blue, green and black curves respectively indicate $ u_1 $, $ u_2 $ and $ w $ in (40)

Download: Full-size image PowerPoint slide

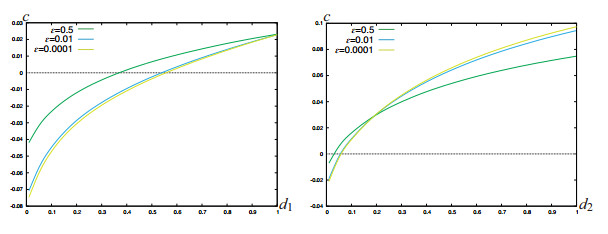

Figure 13. The change of the wave velocity $ c $ according to the diffusion coefficient $ d_1 $ and $ d_2 $. The parameter value is $ d_w = 0.3 $ and the others are the same as the ones in Figure 11

Download: Full-size image PowerPoint slide

Table 1. The wave velocities $ c $ when $ d_w = 0.0 $

	$ K_1=0.5 $	$ K_1=1.1 $	$ K_1=2.0 $
$ \varepsilon=0.5 $	$ 0.05530 $	$ 0.05874 $	$ 0.06953 $
$ \varepsilon=0.01 $	$ 0.08562 $	$ 0.09010 $	$ 0.10300 $
$ \varepsilon=0.0001 $	$ 0.09160 $	$ 0.09779 $	$ 0.10928 $

| Show Table

DownLoad: CSV

Table 2. The wave velocities $ c $ when $ d_w = 1.0 $

	$ K_1=0.5 $	$ K_1=1.1 $	$ K_1=2.0 $
$ \varepsilon=0.5 $	$ -0.04895 $	$ -0.04339 $	$ -0.02647 $
$ \varepsilon=0.01 $	$ -0.10099 $	$ -0.09296 $	$ -0.06883 $
$ \varepsilon=0.0001 $	$ -0.10873 $	$ -0.10026 $	$ -0.07482 $

| Show Table

DownLoad: CSV
