Threshold dynamics of a periodic stoichiometric model

Yequan Liang; Xiuxiang Liu; Xiao Yu

doi:10.3934/dcdsb.2023065

Article Contents

2023, Volume 28, Issue 11: 5542-5558. Doi: 10.3934/dcdsb.2023065

This issue Previous Article Well-posedness and finite element approximation for the steady-state closed-loop geothermal system Next Article A free boundary problem for a flexible loan based on the borrower asset

Threshold dynamics of a periodic stoichiometric model

School of Mathematical Sciences, South China Normal University, Guangzhou, 510631, China

^*Corresponding author: Xiao Yu
^*Corresponding author: Xiao Yu

Received: December 2022

Revised: March 2023

Early access: April 3, 2023

Published online: April 3, 2023

This work was supported by the NSF of China (12001205, 12171214) and Guangdong Basic and Applied Basic Research Foundation (2019A1515110179).

Abstract / Introduction Full Text(HTML) Figure(1) / Table(3) Related Papers Cited by

Abstract

In this paper, we investigate a general time-periodic stoichiometric ODE model, which describes the algal growth. The model system has singularities induced by the zero nitrogen concentration. We first observe that there exists a threshold value $ \lambda_0 $, which is exactly the principal eigenvalue of a nonlinear eigenvalue problem associated with a homogeneous of degree one system, and further show the global dynamics of the model system in terms of $ \lambda_0 $. In particular, we obtain the uniqueness of the positive periodic solution when $ \lambda_0>0 $. Finally, we carry out simulations to illustrate the analytic results.

Keywords:

Mathematics Subject Classification: Primary: 92D25, 34D23, 34C60; Secondary: 37C65.

Citation:

Full Text(HTML)

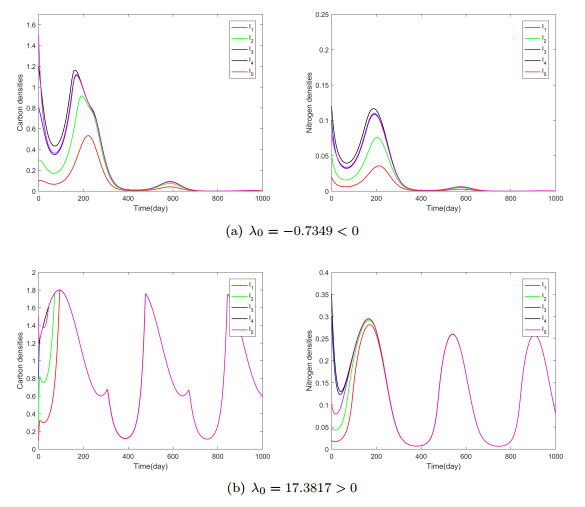

Figure 1. Global dynamics of system (3)

Download: Full-size image PowerPoint slide

Table 1. The parameters and their values of the system (1)

Parameter	Description	Value	Unit
$ \mathit{K} $	Light-dependent carrying capacity of algae	0–2	(mg C)/l
$ T $	Total $ N $ in the system	0–0.5	(mg N)/l
$ \mu $	Maximum growth rate of algae	1.2	$ \text{day}^{-1} $
$ q $	Minnimum N:C ratio of algae	0.0064	(mg N)/(mg C)
$ d $	N loss/recycling rate of algae	0.05	$ \text{day}^{-1} $
$ c $	Maximum N uptake rate of algae	3.2	(mg N)/(mg C)/day
$ a $	N-dependent half saturation constant of algae	0.128	(mg N)/l
^* Parameter values are referenced from [6,10].

| Show Table

DownLoad: CSV

Table 2. Parameter values for simulation

Parameter	Value$ {_1} $	Value$ {_2} $
$ \mathit{K} $	$ 1.0+0.5\sin(2\pi t/365) $	$ 1.2+0.6\sin(2\pi t/365) $
$ T $	$ 0.2 $	$ 0.5 $
$ \mu $	$ 0.07+0.05\sin(2\pi t/365) $	$ 0.8+0.5\sin(2\pi t/365) $
$ q $	$ 0.05+0.014\sin(2\pi t/365) $	$ 0.05+0.014\sin(2\pi t/365) $
$ d $	$ 0.03+0.02\cos(2\pi t/365) $	$ 0.03+0.02\cos(2\pi t/365) $
$ c $	$ 0.003+0.002\sin(2\pi t/365) $	$ 0.003+0.002\sin(2\pi t/365) $
$ a $	$ 0.08+0.048\sin(2\pi t/365) $	$ 0.08+0.048\sin(2\pi t/365) $

| Show Table

DownLoad: CSV

Table 3. Initial values

Set	$ I_1 $	$ I_2 $	$ I_3 $	$ I_4 $	$ I_5 $
$ L_1 $	$ (0.1,0.02) $	$ (0.3,0.05) $	$ (0.8,0.1) $	$ (1.2,0.12) $	$ (1.5,0.08) $
$ L_2 $	$ (0.1,0.02) $	$ (0.3,0.05) $	$ (0.8,0.3) $	$ (1.2,0.35) $	$ (1.5,0.3) $

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

[1]	M. Chen, M. Fan and Y. Kuang, Global dynamics in a stoichiometric food chain model with two limiting nutrients, Mathematical Biosciences, 289 (2017), 9-19. doi: 10.1016/j.mbs.2017.04.004.
[2]	M. Fan and K. Wang, Optimal harvesting policy for single population with periodic coefficients, Mathematical Biosciences and Engineering, 152 (1998), 165-177. doi: 10.1016/S0025-5564(98)10024-X.
[3]	H.-B. Hsu, K.-Y. Lam and F.-B. Wang, Single species growth consuming inorganic carbon with internal storage in a poorly mixed habitat, Journal of Mathematical Biology, 75 (2017), 1775-1825. doi: 10.1007/s00285-017-1134-5.
[4]	X.-H. Ji, S.-L. Yuan and H.-P. Zhu, Analysis of a stochastic model for algal bloom with nutrient recycling,, International Journal of Biomathematics, 9 (2016), 1650083, 27 pp. doi: 10.1142/S1793524516500832.
[5]	Y. Kuang, J. Huisman and J. J. Elser, Stoichiometric plant-herbivore models and their interpretation, Mathematical Biosciences and Engineering, 1 (2004), 215-222. doi: 10.3934/mbe.2004.1.215.
[6]	X. Li and H. Wang, A stoichiometrically derived algal growth model and its global analysis, Mathematical Biosciences and Engineering, 7 (2010), 825-836. doi: 10.3934/mbe.2010.7.825.
[7]	I. Loladze, Y. Kuang and J. J. Elser, Stoichiometry in producer-grazer systems: Linking energy flow with element cycling, Bulletin of Mathematical Biology, 62 (2000), 1137-1162.
[8]	I. Loladze, Y. Kuang, J. J. Elser and W. F. Fagan, Competition and stoichiometry: Coexistence of two predators on one prey, Theoretical Population Biology, 65 (2004), 1-15.
[9]	R. J. Radmer and B. C. Parker, Commercial applications of algae: opportunities and constraints, Journal of Applied Phycology, 6 (1994), 93-98.
[10]	D. Song, M. Fan, M. Chen and H. Wang, Dynamics of a periodic stoichiometric model with application in predicting and controlling algal bloom in Bohai Sea off China, Mathematical Biosciences and Engineering, 16 (2019), 119-138. doi: 10.3934/mbe.2019006.
[11]	P. Takáč, Asymptotic behavior of discrete-time semigroups of sublinear, strongly increasing mappings with applications to biology, Nonlinear Analysis: Theory, Methods & Applications, 14 (1990), 35-42. doi: 10.1016/0362-546X(90)90133-2.
[12]	T. C. Young and D. L. King, Interacting limits to algal growth: Light, phosphorus, and carbon dioxide availability, Water Research, 14 (1980), 409-412.
[13]	X.-W. Yu, S.-L. Yuan and T.-H. Zhang, The effects of toxin-producing phytoplankton and environmental fluctuations on the planktonic blooms, Nonlinear Dynamics, 91 (2018), 1653-1668.
[14]	L. Zhang, S.-T. Liu, T. Liu, C.-L. Yu and Z.-G. Hu, Control effect of periodic variation on the growth of harmful algal bloom causative species, Communications in Nonlinear Science and Numerical Simulation, 54 (2018), 185-201. doi: 10.1016/j.cnsns.2017.05.023.
[15]	S.-N. Zhao, S.-L. Yuan and H. Wang, Threshold behavior in a stochastic algal growth model with stoichiometric constraints and seasonal variation, Journal of Differential Equations, 268 (2020), 5113-5139. doi: 10.1016/j.jde.2019.11.004.
[16]	X.-Q. Zhao, Dynamical Systems in Population Biology, 2^nd edition, CMS Books in Mathematics/Ouvrages de Mathématiques de la SMC. Springer, Cham, 2017. doi: 10.1007/978-3-319-56433-3.
[17]	Y. Zhao, S.-L. Yuan and T.-H. Zhang, Stochastic periodic solution of a non-autonomous toxic-producing phytoplankton allelopathy model with environmental fluctuation, Communications in Nonlinear Science and Numerical Simulation, 44 (2017), 266-276. doi: 10.1016/j.cnsns.2016.08.013.
