# Cross-diffusion predator–prey model derived from the dichotomy between two behavioral predator states

• *Corresponding author: Hirofumi Izuhara

In memory of the late Professor Masayasu Mimura

• Cross-diffusion may be an important driving force of pattern formation in population models. Recently, a relation between cross-diffusion and reaction-diffusion systems has been revealed from the mathematical modeling point of view. In this paper, we derive a predator–prey model with cross-diffusion from a simple reaction-diffusion system with two behavioral states in the predator population and examine whether cross-diffusion can induce spatial patterns in predator–prey models. We assume that the predators have identical behavioral characteristics except for their mobility and searching activity for preys: we consider two states, namely less mobile predators searching for preys more actively than mobile predators. Our analysis shows that cross-diffusion derived in this situation can induce spatial patterns if the prey-density-dependent conversion rate from less mobile state to mobile one increases more rapidly than that from mobile to less mobile at high prey density.

Mathematics Subject Classification: Primary: 92D25, 35B36; Secondary: 35K57, 35B32, 35K20.

 Citation:

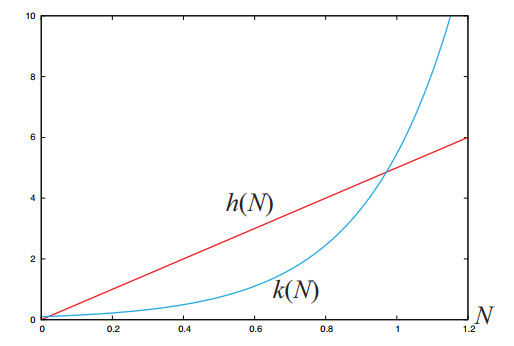

• Figure 1.  Graphs of the functions $h(N) = \alpha N$ and $k(N) = \beta e^{\gamma N}$, where the parameter values are $\alpha = 5.0$, $\beta = 0.1$ and $\gamma = 4.0$

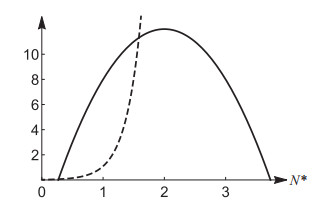

Figure 2.  The graphs of the left- (solid curve) and right-hand sides (dashed curve) of the inequality (21) against $N^*$. For example, (21) is satisfied with $N^* = 1$. The parameters are $K = 4$, $\alpha = 5$, $\beta = 0.1$, $\gamma = 4$

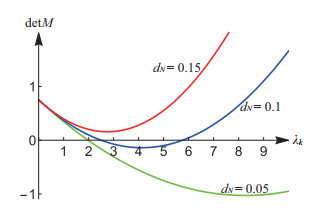

Figure 3.  The graphs of $\det M$ against $\lambda_k$. The three graphs from bottom to top correspond to the cases where $d_N = 0.05$ (green), $0.1$ (blue), and $0.15$ (red), respectively. The other parameters are fixed at $K = 4$, $\alpha = 5$, $\beta = 0.1$, $\gamma = 4$, $s = 1$, $a_1 = a_2 = 1$, $c_1 = c_2 = 1$, $r = 1$, $d_1 = 1$, $d_2 = 0$. Note that the parameters yield $N^* = 1$ and the parameters $K$, $\alpha$, $\beta$, and $\gamma$ are the same as in Figure 2

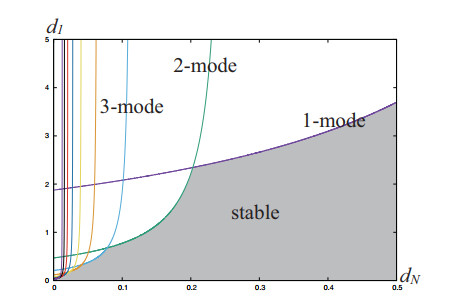

Figure 4.  Neutral stability curves satisfying $\det M = 0$ in $(d_N, d_1)$-plane. The gray region means that the positive constant solution $(N^*, P^*)$ is stable. On each curve, the indicated $n$-Fourier cosine mode has at least one zero eigenvalue. The parameter values are fixed as (22)

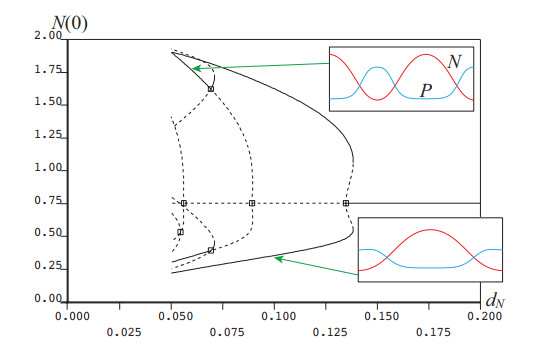

Figure 5.  Bifurcation diagram for $d_1 = 1.0$. The parameter values are fixed as (22). The horizontal axis is $d_N$ and the vertical axis is the boundary value of stationary solutions $N(x)$ at $x = 0$. The solid and the dashed curves respectively denote stable and unstable branches. The symbol $\square$ indicates a pitchfork bifurcation point. Two solution profiles for $d_N = 0.1$ and $d_N = 0.06$ are displayed in the figure, where the red and the blue curves are respectively $N$ and $P$

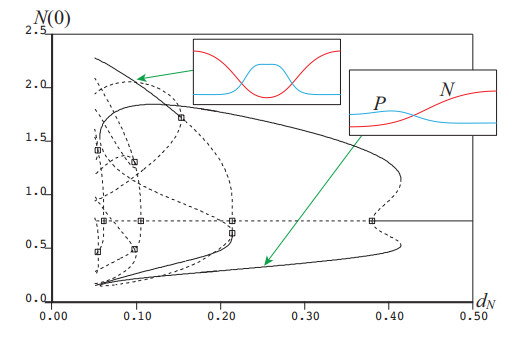

Figure 6.  Bifurcation diagram for $d_1 = 3.0$. The parameter values are fixed as (22). The horizontal axis is $d_N$ and the vertical axis is the boundary value of stationary solutions $N(x)$ at $x = 0$. Two solution profiles for $d_N = 0.25$ and $d_N = 0.1$ are displayed

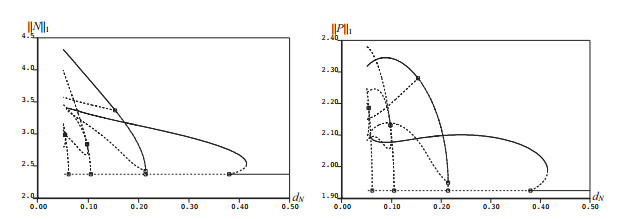

Figure 7.  Bifurcation diagram for $d_1 = 3.0$ when $d_N$ varies. (left) The vertical axis is $\|N\|_{L^1(0, \pi)}$. (right) The vertical axis is $\|P\|_{L^1(0, \pi)}$

•  [1] D. Alonso, F. Bartumeus and J. Catalan, Mutual interference between predators can give rise to Turing spatial patterns, Ecology, 83 (2002), 28-34. [2] M. Breden, L. Desvillettes and K. Fellner, Smoothness of moments of the solutions of discrete coagulation equations with diffusion, Monatsh. Math., 183 (2017), 437-463.  doi: 10.1007/s00605-016-0969-y. [3] E. Brocchieri, L. Corrias, H. Dietert and Y.-J. Kim, Evolution of dietary diversity and a starvation driven cross-diffusion system as its singular limit, J. Math. Biol., 83 (2021), Paper No. 58.  doi: 10.1007/s00285-021-01679-y. [4] J. A. Cañizo, L. Desvillettes and K. Fellner, Improved duality estimates and applications to reaction-diffusion equations, Commun. Partial Differ. Equ., 39 (2014), 1185-1204.  doi: 10.1080/03605302.2013.829500. [5] F. Conforto and L. Desvillettes, Rigorous passage to the limit in a system of reaction-diffusion equations towards a system including cross diffusions, Commun. Math. Sci., 12 (2014), 457-472.  doi: 10.4310/CMS.2014.v12.n3.a3. [6] F. Conforto, L. Desvillettes and C. Soresina, About reaction-diffusion systems involving the Holling-type Ⅱ and the Beddington–DeAngelis functional responses for predator–prey models, Nonlinear Differ. Equ. Appl., 25 (2018), Paper No. 24.  doi: 10.1007/s00030-018-0515-9. [7] L. Desvillettes, K. Fellner, M. Pierre and J. Vovelle, Global existence for quadratic systems of reaction-diffusion, Adv. Nonlinear Stud., 7 (2007), 491-511.  doi: 10.1515/ans-2007-0309. [8] L. Desvillettes and C. Soresina, Non-triangular cross-diffusion systems with predator–prey reaction terms, Ric. Mat., 68 (2019), 295-314.  doi: 10.1007/s11587-018-0403-y. [9] E. J. Doedel, B. E. Oldeman, A. R. Champneys, F. Dercole, T. Fairgrieve, Y. Kuznetsov, R. Paffenroth, B. Sandstede, X. Wang and C. Zhang, AUTO-07P: Continuation and bifurcation software for ordinary differential equations, [10] S.-I. Ei, H. Izuhara and M. Mimura, Infinite dimensional relaxation oscillation in aggregation-growth systems, Discrete Contin. Dyn. Syst. Ser. B, 17 (2012), 1859-1887.  doi: 10.3934/dcdsb.2012.17.1859. [11] J. Eliaš, D. Hilhorst, M. Mimura and Y. Morita, Singular limit for a reaction-diffusion-ODE system in a neolithic transition model, J. Differential Equations, 295 (2021), 39-69.  doi: 10.1016/j.jde.2021.05.044. [12] J. Eliaš, H. Izuhara, M. Mimura and B. Q. Tang, An aggregation model of cockroaches with fast-or-slow motion dichotomy, J. Math. Biol., 85 (2022), Paper No. 28.  doi: 10.1007/s00285-022-01797-1. [13] S.-C. Fu and J.-C. Tsai, Wave propagation in predator–prey systems, Nonlinearity, 28 (2015), 4389-4423.  doi: 10.1088/0951-7715/28/12/4389. [14] K. Fujii, C. S. Holling and P. M. Mace, A simple generalized model of attack by predators and parasites, Ecol. Res., 1 (1986), 141-156. [15] T. Funaki, H. Izuhara, M. Mimura and C. Urabe, A link between microscopic and macroscopic models of self-organized aggregation, Netw. Heterog. Media, 7 (2012), 705-740.  doi: 10.3934/nhm.2012.7.705. [16] M. P. Hassell,  The Dynamics of Arthropod Predator-Prey Systems, Princeton University Press, Princeton NJ, 1978. [17] M. P. Hassell,  The Spatial and Temporal Dynamics of Host-Parasitoid Interactions, Oxford University Press, 2000. [18] S.-B. Hsu, Z. Liu and P. Magal, A Holling predator-prey model with handling and searching predators, SIAM J. Appl. Math., 80 (2020), 1778-1795.  doi: 10.1137/20M1316007. [19] Y. Huang, How do cross-migration models arise?, Math Biosci., 195 (2005), 127-140.  doi: 10.1016/j.mbs.2005.01.005. [20] M. Iida, M. Mimura and H. Ninomiya, Diffusion, cross-diffusion and competitive interaction, J. Math. Biol., 53 (2006), 617-641.  doi: 10.1007/s00285-006-0013-2. [21] H. Izuhara and M. Mimura, Reaction-diffusion system approximation to the cross-diffusion competition system, Hiroshima Math. J., 38 (2008), 315-347. [22] O. A. Ladyzhenskaya, V. A. Solonnikov and N. N. Ural'ceva, Linear and Quasilinear Equations of Parabolic Type, Translations of Mathematical Monographs, Vol. 23 American Mathematical Society, Providence, R.I. 1968. [23] G. M. Lieberman, Second Order Parabolic Differential Equations, World Scientific Publishing Co., Inc., River Edge, NJ, 1996. doi: 10.1142/3302. [24] J. A. Metz and O. Diekmann, The Dynamics of Physiologically Structured Populations, Lecture Notes in Biomathematics, 68 Springer Berlin, 1986. [25] M. Mimura and K. Kawasaki, Spatial segregation in competitive interaction-diffusion equations, J. Math. Biol., 9 (1980), 49-64.  doi: 10.1007/BF00276035. [26] M. Mimura and J. D. Murray, On a diffusive prey-predator model which exhibits patchiness, J. Theoret. Biol., 75 (1978), 249-262.  doi: 10.1016/0022-5193(78)90332-6. [27] J. Morgan, Global existence for semilinear parabolic systems, SIAM J. Math. Anal., 20 (1989), 1128-1144.  doi: 10.1137/0520075. [28] H. Mori and D. A. Chant, The influence of prey density, relative humidity and starvation on the predacious behavior of Phytoseiulus persimilis Athias-Henriot (Acarina: Phytoseiidae), Can. J. Zool., 44 (1966), 483-491. [29] H. Murakawa, A relation between cross-diffusion and reaction-diffusion, Discrete Contin. Dyn. Syst. Ser. S, 5 (2012), 147-158.  doi: 10.3934/dcdss.2012.5.147. [30] R. Peng and J. Shi, Non-existence of non-constant positive steady states of two Holling type-Ⅱ predator–prey systems: Strong interaction case, J. Differential Equations, 247 (2009), 866-886.  doi: 10.1016/j.jde.2009.03.008. [31] L. A. Segel and J. L. Jackson, Dissipative structure: An explanation and an ecological example, J. Theor. Biol., 37 (1972), 545-559. [32] N. Shigesada, K. Kawasaki and E. Teramoto, Spatial segregation of interacting species, J. Theor. Biol., 79 (1979), 83-99.  doi: 10.1016/0022-5193(79)90258-3. [33] R. Temam, Navier-Stokes Equations. Theory and Numerical Analysis. Revised Edition., Studies in Mathematics and its Applications, 2, North-Holland Publishing Co., Amsterdam-New York, 1979. [34] H. Zhang, H. Izuhara and Y. Wu, Asymptotic stability of two types of traveling waves for some predator-prey models, Discrete Contin. Dyn. Syst. Ser. B, 26 (2021), 2323-2342.  doi: 10.3934/dcdsb.2021046.
