Optimal control of an epidemiological Covid-19 model with state constraint

Elisa Paparelli; Roberto Giambó; Helmut Maurer

doi:10.3934/dcdsb.2024095

Article Contents

2025, Volume 30, Issue 2: 422-448. Doi: 10.3934/dcdsb.2024095

This issue Previous Article The Hartman-Grobman theorem for mean hyperbolic systems Next Article Minimization with differential inequality and equality constraints applied to complete Lyapunov functions

Optimal control of an epidemiological Covid-19 model with state constraint

1.
Department of Mathematical Sciences "G. L. Lagrange", Dipartimento di Eccellenza 2018-2022, Italy
2.
Mathematics Division, School of Science and Technology, University of Camerino, Italy
3.
INFN, Sezione di Perugia, Italy
4.
Universität Münster, Institut für Analysis und Numerik, Münster, Germany

^*Corresponding author: Elisa Paparelli
^*Corresponding author: Elisa Paparelli

Received: December 2023

Revised: May 2024

Early access: July 15, 2024

Published online: July 15, 2024

The first author is supported by [insert grant information here].

Abstract / Introduction Full Text(HTML) Figure(12) / Table(2) Related Papers Cited by

Abstract

The outbreak of the Covid-19 pandemic has forced governments to impose restrictions on the individual liberty of people. Such containment measures have considerably reduced the number of infections but have also caused substantial damage. In this context the following main issue arises: which policy is the best to contain fatalities and economic losses complying with the intensive care units capacity? This issue is investigated through the study of an optimal control problem based on a SEAIRD epidemic model referring to Covid-19. A state constraint is imposed on the number of infected individuals in order to maintain the infectious level under the health-facilities capacity threshold. The challenge is to find a control function that minimizes the total cost which represents a trade-off between economic losses and human deaths. After showing the existence of an optimal solution, the necessary optimality conditions provided by Pontryagin Minimum Principle are derived. Numerical solutions are obtained by discretizing the optimal control problem and applying nonlinear optimization methods. Various scenarios with different initial conditions representing different degrees of infection are studied and the solutions are compared.The COVID-19 control problem treated here may also serve as a prototypical example for solving an epidemiological control model with state constraints.

Keywords:

Mathematics Subject Classification: Primary: 49N90, 49K15, 49M37; Secondary: 91-08.

Citation:

Full Text(HTML)

Figure 1. Covid-19 spread under control $ u\equiv u_0 = 0.001 $, according to equations (2)-(7) for the three initial conditions (17)-(18)-(19)

Download: Full-size image PowerPoint slide

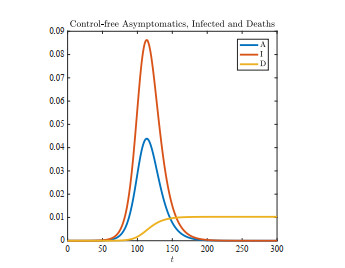

Figure 2. Uncontrolled Covid-19 spread according to SEAIRD system (2)-(7). Infected population $ I(t) $ reaches a peak of almost $ 0.09 $ after $ 114 $ days

Download: Full-size image PowerPoint slide

Figure 3. Case 1: Optimal solution for $ T = 70 $ without state constraint $ I(t) \le 0.005 $. (A) control $ u(t) $, (B) asymptomatic $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I (t) $

Download: Full-size image PowerPoint slide

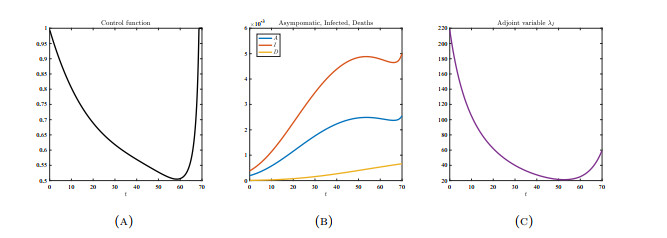

Figure 4. Case 1: Solution for terminal time $ T = 70 $ with state constraint $ I(t) \leq 0.005 $. (A) control $ u(t) $. (B) asymptomatics $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

Figure 5. Case 1: Solution for $ T = 200 $ with state constraint $ I(t) \leq 0.005 $. (A) control $ u(t) $ with boundary interval $ [56.2, 178] $. (B) asymptomatics $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

Figure 6. Case 2: Solution for $ T = 70 $ without state constraint $ I(t) \le I_{max} = 0.005 $. (A) control $ u(t) $. (B) asymptomatics $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

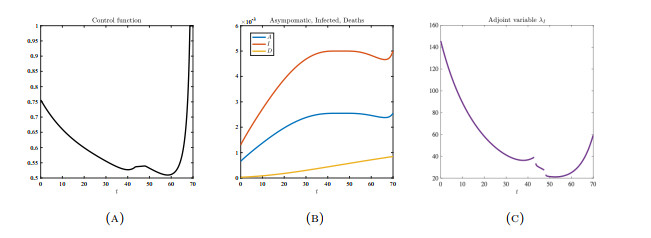

Figure 7. Case 2: Solution for $ T = 70 $ with state constraint $ I(t) \le I_{max} = 0.005 $. (A) control $ u(t) $ with boundary interval $ [43.2, 48] $. (B) asymptomatics $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

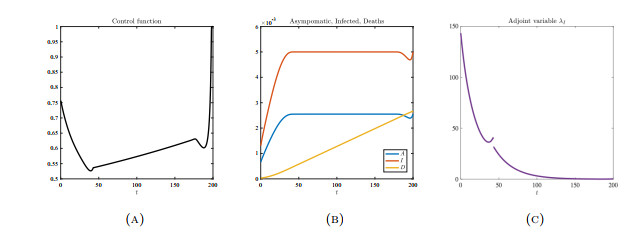

Figure 8. Case 2: Solution for $ T = 200 $ with state constraint $ I(t) \le 0.005 $. (A) control $ u(t) $ with boundary interval $ [42.5, 178] $. (B) asymptomatics $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

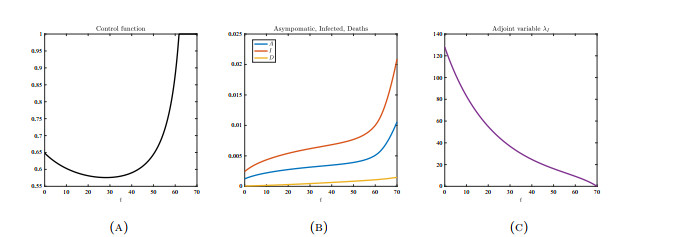

Figure 9. Case 3: solution for $ T = 70 $ without state constraint $ I(t) \le I_{max} = 0.005 $. (A) control $ u(t) $. (B) asymptomatics $ A(t) $, infected $ A(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

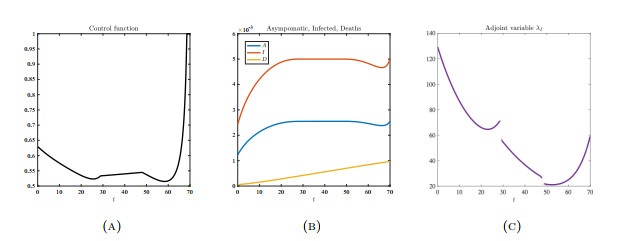

Figure 10. Case 3: Solution for $ T = 70 $ with state constraint $ I(t) \le I_{max} = 0.005 $. (A) control $ u(t) $ with boundary interval $ [28.5, 48] $. (B) asymptomatics $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

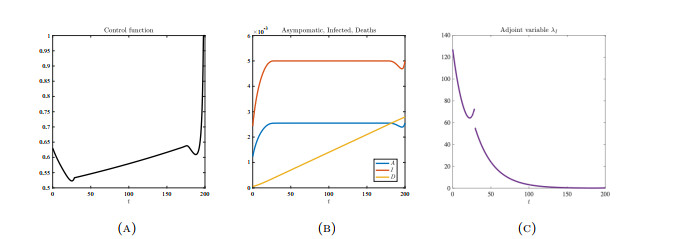

Figure 11. Case 3: Solution for $ T = 200 $ with state constraint $ I(t) \le 0.005 $. (A) control $ u(t) $ with boundary interval $ [28.4, 178] $. (B) asymptomatics $ A(t) $, infected $ I(t) $ and deaths $ D(t) $. (C) adjoint variable $ \lambda_I(t) $

Download: Full-size image PowerPoint slide

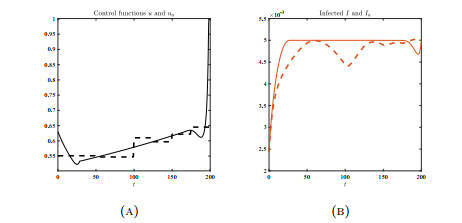

Figure 12. Case 3: Optimal and approximative solution for $ T = 200 $ on 6 segments of $ [0, T] $. (A) optimal control $ u(t) $ and approximative control $ u_a(t) $. (B) infected $ I(t) $ and approximative infected $ I_a(t) $

Download: Full-size image PowerPoint slide

Table 1. Parameter values

Parameter	Value	Definition
$ \beta $	$ 0.25 $	The infection rate
$ s $	$ 0.1 $	Proportion of infected people who develop symptoms
$ n $	$ 0.00003 $	The natural death rate
$ k $	$ 0.2 $	The latency period after infection
$ \epsilon $	$ 2/3 $	The fraction of asymptomatic
$ \gamma $	$ 0.14 $	The recovery period
$ \delta $	$ 0.0028 $	The death rate due to Covid-19
$ r $	$ 0.04 $	The economic discount rate
$ \sigma $	$ 2 $	A parameter that expresses the GDP losses on production
$ \theta $	$ 1/3 $	Elasticity parameter that expresses the dependence
		of GDP change on infection spread
$ a $	$ 7833.11 $	The social cost of human deaths due to Covid-19
$ I_{max} $	$ 0.005 $	Intensive Care Units availability

| Show Table

DownLoad: CSV

Table 2. Numerical results for the 3 scenarios of initial conditions (42), (43), (44)

$ X_0 $	$ T $	$ I \le I_{max} $	$ \min \, u(t) $	$ F $	$ I(T) $	$ A(T) $	$ D(T) $	$ \nu_T $
$ 55 $	$ 70 $	✘	$ 0.62 $	$ 3.6674 $	$ 0.0208 $	$ 0.01 $	$ 0.001 $	$ 0 $
$ 55 $	$ 70 $	√	$ 0.51 $	$ 3.8915 $	$ 0.005 $	$ 2.55 \cdot 10^{-3} $	$ 6.6 \cdot 10^{-4} $	$ 60 $
$ 55 $	$ 200 $	√	$ 0.53 $	$ 4.4084 $	$ 0.005 $	$ 2.55 \cdot 10^{-3} $	$ 2.5 \cdot 10^{-3} $	$ 0.3 $
$ 65 $	$ 70 $	✘	$ 0.59 $	$ 5.6448 $	$ 0.0209 $	$ 0.01 $	$ 0.001 $	$ 0 $
$ 65 $	$ 70 $	√	$ 0.51 $	$ 5.8888 $	$ 0.005 $	$ 2.55 \cdot 10^{-3} $	$ 8.5 \cdot 10^{-4} $	$ 59.2 $
$ 65 $	$ 200 $	√	$ 0.53 $	$ 6.3967 $	$ 0.005 $	$ 2.55 \cdot 10^{-3} $	$ 2.7 \cdot 10^{-3} $	$ 0.3 $
$ 70 $	$ 70 $	✘	$ 0.58 $	$ 7.0261 $	$ 0.0209 $	$ 0.0106 $	$ 0.0015 $	$ 0 $
$ 70 $	$ 70 $	√	$ 0.51 $	$ 7.2997 $	$ 0.005 $	$ 2.55 \cdot 10^{-3} $	$ 0.001 $	$ 59 $
$ 70 $	$ 200 $	√	$ 0.52 $	$ 7.8012 $	$ 0.005 $	$ 2.55 \cdot 10^{-3} $	$ 2.8\cdot 10^{-3} $	$ 0.3 $

| Show Table

DownLoad: CSV
