Angular spectra of linear dynamical systems in discrete time

Wolf-Jürgen Beyn; Thorsten Hüls

doi:10.3934/dcdsb.2024144

Article Contents

2025, Volume 30, Issue 6: 1859-1902. Doi: 10.3934/dcdsb.2024144

This issue Previous Article Exponential Runge-Kutta methods for delay equations in the sun-star abstract framework Next Article Construction of a contraction metric for non-smooth time-periodic systems

Angular spectra of linear dynamical systems in discrete time

Wolf-Jürgen Beyn and
Thorsten Hüls^,

Department of Mathematics, Bielefeld University, 33501 Bielefeld, Germany

^*Corresponding author: Thorsten Hüls
^*Corresponding author: Thorsten Hüls

Received: April 2024

Revised: September 2024

Early access: October 16, 2024

Published online: October 16, 2024

Abstract / Introduction Full Text(HTML) Figure(9) / Table(8) Related Papers Cited by

Abstract

In this work we introduce the notion of an angular spectrum for a linear discrete time nonautonomous dynamical system. The angular spectrum comprises all accumulation points of longtime averages formed by maximal principal angles between successive subspaces generated by the dynamical system. The angular spectrum is bounded by angular values which have previously been investigated by the authors. In this contribution we derive explicit formulas for the angular spectrum of some autonomous and specific nonautonomous systems. Based on a reduction principle we set up a numerical method for the general case; we investigate its convergence and apply the method to systems with a homoclinic orbit and a strange attractor. Our main theoretical result is a theorem on the invariance of the angular spectrum under summable perturbations of the given matrices (roughness theorem). It applies to systems with a so-called complete exponential dichotomy (CED), a concept which we introduce in this paper and which imposes more stringent conditions than those underlying the exponential dichotomy spectrum.

Keywords:

Mathematics Subject Classification: Primary: 37E45, 37M25, 34D09, 65Q10.

Citation:

Full Text(HTML)

Figure 1. Computation of the angle between two planes in $ \mathbb{R}^3 $

Download: Full-size image PowerPoint slide

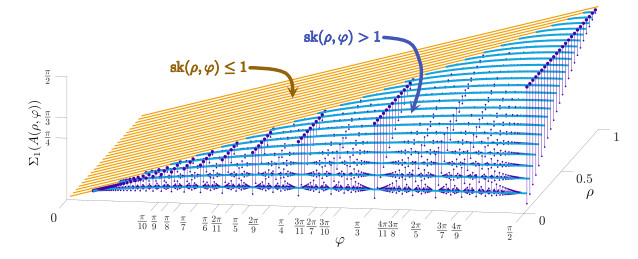

Figure 2. Outer angular spectrum of the autonomous system $ u_{n+1} = A(\rho, \varphi)u_n $ for $ A(\rho, \varphi) $ from (10) as a function of the parameters $ \rho \in (0, 1] $, $ \varphi\in (0, \frac{\pi}{2}] $

Download: Full-size image PowerPoint slide

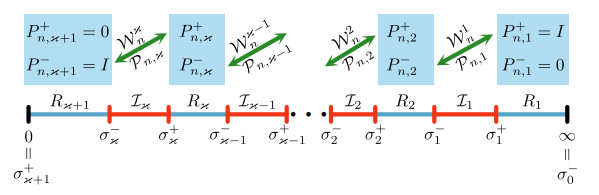

Figure 3. Illustration of spectral intervals (red), of resolvent intervals (blue) and the construction of spectral bundles with corresponding fiber projectors

Download: Full-size image PowerPoint slide

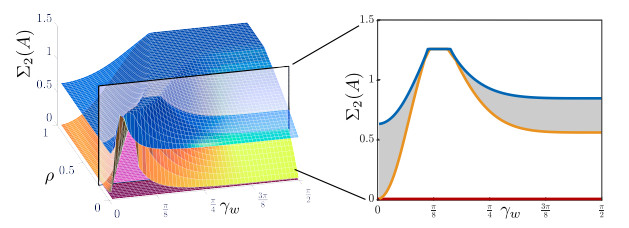

Figure 4. Computation of the second angular spectrum for the non-resonant case $ \varphi = 1.25 $. Left panel: For each $ (\gamma_w, \rho) $-pair we obtain point spectrum only (red plane at $ 0 $ and blue surface). Right panel: Point spectrum for fixed $ \rho = 0.2 $

Download: Full-size image PowerPoint slide

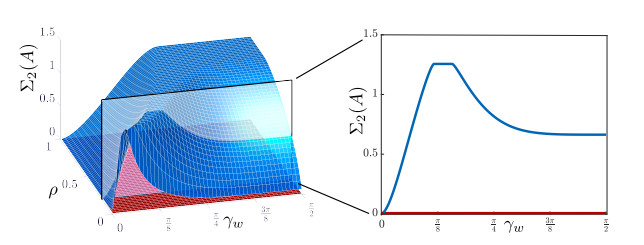

Figure 5. Computation of the second angular spectrum for the resonant case $ \varphi = \frac 25 \pi $. Left panel: For each $ (\gamma_w, \rho) $-pair the spectrum consists of the point spectrum $ 0 $ (red plane) and of the interval between the orange and the blue surface. Note that in certain areas, both surfaces coincide and the spectral intervals degenerate to a point. In the intersection of this figure with the plane at $ \rho = 0.2 $ (right panel) the spectrum consists of the curves and the grey area between them

Download: Full-size image PowerPoint slide

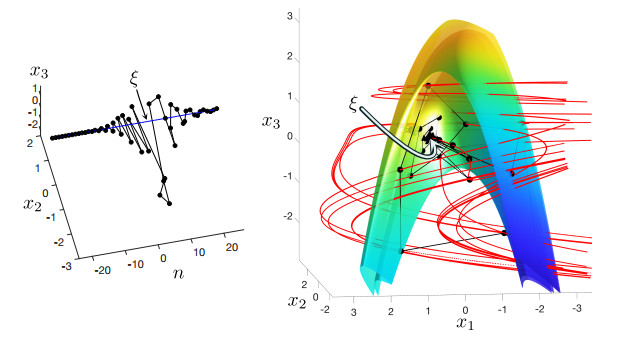

Figure 6. Center part of a homoclinic orbit of (61) (left). The same orbit in phase space (right) with approximations of unstable (red) and stable manifolds of $ \xi $

Download: Full-size image PowerPoint slide

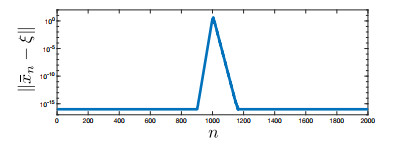

Figure 7. Distance of a homoclinic orbit¹ $ (\bar x_n)_{n\in\{0, 1, \dots, 2000\}} $ of the $ 3 $D-Hénon system (61) to the fixed point $ \xi $ in a semilogarithmic scale

Download: Full-size image PowerPoint slide

Figure 8. Construction of multi-humped orbits

Download: Full-size image PowerPoint slide

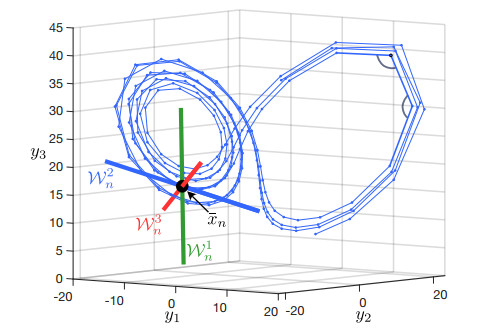

Figure 9. Part of an $ F_{0.05} $-orbit $ (\bar x_n)_{n\in\{2300, \dots, 2500\}} $ (connected with lines) of the Lorenz system (80). For $ n = 2400 $ the three trace spaces $ \mathcal{W}_n^{1, 2, 3} $ are shown

Download: Full-size image PowerPoint slide

Table 1. Outer angular values for (9)

angular value	achieved in
$ \theta_1^{\inf, \varliminf} = 0 $	$ V = \mathcal{W}_0^1 $
$ \theta_1^{\sup, \varlimsup} = \varphi $	$ V= {\mathrm{span}} \begin{pmatrix}1&0&0\end{pmatrix}^\top $
$ \theta_2^{\inf, \varliminf} = 0 $	$ V = \mathcal{W}_0^2 $
$ \theta_2^{\sup, \varlimsup} = \varphi $	$ V= {\mathrm{span}} \left(\begin{pmatrix}0&0&1\end{pmatrix}^\top, \begin{pmatrix}1&0&0\end{pmatrix}^\top\right) $

| Show Table

DownLoad: CSV

Table 2. Construction of $ (A_n)_{n\in \mathbb{N}_0} $

$n$	0	1	2	3	4	5	6	7	8	$ \dots$	15	16	17	$ \dots$	32	33
$A_n$	$D$	$D$	$X$	$D$	$D$	$D$	$D$	$X$	$D$	$\dots$	$D$	$X$	$D$	$ \dots$	$D$	$X$

| Show Table

DownLoad: CSV

Table 3. Numerical computation of the dichotomy spectrum and of outer angular spectra for the nonautonomous $ 3 $D-Hénon system (62)

$ N $	$ \Sigma_{\mathrm{ED}}^{\mathrm{approx}} $	$ \Sigma_1^N $	$ \Sigma_2^N $
$ 50 $	$ [0.775, 0.787]\cup[1.467, 1.482] $	$ \{0.358\}\cup [1.108, 1,264] $	$ \{0.487\}\cup[1.211, 1.275] $
$ 100 $	$ [0.776, 0.785]\cup[1.468, 1.482] $	$ \{0.178\}\cup [1.222, 1,307] $	$ \{0.242\}\cup[1.289, 1.296] $
$ 1000 $	$ [0.779, 0.784]\cup[1.470, 1.478] $	$ \{0.018\}\cup [1.325, 1,333] $	$ \{0.024\}\cup[1.324, 1.325] $
$ 2000 $	$ [0.779, 0.784]\cup[1.471, 1.477] $	$ \{0.009\}\cup [1.330, 1,331] $	$ \{0.012\}\cup[1.326, 1.327] $

| Show Table

DownLoad: CSV

Table 4. Numerical computation of the dichotomy spectrum and of outer angular spectra for the autonomous $ 3 $D-Hénon system (63)

$ N $	$ \Sigma_{\mathrm{ED}}^{\mathrm{approx}} $	$ \Sigma_1^N $	$ \Sigma_2^N $
$ 50 $	$ [0.781, 0.782]\cup[1.473, 1.474] $	$ \{10^{-16}\}\cup [1.328, 1,344] $	$ \{10^{-16}\}\cup[1.320, 1.337] $
$ 100 $	$ [0.781, 0.782]\cup[1.473, 1.474] $	$ \{10^{-16}\}\cup [1.328, 1,341] $	$ \{10^{-16}\}\cup[1.321, 1.334] $
$ 1000 $	$ [0.781, 0.782]\cup[1.473, 1.474] $	$ \{10^{-16}\}\cup [1.335, 1,336] $	$ \{10^{-15}\}\cup[1.328, 1.328] $
$ 2000 $	$ [0.781, 0.782]\cup[1.473, 1.474] $	$ \{10^{-16}\}\cup [1.335, 1,336] $	$ \{10^{-15}\}\cup[1.328, 1.328] $

| Show Table

DownLoad: CSV

Table 5. Numerical computation of the dichotomy spectrum and of outer angular spectra for the $ 3 $D-Hénon system w.r.t. multi-humped homoclinic orbits with center parts of length $ M $

$ M $	$ \Sigma_{\mathrm{ED}}^{\mathrm{approx}} $
$ 50 $	$ [0.7230, 0.7234]\cup [0.8298, 0.8302]\cup[1.4992, 1.4994] $
$ 100 $	$ [0.7492, 0.7494]\cup[0.8077, 0.8079]\cup[1.4868, 1.4870] $
$ 200 $	$ [0.7634, 0.7662] \cup [0.7935, 0.7966]\cup [1.4775, 1.4827] $
$ 400 $	$ [0.7733, 0.7884] \cup [1.4741, 1.4791] $
$M$	$\Sigma_1^{2001}$	$\Sigma_2^{2001}$
$50$	$\{0.353, 1.135, 1.260\} $	$\{0.480, 1.248, 1.264\}$
$100$	$\{0.177, 1.229, 1.300\}$	$\{0.239, 1.295, 1.296\}$
$200$	$\{0.088, 1.281, 1.318\}$	$\{0.120, 1.312, 1.313\}$
$400$	$\{0.044\}\cup[1.311, 1.314]$	$\{0.060\}\cup[1.320, 1.321]$

| Show Table

DownLoad: CSV

Table 6. Dichotomy spectrum and angular spectra for the $ h $-step Lorenz map w.r.t. an orbit on the Lorenz attractor

$ h $	$ \Sigma_{\mathrm{ED}}^{\mathrm{approx}} $
$ 0.05 $	$ [0.4821, 0.4833]\cup [0.9995, 1.0005]\cup[1.0445, 1.0478] $
$ 0.1 $	$ [0.2325, 0.2332]\cup [0.9995, 1.0007]\cup[1.0928, 1.0971] $
$ 0.2 $	$ [0.0542, 0.0544]\cup [0.9994, 1.0006]\cup[1.1956, 1.2004] $
$h$	$\Sigma_1^{10001}$	$\Sigma_2^{10001}$
$0.05$	$\{0.2039, 0.3803, 0.4234\} $	$\{0.0689, 0.3604, 0.4188\}$
$0.1$	$\{0.3925, 0.7282, 0.8268\} $	$\{0.1356, 0.7021, 0.8197\}$
$0.2$	$\{0.6552, 0.7334, 0.9727\} $	$\{0.2475, 0.7934, 0.9752\}$

| Show Table

DownLoad: CSV

Table 7. Angle between successive iterates on average for the $ h $-step Lorenz map (80)

$ h $	$ 0.05 $	$ 0.1 $	$ 0.2 $
angle on average	$ 0.4227 $	$ 0.8322 $	$ 1.0993 $

| Show Table

DownLoad: CSV

Table 8. Normalized angular values $ \theta_{1, h, T}^{\mathrm{cont}} $ and $ \theta_{2, h, T}^{\mathrm{cont}} $ for the $ h $-step Lorenz map (80)

$ h $	$ 0.025 $	$ 0.05 $	$ 0.1 $	$ 0.2 $
$ \theta_{1, h, T}^{\mathrm{cont}} $	$ 8.4798 $	$ 8.4672 $	$ 8.2896 $	$ 4.8752 $
$ \theta_{2, h, T}^{\mathrm{cont}} $	$ 8.3816 $	$ 8.3753 $	$ 8.2209 $	$ 4.8941 $

| Show Table

DownLoad: CSV
