Networks of Piecewise smooth Filippov systems and stability of synchronous periodic orbits

Luca Dieci; Cinzia Elia; Luciano Lopez

doi:10.3934/dcdsb.2024146

Article Contents

2025, Volume 30, Issue 6: 1996-2026. Doi: 10.3934/dcdsb.2024146

This issue Previous Article Extracting coherent sets in aperiodically driven flows from generators of Mather semigroups Next Article Piecewise quadratic Lyapunov functions for stochastic differential equations by linear programming

Networks of Piecewise smooth Filippov systems and stability of synchronous periodic orbits

1.
School of Mathematics, Georgia Tech, Atlanta, GA 30332, U.S.A.
2.
Dipartimento di Matematica, Univ. of Bari, I-70100, Bari, Italy

^*Corresponding author: Luca Dieci
^*Corresponding author: Luca Dieci

Received: February 1, 2024

Revised: September 1, 2024

Early access: October 15, 2024

Published online: October 15, 2024

This work has been partially supported by the GNCS-Indam group and the PRIN2017 [2017E844SL].

Abstract / Introduction Full Text(HTML) Figure(10) / Table(2) Related Papers Cited by

Abstract

In this work, we considered networks of piecewise- smooth (PWS) differential equations of Filippov type, which we call PWS Filippov networks, whose single agent has an asymptotically stable periodic orbit, that becomes a synchronous periodic orbit for the network. We investigated the stability of the synchronous periodic orbit by using both the master stability function (MSF) tool and direct integration of the "regularized network'', that is the network obtained by replacing the PWS differential agents by a suitable smooth approximation. We present several new results on the class of Filippov PWS networks that depend on several coupling matrices. (i) We studied an associated MSF that depends on several coupling strengths, and (ii) we employed a one-parameter family of regularized networks, observed that it is equivalent to a network of regularized agents, and showed that its solutions converge to the solutions of the PWS network as the regularization parameter goes to 0. Furthermore, when the synchronous periodic orbit is asymptotically stable and does not slide on the discontinuity surface, (iii) we showed that the regularized network has an asymptotically stable synchronous periodic orbit as well. Finally, (iv) we performed detailed numerical experiments on two different problems, highlighting specific characteristics of PWS networks with a synchronous periodic orbit. More specifically, (a) first, we considered the case of a network of planar PWS oscillators, with the network depending on two different coupling parameters and the synchronous periodic trajectory undergoing sliding regime; then, (b) we considered a network where the single agent obeys 3D PWS dynamics with the synchronous periodic orbit undergoing repeated crossing of two distinct discontinuity planes. On our two problems, we also showed how the convergence behavior to the synchronous subspace can be used to obtain the same rates of attractivity predicted by the MSF.

Keywords:

Mathematics Subject Classification: Primary: 34A36, 34D06; Secondary: 34D08.

Citation:

Full Text(HTML)

Figure 1. Model periodic orbit of (4) with generic events

Download: Full-size image PowerPoint slide

Figure 2. Stick slip coupled oscillators

Download: Full-size image PowerPoint slide

Figure 3. Equation (33). Stability region in function of $ \eta_1 $ and $ \eta_2 $. Dark dots indicate stability

Download: Full-size image PowerPoint slide

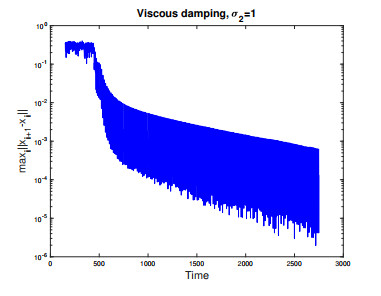

Figure 4. Regularization of equation (33), $ \epsilon = 0.01 $. Synchronization of 32 oscillators for viscous coupling

Download: Full-size image PowerPoint slide

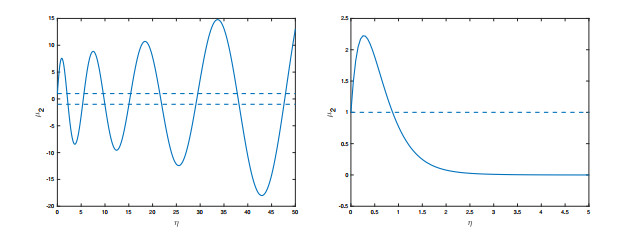

Figure 5. Synchronization intervals for (33) with $ E_1 $ only on the left (i.e., $ \sigma_2 = 0 $) and for $ E_1+E_2 $ on the right

Download: Full-size image PowerPoint slide

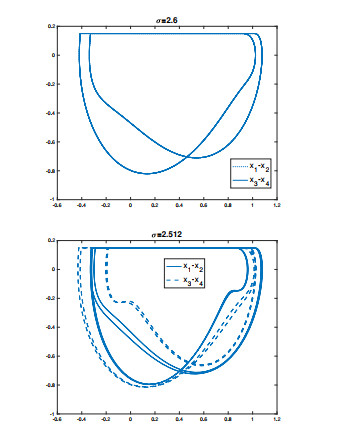

Figure 6. Equation (33). Numerical investigation of flip bifurcation. Left: invariant curve for two coupled oscillators and $ \sigma_1 = 2.6 $. The two agents are not synchronized but there is a phase shift between the two. Right: invariant curve for two coupled oscillators and $ \sigma_1 = 2.512 $

Download: Full-size image PowerPoint slide

Figure 7. Equation (35). Synchronization region in the $ (\eta_1, \eta_2) $-plane. There is no synchronization in the white part of the figure

Download: Full-size image PowerPoint slide

Figure 8. Equation (35). $ N = 8 $, $ \sigma_1 = 1.95 $, $ \sigma_2 = 0.03 $. Left: Convergence to synchronous periodic orbit. Right: Transient behavior and convergence for the first agent

Download: Full-size image PowerPoint slide

Figure 9. Equation (35), with matrices $ E_1 $ and $ E_2 $ as in (37), Synchronization region in the $ (\eta_1-\eta_2) $-plane. There is no synchronization in the white region on the bottom left of the figure

Download: Full-size image PowerPoint slide

Figure 10. Convergence rates and line of best fit for the errors. Left: Example 3.1. Right: Example 3.2

Download: Full-size image PowerPoint slide

Table 1. Equation (33). Synchronization intervals for $ \sigma_2 = 0 $. Values of $ \eta_1 $ must be in the intervals $ [\alpha_{2i+1}, \alpha_{2(i+1)}] $, $ i = 0, \ldots, 7 $, to ensure stability of synchronous periodic orbit for just elastic coupling $ E_1 $

$ \alpha_{2i+1} $ $ \alpha_{2(i+1)} $

2.0521 2.2022

5.3053 5.5556

9.6096 9.9600

14.9650 15.4154

21.3714 21.9219

28.9289 29.5295

37.4875 38.1882

47.1972 47.9479

| Show Table

DownLoad: CSV

Table 2. $ \sigma_{\min} $ is the minimum value of $ \sigma $ required in order to stably synchronize $ N $ agents coupled with matrix $ E_1+E_2 $

N $ \sigma_{\min} $

4 1.7234

8 6.6349

16 26.2845

32 104.8850

| Show Table

DownLoad: CSV
