Lyapunov exponents of renewal equations: Numerical approximation and convergence analysis

Dimitri Breda; Davide Liessi

doi:10.3934/dcdsb.2024152

Article Contents

2025, Volume 30, Issue 6: 1930-1951. Doi: 10.3934/dcdsb.2024152

This issue Previous Article Construction of a contraction metric for non-smooth time-periodic systems Next Article Extracting coherent sets in aperiodically driven flows from generators of Mather semigroups

Lyapunov exponents of renewal equations: Numerical approximation and convergence analysis

Dimitri Breda and
Davide Liessi^,

CDLab – Computational Dynamics Laboratory, Department of Mathematics, Computer Science and Physics, University of Udine, Via delle Scienze 206, 33100 Udine, Italy

^*Corresponding author: Davide Liessi
^*Corresponding author: Davide Liessi

Received: March 2024

Revised: October 2024

Early access: October 23, 2024

Published online: October 23, 2024

Abstract / Introduction Full Text(HTML) Figure(3) Related Papers Cited by

Abstract

We propose a numerical method for computing the Lyapunov exponents of renewal equations (delay equations of Volterra type), consisting first of applying a discrete QR technique to the associated evolution family suitably posed on a Hilbert state space, and second in reducing to a finite dimension each evolution operator in the obtained time sequence. The reduction to finite dimension relies on a Fourier projection in the state space and on pseudospectral collocation in the forward time step. A rigorous proof of convergence of both the discretized operators and the approximated exponents is provided. A MATLAB implementation is also included for completeness.

Keywords:

Mathematics Subject Classification: Primary: 37M25, 45D05, 65R20; Secondary: 47D99.

Citation:

Full Text(HTML)

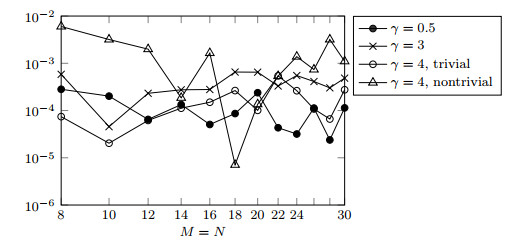

Figure 1. Absolute errors on the dominant LEs of the RE with quadratic nonlinearity (46) for values of $ \gamma $ corresponding to the stable trivial equilibrium ($ \gamma = 0.5 $), the stable nontrivial equilibrium ($ \gamma = 3 $), and the stable periodic orbit ($ \gamma = 4 $). For the last one, both the trivial and the dominant nontrivial exponents are shown. The errors are measured with respect to the exponents computed via $\texttt{eigTMNc}$. The final time is $ t_{\text{f}} = 1000 $

Download: Full-size image PowerPoint slide

Figure 2. Absolute errors on the dominant LEs of the RE with quadratic nonlinearity (46) for values of $ \gamma $ corresponding to the stable trivial equilibrium ($ \gamma = 0.5 $), the stable nontrivial equilibrium ($ \gamma = 3 $), and the stable periodic orbit ($ \gamma = 4 $). For the last one, both the trivial and the dominant nontrivial exponents are shown. The errors are measured with respect to the exponents computed via $\texttt{eigTMNc}$. The exponents are computed for $ M = N = 16 $

Download: Full-size image PowerPoint slide

Figure 3. Diagram of the first two dominant (in descending order) LEs of the RE with quadratic nonlinearity (46) when varying $ \gamma $, computed with $ M = N = 15 $ and $ t_{\text{f}} = 1000 $

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	L. Y. Adrianova, Introduction to Linear Systems of Differential Equations, Transl. Math. Monogr., 146, American Mathematical Society, Providence, RI, 1995.
[2]	M. Badawy and E. Van Vleck, Perturbation theory for the approximation of stability spectra by QR methods for sequencies of linear operators on a Hilbert space, Linear Algebra Appl., 437 (2012), 37-59. doi: 10.1016/j.laa.2012.01.036.
[3]	G. Benettin, L. Galgani, A. Giorgilli and J. M. Strelcyn, Lyapunov characteristic exponents for smooth dynamical systems and for Hamiltonian systems; a method for computing all of them. Part 1: Theory, Meccanica, 15 (1980), 9-20. doi: 10.1007/BF02128236.
[4]	D. Breda, Nonautonomous delay differential equations in Hilbert spaces and Lyapunov exponents, Differential Integral Equations, 23 (2010), 935-956. doi: 10.57262/die/1356019118.
[5]	D. Breda and S. Della Schiava, Pseudospectral reduction to compute Lyapunov exponents of delay differential equations, Discrete Contin. Dyn. Syst. Ser. B, 23 (2018), 2727-2741. doi: 10.3934/dcdsb.2018092.
[6]	D. Breda, O. Diekmann, M. Gyllenberg, F. Scarabel and R. Vermiglio, Pseudospectral discretization of nonlinear delay equations: New prospects for numerical bifurcation analysis, SIAM J. Appl. Dyn. Syst., 15 (2016), 1-23. doi: 10.1137/15M1040931.
[7]	D. Breda, O. Diekmann, D. Liessi and F. Scarabel, Numerical bifurcation analysis of a class of nonlinear renewal equations, Electron. J. Qual. Theory Differ. Equ., 2016 (2016), Paper No. 65, 24 pp.
[8]	D. Breda, O. Diekmann, S. Maset and R. Vermiglio, A numerical approach for investigating the stability of equilibria for structured population models, J. Biol. Dyn., 7 (2013), 4-20. doi: 10.1080/17513758.2013.789562.
[9]	D. Breda and D. Liessi, Approximation of eigenvalues of evolution operators for linear renewal equations, SIAM J. Numer. Anal., 56 (2018), 1456-1481. doi: 10.1137/17M1140534.
[10]	D. Breda and D. Liessi, Approximation of eigenvalues of evolution operators for linear coupled renewal and retarded functional differential equations, Ric. Mat., 69 (2020), 457-481. doi: 10.1007/s11587-020-00513-9.
[11]	D. Breda and D. Liessi, Floquet theory and stability of periodic solutions of renewal equations, J. Dynam. Differential Equations, 33 (2021), 677-714.
[12]	D. Breda and D. Liessi, A practical approach to computing Lyapunov exponents of renewal and delay equations, Math. Biosci. Eng., 21 (2024), 1249-1269. doi: 10.3934/mbe.2024053.
[13]	D. Breda, D. Liessi and R. Vermiglio, Piecewise discretization of monodromy operators of delay equations on adapted meshes, J. Comput. Dyn., 9 (2022), 103-121. doi: 10.3934/jcd.2022004.
[14]	D. Breda, S. Maset and R. Vermiglio, Approximation of eigenvalues of evolution operators for linear retarded functional differential equations, SIAM J. Numer. Anal., 50 (2012), 1456-1483. doi: 10.1137/100815505.
[15]	D. Breda and E. Van Vleck, Approximating Lyapunov exponents and Sacker–Sell spectrum for retarded functional differential equations, Numer. Math., 126 (2014), 225-257. doi: 10.1007/s00211-013-0565-1.
[16]	H. Brezis, Functional Analysis, Sobolev Spaces and Partial Differential Equations, Springer, New York, 2011.
[17]	H. Brunner, Collocation Methods for Volterra Integral and Related Functional Differential Equations, Cambridge Monogr. Appl. Comput. Math., 15, Cambridge University Press, Cambridge, 2004.
[18]	C. Canuto, M. Y. Hussaini, A. Quarteroni and T. A. Zang Jr., Spectral Methods in Fluid Dynamics, Springer Ser. Comput. Phys., Springer-Verlag, New York, 1988..
[19]	C. Chicone and Y. Latushkin, Evolution Semigroups in Dynamical Systems and Differential Equations, Math. Surveys Monogr., 70, American Mathematical Society, Providence, RI, 1999.
[20]	L. Dieci and C. Elia, The singular value decomposition to approximate spectra of dynamical systems. theoretical aspects, J. Differential Equations, 230 (2006), 502-531. doi: 10.1016/j.jde.2006.08.007.
[21]	L. Dieci, M. S. Jolly and E. S. Van Vleck, Numerical techniques for approximating Lyapunov exponents and their implementation, J. Comput. Nonlinear Dynam., 6 (2011), 011003, 7pp. doi: 10.1115/1.4002088.
[22]	L. Dieci and E. S. Van Vleck, Lyapunov spectral intervals: Theory and computation, SIAM J. Numer. Anal., 40 (2002), 516-542. doi: 10.1137/S0036142901392304.
[23]	L. Dieci and E. S. Van Vleck, LESLISand LESLIL: Codes for approximating Lyapunov exponents of linear systems, 2004, URL https://dieci.math.gatech.edu/software-les.html.
[24]	L. Dieci and E. S. Van Vleck, On the error in computing Lyapunov exponents by QR methods, Numer. Math., 101 (2005), 619-642. doi: 10.1007/s00211-005-0644-z.
[25]	L. Dieci and E. S. Van Vleck, Perturbation theory for approximation of Lyapunov exponents by QR methods, J. Dynam. Differential Equations, 18 (2006), 815-840. doi: 10.1007/s10884-006-9024-3.
[26]	L. Dieci and E. S. Van Vleck, On the error in QR integration, SIAM J. Numer. Anal., 46 (2008), 1166-1189. doi: 10.1137/06067818X.
[27]	O. Diekmann, P. Getto and M. Gyllenberg, Stability and bifurcation analysis of Volterra functional equations in the light of suns and stars, SIAM J. Math. Anal., 39 (2008), 1023-1069. doi: 10.1137/060659211.
[28]	O. Diekmann and M. Gyllenberg, Equations with infinite delay: Blending the abstract and the concrete, J. Differ. Equ., 252 (2012), 819-851. doi: 10.1016/j.jde.2011.09.038.
[29]	O. Diekmann, M. Gyllenberg, J. A. J. Metz, S. Nakaoka and A. M. de Roos, Daphnia revisited: Local stability and bifurcation theory for physiologically structured population models explained by way of an example, J. Math. Biol., 61 (2010), 277-318. doi: 10.1007/s00285-009-0299-y.
[30]	O. Diekmann, S. A. van Gils, S. M. Verduyn Lunel and H.-O. Walther, Delay Equations: Functional-, Complex- and Nonlinear Analysis, Appl. Math. Sci., 110, Springer-Verlag, New York, 1995.
[31]	O. Diekmann and S. M. Verduyn Lunel, Twin semigroups and delay equations, J. Differ. Equ., 286 (2021), 332-410. doi: 10.1016/j.jde.2021.02.052.
[32]	A. Eden, C. Foias and R. Temam, Local and global Lyapunov exponents, J. Dynam. Differential Equations, 3 (1991), 133-177. doi: 10.1007/BF01049491.
[33]	G. Gripenberg, S.-O. Londen and O. Staffans, Volterra Integral and Functional Equations, Encyclopedia Math. Appl., 34, Cambridge University Press, Cambridge, 1990.
[34]	K. A. Lythgoe, L. Pellis and C. Fraser, Is HIV short-sighted? Insights from a multistrain nested model, Evolution, 67 (2013), 2769-2782. doi: 10.1111/evo.12166.
[35]	E. Messina, E. Russo and A. Vecchio, A stable numerical method for Volterra integral equations with discontinuous kernel, J. Math. Anal. Appl., 337 (2008), 1383-1393. doi: 10.1016/j.jmaa.2007.04.059.
[36]	V. I. Oseledets, A multiplicative ergodic theorem. Lyapunov characteristic numbers for dynamical systems, Trans. Moscow Math. Soc., 19 (1968), 197-231, English translation of [Trudy Moskov. Mat. Obšč., 19 (1968), 179-210 (in Russian)].
[37]	J. Ripoll and J. Font, Numerical approach to an age-structured Lotka–Volterra model, Math. Biosci. Eng., 20 (2023), 15603-15622. doi: 10.3934/mbe.2023696.
[38]	H. L. Royden and P. M. Fitzpatrick, Real Analysis, 4th edition, Prentice Hall, 2010.
[39]	D. Ruelle, Characteristic exponents and invariant manifolds in Hilbert space, Ann. Math., 115 (1982), 243-290. doi: 10.2307/1971392.
[40]	F. Scarabel, O. Diekmann and R. Vermiglio, Numerical bifurcation analysis of renewal equations via pseudospectral approximation, J. Comput. Appl. Math., 397 (2021), Paper No. 113611, 21 pp. doi: 10.1016/j.cam.2021.113611.
