Dynamics and pattern formation in a diffusive Beddington-DeAngelis predator-prey model with fear effect

Aung Zaw Myint; Aye Chan May; Mya Hnin Lwin; Toe Toe Shwe; Adisak Seesanea

doi:10.3934/dcdsb.2025113

Article Contents

2026, Volume 31: 359-376. Doi: 10.3934/dcdsb.2025113 open access

This volume Previous Article Exponential synchronization of the Kuramoto model with inertia and frustration under locally coupled networks Next Article Wave breaking criteria for a generalized Dullin$ - $Gottwald$ - $Holm equation with weak dissipation

Dynamics and pattern formation in a diffusive Beddington-DeAngelis predator-prey model with fear effect

1.
Department of Mathematics, University of Mandalay, Mandalay 05032, Myanmar
2.
Sirindhorn International Institute of Technology, Thammasat University, Pathum Thani 12120, Thailand

^*Corresponding author: Adisak Seesanea
^*Corresponding author: Adisak Seesanea

Received: December 2024

Revised: May 2025

Early access: July 2025

Published online: July 2025

Abstract / Introduction Full Text(HTML) Figure(6) Related Papers Cited by

Abstract

In this paper, dynamical properties and positive steady states of a diffusive predator-prey system with fear effect and Beddington-DeAngelis functional response subject to Neumann boundary conditions are investigated. Dynamical properties of time-dependent solutions and the stationary patterns induced by diffusion (Turing patterns) are presented.

Keywords:

Predator-prey model,
fear factor,
Beddington-DeAngelis functional response,
stationary patterns.

Mathematics Subject Classification: Primary: 35A01, 35B45; Secondary: 35B09, 92D25.

Citation:

FullText(HTML)

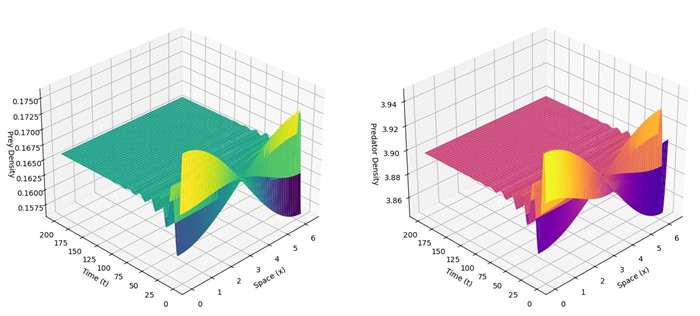

Figure 1. Nonconstant positive solution $ (u(x,t),v(x,t)) $ of the system (3), $ t = 200, d_{2} = 0.1, a = 0.1, \tilde{u} = 0.16608, \tilde{v} = 3.89934, $ initial data $ (u_{0},v_{0}) = (\tilde{u}+0.01\cos \frac{x}{2}, \tilde{v}+0.01\cos x,) $ $ \frac{M}{d_{1}} = 2.407\in (\mu_{1},\mu_{2}) = (1,4) $

Download: Full-size image PowerPoint slide

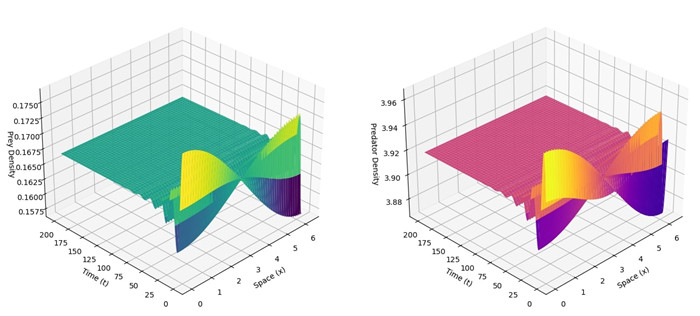

Figure 2. Nonconstant positive solution $ (u(x,t),v(x,t)) $ of the system (3), $ t = 200, d_{2} = 0.2, a = 0.055, \tilde{u} = 0.16675, \tilde{v} = 3.91904, $ initial data $ (u_{0},v_{0}) = (\tilde{u}+0.01\cos\frac{x}{2}, \tilde{v}+0.01\cos x,) $ $ \frac{M}{d_{1}} = 10.095\in (9, 16) $

Download: Full-size image PowerPoint slide

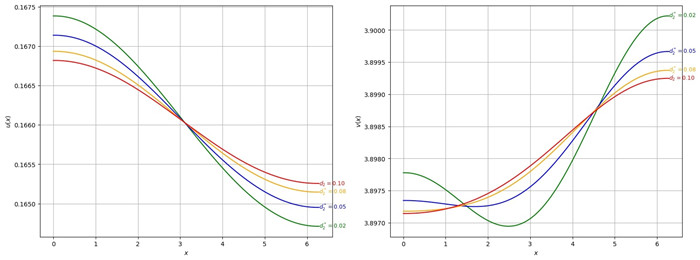

Figure 3. Nonconstant positive solution $ (u(x,t),v(x,t)) $ of the system (3), $ a = 0.1, \tilde{u} = 0.16608, \tilde{v} = 3.89934, $ initial data $ (u_{0},v_{0}) = (\tilde{u}+0.01\mathrm{cos}\frac{x}{2}, \tilde{v}+0.01\mathrm{cos} x), t = 50, d_{2} = 0.02, 0.05, 0.08 $ and $ 0.1 $

Download: Full-size image PowerPoint slide

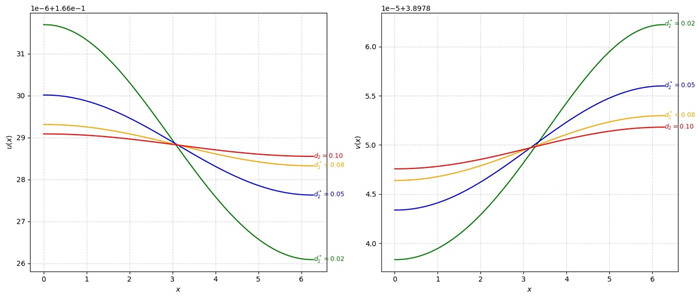

Figure 4. Nonconstant positive solution $ (u(x,t),v(x,t)) $ of the system (3), $ a = 0.1, \tilde{u} = 0.16608, \tilde{v} = 3.89934, $ initial data $ (u_{0},v_{0}) = (\tilde{u}+0.01\mathrm{cos}\frac{x}{2}, \tilde{v}+0.01\mathrm{cos} x), t = 200, d_{2} = 0.02, 0.05, 0.08 $ and $ 0.1 $

Download: Full-size image PowerPoint slide

Figure 5. Nonconstant positive solution $ (u(x,t),v(x,t)) $ of the system (3), $ a = 0.055, \tilde{u} = 0.16675, \tilde{v} = 3.91904, $ initial data $ (u_{0},v_{0}) = (\tilde{u}+0.01\mathrm{cos}\frac{x}{2}, \tilde{v}+0.01\mathrm{cos} x),t = 50, d_{2} = 0.12, 0.15, 0.18 $ and $ 0.2 $

Download: Full-size image PowerPoint slide

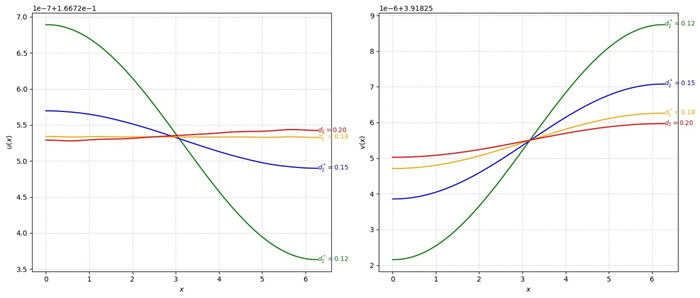

Figure 6. Nonconstant positive solution $ (u(x,t),v(x,t)) $ of the system (3), $ a = 0.055, \tilde{u} = 0.16675, \tilde{v} = 3.91904, $ initial data $ (u_{0},v_{0}) = (\tilde{u}+0.01\mathrm{cos}\frac{x}{2}, \tilde{v}+0.01\mathrm{cos} x), t = 200, d_{2} = 0.12, 0.15, 0.18 $ and $ 0.2 $

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	N. D. Alikakos, An application of the invariance principle to reaction-diffusion equations, J. Differential Equations., 33 (1979), 201-225. doi: 10.1016/0022-0396(79)90088-3.
[2]	K. B. Altendorf, J. W. Laundré, C. A. López González and J. S. Brown, Assessing Effects of Predation Risk on Foraging Behavior of Mule Deer, J. Mammal., 82 (2001), 430-439.
[3]	R. S. Cantrell, C. Cosner and V. Hutson, Permanence in ecological systems with spatial heterogeneity, Proc. R. Soc. Edinb., 123A (1993), 533-559.
[4]	S. Creel, D. Christianson, S. Liley and J. A. Winnie, Predation risk affects reproductive physiology and demography of Elk, Science, 315 (2007), 960. doi: 10.1126/science.1135918.
[5]	E. Conway, D. Hoff and J. Smoller, Large time behavior of solutions of systems of nonlinear reaction-diffusion equations, SIAM J. Appl. Math., 35 (1978), 1-16. doi: 10.1137/0135001.
[6]	S. Chen, Z. Liu and J. Shi, Nonexistence of nonconstant positive steady states of a diffusive predator-prey model with fear effect, Nonlinear Modeling and Analysis., 1 (2019), 47-56.
[7]	D. R. Curtiss, Recent extentions of Descartes' rule of signs, Annals of Mathematics., 19 (1918), 251-278. doi: 10.2307/1967494.
[8]	D. Gilbarg and N. S. Trudinger, Elliptic Partial Differential Equations of the Second Order, Springer-Verlag, New York, 2001.
[9]	J. K. Hale, Asymptotic Behavior of Dissipative Systems, Mathematical Surveys and Monographs, 25. American Mathematical Society, Providence, 1988.
[10]	H. L. Jiang, L. J. Wang and R. F. Yao, Numerical simulation and qualitative analysis for a predator-prey model with B-D functional response, Mathematics and Computers in Simulation, 117 (2015), 39-53.
[11]	D. Henry, Geometric Theory of Semilinear Parabolic Equations, Lecture Notes in Mathematics, vol. 840. Springer-Verlag, Berlin-New York, 1981.
[12]	T. Kato, Perturbation Theory for Linear Operators, Mathematics and Computers in Simulation, Springer-Verlag, Berlin-New York, 1966.
[13]	S. Lima, Nonlethal effects in the ecology of predator-prey interactions, BioScience., 48 (1998), 25-34. doi: 10.2307/1313225.
[14]	S. L. Lima and L. M. Dill, Behavioral decisions made under the risk of predation: A review and prospectus, Canadian Journal of Zoology., (1990), 619-640. doi: 10.1139/z90-092.
[15]	C. Lin, W. Ni and I. Takagi, Large amplitude stationary solutions to a chemotaxis system, J. Differential Equations, 72 (1998), 1-27.
[16]	Y. Lou and W. M. Ni, Diffusion, self-diffusion and cross-diffusion, J. Differential Equations, 131 (1996), 79-131. doi: 10.1006/jdeq.1996.0157.
[17]	N. Min and M. X. Wang, Dynamics of a diffusive prey-predator system with strong Allee effect growth rate and a protection zone for the prey, Discrete Contin. Dyn. Syst. Ser. B, 23 (2018), 1721-1737. doi: 10.3934/dcdsb.2018073.
[18]	J. D. Murray, Mathematical Biology Ⅱ: Spatial Models and Biomedical Applications, 3rd Edition, vol. 18, Springer-Verlag, Berlin Heidelberg, 2003.
[19]	A. Z. Myint, Positive solutions of a diffusive two competitive species model with saturation, Discrete Contin. Dyn. Syst. Ser. B., 27 (2021), 3625-3641. doi: 10.3934/dcdsb.2021199.
[20]	A. Z. Myint, L. Li and M. X. Wang, Qualitative analysis of a Belousov-Zhabotinskii reaction model, Acta Math. Sin. (Engl. Ser.), 34 (2018), 975-991. doi: 10.1007/s10114-017-7295-8.
[21]	P. S. Majhi, S. M. Sutapa and P. Nikhil, Role of fear in a predator–prey model with Beddington–DeAngelis functional response, Zeitschrift für Naturforschung A, 74 (2019), 581-595. doi: 10.1515/zna-2018-0449.
[22]	A. Z. Myint and M. X. Wang, Dynamics of Holling-type Ⅱ Prey-Predator system with a protection zone for prey, Applicable Analysis., 101 (2020), 1833-1847. doi: 10.1080/00036811.2020.1789595.
[23]	L. Nirenberg, Topics in Nonlinear Functional Analysis, American Mathematical Society, Providence, RI, 2001.
[24]	C. V. Pao, Nonlinear Parabolic and Elliptic Equations, Plenum Press, New York, 1992.
[25]	R. Peng, J. Shi and M. Wang, On stationary patterns of a reaction-diffusion model with autocatalysis and saturation law, Nonlinearity, 21 (2008), 1471-1488. doi: 10.1088/0951-7715/21/7/006.
[26]	R. Peng, J. Shi and M. Wang, Stationary pattern of a ratio-dependent food chain model with diffusion, SIAM J. Appl. Math., 67 (2007), 1479-1503. doi: 10.1137/05064624X.
[27]	R. J. Taylor, Predation, Springer, Dordrecht, 1984.
[28]	M. Wang, Nonlinear Elliptic Equations (in Chinese), Science Press, Beijing, 2010.
[29]	M. Wang, Nonlinear Second Order Parabolic Equations, CRC Press, 2021.
[30]	X. Wang and X. Zou, Pattern formation of a predator-prey model with the cost of anti-predator behaviors, Math. Biosci. Eng., 15 (2018), 775-805. doi: 10.3934/mbe.2018035.
[31]	X. Wang, L. Zanette and X. Zou, Modelling the fear effect in predator-prey interactions, J. Math. Biol., 73 (2016), 1179-1204. doi: 10.1007/s00285-016-0989-1.
[32]	A. J. Wirsing, M. R. Heithaus and L. M. Dill, Living on the edge: Dugongs prefer to forage in microhabitats that allow escape from rather than avoidance of predators, Animal Behaviour., 74 (2007), 93-101. doi: 10.1016/j.anbehav.2006.11.016.
[33]	Q. X. Ye, Z. Y. Li, M. X. Wang and Y. P. Wu, An Introduction to Reaction-Diffusion Equation (in Chinese), 2nd Edition, Science Press, Beijing, 2011.
[34]	L. N. Zhang and S. M. Fu, Non-Constant Positive Steady States for a Predator-Prey Cross-Diffusion Model with Beddington-DeAngelis Functional Response, Bound Value Probl., (2011), 404696. doi: 10.1186/1687-2770-2011-404696.
