Stability and bifurcation diagram for a one-dimensional shadow reaction-diffusion system of substrate depletion type

Yasuhito Miyamoto; Mizuki Obara; Shingo Yorii

doi:10.3934/dcdsb.2025134

Article Contents

2026, Volume 37: 1-22. Doi: 10.3934/dcdsb.2025134

This volume Previous Article Next Article Symmetric patterns of a delayed reaction-diffusion equation with nonlinear boundary condition

Stability and bifurcation diagram for a one-dimensional shadow reaction-diffusion system of substrate depletion type

1.
Graduate School of Mathematical Sciences, The University of Tokyo, 3-8-1 Komaba, Meguro-ku, Tokyo 153-8914, Japan
2.
Graduate School of Education, Waseda University, 1-6-1 Nishi-Waseda, Shinjuku-ku, Tokyo 169-8050, Japan
3.
Department of Integrated Science, College of Arts and Science, The University of Tokyo, 3-8-1 Komaba, Meguro-ku, Tokyo 153-8914, Japan

^*Corresponding author: Yasuhito Miyamoto
^*Corresponding author: Yasuhito Miyamoto

Received: March 2025

Revised: June 2025

Early access: August 25, 2025

Published online: August 25, 2025

The first author was supported by JSPS KAKENHI Grant Number 24K00530.

Abstract / Introduction Full Text(HTML) Figure(1) Related Papers Cited by

Abstract

We are concerned with a shadow reaction-diffusion system of substrate depletion type in a finite interval

$\begin{align} \begin{cases} \partial_tA = {\varepsilon}^2A_{xx}+f(\xi)A^3-A & \text{for}\ 0<x<1,\ 0<t<T,\\ \tau\partial_t\xi = \gamma-f(\xi)\int_0^1A^3dx-\xi & \text{for}\ 0<t<T,\\ A_x(0,t) = A_x(1,t) = 0 & \text{for}\ 0<t<T, \end{cases} \end{align}$

where $ A(x,t) $ and $ \xi(t) $ are nonnegative unknown functions, and $ f\in C^1[0,\infty) $ is a nonnegative increasing function satisfying certain conditions. We determine the complete bifurcation diagram of the positive stationary solutions if $ \gamma>0 $ is larger than a certain value. We also study the stability of every positive stationary solution. Specifically, we show that some $ 1 $-mode solutions are stable for small $ \tau>0 $ and large $ \gamma>0 $, and that $ n $-mode solutions, $ n\ge 2 $, are unstable for all $ \tau>0 $. In particular, the case where $ f(\xi) = \xi^2 $ is studied in detail.

Keywords:

Mathematics Subject Classification: Primary: 35B32, 35B35; Secondary: 35K57, 33E05.

Citation:

FullText(HTML)

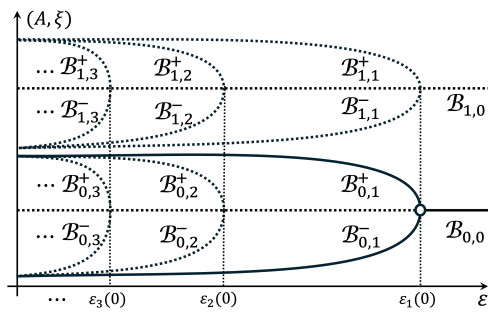

Figure 1. A schematic picture of the bifurcation diagram $ {\mathcal{S}} $. The horizontal axis is the $ {\varepsilon} $-axis, and the vertical axis represents the space $ X\times{\mathbb{R}} $. Each stationary solution on the solid curve and line is stable for small $ \tau>0 $ and each stationary solution on the dashed curves and lines is unstable for all $ \tau>0 $. $ ({\varepsilon}_1(0),A_0(x,\xi_0(0)),\xi_0(0)) $ is marginally stable for small $ \tau>0 $

Download: Full-size image PowerPoint slide

Related Papers

Cited by

References

[1]	P. Byrd and M. Friedman, Handbook of Elliptic Integrals for Engineers and Scientists, 2$^{nd}$ edition, Die Grundlehren der mathematischen Wissenschaften, vol. 67, Springer-Verlag, New York-Heidelberg, 1971. doi: 10.1007/978-3-642-65138-0.
[2]	P. de Groen and G. Karadzhov, Metastability in the shadow system for Gierer-Meinhardt's equations, Electron. J. Differential Equations, 2002 (2002), 1-22.
[3]	S. Ei, Y. Miyamoto and T. Mori, Exact solutions describing very slow layer oscillations for a shadow reaction-diffusion system, preprint, 2025, arXiv: 2503.10971.
[4]	J. Eisner, M. Kučera and M. Väth, Bifurcation points for a reaction-diffusion system with two inequalities, J. Math. Anal. Appl., 365 (2010), 176-194. doi: 10.1016/j.jmaa.2009.10.037.
[5]	A. Gierer and H. Meinhardt, A theory of biological pattern formation, Kybernetik (Berlin), 12 (1972), 30-39. doi: 10.1007/BF00289234.
[6]	P. Gray and S. Scott, Autocatalytic reactions in the isothermal, continuous stirred tank reactor: Isolas and other forms of multistability, Chem. Eng. Sci., 38 (1983), 29-43. doi: 10.1016/0009-2509(83)80132-8.
[7]	P. Gray and S. Scott, Autocatalytic reactions in the isothermal, continuous stirred tank reactor: Oscillations and instabilities in the system $A+2B\rightarrow 3B$, $B\rightarrow C$, Chem. Eng. Sci., 139 (1984), 1087-1097. doi: 10.1016/0009-2509(84)87017-7.
[8]	S. Jimbo and Y. Morita, Lyapunov function and spectrum comparison for a reaction-diffusion system with mass conservation, J. Differential Equations, 255 (2013), 1657-1683. doi: 10.1016/j.jde.2013.05.021.
[9]	S. Jimbo and Y. Morita, Nonlocal eigenvalue problems arising in a generalized phase-field-type system, Jpn. J. Ind. Appl. Math., 34 (2017), 555-584. doi: 10.1007/s13160-017-0254-z.
[10]	Y. Kaneko, Y. Miyamoto and T. Wakasa, Stability and bifurcation diagram for a shadow Gierer-Meinhardt system in one spatial dimension, Nonlinearity, 37 (2024), Paper No. 055011. doi: 10.1088/1361-6544/ad3596.
[11]	M. Kučera and M. Väth, Bifurcation for a reaction-diffusion system with unilateral and Neumann boundary conditions, J. Differential Equations, 252 (2012), 2951-2982. doi: 10.1016/j.jde.2011.10.016.
[12]	E. Latos, Y. Morita and T. Suzuki, Stability and spectral comparison of a reaction-diffusion system with mass conservation, J. Dynam. Differential Equations, 30 (2018), 823-844. doi: 10.1007/s10884-018-9650-6.
[13]	H. Meinhardt, The Algorithmic Beauty of Sea Shells. With Contributions and Images by Przemysław Prusinkiewicz and Deborah R. Fowler, The Virtual Laboratory. Springer-Verlag, Berlin, 1995. xii+204 pp. ISBN: 3-540-57842-0.
[14]	Y. Miyamoto, Stability of a boundary spike layer for the Gierer-Meinhardt system, European J. Appl. Math., 16 (2005), 467-491. doi: 10.1017/S0956792505006376.
[15]	Y. Miyamoto, An instability criterion for activator-inhibitor systems in a two-dimensional ball, J. Differential Equations, 229 (2006), 494-508. doi: 10.1016/j.jde.2006.03.015.
[16]	Y. Miyamoto, An instability criterion for activator-inhibitor systems in a two-dimensional ball Ⅱ, J. Differential Equations, 239 (2007), 61-71. doi: 10.1016/j.jde.2007.05.006.
[17]	Y. Miyamoto, T. Mori, S. Tasaki, T. Tsujikawa and S. Yotsutani, Symmetry breaking bifurcation and the stability of stationary solutions of a phase-field model, J. Differential Equations, 441 (2025), Paper No. 113500. doi: 10.1016/j.jde.2025.113500.
[18]	Y. Miyamoto, T. Mori, T. Tsujikawa and S. Yotsutani, Stability for stationary solutions of a nonlocal Allen-Cahn equation, J. Differential Equations, 275 (2021), 581-597. doi: 10.1016/j.jde.2020.11.024.
[19]	Y. Miyamoto, H. Nakamura and K. Nishigaki, Exact periods and exact critical values for Hopf bifurcations from multi-peak solutions of the shadow Gierer-Meinhardt model in one spatial dimension, J. Differential Equations, 413 (2024), 34-69. doi: 10.1016/j.jde.2024.08.042.
[20]	Y. Miyamoto, H. Takemura and T. Wakasa, Asymptotic formulas of the eigenvalues for the linearization of the scalar field equation, Proc. Royal Soc. Edinburgh Sect. A, 155 (2025), 307-344. doi: 10.1017/prm.2023.95.
[21]	J. Murray, Mathematical biology. I. An introduction, 3$^{rd}$ edition, Interdisciplinary Applied Mathematics, 17. Springer-Verlag, New York, 2002. doi: 10.1007/b98868.
[22]	Y. Nishiura, Far-From-Equilibrium Dynamics, Translated from the 1999 Japanese original by Kunimochi Sakamoto.Translations of Mathematical Monographs, 209. Iwanami Series in Modern Mathematics. American Mathematical Society, Providence, RI, 2002.
[23]	J. E. Pearson, Complex patterns in a simple system, Science, 261 (1993), 189-192. doi: 10.1126/science.261.5118.189.
[24]	T. Wakasa, Exact eigenvalues and eigenfunctions associated with linearization for Chafee-Infante problem, Funkcial. Ekvac., 49 (2006), 321-336. doi: 10.1619/fesi.49.321.
[25]	X. Wang, J. Shi and G. Zhang, Bifurcation and pattern formation in diffusive Klausmeier-Gray-Scott model of water-plant interaction, J. Math. Anal. Appl., 497 (2021), Paper No. 124860. doi: 10.1016/j.jmaa.2020.124860.
[26]	Y. Wang and J. Wu, Stability of positive constant steady states and their bifurcation in a biological depletion model, Discrete Contin. Dyn. Syst. Ser. B, 15 (2011), 849-865. doi: 10.3934/dcdsb.2011.15.849.
[27]	Y. Wang, J. Wu and Y. Jia, Steady-state bifurcation for a biological depletion model, Internat. J. Bifur. Chaos Appl. Sci. Engrg., 26 (2016), 1650066. doi: 10.1142/S0218127416500668.
[28]	J. Wei, Existence, stability and metastability of point condensation patterns generated by the Gray-Scott system, Nonlinearity, 12 (1999), 593-616. doi: 10.1088/0951-7715/12/3/011.
[29]	S. Yotsutani, M. Murai and W. Matsumoto, On an application of CAS to research on differential equations(in Japanese), S$\bar{u}$rikaisekikenky$\bar{u}$sho K$\bar{o}$ky$\bar{u}$roku, 1674 (2010), 125-133.https://www.kurims.kyoto-u.ac.jp/kyodo/kokyuroku/contents/pdf/1674-15.pdf
