Optimal control of non-autonomous SEIRS models with vaccination and treatment

Joaquim P. Mateus; Paulo Rebelo; Silvério Rosa; César M. Silva; Delfim F. M. Torres

doi:10.3934/dcdss.2018067

Article Contents

2018, Volume 11, Issue 6: 1179-1199. Doi: 10.3934/dcdss.2018067

This issue Previous Article Equilibrium locus of the flow on circular networks of cells Next Article On

${\mathcal L}^1$

limit solutions in impulsive control

Optimal control of non-autonomous SEIRS models with vaccination and treatment

1.
Research Unit for Inland Development (UDI), Polytechnic Institute of Guarda, 6300-559 Guarda, Portugal
2.
Centro de Matemática e Aplicações da Universidade da Beira Interior (CMA-UBI), Departamento de Matemática, Universidade da Beira Interior, 6201-001 Covilhã, Portugal
3.
Departamento de Matemática and Instituto de Telecomunicações (IT), Universidade da Beira Interior, 6201-001 Covilhã, Portugal
4.
Center for Research and Development in Mathematics and Applications (CIDMA), Department of Mathematics, University of Aveiro, 3810-193 Aveiro, Portugal

* Corresponding author: delfim@ua.pt
* Corresponding author: delfim@ua.pt

Received: March 31, 2017

Revised: May 31, 2017

Published: December 2018

Mateus was partially supported by FCT through CMA-UBI (project UID/MAT/00212/2013), Rebelo by FCT through CMA-UBI (project UID/MAT/00212/2013), Rosa by FCT through IT (project UID/EEA/50008/2013), Silva by FCT through CMA-UBI (project UID/MAT/00212/2013), and Torres by FCT through CIDMA (project UID/MAT/04106/2013) and TOCCATA (project PTDC/EEI-AUT/2933/2014 funded by FEDER and COMPETE 2020)

Abstract Full Text(HTML) Figure(9) / Table(1) Related Papers Cited by

Abstract

We study an optimal control problem for a non-autonomous SEIRS model with incidence given by a general function of the infective, the susceptible and the total population, and with vaccination and treatment as control variables. We prove existence and uniqueness results for our problem and, for the case of mass-action incidence, we present some simulation results designed to compare an autonomous and corresponding periodic model, as well as the controlled versus uncontrolled models.

Keywords:

Mathematics Subject Classification: Primary: 34H05, 92D30; Secondary: 37B55, 49M05.

Citation:

Full Text(HTML)

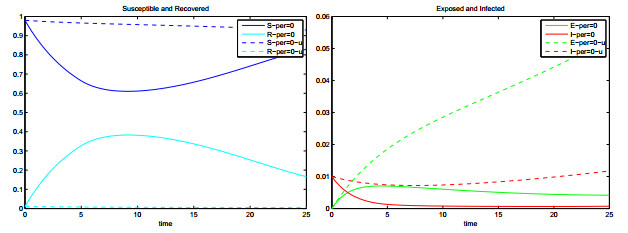

Figure 1. SEIRS autonomous model (${\rm{per}} = 0$ in (28) and (29)): uncontrolled (dashed lines) versus optimally controlled (continuous lines).

Download: Full-size image PowerPoint slide

Figure 2. SEIRS periodic model (${\rm{per}} = 0.8$ in (28) and (29)): uncontrolled (dashed lines) versus optimally controlled (continuous lines).

Download: Full-size image PowerPoint slide

Figure 3. SEIRS model subject to optimal control: autonomous (${\rm{per}} = 0$) versus periodic (${\rm{per}} = 0.8$) cases.

Download: Full-size image PowerPoint slide

Figure 4. SEIRS model without control measures: autonomous (${\rm{per}} = 0$) versus periodic (${\rm{per}} = 0.8$) cases.

Download: Full-size image PowerPoint slide

Figure 5. The optimal controls ${\mathbb{T}}^*$ (5) (treatment) and ${\mathbb{V}}^*$ (6) (vaccination): autonomous (${\rm{per}} = 0$) versus periodic (${\rm{per}} = 0.8$) cases.

Download: Full-size image PowerPoint slide

Figure 6. Variation of infected individuals $I^*(t)$ and optimal measures of treatment ${\mathbb{T}}^*(t)$ and vaccination ${\mathbb{V}}^*(t)$, in both autonomous (${\rm{per}} = 0$) and periodic (${\rm{per}} = 0.8$) cases, with the natural death $\mu \in [0, 0.1]$.

Download: Full-size image PowerPoint slide

Figure 7. Variation of infected individuals $I^*(t)$ and optimal measures of treatment ${\mathbb{T}}^*(t)$ and vaccination ${\mathbb{V}}^*(t)$, in both autonomous (${\rm{per}} = 0$) and periodic (${\rm{per}} = 0.8$) cases, with the rate of recovery $\gamma \in [0, 0.1]$.

Download: Full-size image PowerPoint slide

Figure 8. Variation of infected individuals $I^*(t)$ and optimal measures of treatment ${\mathbb{T}}^*(t)$ and vaccination ${\mathbb{V}}^*(t)$, in both autonomous (${\rm{per}} = 0$) and periodic (${\rm{per}} = 0.8$) cases, with the infectivity rate $\varepsilon \in [0, 0.1]$.

Download: Full-size image PowerPoint slide

Figure 9. Variation of infected individuals $I^*(t)$ and optimal measures of treatment ${\mathbb{T}}^*(t)$ and vaccination ${\mathbb{V}}^*(t)$, in both autonomous (${\rm{per}} = 0$) and periodic (${\rm{per}} = 0.8$) cases, with the loss of immunity rate $\eta \in [0, 0.1]$.

Download: Full-size image PowerPoint slide

Table 1. Values of the parameters for problem (P) used in Section 6.

Name	Description	Value
$S_0$	Initial susceptible population	0.98
$E_0$	Initial exposed population	0
$I_0$	Initial infective population	0.01
$R_0$	Initial recovered population	0.01
$\mu$	natural deaths	0.05
$\varepsilon$	infectivity rate	0.03
$\gamma$	rate of recovery	0.05
$\eta$	loss of immunity rate	0.041
$k_1$	weight for the number of infected	1
$k_2$	weight for treatment	0.01
$k_3$	weight for vaccination	0.01
$\tau_{\max}$	maximum rate of treatment	0.1
$v_{\max}$	maximum rate of vaccination	0.4

| Show Table

DownLoad: CSV

Related Papers

Cited by

References

	R. M. Anderson and R. M. May, Infectious Diseases of Humans: Dynamics and Control, Oxford University Press, 1991.
	I. Area , F. Ndaïrou , J. J. Nieto , C. J. Silva and D. F. M. Torres , Ebola model and optimal control with vaccination constraints, J. Ind. Manag. Optim., 14 (2018) , 427-446. doi: 10.3934/jimo.2017054.
	E. R. Avakov , The maximum principle for abnormal optimal control problems, Soviet Math. Dokl., 37 (1988) , 231-234.
	Z. Bai and Y. Zhou , Global dynamics of an SEIRS epidemic model with periodic vaccination and seasonal contact rate, Nonlinear Anal. Real World Appl., 13 (2012) , 1060-1068. doi: 10.1016/j.nonrwa.2011.02.008.
	A. Cori , A. Valleron , F. Carrat , G. Scalia Tomba , G. Thomas and P. Boëlle , Estimating influenza latency and infectious period durations using viral excretion data, Epidemics, 4 (2012) , 132-138. doi: 10.1016/j.epidem.2012.06.001.
	C. Ding, N. Tao and Y. Zhu, A mathematical model of Zika virus and its optimal control, Proceedings of the 35th Chinese Control Conference, July 27-29, 2016, Chengdu, China. IEEE Xplore, (2016), 2642-2645. doi: 10.1109/ChiCC.2016.7553763.
	S. Edlund , J. Kaufman , J. Lessler , J. Douglas , M. Bromberg , Z. Kaufman , R. Bassal , G. Chodick , R. Marom , V. Shalev , Y. Mesika , R. Ram and A. Leventhal , Comparing three basic models for seasonal influenza, Epidemics, 3 (2011) , 135-142. doi: 10.1016/j.epidem.2011.04.002.
	K. R. Fister, S. Lenhart and J. S. McNally, Optimizing chemotherapy in an HIV model, Electron. J. Differential Equations, 1998 (1998), 12 pp.
	W. H. Fleming and R. W. Rishel, Deterministic and Stochastic Optimal Control, Springer, Berlin, 1975.
	H. Gaff and E. Schaefer , Optimal control applied to vaccination and treatment strategies for various epidemiological models, Math. Biosci. Eng., 6 (2009) , 469-492. doi: 10.3934/mbe.2009.6.469.
	S. Gao , L. Chen and Z. Teng , Pulse vaccination of an SEIR epidemic model with time delay, Nonlinear Anal. Real World Appl., 9 (2008) , 599-607. doi: 10.1016/j.nonrwa.2006.12.004.
	H. W. Hethcote , M. A. Lewis and P. van den Driessche , An epidemiological model with a delay and a nonlinear incidence rate, J. Math. Biol., 27 (1989) , 49-64. doi: 10.1007/BF00276080.
	H. W. Hethcote and P. van den Driessche , Some epidemiological models with nonlinear incidence, J. Math. Biol., 29 (1991) , 271-287. doi: 10.1007/BF00160539.
	A. Korobeinikov and P. K. Maini , A Lyapunov function and global properties for SIR and SEIR epidemiological models with nonlinear incidence, Math. Biosci. Eng., 1 (2004) , 57-60. doi: 10.3934/mbe.2004.1.57.
	T. Kuniya and Y. Nakata , Permanence and extinction for a nonautonomous SEIS epidemic model, Appl. Math. Comput., 218 (2012) , 9321-9331. doi: 10.1016/j.amc.2012.03.011.
	A. P. Lemos-Paião , C. J. Silva and D. F. M. Torres , An epidemic model for cholera with optimal control treatment, J. Comput. Appl. Math., 318 (2017) , 168-180. doi: 10.1016/j.cam.2016.11.002.
	M. Y. Li , H. L. Smith and L. Wang , Global dynamics an SEIR epidemic model with vertical transmission, SIAM J. Appl. Math., 62 (2001) , 58-69. doi: 10.1137/S0036139999359860.
	W. M. Liu , H. W. Hethcote and S. A. Levin , Dynamical behavior of epidemiological models with nonlinear incidence rates, J. Math. Biol., 25 (1987) , 359-380. doi: 10.1007/BF00277162.
	M. Martcheva , A non-autonomous multi-strain SIS epidemic model, J. Biol. Dyn., 3 (2009) , 235-251. doi: 10.1080/17513750802638712.
	J. P. Mateus and C. M. Silva , A non-autonomous SEIRS model with general incidence rate, Appl. Math. Comput., 247 (2014) , 169-189. doi: 10.1016/j.amc.2014.08.078.
	Y. Nakata and T. Kuniya , Global dynamics of a class of SEIRS epidemic models in a periodic environment, J. Math. Anal. Appl., 363 (2010) , 230-237. doi: 10.1016/j.jmaa.2009.08.027.
	L. S. Pontryagin, V. G. Boltyanskii, R. V. Gamkrelidze and E. F. Mishchenko, The Mathematical Theory of Optimal Processes, Translated from the Russian by K. N. Trirogoff; edited by L. W. Neustadt Interscience Publishers John Wiley & Sons, Inc. New York-London, 1962.
	A. Rachah and D. F. M. Torres , Dynamics and optimal control of Ebola transmission, Math. Comput. Sci., 10 (2016) , 331-342. doi: 10.1007/s11786-016-0268-y.
	S. Ruan and W. Wang , Dynamical behavior of an epidemic model with a nonlinear incidence rate, J. Differential Equations, 188 (2003) , 135-163. doi: 10.1016/S0022-0396(02)00089-X.
	M. A. Safi and S. M. Garba, Global stability analysis of SEIR model with Holling type Ⅱ incidence function, Comput. Math. Methods Med., 2012 (2012), Art. ID 826052, 8 pp. doi: 10.1155/2012/826052.
	R. Shope , Global climate change and infectious diseases, Environ. Health Perspect, 96 (1991) , 171-174. doi: 10.1289/ehp.9196171.
	C. Silva , H. Maurer and D. F. M. Torres , Optimal control of a tuberculosis model with state and control delays, Math. Biosci. Eng., 14 (2017) , 321-337. doi: 10.3934/mbe.2017021.
	D. F. M. Torres , Lipschitzian regularity of the minimizing trajectories for nonlinear optimal control problems, Math. Control Signals Systems, 16 (2003) , 158-174. doi: 10.1007/s00498-003-0132-x.
	P. van den Driessche , Deterministic Compartmental Models: Extensions of Basic Models, In: Mathematical epidemiology, vol. 1945 of Lecture Notes in Math., Springer, Berlin, (2008) , 147-157. doi: 10.1007/978-3-540-78911-6_5.
	F. J. S. Wang and W. R. Derrick , On deterministic epidemic models, Bull. Inst. Math. Acad. Sinica, 6 (1978) , 73-84.
	A. Weber , M. Weber and P. Milligan , Modeling epidemics caused by respiratory syncytial virus (RSV), Math. Biosci., 172 (2001) , 95-113. doi: 10.1016/S0025-5564(01)00066-9.
	T. Zhang , J. Liu and Z. Teng , Existence of positive periodic solutions of an SEIR model with periodic coefficients, Appl. Math., 57 (2012) , 601-616. doi: 10.1007/s10492-012-0036-5.
	T. Zhang and Z. Teng , On a nonautonomous SEIRS model in epidemiology, Bull. Math. Biol., 69 (2007) , 2537-2559. doi: 10.1007/s11538-007-9231-z.
	T. Zhang and Z. Teng , Extinction and permanence for a pulse vaccination delayed SEIRS epidemic model, Chaos Solitons Fractals, 39 (2009) , 2411-2425. doi: 10.1016/j.chaos.2007.07.012.
	Y. Zhou , D. Xiao and Y. Li , Bifurcations of an epidemic model with non-monotonic incidence rate of saturated mass action, Chaos Solitons Fractals, 32 (2007) , 1903-1915. doi: 10.1016/j.chaos.2006.01.002.
