June  2019, 12(3): 625-643. doi: 10.3934/dcdss.2019040

Barycentric spectral domain decomposition methods for valuing a class of infinite activity Lévy models

1.

Department of Mathematics and Applied Mathematics, University of Pretoria, Pretoria 002, Republic of South Africa

2.

Department of Statistical and Actuarial Sciences, University of Western Ontario, London, Ont., Canada

* Corresponding author: E. Pindza

Received  July 2017 Revised  November 2017 Published  September 2018

A new barycentric spectral domain decomposition methods algorithm for solving partial integro-differential models is described. The method is applied to European and butterfly call option pricing problems under a class of infinite activity Lévy models. It is based on the barycentric spectral domain decomposition methods which allows the implementation of the boundary conditions in an efficient way. After the approximation of the spatial derivatives, we obtained the semi-discrete equations. The computation of these equations is performed by using the barycentric spectral domain decomposition method. This is achieved with the implementation of an exponential time integration scheme. Several numerical tests for the pricing of European and butterfly options are given to illustrate the efficiency and accuracy of this new algorithm. We also show that Greek options, such as Delta and Gamma sensitivity, are computed with no spurious oscillation.

Citation: Edson Pindza, Francis Youbi, Eben Maré, Matt Davison. Barycentric spectral domain decomposition methods for valuing a class of infinite activity Lévy models. Discrete & Continuous Dynamical Systems - S, 2019, 12 (3) : 625-643. doi: 10.3934/dcdss.2019040
References:
[1]

A. Almendral and C. W. Oosterlee, Accurate evaluation of European and American options under the CGMY process, SIAM Journal on Scientific Computing, 29 (2007), 93-117. doi: 10.1137/050637613. Google Scholar

[2]

R. BaltenspergerJ. P. Berrut and B. Noël, Exponential convergence of a linear rational interpolant between transformed Chebyshev points, Mathematics of Computation, 68 (1999), 1109-1120. doi: 10.1090/S0025-5718-99-01070-4. Google Scholar

[3]

J. P. Berrut and H. D. Milltelmann, Rational interpolation trough the optimal attachment of poles to the interpolating polynomial, Numerical Algorithms, 23 (2000), 315-328. doi: 10.1023/A:1019168504808. Google Scholar

[4]

J. P. Berrut and L. N. Trefethen, Barycentric Lagrange interpolation, SIAM Review, 46 (2004), 501-517. doi: 10.1137/S0036144502417715. Google Scholar

[5]

F. Black and M. Scholes, Pricing of options and corporate liabilities, Journal of Political Economy, 81 (1973), 637-654. doi: 10.1086/260062. Google Scholar

[6]

M. BrianiC. La Chioma and R. Natalini, Convergence of numerical schemes for viscosity solutions to integro-differential degenerate parabolic problems arising in financial theory, Journal of Numerical Mathematics, 98 (2004), 607-646. doi: 10.1007/s00211-004-0530-0. Google Scholar

[7]

P. CarrH. GermanD. B. Madan and M. Yor, The fine structure of asset returns: An empirical investigation, Journal of Business, 75 (2002), 305-332. doi: 10.1086/338705. Google Scholar

[8]

T. F. ColemanY. Li and A. Verma, Reconstructing the unknown local volatility function, Journal of Computational Finance, 2 (1999), 77-100. doi: 10.1142/9789812810663_0007. Google Scholar

[9]

R. Company, L. J$\acute{o}$dar and M. Fakharany, Positive solutions of European option pricing with CGMY process models using double discretization difference schemes, Abstr. Appl. Anal., 2013 (2013), Art. ID 517480, 11 pp. Google Scholar

[10]

R. Cont and E. Voltchkova, A finite difference scheme for option pricing in jumps diffusion and exponential L$\acute{e}$vy models, SIAM Journal on Numerical Analysis, 43 (2005), 1596-1626. doi: 10.1137/S0036142903436186. Google Scholar

[11]

R. Cont and E. Voltchkova, A finite difference scheme for option pricing in jump diffusion and exponential Lvy models, SIAM J. Numer. Anal., 43 (2005), 1596-1626. doi: 10.1137/S0036142903436186. Google Scholar

[12]

J. M. Corcuera et al, Completion of Lévy market by power jump assets, Finance Stochastic, 9 (2005), 109–127. doi: 10.1007/s00780-004-0139-2. Google Scholar

[13]

P. J. Davis and P. Rabinowitz, Methods of Numerical Integration, Academic Press Inc., Orlando, FL, 2nd edition, 1984. Google Scholar

[14]

Y. d'HalluinP. A. Forsyth and K. R. Vetzal, Robust numerical methods for contigent claims under jump-diffusion processs, IMA Journal of Numerical Analysis, 25 (2005), 87-112. doi: 10.1093/imanum/drh011. Google Scholar

[15]

B. Dupire, Pricing with a smile, RISK Magazine, 1 (1994), 18-20. Google Scholar

[16]

M. FakharanyR. Company and L. Jódar, Solving partial integro-option pricing problems for a wide class of infinite activity Lévy processes, Journal of Computational and applied Mathematics, 296 (2016), 739-752. doi: 10.1016/j.cam.2015.10.027. Google Scholar

[17]

R. Frontczak and R. Söchbel, On modified Mellin transforms, Gauss aguerre quadrature, and the valuation of American call options, Journal of Computational and Applied Mathematics, 234 (2010), 1559-1571. doi: 10.1016/j.cam.2010.02.037. Google Scholar

[18]

D. Funaro, Polynomial Approximation of Differential Equations, Springer, Berlin, 1992. Google Scholar

[19]

T. Goll and J. Kallen, Optimal portfolios for logarithmic utility, Stochastic Process. Appl., 89 (2000), 31-48. doi: 10.1016/S0304-4149(00)00011-9. Google Scholar

[20]

T. Goll and L. Rüschendorf, Minimax and minimal distance martingale measures and their relationship to portfolio optimization, Finance Stochastic, 5 (2001), 557-581. doi: 10.1007/s007800100052. Google Scholar

[21]

D. Gottlieb and C. -W. Shu, On the Gibbs phenomenon Ⅳ: Recovering exponential accuracy in a subinterval from a Gegenbauer partial sum of a piecewise analytic function, Journal of Computational and Applied Mathematics, 64 (1995), 1081-1095. doi: 10.2307/2153484. Google Scholar

[22]

S. Heston, A closed-form solution for options with stochastic volatility with applications to bond and currency options, Review of Financial Studies, 6 (1993), 327-343. doi: 10.1093/rfs/6.2.327. Google Scholar

[23]

M. Hochbruck and C. Lubich, On Krylov subspace approximations to the matrix exponential operator, SIAM Journal of Numerical Analysis, 34 (1997), 1911-1925. doi: 10.1137/S0036142995280572. Google Scholar

[24]

J. Hull and A. White, The pricing of options with stochastic volatilities, Journal of Finance, 42 (1987), 281-300. doi: 10.1111/j.1540-6261.1987.tb02568.x. Google Scholar

[25]

A. K. Kassam and L. N. Trefethen, Fourth-order time stepping for stiff PDEs, SIAM Journal of Scientific Computing, 26 (2005), 1214-1233. doi: 10.1137/S1064827502410633. Google Scholar

[26]

G. Klein and J. P. Berrut, Linear barycentric rational quadrature, BIT Numerical Mathematics, 52 (2012), 407-424. doi: 10.1007/s10543-011-0357-x. Google Scholar

[27]

P. E. KloedenG. J. Neuenkirch and T. Shardlow, The exponential integrator scheme for stochastic partial differential equations: Pathwise error bounds, Journal of Computational and Applied Mathematics, 235 (2011), 1245-1260. doi: 10.1016/j.cam.2010.08.011. Google Scholar

[28]

S. G. Kou, A jump-diffusion model for option pricing, Management Science, 8 (2002), 1086-1101. Google Scholar

[29]

J. L. Lagrange, Leçons élémentaires sur les mathématiques, données à l'Ecole Normal en 1795, in Oeuvres VII, Gauthier-Villars, Paris, 7 (1877), 183–287.Google Scholar

[30]

D. B. Madan and E. Seneta, The variance gamma model for share market returns, Journal of Business, 63 (1990), 511-524. doi: 10.1086/296519. Google Scholar

[31]

D. Madan and M. Yor, Representing the CGMY and Meixner Lvy processes as time changed Brownian motions, Journal of Computational Finance, 12 (2008), 27-47. doi: 10.21314/JCF.2008.181. Google Scholar

[32]

C. Markakis, and L. Barack, High-order difference and pseudospectral methods for discontinuous problems, arXiv: 1406.4865v1, [maths. NA], (2014) 1-9.Google Scholar

[33]

R. C. Merton, Option pricing when the underlying stocks are discontinuous, Journal of Financial Economics, 5 (1976), 125-144. doi: 10.1016/0304-405X(76)90022-2. Google Scholar

[34]

J. Niesen and W. M. Wright, A Krylov subspace method for option pricing, Technical report SSRN 1799124, 2011. doi: 10.2139/ssrn.1799124. Google Scholar

[35]

E. NgoundaK. C. Patidar and E. Pindza, Contour Integral Method for European Options with Jumps, Communications in Nonlinear Science and Numerical Simulation, 18 (2013), 478-492. doi: 10.1016/j.cnsns.2012.08.003. Google Scholar

[36]

S. A. Orszag, Spectral methods for problems in complex geometries, Journal of Computational Physics, 37 (1980), 70-92. doi: 10.1016/0021-9991(80)90005-4. Google Scholar

[37]

H. K. Pang and H. W. Sun, Fast exponential time integration for pricing options in stochastic volatility jump diffusion models, East Asian Journal on Applied Mathematics, 4 (2014), 52-68. doi: 10.4208/eajam.280313.061013a. Google Scholar

[38]

A. Papapantoleon, An Introduction to Lévy Processes with Applications in Finance, Lecture Notes, University of Freiburg, 2008.Google Scholar

[39]

H. P. PfeifferL. E. KidderM. A. Scheel and S. A. Teukolsky, A multi-domain spectral method for solving elliptic equations, Computer Physics Communications, 152 (2003), 253-273. doi: 10.1016/S0010-4655(02)00847-0. Google Scholar

[40]

E. PindzaK. C. Patidar and E. Ngounda, Robust Spectral Method for Numerical Valuation of European Options under Merton's Jump-Diffusion Model, Numerical Methods for Partial Differential Equations, 30 (2014), 1169-1188. doi: 10.1002/num.21864. Google Scholar

[41]

N. RambeerichD. Y. Tangaman and M. Bhuruth, Numerical Pricing Of American Option Under Infinite Activity Lévy Processes, Journal of Futures Markets, 31 (2011), 809-829. doi: 10.1002/fut.20497. Google Scholar

[42]

Y. Saad, Analysis of some Krylov subspace approximations to the matrix exponential operator, SIAM Journal of Numerical Analysis, 29 (1992), 209-228. doi: 10.1137/0729014. Google Scholar

[43]

T. Schmelzer and L. N. Trefethen, Evaluating matrix functions for exponential integrators via Carathéodory-Fejér approximation and contour integrals, Electronic Transactions on Numerical Analysis, 29 (2007), 1-18. Google Scholar

[44]

W. SchoutensJ. L. Teugels and L. processes, Polynomials and martingales, Communications in Statistics. Stochastic Models, 14 (1998), 335-349. doi: 10.1080/15326349808807475. Google Scholar

[45]

W. Schoutens, Lévy Processes in Finance: Pricing Financial Derivatives, Wiley, New York, 2003. doi: 10.1002/0470870230. Google Scholar

[46]

D. Y. TangmanA. Gopaul and M. Bhuruth, Exponential time integration and Chebyshev discretisation schemes for fast pricing options, Applied Numerical Mathematics, 58 (2008), 1309-1319. doi: 10.1016/j.apnum.2007.07.005. Google Scholar

[47]

D. Tavella and C. Randall, Pricing Financial Instruments: The Finite Difference Method, Wiley, New York, 2000.Google Scholar

[48]

L. N. Trefethen, Approximation Theory and Approximation Practice, SIAM, Philadelphia, PA, 2013. Google Scholar

[49]

L. N. Trefethen, Is Gauss quadrature better than Clenshaw urtis?, SIAM Review, 50 (2008), 67-87. doi: 10.1137/060659831. Google Scholar

[50]

L. N. Trefethen, Spectral Methods in Matlab, SIAM, Philadelphia, PA, 2000. doi: 10.1137/1.9780898719598. Google Scholar

[51]

L. N. Trefethen and H. M. Gutknecht, The Carathéodory-Fejér method for real rational approximation, SIAM Journal on Numerical Analysis, 20 (1983), 420-436. doi: 10.1137/0720030. Google Scholar

[52]

I. R. WangJ. W. Wan and P. A. Forsyth, Robust numerical valuation of European and American options under the CGMY process, Journal of Computational Finance, 10 (2007), 31-69. doi: 10.21314/JCF.2007.169. Google Scholar

[53]

B. D. Welfert, Generation of pseudospectral differentiation matrices Ⅰ, SIAM Journal on Numerical Analysis, 34 (1997), 1640-1657. doi: 10.1137/S0036142993295545. Google Scholar

show all references

References:
[1]

A. Almendral and C. W. Oosterlee, Accurate evaluation of European and American options under the CGMY process, SIAM Journal on Scientific Computing, 29 (2007), 93-117. doi: 10.1137/050637613. Google Scholar

[2]

R. BaltenspergerJ. P. Berrut and B. Noël, Exponential convergence of a linear rational interpolant between transformed Chebyshev points, Mathematics of Computation, 68 (1999), 1109-1120. doi: 10.1090/S0025-5718-99-01070-4. Google Scholar

[3]

J. P. Berrut and H. D. Milltelmann, Rational interpolation trough the optimal attachment of poles to the interpolating polynomial, Numerical Algorithms, 23 (2000), 315-328. doi: 10.1023/A:1019168504808. Google Scholar

[4]

J. P. Berrut and L. N. Trefethen, Barycentric Lagrange interpolation, SIAM Review, 46 (2004), 501-517. doi: 10.1137/S0036144502417715. Google Scholar

[5]

F. Black and M. Scholes, Pricing of options and corporate liabilities, Journal of Political Economy, 81 (1973), 637-654. doi: 10.1086/260062. Google Scholar

[6]

M. BrianiC. La Chioma and R. Natalini, Convergence of numerical schemes for viscosity solutions to integro-differential degenerate parabolic problems arising in financial theory, Journal of Numerical Mathematics, 98 (2004), 607-646. doi: 10.1007/s00211-004-0530-0. Google Scholar

[7]

P. CarrH. GermanD. B. Madan and M. Yor, The fine structure of asset returns: An empirical investigation, Journal of Business, 75 (2002), 305-332. doi: 10.1086/338705. Google Scholar

[8]

T. F. ColemanY. Li and A. Verma, Reconstructing the unknown local volatility function, Journal of Computational Finance, 2 (1999), 77-100. doi: 10.1142/9789812810663_0007. Google Scholar

[9]

R. Company, L. J$\acute{o}$dar and M. Fakharany, Positive solutions of European option pricing with CGMY process models using double discretization difference schemes, Abstr. Appl. Anal., 2013 (2013), Art. ID 517480, 11 pp. Google Scholar

[10]

R. Cont and E. Voltchkova, A finite difference scheme for option pricing in jumps diffusion and exponential L$\acute{e}$vy models, SIAM Journal on Numerical Analysis, 43 (2005), 1596-1626. doi: 10.1137/S0036142903436186. Google Scholar

[11]

R. Cont and E. Voltchkova, A finite difference scheme for option pricing in jump diffusion and exponential Lvy models, SIAM J. Numer. Anal., 43 (2005), 1596-1626. doi: 10.1137/S0036142903436186. Google Scholar

[12]

J. M. Corcuera et al, Completion of Lévy market by power jump assets, Finance Stochastic, 9 (2005), 109–127. doi: 10.1007/s00780-004-0139-2. Google Scholar

[13]

P. J. Davis and P. Rabinowitz, Methods of Numerical Integration, Academic Press Inc., Orlando, FL, 2nd edition, 1984. Google Scholar

[14]

Y. d'HalluinP. A. Forsyth and K. R. Vetzal, Robust numerical methods for contigent claims under jump-diffusion processs, IMA Journal of Numerical Analysis, 25 (2005), 87-112. doi: 10.1093/imanum/drh011. Google Scholar

[15]

B. Dupire, Pricing with a smile, RISK Magazine, 1 (1994), 18-20. Google Scholar

[16]

M. FakharanyR. Company and L. Jódar, Solving partial integro-option pricing problems for a wide class of infinite activity Lévy processes, Journal of Computational and applied Mathematics, 296 (2016), 739-752. doi: 10.1016/j.cam.2015.10.027. Google Scholar

[17]

R. Frontczak and R. Söchbel, On modified Mellin transforms, Gauss aguerre quadrature, and the valuation of American call options, Journal of Computational and Applied Mathematics, 234 (2010), 1559-1571. doi: 10.1016/j.cam.2010.02.037. Google Scholar

[18]

D. Funaro, Polynomial Approximation of Differential Equations, Springer, Berlin, 1992. Google Scholar

[19]

T. Goll and J. Kallen, Optimal portfolios for logarithmic utility, Stochastic Process. Appl., 89 (2000), 31-48. doi: 10.1016/S0304-4149(00)00011-9. Google Scholar

[20]

T. Goll and L. Rüschendorf, Minimax and minimal distance martingale measures and their relationship to portfolio optimization, Finance Stochastic, 5 (2001), 557-581. doi: 10.1007/s007800100052. Google Scholar

[21]

D. Gottlieb and C. -W. Shu, On the Gibbs phenomenon Ⅳ: Recovering exponential accuracy in a subinterval from a Gegenbauer partial sum of a piecewise analytic function, Journal of Computational and Applied Mathematics, 64 (1995), 1081-1095. doi: 10.2307/2153484. Google Scholar

[22]

S. Heston, A closed-form solution for options with stochastic volatility with applications to bond and currency options, Review of Financial Studies, 6 (1993), 327-343. doi: 10.1093/rfs/6.2.327. Google Scholar

[23]

M. Hochbruck and C. Lubich, On Krylov subspace approximations to the matrix exponential operator, SIAM Journal of Numerical Analysis, 34 (1997), 1911-1925. doi: 10.1137/S0036142995280572. Google Scholar

[24]

J. Hull and A. White, The pricing of options with stochastic volatilities, Journal of Finance, 42 (1987), 281-300. doi: 10.1111/j.1540-6261.1987.tb02568.x. Google Scholar

[25]

A. K. Kassam and L. N. Trefethen, Fourth-order time stepping for stiff PDEs, SIAM Journal of Scientific Computing, 26 (2005), 1214-1233. doi: 10.1137/S1064827502410633. Google Scholar

[26]

G. Klein and J. P. Berrut, Linear barycentric rational quadrature, BIT Numerical Mathematics, 52 (2012), 407-424. doi: 10.1007/s10543-011-0357-x. Google Scholar

[27]

P. E. KloedenG. J. Neuenkirch and T. Shardlow, The exponential integrator scheme for stochastic partial differential equations: Pathwise error bounds, Journal of Computational and Applied Mathematics, 235 (2011), 1245-1260. doi: 10.1016/j.cam.2010.08.011. Google Scholar

[28]

S. G. Kou, A jump-diffusion model for option pricing, Management Science, 8 (2002), 1086-1101. Google Scholar

[29]

J. L. Lagrange, Leçons élémentaires sur les mathématiques, données à l'Ecole Normal en 1795, in Oeuvres VII, Gauthier-Villars, Paris, 7 (1877), 183–287.Google Scholar

[30]

D. B. Madan and E. Seneta, The variance gamma model for share market returns, Journal of Business, 63 (1990), 511-524. doi: 10.1086/296519. Google Scholar

[31]

D. Madan and M. Yor, Representing the CGMY and Meixner Lvy processes as time changed Brownian motions, Journal of Computational Finance, 12 (2008), 27-47. doi: 10.21314/JCF.2008.181. Google Scholar

[32]

C. Markakis, and L. Barack, High-order difference and pseudospectral methods for discontinuous problems, arXiv: 1406.4865v1, [maths. NA], (2014) 1-9.Google Scholar

[33]

R. C. Merton, Option pricing when the underlying stocks are discontinuous, Journal of Financial Economics, 5 (1976), 125-144. doi: 10.1016/0304-405X(76)90022-2. Google Scholar

[34]

J. Niesen and W. M. Wright, A Krylov subspace method for option pricing, Technical report SSRN 1799124, 2011. doi: 10.2139/ssrn.1799124. Google Scholar

[35]

E. NgoundaK. C. Patidar and E. Pindza, Contour Integral Method for European Options with Jumps, Communications in Nonlinear Science and Numerical Simulation, 18 (2013), 478-492. doi: 10.1016/j.cnsns.2012.08.003. Google Scholar

[36]

S. A. Orszag, Spectral methods for problems in complex geometries, Journal of Computational Physics, 37 (1980), 70-92. doi: 10.1016/0021-9991(80)90005-4. Google Scholar

[37]

H. K. Pang and H. W. Sun, Fast exponential time integration for pricing options in stochastic volatility jump diffusion models, East Asian Journal on Applied Mathematics, 4 (2014), 52-68. doi: 10.4208/eajam.280313.061013a. Google Scholar

[38]

A. Papapantoleon, An Introduction to Lévy Processes with Applications in Finance, Lecture Notes, University of Freiburg, 2008.Google Scholar

[39]

H. P. PfeifferL. E. KidderM. A. Scheel and S. A. Teukolsky, A multi-domain spectral method for solving elliptic equations, Computer Physics Communications, 152 (2003), 253-273. doi: 10.1016/S0010-4655(02)00847-0. Google Scholar

[40]

E. PindzaK. C. Patidar and E. Ngounda, Robust Spectral Method for Numerical Valuation of European Options under Merton's Jump-Diffusion Model, Numerical Methods for Partial Differential Equations, 30 (2014), 1169-1188. doi: 10.1002/num.21864. Google Scholar

[41]

N. RambeerichD. Y. Tangaman and M. Bhuruth, Numerical Pricing Of American Option Under Infinite Activity Lévy Processes, Journal of Futures Markets, 31 (2011), 809-829. doi: 10.1002/fut.20497. Google Scholar

[42]

Y. Saad, Analysis of some Krylov subspace approximations to the matrix exponential operator, SIAM Journal of Numerical Analysis, 29 (1992), 209-228. doi: 10.1137/0729014. Google Scholar

[43]

T. Schmelzer and L. N. Trefethen, Evaluating matrix functions for exponential integrators via Carathéodory-Fejér approximation and contour integrals, Electronic Transactions on Numerical Analysis, 29 (2007), 1-18. Google Scholar

[44]

W. SchoutensJ. L. Teugels and L. processes, Polynomials and martingales, Communications in Statistics. Stochastic Models, 14 (1998), 335-349. doi: 10.1080/15326349808807475. Google Scholar

[45]

W. Schoutens, Lévy Processes in Finance: Pricing Financial Derivatives, Wiley, New York, 2003. doi: 10.1002/0470870230. Google Scholar

[46]

D. Y. TangmanA. Gopaul and M. Bhuruth, Exponential time integration and Chebyshev discretisation schemes for fast pricing options, Applied Numerical Mathematics, 58 (2008), 1309-1319. doi: 10.1016/j.apnum.2007.07.005. Google Scholar

[47]

D. Tavella and C. Randall, Pricing Financial Instruments: The Finite Difference Method, Wiley, New York, 2000.Google Scholar

[48]

L. N. Trefethen, Approximation Theory and Approximation Practice, SIAM, Philadelphia, PA, 2013. Google Scholar

[49]

L. N. Trefethen, Is Gauss quadrature better than Clenshaw urtis?, SIAM Review, 50 (2008), 67-87. doi: 10.1137/060659831. Google Scholar

[50]

L. N. Trefethen, Spectral Methods in Matlab, SIAM, Philadelphia, PA, 2000. doi: 10.1137/1.9780898719598. Google Scholar

[51]

L. N. Trefethen and H. M. Gutknecht, The Carathéodory-Fejér method for real rational approximation, SIAM Journal on Numerical Analysis, 20 (1983), 420-436. doi: 10.1137/0720030. Google Scholar

[52]

I. R. WangJ. W. Wan and P. A. Forsyth, Robust numerical valuation of European and American options under the CGMY process, Journal of Computational Finance, 10 (2007), 31-69. doi: 10.21314/JCF.2007.169. Google Scholar

[53]

B. D. Welfert, Generation of pseudospectral differentiation matrices Ⅰ, SIAM Journal on Numerical Analysis, 34 (1997), 1640-1657. doi: 10.1137/S0036142993295545. Google Scholar

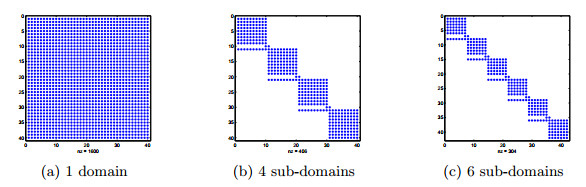

Figure 1.  Spectral domain decomposition method matrix structures

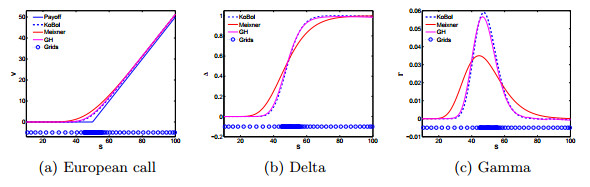

Figure 2.  Numerical valuation of European call options for the CGMY, Meixner and GH model with their Greeks for the parameters in Table 2

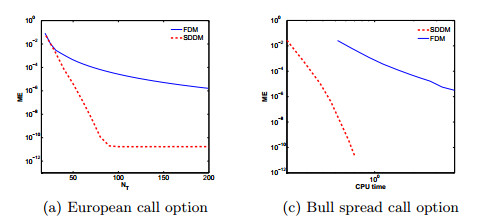

Figure 3.  Convergence of the SDDM and FDM for European vanilla call options for the parameters in Table 2

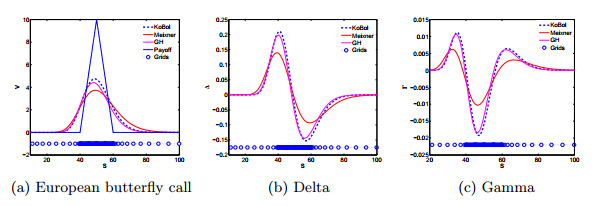

Figure 4.  Numerical valuation of European butterfly call options for the CGMY, Meixner, and GH model with $N = 16, K_{1} = 40, K_{2} = 50, K_{3} = 60$ for the parameters in Table 2

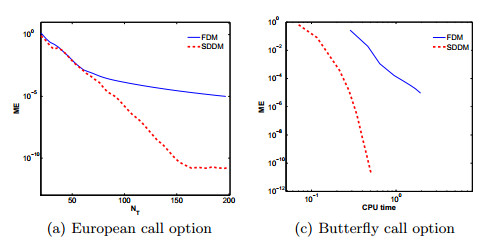

Figure 5.  Convergence of the SDDM and FDM for European vanilla butterfly call options for the parameters in Table 2
Table 1.  Density functions for Lévy Processes
Model Lévy density function
CGMY $f(y)=\frac{C_{-}e^{-G|y|}}{|y|^{1+Y}}{\bf{1}}_{y<0}+ \frac{C_{+}e^{-M|y|}}{|y|^{1+Y}}{\bf{1}}_{y>0}$
Meixner $f(y)=\frac{Ae^{-ay}}{y\sinh(by)}$
GH process $f(y)=\frac{e^{\beta y}}{|y|}\left(\int_{0}^{\infty}\frac{e^{-\sqrt{2\zeta+\alpha^{2}}|y|}}{\pi^{2}\zeta \left(J^{2}_{|\lambda|}\left(\delta\sqrt{2\zeta}\right)+Y^{2}_{|\lambda|}\left(\delta\sqrt{2\zeta}\right)\right)}d\zeta+\max(0,\lambda)e^{-\alpha|y|}\right)$
Model Lévy density function
CGMY $f(y)=\frac{C_{-}e^{-G|y|}}{|y|^{1+Y}}{\bf{1}}_{y<0}+ \frac{C_{+}e^{-M|y|}}{|y|^{1+Y}}{\bf{1}}_{y>0}$
Meixner $f(y)=\frac{Ae^{-ay}}{y\sinh(by)}$
GH process $f(y)=\frac{e^{\beta y}}{|y|}\left(\int_{0}^{\infty}\frac{e^{-\sqrt{2\zeta+\alpha^{2}}|y|}}{\pi^{2}\zeta \left(J^{2}_{|\lambda|}\left(\delta\sqrt{2\zeta}\right)+Y^{2}_{|\lambda|}\left(\delta\sqrt{2\zeta}\right)\right)}d\zeta+\max(0,\lambda)e^{-\alpha|y|}\right)$
Table 2.  The parameters for Lévy models used in both examples
Model Parameters
GBM (Black-Scholes) $K =50, \ r = 0.05, \sigma = 0.2, q=0$ and $T =0.5. $
CGMY $C_{-} = 0.3, \ C_{+} = 0.1, \ \ G = 15,\ M = 25$ and $Y = 20. $
Meixner $A=15, \ a=-1.5$ and $b=50$
GH process $\alpha=4, \ \beta=-3.2, \ \delta=1.4775$ and $\lambda=-3$
Model Parameters
GBM (Black-Scholes) $K =50, \ r = 0.05, \sigma = 0.2, q=0$ and $T =0.5. $
CGMY $C_{-} = 0.3, \ C_{+} = 0.1, \ \ G = 15,\ M = 25$ and $Y = 20. $
Meixner $A=15, \ a=-1.5$ and $b=50$
GH process $\alpha=4, \ \beta=-3.2, \ \delta=1.4775$ and $\lambda=-3$
Table 3.  The benchmark European call option values under Lévy processes with different values of S and $N = 150$ for the parameters in Table 2
Model $S$
40 50 60
CGMY 0.2210443864 3.3785900783 11.3681462140
Meixner 1.3420365535 5.4934725848 12.7780678851
GH processes 0.3237597911 3.8485639686 11.9164490861
Model $S$
40 50 60
CGMY 0.2210443864 3.3785900783 11.3681462140
Meixner 1.3420365535 5.4934725848 12.7780678851
GH processes 0.3237597911 3.8485639686 11.9164490861
Table 4.  Absolute errors (${\bf{AE}}$) of the benchmark and the European call option apply to the CGMY, Meixner and GH processes models with different values of $N$ and $S$ for the parameters in Table 2
$SDDM $ $FDM $
$S $ $40 $ 50 60 $40 $ 50 60
$N$ ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU
CGMY 10 $1.15e^{-4}$ $1.28e^{-4}$ $1.35e^{-4}$ $0.30$ $1.14e^{-2}$ $5.72e^{-2}$ $9.55e^{-3}$ 0.6
15 $1.23e^{-5}$ $1.73e^{-5}$ $1.45e^{-5}$ $0.34$ $2.03e^{-3}$ $1.55e^{-2}$ $1.75e^{-3}$ 0.72
20 $2.75e^{-7}$ $2.13e^{-7}$ $2.34e^{-7}$ $0.40$ $6.25e^{-4}$ $4.09e^{-3}$ $6.06e^{-4}$ 0.87
25 $3.33e^{-10}$ $3.15e^{-10}$ $3.24e^{-10}$ $0.53$ $2.75e^{-4}$ $1.91e^{-3}$ $2.37e^{-4}$ 1.32
Meixner 10 $2.12e^{-4}$ $2.45e^{-4}$ $2.35e^{-4}$ $0.32$ $1.46e^{-2}$ $4.35e^{-2}$ $8.51e^{-3}$ 0.65
15 $2.78e^{-5}$ $2.65e^{-5}$ $2.67e^{-5}$ $0.35$ $2.66e^{-3}$ $1.16e^{-2}$ $2.13e^{-3}$ 0.78
20 $3.40e^{-7}$ $3.23e^{-7}$ $3.14e^{-7}$ 0.41 $6.45e^{-4}$ $3.95e^{-3}$ $5.45e^{-4}$ 0.86
25 $4.77e^{-10}$ $4.65e^{-10}$ $4.33e^{-10}$ $0.55$ $2.35e^{-4}$ $1.02e^{-3}$ $2.14e^{-4}$ 1.41
GH processes 10 $3.33e^{-4}$ $3.29e^{-4}$ $3.17e^{-4}$ $0.65$ $1.45e^{-2}$ $5.33e^{-2}$ $7.13e^{-3}$ 1.33
15 $4.55e^{-5}$ $4.370e^{-5}$ $4.14e^{-5}$ $0.82$ $2.15e^{-3}$ $1.04e^{-2}$ $5.72e^{-2}$ 1.61
20 $5.14e^{-7}$ $5.21e^{-7}$ $5.14e^{-7}$ $1.41$ $5.61e^{-4}$ $4.02e^{-3}$ $6.12e^{-4}$ 2.94
25 $7.11e^{-10}$ $7.25e^{-10}$ $7.33e^{-10}$ $1.82$ $2.36e^{-4}$ $1.21e^{-3}$ $3.01e^{-4}$ 3.51
$SDDM $ $FDM $
$S $ $40 $ 50 60 $40 $ 50 60
$N$ ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU
CGMY 10 $1.15e^{-4}$ $1.28e^{-4}$ $1.35e^{-4}$ $0.30$ $1.14e^{-2}$ $5.72e^{-2}$ $9.55e^{-3}$ 0.6
15 $1.23e^{-5}$ $1.73e^{-5}$ $1.45e^{-5}$ $0.34$ $2.03e^{-3}$ $1.55e^{-2}$ $1.75e^{-3}$ 0.72
20 $2.75e^{-7}$ $2.13e^{-7}$ $2.34e^{-7}$ $0.40$ $6.25e^{-4}$ $4.09e^{-3}$ $6.06e^{-4}$ 0.87
25 $3.33e^{-10}$ $3.15e^{-10}$ $3.24e^{-10}$ $0.53$ $2.75e^{-4}$ $1.91e^{-3}$ $2.37e^{-4}$ 1.32
Meixner 10 $2.12e^{-4}$ $2.45e^{-4}$ $2.35e^{-4}$ $0.32$ $1.46e^{-2}$ $4.35e^{-2}$ $8.51e^{-3}$ 0.65
15 $2.78e^{-5}$ $2.65e^{-5}$ $2.67e^{-5}$ $0.35$ $2.66e^{-3}$ $1.16e^{-2}$ $2.13e^{-3}$ 0.78
20 $3.40e^{-7}$ $3.23e^{-7}$ $3.14e^{-7}$ 0.41 $6.45e^{-4}$ $3.95e^{-3}$ $5.45e^{-4}$ 0.86
25 $4.77e^{-10}$ $4.65e^{-10}$ $4.33e^{-10}$ $0.55$ $2.35e^{-4}$ $1.02e^{-3}$ $2.14e^{-4}$ 1.41
GH processes 10 $3.33e^{-4}$ $3.29e^{-4}$ $3.17e^{-4}$ $0.65$ $1.45e^{-2}$ $5.33e^{-2}$ $7.13e^{-3}$ 1.33
15 $4.55e^{-5}$ $4.370e^{-5}$ $4.14e^{-5}$ $0.82$ $2.15e^{-3}$ $1.04e^{-2}$ $5.72e^{-2}$ 1.61
20 $5.14e^{-7}$ $5.21e^{-7}$ $5.14e^{-7}$ $1.41$ $5.61e^{-4}$ $4.02e^{-3}$ $6.12e^{-4}$ 2.94
25 $7.11e^{-10}$ $7.25e^{-10}$ $7.33e^{-10}$ $1.82$ $2.36e^{-4}$ $1.21e^{-3}$ $3.01e^{-4}$ 3.51
Table 5.  The benchmark values of the European butterfly call option values under Lévy processes with different values of S and $N = 100$ for the parameters in Table 2
Model $S$
40 50 60
CGMY 2.2845953002 4.6814621409 2.1592689295
Meixner 2.2689295039 3.7101827676 2.3159268929
GH processes 2.3942558746 4.2898172323 1.7989556135
Model $S$
40 50 60
CGMY 2.2845953002 4.6814621409 2.1592689295
Meixner 2.2689295039 3.7101827676 2.3159268929
GH processes 2.3942558746 4.2898172323 1.7989556135
Table 6.  Absolute errors (${\bf{AE}}$) of the benchmark and the European call option apply to the CGMY, Meixner, and GH processes models with different values of $N$ and $S$ for the parameters in Table 2
$SDDM $ $FDM $
$S $ $40 $ 50 60 $40 $ 50 60
$N$ ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU
CGMY 07 $1.88e^{-4}$ $1.76e^{-4}$ $1.76e^{-4}$ $0.20$ $1.24e^{-2}$ $5.81e^{-2}$ $8.98e^{-3}$ 0.62
10 $1.45e^{-5}$ $1.81e^{-5}$ $1.71e^{-5}$ $0.28$ $1.98e^{-3}$ $1.63e^{-2}$ $2.05e^{-3}$ 0.73
13 $2.91e^{-7}$ $2.33e^{-7}$ $2.25e^{-7}$ $0.33$ $5.99e^{-4}$ $4.29e^{-3}$ $5.66e^{-4}$ 0.87
16 $3.72e^{-10}$ $3.34e^{-10}$ $3.81e^{-10}$ $0.44$ $2.83e^{-4}$ $2.11e^{-3}$ $2.48e^{-4}$ 1.41
Meixner 07 $2.45e^{-4}$ $3.32e^{-4}$ $3.22e^{-4}$ $0.24$ $1.56e^{-2}$ $4.28e^{-2}$ $8.88e^{-3}$ 0.63
10 $2.72e^{-5}$ $2.75e^{-5}$ $2.46e^{-5}$ $0.24$ $1.99e^{-3}$ $1.23e^{-2}$ $2.34e^{-3}$ 0.75
13 $3.54e^{-7}$ $3.28e^{-7}$ $3.69e^{-7}$ 0.34 $6.25e^{-4}$ $4.05e^{-3}$ $5.32e^{-4}$ 0.85
16 $5.68e^{-10}$ $5.55e^{-10}$ $5.88e^{-10}$ $0.42$ $2.44e^{-4}$ $1.24e^{-3}$ $2.51e^{-4}$ 1.42
GH processes 07 $3.12e^{-4}$ $3.02e^{-4}$ $3.45e^{-4}$ $0.51$ $1.25e^{-2}$ $5.71e^{-2}$ $6.97e^{-3}$ 1.32
10 $5.51e^{-5}$ $6.1e^{-5}$ $5.92e^{-5}$ $0.68$ $2.13e^{-3}$ $1.21e^{-2}$ $5.87e^{-2}$ 1.63
13 $7.11e^{-7}$ $7.25e^{-7}$ $7.33e^{-7}$ $0.82$ $5.11e^{-4}$ $4.14e^{-3}$ $6.22e^{-4}$ 2.91
16 $8.25e^{-10}$ $9.12e^{-10}$ $9.23e^{-10}$ $1.32$ $2.53e^{-4}$ $1.31e^{-3}$ $3.12e^{-4}$ 3.48
$SDDM $ $FDM $
$S $ $40 $ 50 60 $40 $ 50 60
$N$ ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU ${\bf{AE}}$ ${\bf{AE}}$ ${\bf{AE}}$ CPU
CGMY 07 $1.88e^{-4}$ $1.76e^{-4}$ $1.76e^{-4}$ $0.20$ $1.24e^{-2}$ $5.81e^{-2}$ $8.98e^{-3}$ 0.62
10 $1.45e^{-5}$ $1.81e^{-5}$ $1.71e^{-5}$ $0.28$ $1.98e^{-3}$ $1.63e^{-2}$ $2.05e^{-3}$ 0.73
13 $2.91e^{-7}$ $2.33e^{-7}$ $2.25e^{-7}$ $0.33$ $5.99e^{-4}$ $4.29e^{-3}$ $5.66e^{-4}$ 0.87
16 $3.72e^{-10}$ $3.34e^{-10}$ $3.81e^{-10}$ $0.44$ $2.83e^{-4}$ $2.11e^{-3}$ $2.48e^{-4}$ 1.41
Meixner 07 $2.45e^{-4}$ $3.32e^{-4}$ $3.22e^{-4}$ $0.24$ $1.56e^{-2}$ $4.28e^{-2}$ $8.88e^{-3}$ 0.63
10 $2.72e^{-5}$ $2.75e^{-5}$ $2.46e^{-5}$ $0.24$ $1.99e^{-3}$ $1.23e^{-2}$ $2.34e^{-3}$ 0.75
13 $3.54e^{-7}$ $3.28e^{-7}$ $3.69e^{-7}$ 0.34 $6.25e^{-4}$ $4.05e^{-3}$ $5.32e^{-4}$ 0.85
16 $5.68e^{-10}$ $5.55e^{-10}$ $5.88e^{-10}$ $0.42$ $2.44e^{-4}$ $1.24e^{-3}$ $2.51e^{-4}$ 1.42
GH processes 07 $3.12e^{-4}$ $3.02e^{-4}$ $3.45e^{-4}$ $0.51$ $1.25e^{-2}$ $5.71e^{-2}$ $6.97e^{-3}$ 1.32
10 $5.51e^{-5}$ $6.1e^{-5}$ $5.92e^{-5}$ $0.68$ $2.13e^{-3}$ $1.21e^{-2}$ $5.87e^{-2}$ 1.63
13 $7.11e^{-7}$ $7.25e^{-7}$ $7.33e^{-7}$ $0.82$ $5.11e^{-4}$ $4.14e^{-3}$ $6.22e^{-4}$ 2.91
16 $8.25e^{-10}$ $9.12e^{-10}$ $9.23e^{-10}$ $1.32$ $2.53e^{-4}$ $1.31e^{-3}$ $3.12e^{-4}$ 3.48
[1]

Frederic Abergel, Remi Tachet. A nonlinear partial integro-differential equation from mathematical finance. Discrete & Continuous Dynamical Systems - A, 2010, 27 (3) : 907-917. doi: 10.3934/dcds.2010.27.907

[2]

Samir K. Bhowmik, Dugald B. Duncan, Michael Grinfeld, Gabriel J. Lord. Finite to infinite steady state solutions, bifurcations of an integro-differential equation. Discrete & Continuous Dynamical Systems - B, 2011, 16 (1) : 57-71. doi: 10.3934/dcdsb.2011.16.57

[3]

Xu Chen, Jianping Wan. Integro-differential equations for foreign currency option prices in exponential Lévy models. Discrete & Continuous Dynamical Systems - B, 2007, 8 (3) : 529-537. doi: 10.3934/dcdsb.2007.8.529

[4]

Walter Allegretto, John R. Cannon, Yanping Lin. A parabolic integro-differential equation arising from thermoelastic contact. Discrete & Continuous Dynamical Systems - A, 1997, 3 (2) : 217-234. doi: 10.3934/dcds.1997.3.217

[5]

Narcisa Apreutesei, Nikolai Bessonov, Vitaly Volpert, Vitali Vougalter. Spatial structures and generalized travelling waves for an integro-differential equation. Discrete & Continuous Dynamical Systems - B, 2010, 13 (3) : 537-557. doi: 10.3934/dcdsb.2010.13.537

[6]

Shihchung Chiang. Numerical optimal unbounded control with a singular integro-differential equation as a constraint. Conference Publications, 2013, 2013 (special) : 129-137. doi: 10.3934/proc.2013.2013.129

[7]

Kexue Li, Jigen Peng, Junxiong Jia. Explosive solutions of parabolic stochastic partial differential equations with lévy noise. Discrete & Continuous Dynamical Systems - A, 2017, 37 (10) : 5105-5125. doi: 10.3934/dcds.2017221

[8]

Michel Chipot, Senoussi Guesmia. On a class of integro-differential problems. Communications on Pure & Applied Analysis, 2010, 9 (5) : 1249-1262. doi: 10.3934/cpaa.2010.9.1249

[9]

Thanh-Anh Nguyen, Dinh-Ke Tran, Nhu-Quan Nguyen. Weak stability for integro-differential inclusions of diffusion-wave type involving infinite delays. Discrete & Continuous Dynamical Systems - B, 2016, 21 (10) : 3637-3654. doi: 10.3934/dcdsb.2016114

[10]

Sanjay Khattri. Another note on some quadrature based three-step iterative methods for non-linear equations. Numerical Algebra, Control & Optimization, 2013, 3 (3) : 549-555. doi: 10.3934/naco.2013.3.549

[11]

Julian Koellermeier, Roman Pascal Schaerer, Manuel Torrilhon. A framework for hyperbolic approximation of kinetic equations using quadrature-based projection methods. Kinetic & Related Models, 2014, 7 (3) : 531-549. doi: 10.3934/krm.2014.7.531

[12]

Nestor Guillen, Russell W. Schwab. Neumann homogenization via integro-differential operators. Discrete & Continuous Dynamical Systems - A, 2016, 36 (7) : 3677-3703. doi: 10.3934/dcds.2016.36.3677

[13]

Olivier Bonnefon, Jérôme Coville, Jimmy Garnier, Lionel Roques. Inside dynamics of solutions of integro-differential equations. Discrete & Continuous Dynamical Systems - B, 2014, 19 (10) : 3057-3085. doi: 10.3934/dcdsb.2014.19.3057

[14]

Paola Loreti, Daniela Sforza. Observability of $N$-dimensional integro-differential systems. Discrete & Continuous Dynamical Systems - S, 2016, 9 (3) : 745-757. doi: 10.3934/dcdss.2016026

[15]

Giuseppe Maria Coclite, Mario Michele Coclite. Positive solutions of an integro-differential equation in all space with singular nonlinear term. Discrete & Continuous Dynamical Systems - A, 2008, 22 (4) : 885-907. doi: 10.3934/dcds.2008.22.885

[16]

Jiahui Zhu, Zdzisław Brzeźniak. Nonlinear stochastic partial differential equations of hyperbolic type driven by Lévy-type noises. Discrete & Continuous Dynamical Systems - B, 2016, 21 (9) : 3269-3299. doi: 10.3934/dcdsb.2016097

[17]

Daijun Jiang, Hui Feng, Jun Zou. Overlapping domain decomposition methods for linear inverse problems. Inverse Problems & Imaging, 2015, 9 (1) : 163-188. doi: 10.3934/ipi.2015.9.163

[18]

Andreas Asheim, Alfredo Deaño, Daan Huybrechs, Haiyong Wang. A Gaussian quadrature rule for oscillatory integrals on a bounded interval. Discrete & Continuous Dynamical Systems - A, 2014, 34 (3) : 883-901. doi: 10.3934/dcds.2014.34.883

[19]

Avetik Arakelyan, Henrik Shahgholian, Jyotshana V. Prajapat. Two-and multi-phase quadrature surfaces. Communications on Pure & Applied Analysis, 2017, 16 (6) : 2023-2045. doi: 10.3934/cpaa.2017099

[20]

Jean-Michel Roquejoffre, Juan-Luis Vázquez. Ignition and propagation in an integro-differential model for spherical flames. Discrete & Continuous Dynamical Systems - B, 2002, 2 (3) : 379-387. doi: 10.3934/dcdsb.2002.2.379

2018 Impact Factor: 0.545

Metrics

  • PDF downloads (39)
  • HTML views (108)
  • Cited by (0)

[Back to Top]
