Pseudospectral discretization of delay differential equations in sun-star formulation: Results and conjectures

Odo Diekmann; Francesca Scarabel; Rossana Vermiglio

doi:10.3934/dcdss.2020196

Article Contents

2020, Volume 13, Issue 9: 2575-2602. Doi: 10.3934/dcdss.2020196

This issue Previous Article Controllability analysis of nonlinear fractional order differential systems with state delay and non-instantaneous impulsive effects Next Article Functionally-fitted block

$ \theta $

-methods for ordinary differential equations

Pseudospectral discretization of delay differential equations in sun-star formulation: Results and conjectures

1.
Department of Mathematics, Utrecht University, P.O. Box 80010, 3508 TA Utrecht, The Netherlands
2.
Department of Mathematics and Statistics, University of Helsinki, P.O. 68 (Pietari Kalmin katu 5), FI-00014 Helsinki, Finland
3.
Department of Mathematics and Statistics, York University, 4700 Keele St, Toronto, ON M3J 1P3, Canada
4.
Department of Mathematics, Computer Science and Physics, University of Udine, via delle Scienze 206, I-33100 Udine, Italy

^* Corresponding author: Rossana Vermiglio
^* Corresponding author: Rossana Vermiglio

Received: January 2019

Revised: May 2019

Early access: December 2019

Published: June 2020

The research of the second author was supported by Domast (Doctoral Programme in Mathematics and Statistics, University of Helsinki), and by the Centre of Excellence in Analysis and Dynamics Research, Academy of Finland. F.S. and R.V. are members of the INdAM Research group GNCS, and of CDLab (Computational Dynamics Laboratory), Department of Mathematics, Computer Science and Physics, University of Udine.

Abstract / Introduction Full Text(HTML) Figure(14) / Table(2) Related Papers Cited by

Abstract

In this paper we study the pseudospectral approximation of delay differential equations formulated as abstract differential equations in the $ \odot* $-space. This formalism also allows us to define rigorously the abstract variation-of-constants formula, where the $ \odot* $-shift operator plays a fundamental role. By applying the pseudospectral discretization technique we derive a system of ordinary differential equations, whose dynamics can be efficiently analyzed by existing bifurcation tools. To better understand to what extent the resulting finite-dimensional system "mimics" the dynamics of the original infinite-dimensional one, we study the pseudospectral approximations of the $ \odot* $-shift operator and of the $ \odot* $-generator in the supremum norm, which is the natural choice for delay differential equations, when the discretization parameter increases. In this context there are still open questions. We collect the most relevant results from the literature and we present some conjectures, supported by various numerical experiments, to illustrate the behavior w.r.t. the discretization parameter and to indicate the direction of ongoing and future research.

Keywords:

Mathematics Subject Classification: Primary: 65F35, 65L03, 65L07, 65M70, 65P99, 65Q20, 37M20X, 34K07, 34K20, 41A10; Secondary: 34K08, 34K28, 37K45.

Citation:

Full Text(HTML)

Figure 1. Left: plot of $ \sigma(D_M) $ for different $ M $, together with the line $ \mathrm{Re} \lambda = \log \epsilon \approx -36.0437 $ connected with the instability phenomenon studied in [63]. Right: plot of $ \frac{-\alpha(D_M)}{\log(M)} $, versus $ M $

Download: Full-size image PowerPoint slide

Figure 2. Error $ \| \psi_M - \psi\| $ for the resolvent operators applied to $ \beta = 0 $, $ \varphi = 1 $, versus $ M $. Left: $ \lambda = 1 $; right: $ \lambda = 10 $. Note the spectral accuracy and that the convergence is slower when $ \lambda $ has larger modulus

Download: Full-size image PowerPoint slide

Figure 3. Left: plot of $ \log \|{\rm e}^{D_M t}\| $ for $ t\in [0, 2] $ with different values of $ M $. Notice divergence in $ [0, 1] $ for increasing $ M $. Right: plot of $ \max_{t\in I} \frac{\log \|{\rm e}^{D_M t}\|}{\log(M)} $ versus $ M, $ for $ I $ specified in the legend. Notice that the convergence gains one order at every time interval

Download: Full-size image PowerPoint slide

Figure 4. $ \|{\rm e}^{D_M t}\| $ computed with different routines: built-in Matlab function $text{expm}$ and $\text{norm(., inf)}$ versus maximum over $ n = 100 $ random initial vectors of the solution of the ODE system. Left: $ \|{\rm e}^{D_M t}\| $ versus time. Right: $ \max_{t \in [0, 2]} \|{\rm e}^{D_M t}\| $ versus $ M $. The dotted line is the reference line $ \log(M) $. The fact that the effective norm of the exponential matrix diverges, while the norm computed by selecting a random set of vectors is uniformly bounded, suggests that the "bad" behavior of the norm is due to a small set of vectors

Download: Full-size image PowerPoint slide

Figure 5. Left: plot of the function $ \sum\limits_{i = 1}^M |\ell_i(\theta)| $ for $ M = 8 $. Right: plot of $ \|{\rm e}^{D_M t}\| $ (blue) and $ C_M(t) $ in (45) (red) versus time for $ M = 8 $

Download: Full-size image PowerPoint slide

Figure 6. Left: plot of $ \psi(\theta) = H(\theta) $ (black) and its interpolating polynomial for $ M = 8 $ (red). Right: $ \log \log $ plot of the error $ \|{\rm e}^{D_M t}\psi(\Theta_M)-R_M \mathcal{H}_{0}(t)\psi\| $ for $ t = 0.5, 1.5, 2.5 $ versus $ M $. Note the uniform bound for $ t = 0.5 $ and the convergence for $ t>1 $. The dotted lines are the reference lines $ M^{-k} $, $ k = 1, \dots, 4 $

Download: Full-size image PowerPoint slide

Figure 7. Same as Figure 6 for $ \psi(\theta) = 0.5-|\theta+0.5| $. Note that $ \psi \in Y $ and $ \psi^{(1)} $ has bounded variation. The convergence rate for $ t = 0.25, 0.5 $ is $ O(M^{-1}) $ (right)

Download: Full-size image PowerPoint slide

Figure 8. Same as Figure 6 for $ \psi(\theta) = {\rm e}^{\theta^2}-1 $. Note that the interpolating polynomial is indistinguishable from the function (left) and that $ \psi^{(2)} $ has bounded variation. The convergence rate for $ t = 0.5 $ is $ O(M^{-2}) $ (right)

Download: Full-size image PowerPoint slide

Figure 9. Same as Figure 6 for $ \psi(\theta) = -\theta^3. $ Note that the interpolating polynomial is indistinguishable from the function (left) and that $ \psi^{(3)} $ has bounded variation. The convergence rate for $ t = 0.5 $ is $ O(M^{-3}) $ (right)

Download: Full-size image PowerPoint slide

Figure 10. Same as Figure 6 for $ \psi(\theta) = {\rm e}^{-1/\theta^2}. $ Note that the interpolating polynomial is indistinguishable from the function (left) and the spectral convergence for $ t = 0.5, 1.5, 2.5 $ (right)

Download: Full-size image PowerPoint slide

Figure 11. Same as Figure 6 for $ \psi(\theta) = \sin\frac{1}{\theta} $, if $ \theta<0 $, $ \psi(0) = 0 $. Note there is no convergence for $ t = 0.5 $

Download: Full-size image PowerPoint slide

Figure 12. Same as Figure 6 for $ \psi(\theta) = \sin(6 \theta)+sign(\sin(\theta+{\rm e}^{2\theta})) $ [60,pag.10]. Note there is no convergence for $ t = 0.5 $

Download: Full-size image PowerPoint slide

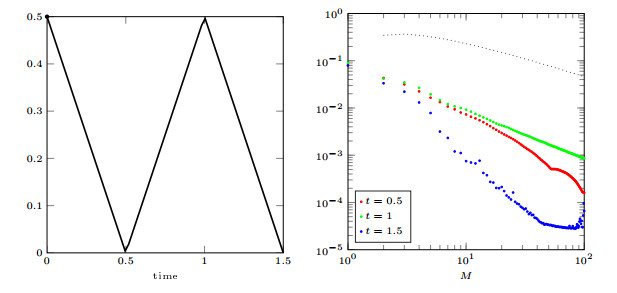

Figure 13. Left: plot of the function $ z $ (saw function) Right: error $ \|\int_0^t e^{(t-s)D_M} z(s) {\rm d} s- w(t)(\Theta_M) \| $ for $ t = 0.5, 1, 1.5 $ versus $ M $. The dotted line is the reference line $ \log(M)/M $

Download: Full-size image PowerPoint slide

Figure 14. Same as Figures 13 for the function $ z $ built so that it is continuously differentiable with jumps in the second derivative at $ t = 0.5,1,1.5 $

Download: Full-size image PowerPoint slide

Table 1. $ \|D_M\| $ and estimation of the order $ \log_2\frac{\|D_{2M}\|}{\|D_M\|} $ varying $ M. $

$ M $	$ \\|D_M\\| $	order	$ \\|D_M\\|/M^2 $
4	31		1.9375
8	127	2.0345	1.9844
16	511	2.0085	1.9961
32	2047	2.0021	1.9990
64	8191	2.0005	1.9998
128	32767	2.0001	1.9999
256	131071	2.0000	2.0000

| Show Table

DownLoad: CSV

Table 2. $ \mu(D_M) $ and estimation of the order $ \log_2\frac{\mu(D_{2M})}{\mu(D_M)} $ varying $ M. $

$ M $	$ \mu(D_M) $	order	$ \mu(D_M)/M^2 $
4	6.6569e+00		4.1605e-01
8	3.8921e+01	2.5476	6.0814e-01
16	1.6698e+02	2.1011	6.5227e-01
32	6.7900e+02	2.0237	6.6308e-01
64	2.7270e+03	2.0058	6.6577e-01
128	1.0919e+04	2.0015	6.6644e-01
256	4.3687e+04	2.0004	6.6661e-01

| Show Table

DownLoad: CSV
