The spectrum of delay differential equations with multiple hierarchical large delays

  • * Corresponding author: Stefan Ruschel

    * Corresponding author: Stefan Ruschel

to A. Mielke on the occasion of his 60th birthday

The authors acknowledge support by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) - Project 411803875 and SFB 910. The research was conducted while SR was doctoral student at Technische Universität Berlin

Abstract Full Text(HTML) Figure(3) / Table(2) Related Papers Cited by
  • We prove that the spectrum of the linear delay differential equation $ x'(t) = A_{0}x(t)+A_{1}x(t-\tau_{1})+\ldots+A_{n}x(t-\tau_{n}) $ with multiple hierarchical large delays $ 1\ll\tau_{1}\ll\tau_{2}\ll\ldots\ll\tau_{n} $ splits into two distinct parts: the strong spectrum and the pseudo-continuous spectrum. As the delays tend to infinity, the strong spectrum converges to specific eigenvalues of $ A_{0} $, the so-called asymptotic strong spectrum. Eigenvalues in the pseudo-continuous spectrum however, converge to the imaginary axis. We show that after rescaling, the pseudo-continuous spectrum exhibits a hierarchical structure corresponding to the time-scales $ \tau_{1}, \tau_{2}, \ldots, \tau_{n}. $ Each level of this hierarchy is approximated by spectral manifolds that can be easily computed. The set of spectral manifolds comprises the so-called asymptotic continuous spectrum. It is shown that the position of the asymptotic strong spectrum and asymptotic continuous spectrum with respect to the imaginary axis completely determines stability. In particular, a generic destabilization is mediated by the crossing of an $ n $-dimensional spectral manifold corresponding to the timescale $ \tau_{n} $.

    Mathematics Subject Classification: Primary: 34K06, 34K20; Secondary: 34K08.


    \begin{equation} \\ \end{equation}
  • 加载中

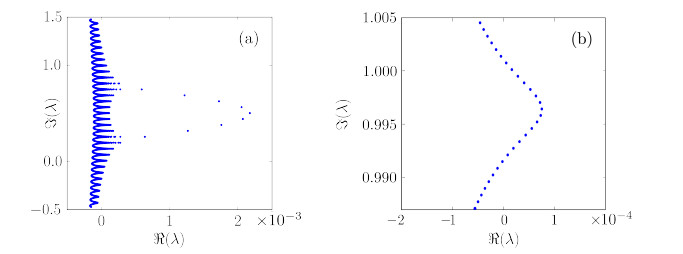

  • Figure 1.  Example of the numerically computed spectrum of eigenvalues for system (1) with $ n = 2 $, $ A_{0} = -0.4+0.5i $, $ A_{1} = 0.5 $, $ \tau_{1} = 100 $, and $ \tau_{2} = 10000 $. Panel (a): blue dots are numerically computed eigenvalues. Panel (b): zoom into panel (a)

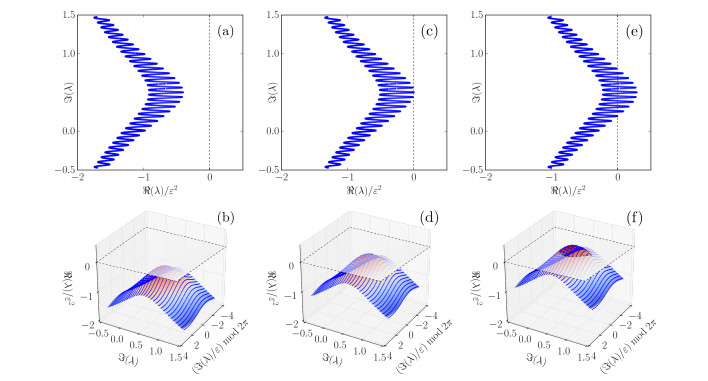

    Figure 2.  Eigenvalues of the characteristic equation (26) corresponding to two hierarchical delays. Panels (a)-(f) show the destabilization of the spectrum varying parameter $ c $ (columns from left to right: $ c = 0.2 $ (stable), $ c = 0.3 $ (neutral), $ c = 0.4 $ (unstable)). Panels (a), (c), (e) show the spectrum (real part rescaled). Panels (b), (d), (f): approximation of the spectrum via the two-dimensional spectral manifold $ \gamma^{(2)} $ ($ S_{2}, $ colored surface). Other parameters are $ a = -0.4+0.5i $, $ b = 0.1 $, and $ \varepsilon = 0.01 $. $ S_{0}^{+} $ and $ S_{1}^{+} $ are not present. Blue dots are numerically computed eigenvalues

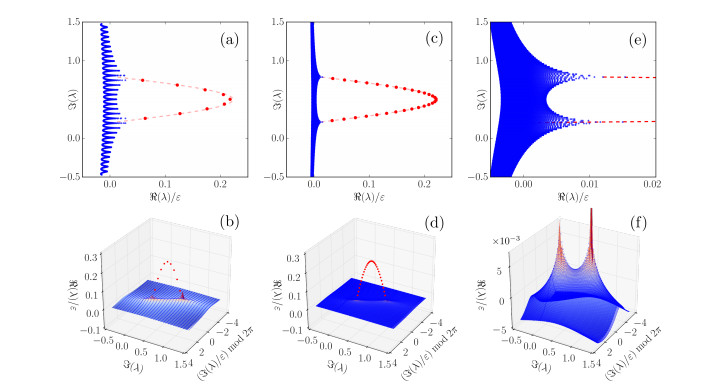

    Figure 3.  Eigenvalues of the characteristic equation (26) corresponding to two hierarchical delays. Two types of spectra coexisting: $ S_{1}^{+} $ (red) and $ S_{2} $ (blue). Panels (a)-(f) show the spectrum varying parameter $ \varepsilon $ (columns from left to right: $ \varepsilon = 0.01 $, $ \varepsilon = 0.003 $, $ \varepsilon = 0.003 $ (zoom)). Panels (a), (c), (e): approximation of the $ \tau_{1}- $spectrum (red) via spectral manifold $ \gamma^{(1)} $ (magenta dotted). Panels (b), (d), (f): approximation of the $ \tau_{2}- $spectrum (blue) via two-dimensional spectral manifolds $ \gamma^{(2)} $ (colored surface). Other parameters are $ a = -0.4+0.5i $, $ b = 0.5 $, and $ c = 0.3 $. $ S_{0}^{+} $ is not present. Blue dots are numerically computed eigenvalues
